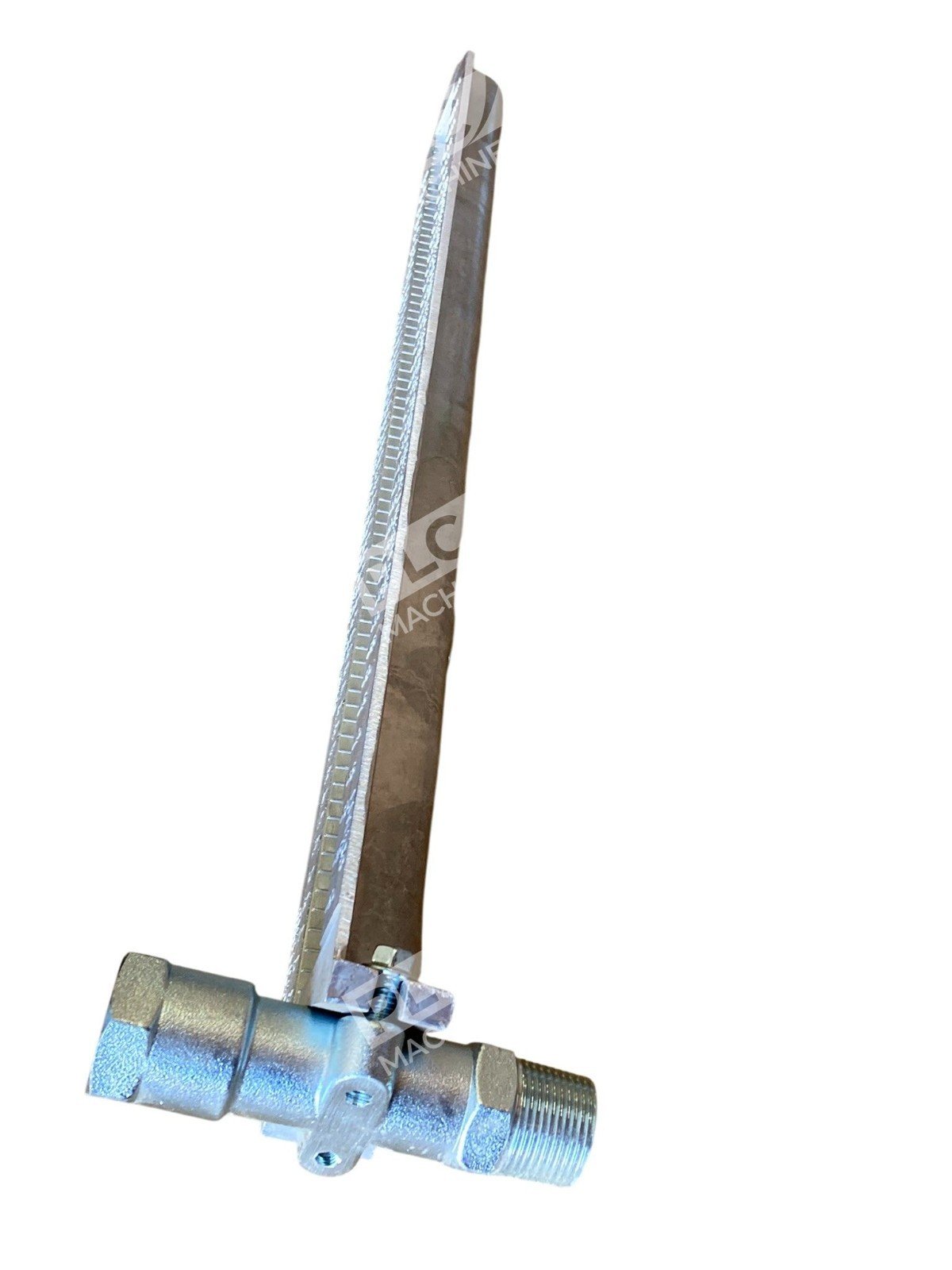

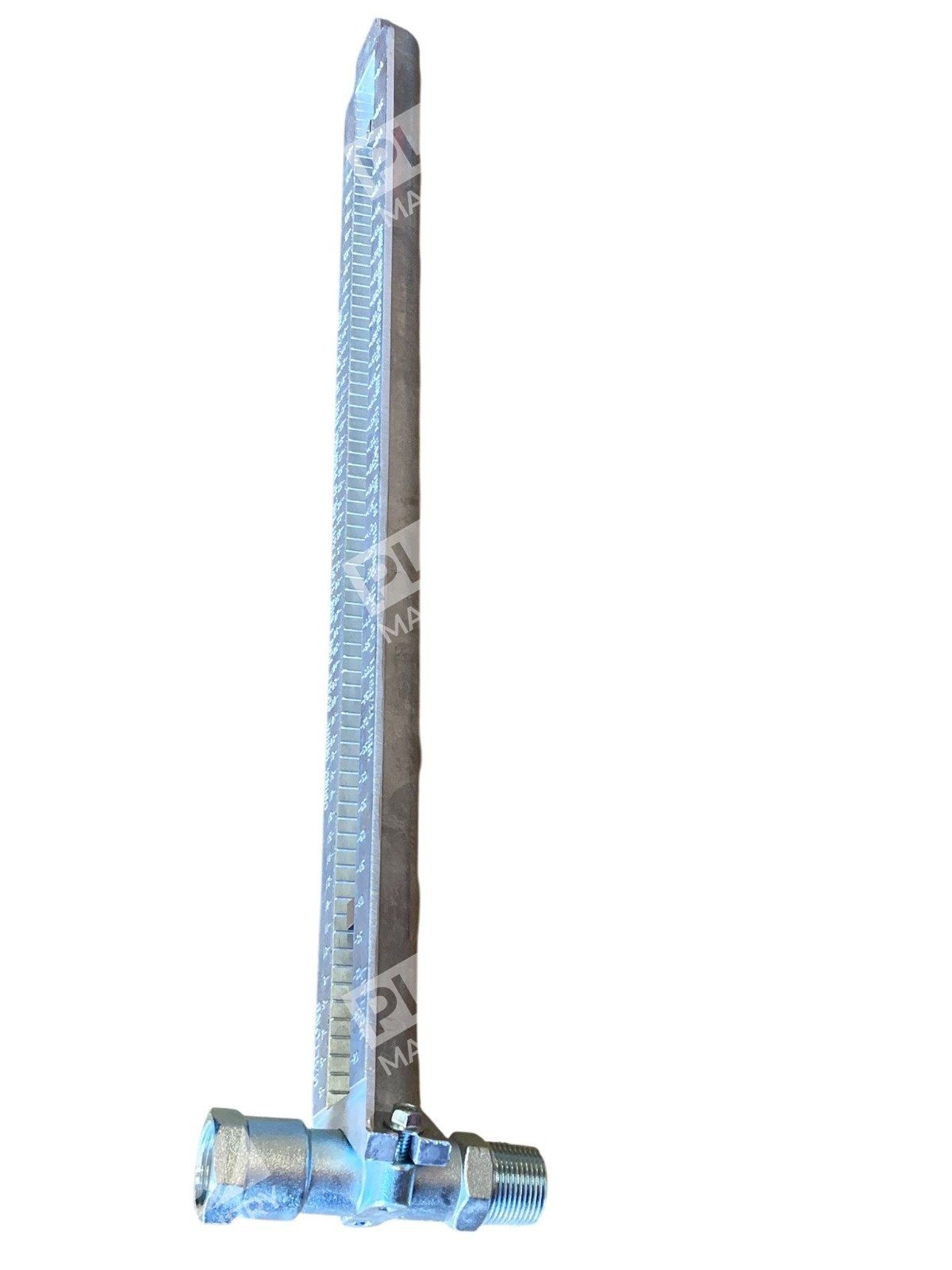

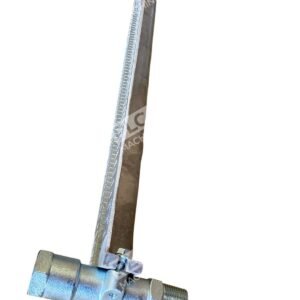

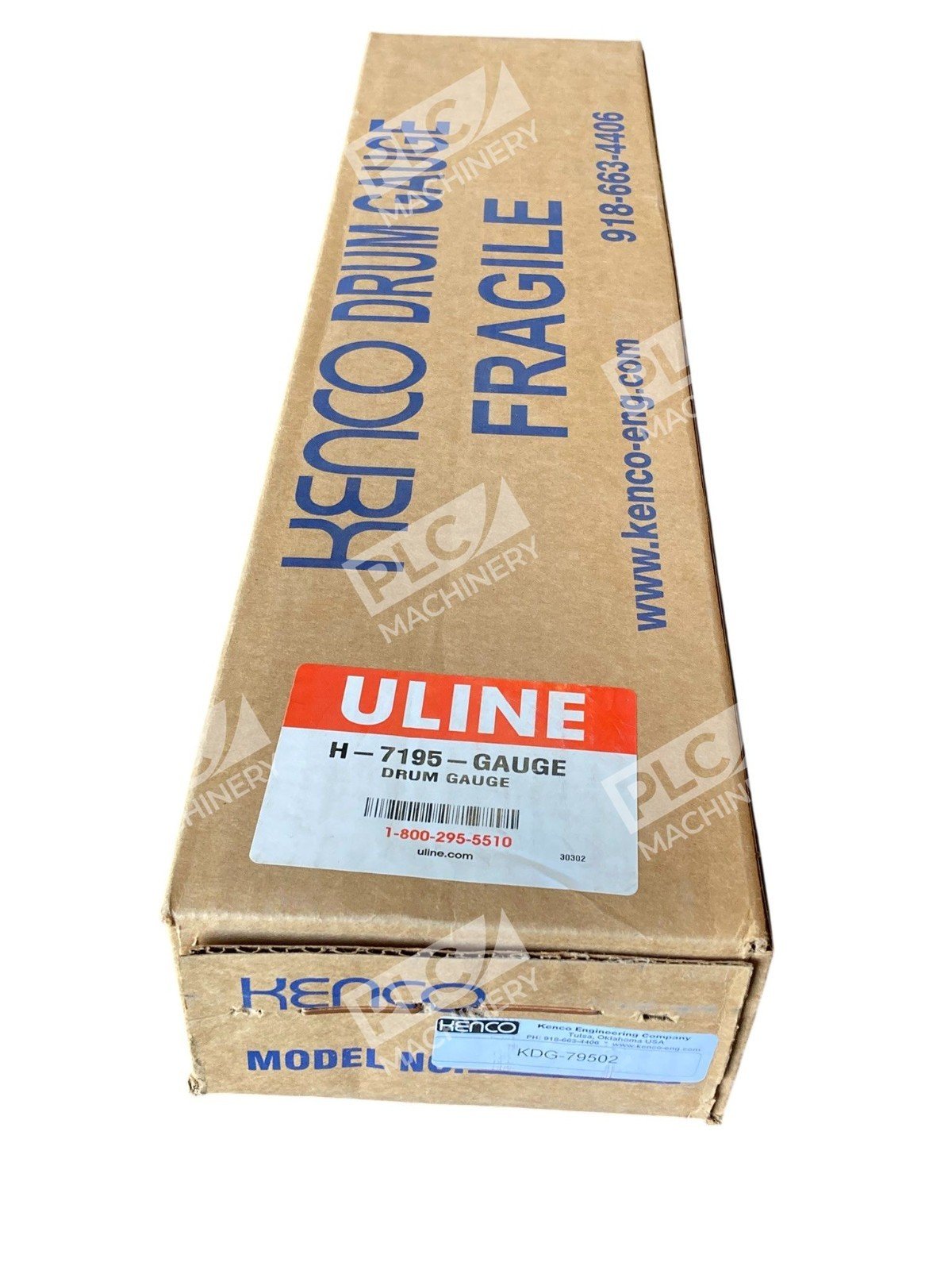

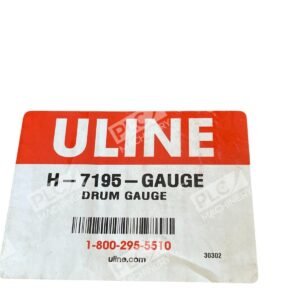

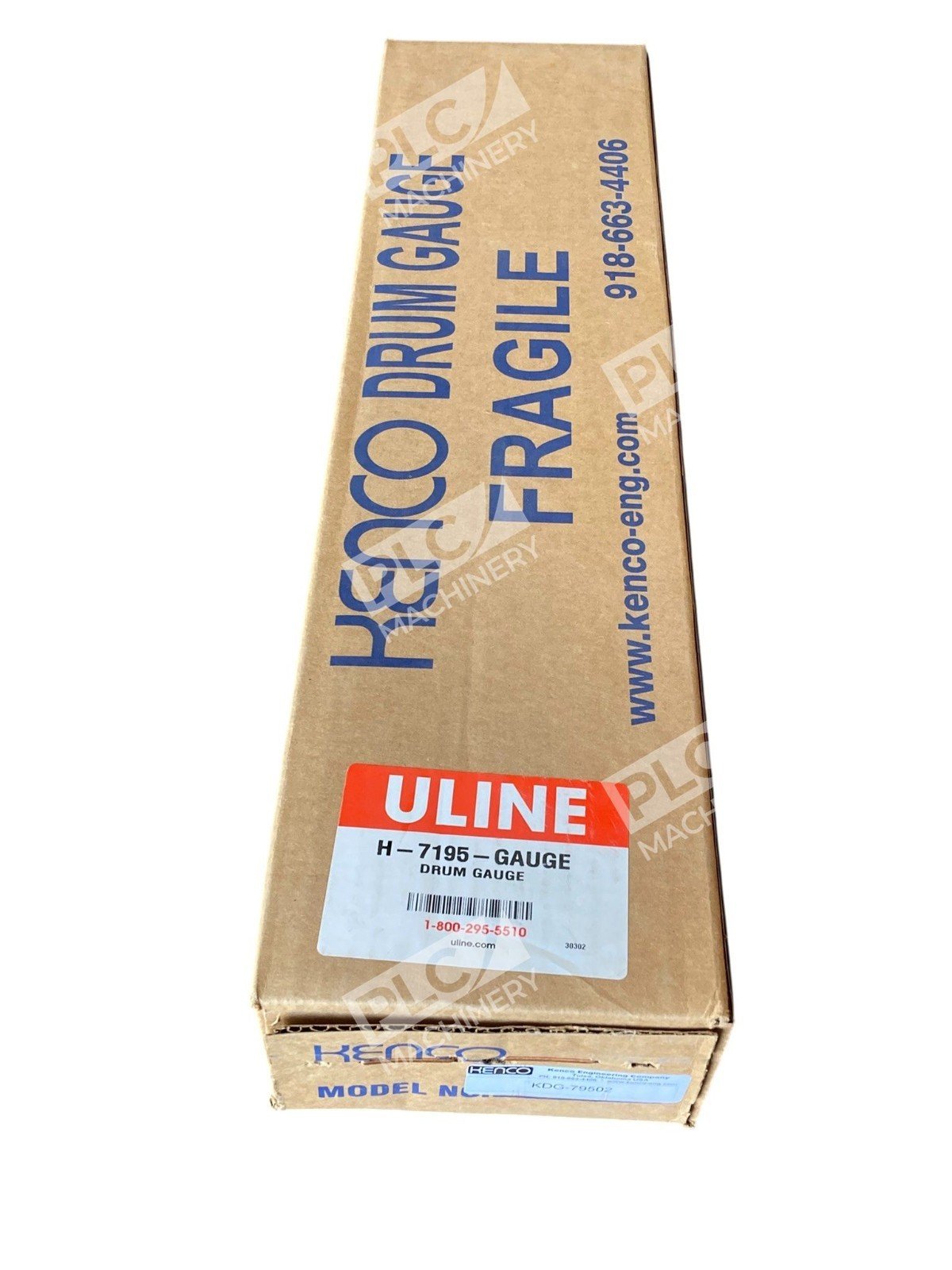

ULINE H-7195 DRUM GAUGE

The ULINE H-7195 Drum Gauge with Faucet is an essential tool for accurately monitoring and dispensing liquids from horizontal drums.

Key Features

• Compatibility: Designed for use with both plastic and steel drums, ensuring versatility across various applications.

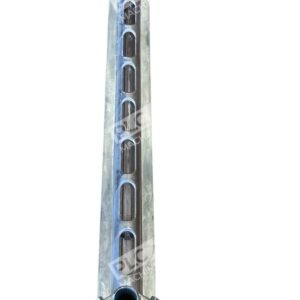

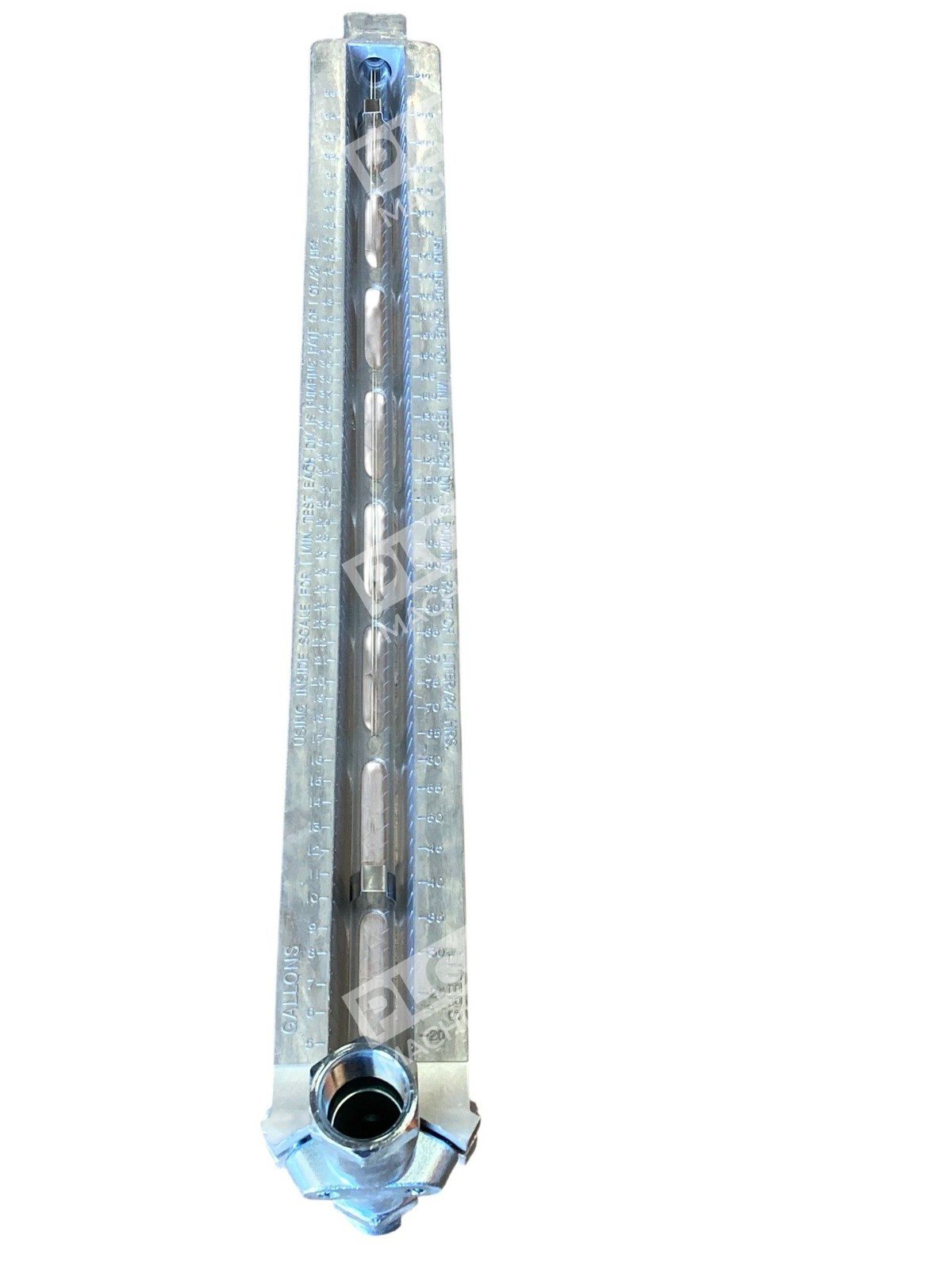

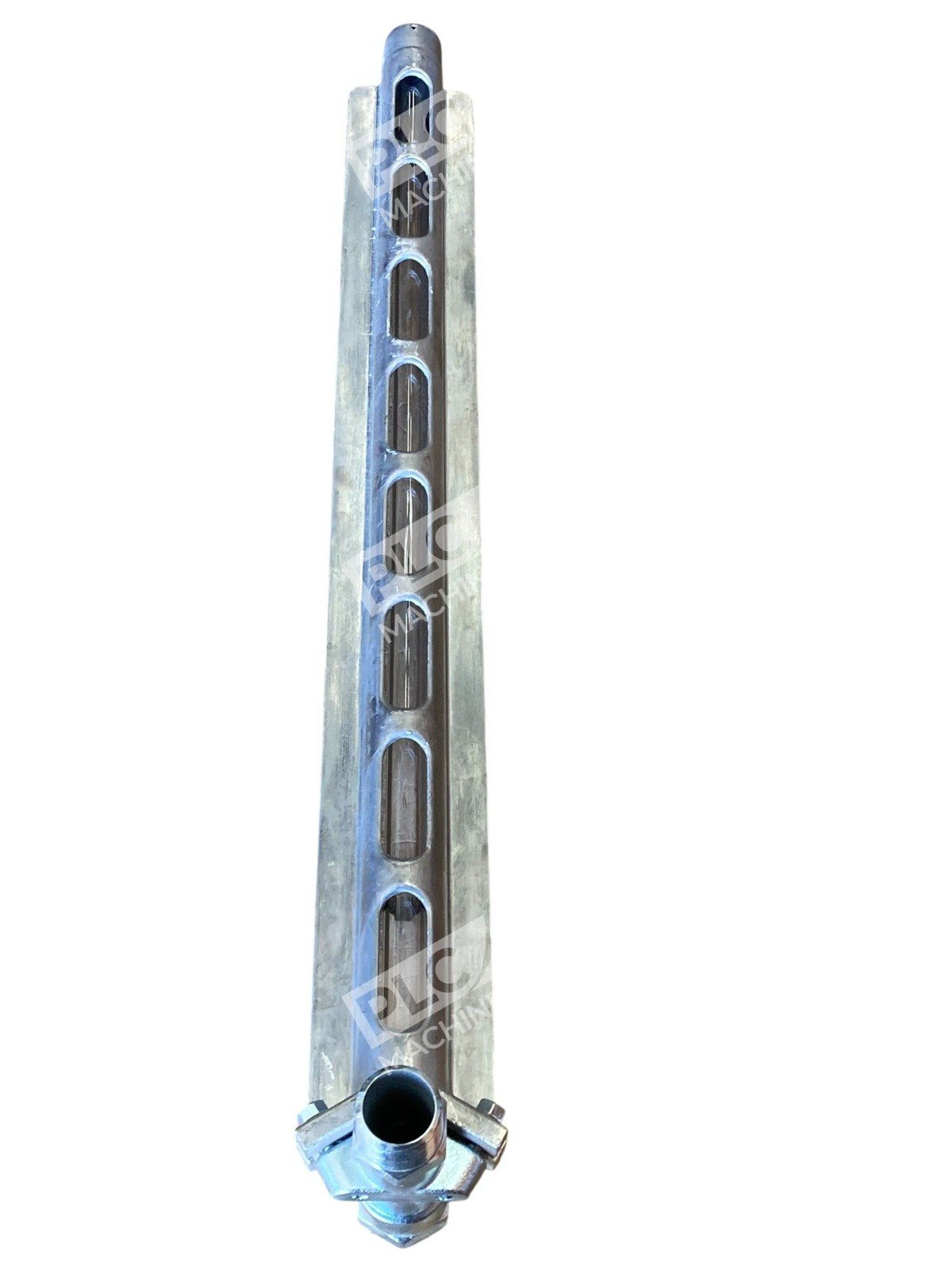

• Construction: Features a durable glass sight tube encased in a cast aluminum frame, providing clear visibility and robust protection.

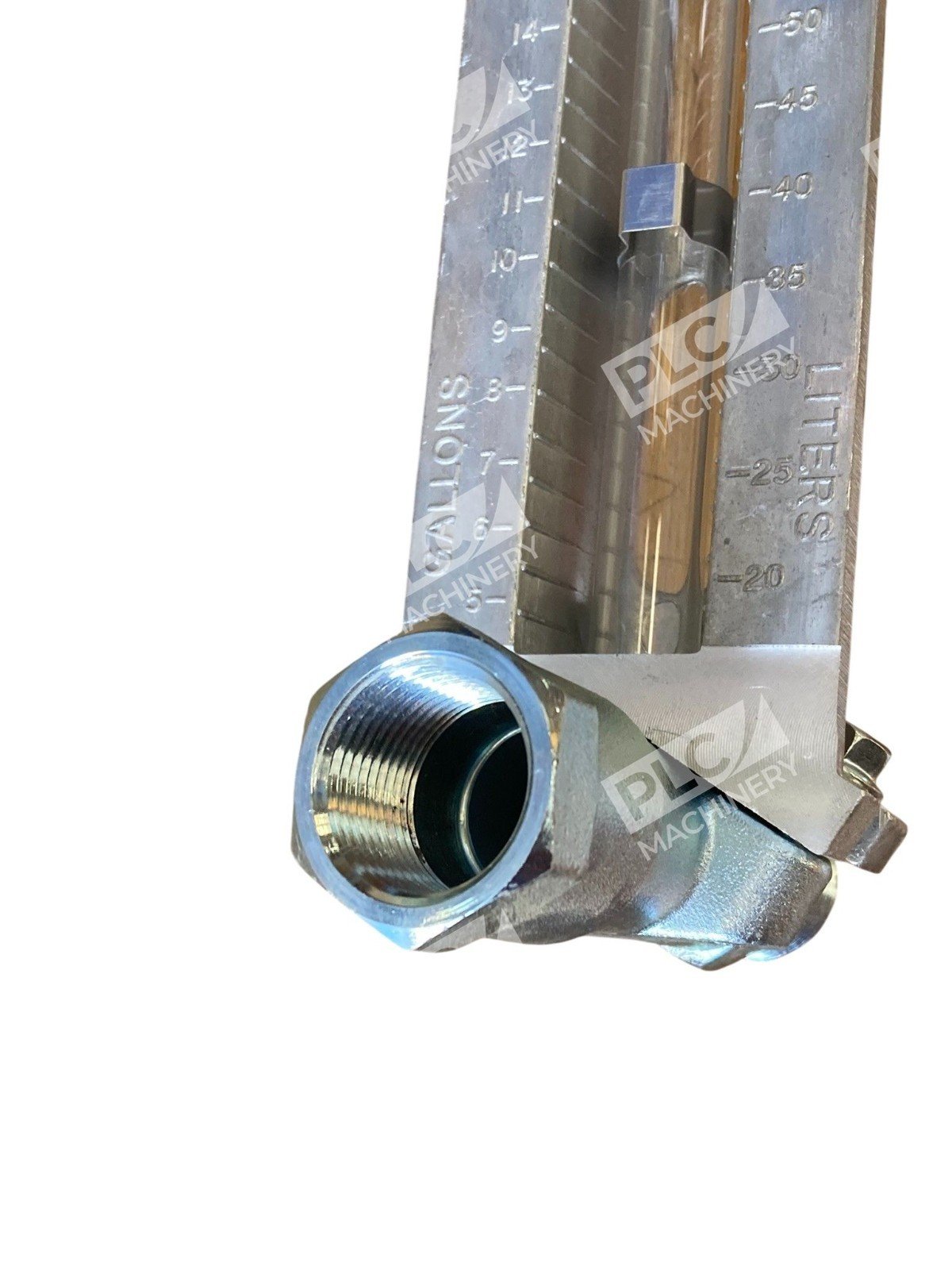

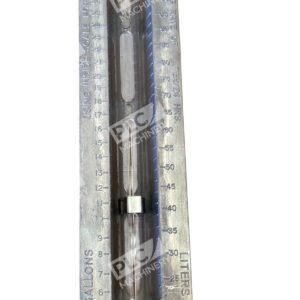

• Measurement Markings: Equipped with gallon and liter markings to facilitate precise volume readings.
• Efficient Dispensing: Includes a self-closing brass faucet capable of emptying a 55-gallon drum in approximately two minutes.

Specifications

• Dimensions:
  • Overall Length: 22 1/8 inches
  • Width: 2 1/2 inches

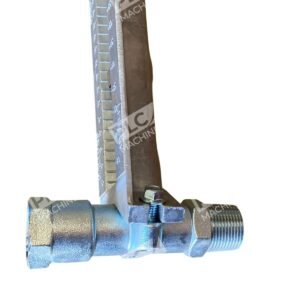

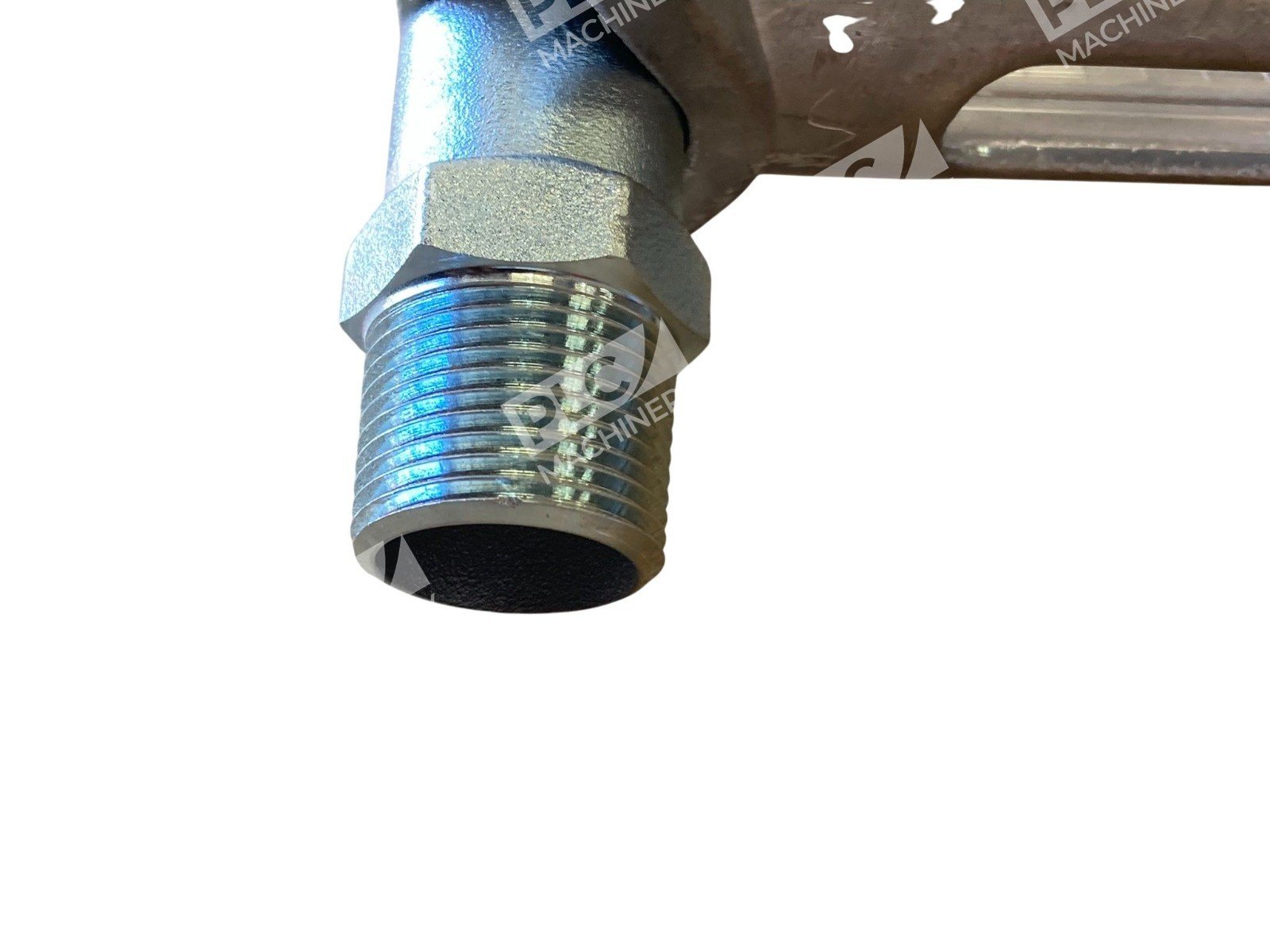

  • Connector Length: 4 1/2 inches

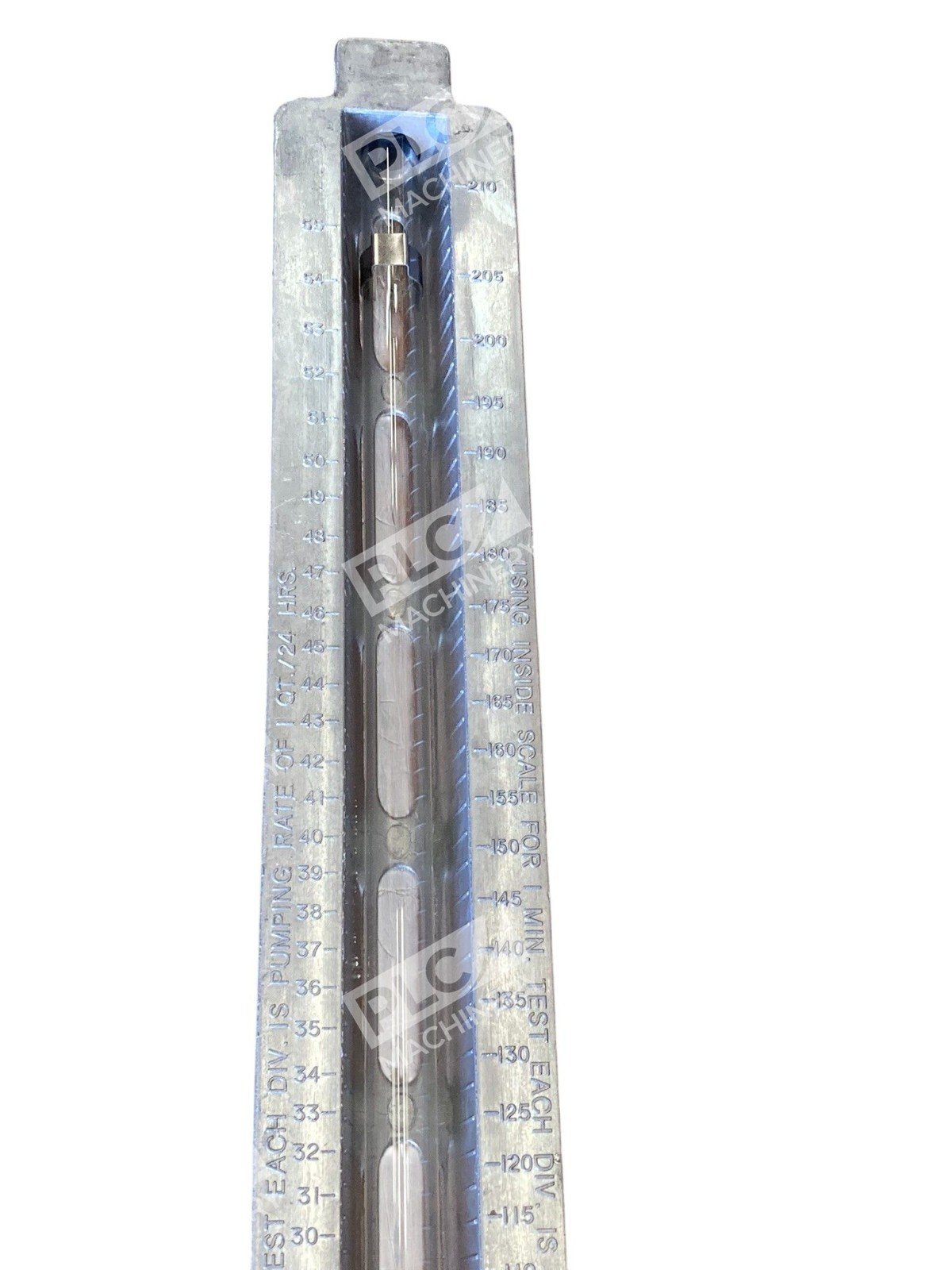

  • Glass Viewing Area: 19 1/2 inches
• Materials:
  • Seals: TFE (Tetrafluoroethylene)
  • Valve: Steel wetted components
• Temperature Range: Operates effectively between 15°F and 230°F.
• Compatibility:
  • Compatible with all ULINE steel drums and select plastic drums ranging from 5 to 55 gallons.
  • Not suitable for drums or tanks exceeding 55 gallons.
• Features:
  • Adjustable steel slide markers for calibration.
  • Glass tube may exhibit slight water residue due to individual quality testing.

Faucet Details

• Compatibility:

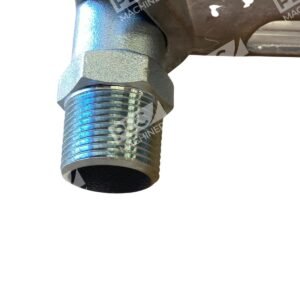

  • Suitable for 3/4″ NPT or fine thread openings.
  • Compatible with all ULINE steel drums and specified plastic drums.
  • Not recommended for use with corrosive substances, acids, highly alkaline liquids, or chlorinated solvents.
• Features:
  • Constructed with a steel handle and padlockable design for secure dispensing.
  • Includes a pail hook capable of supporting up to 100 lbs.
  • Equipped with a flame arrestor for added safety.
  • Adjustable shank allows for precise positioning once installed.
  • Brass construction offers chemical resistance.
• Specifications:
  • Not FDA compliant.
  • Not FM rated.

Usage Guidelines

• Ensure the drum is vented and positioned horizontally for accurate measurements.
• Open the second drum plug to facilitate proper venting.

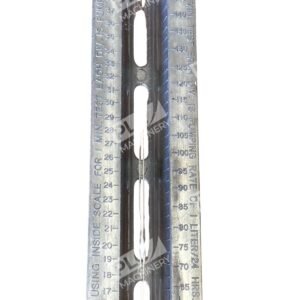

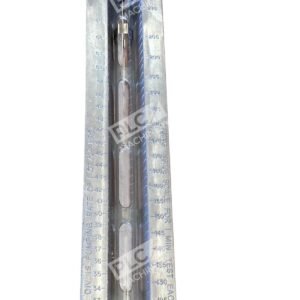

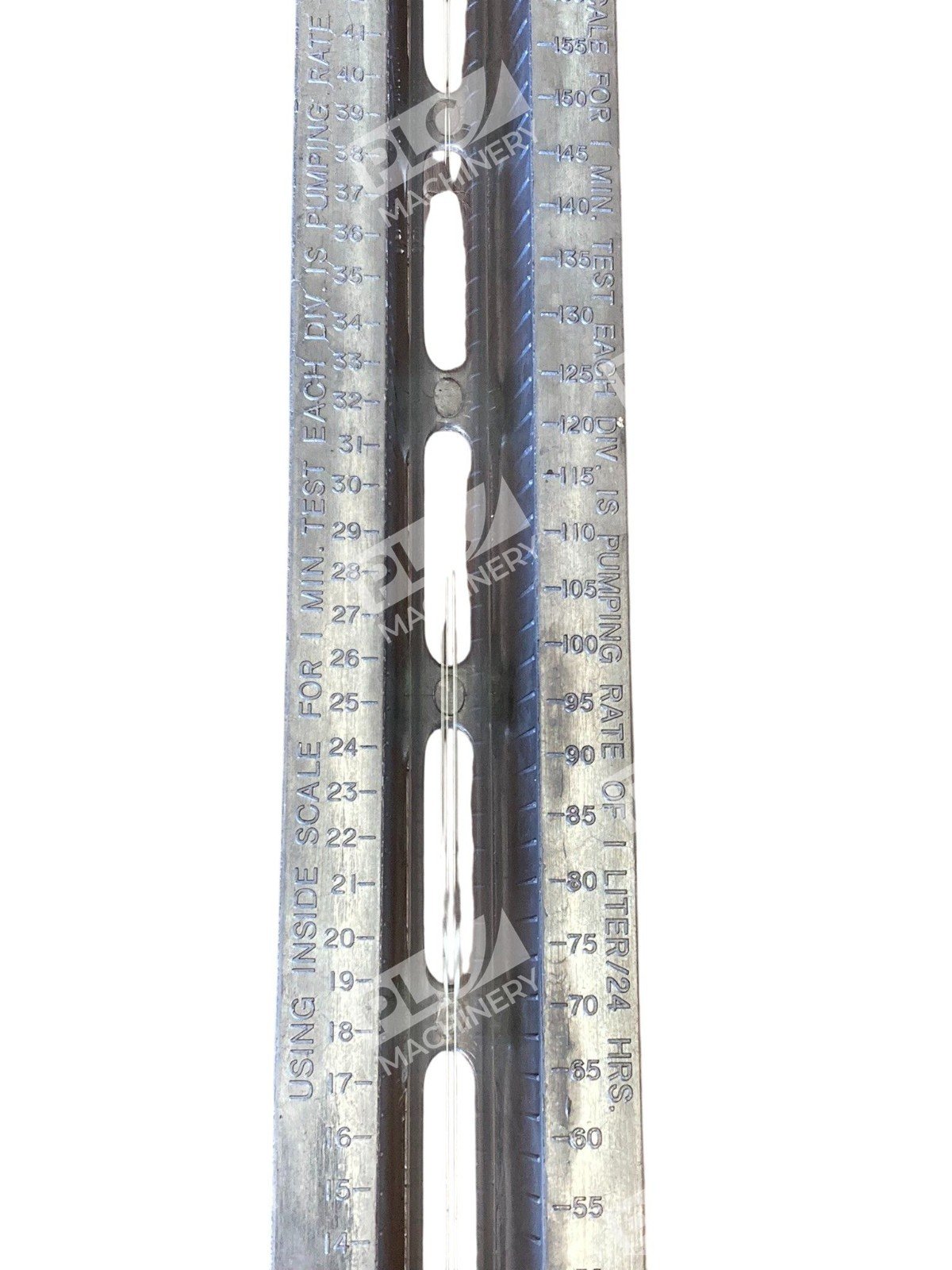

• Graduations are marked in 1-gallon increments and 5-liter increments for precise monitoring.

The ULINE H-7195 Drum Gauge with Faucet combines durability, precision, and efficiency, making it an invaluable asset for managing liquid levels and dispensing operations in industrial settings.
