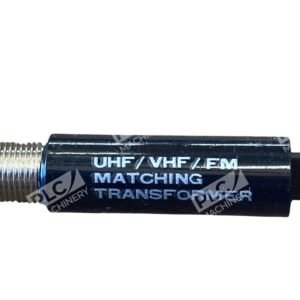

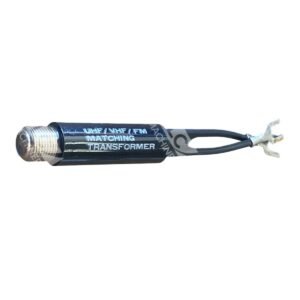

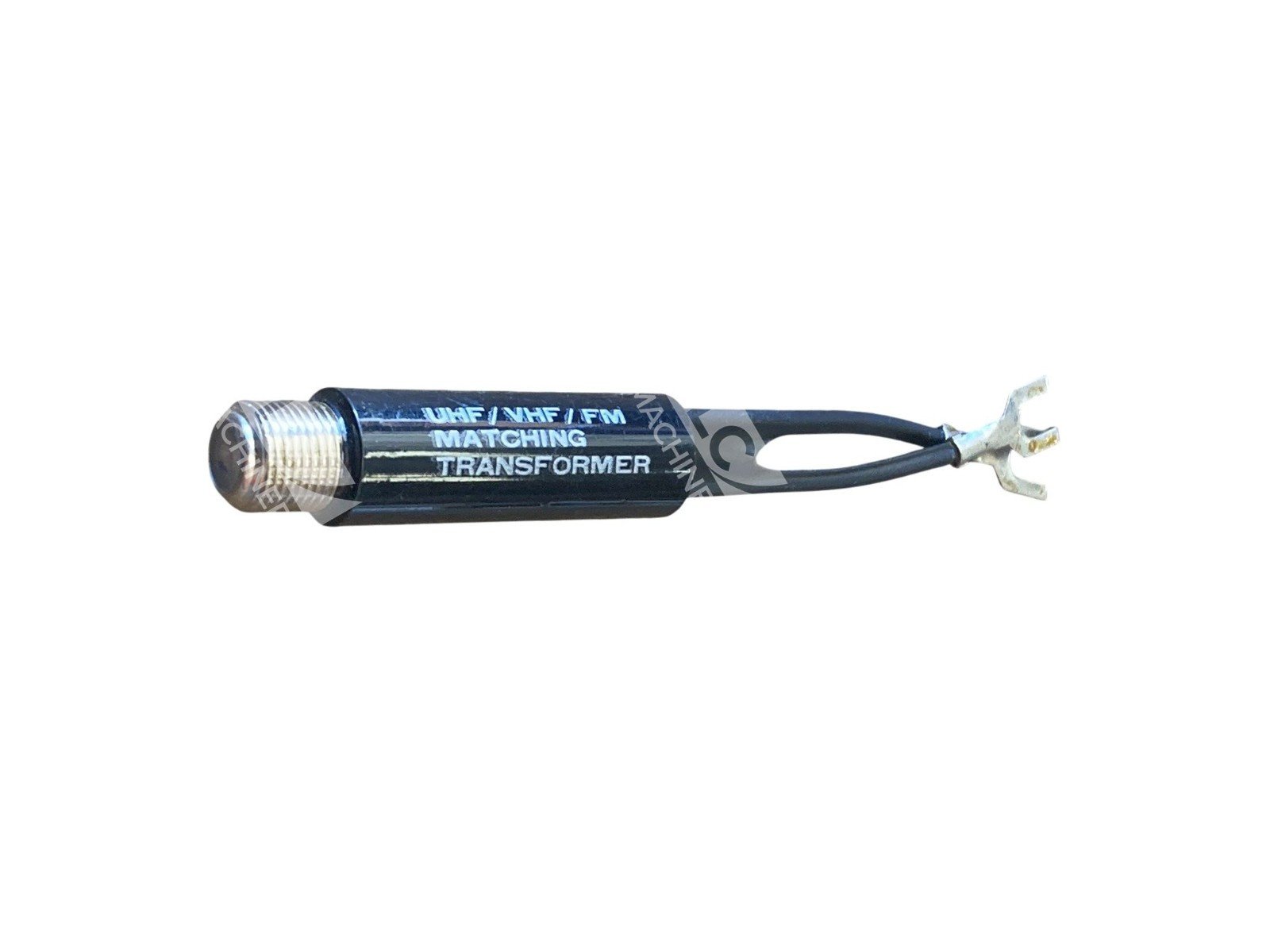

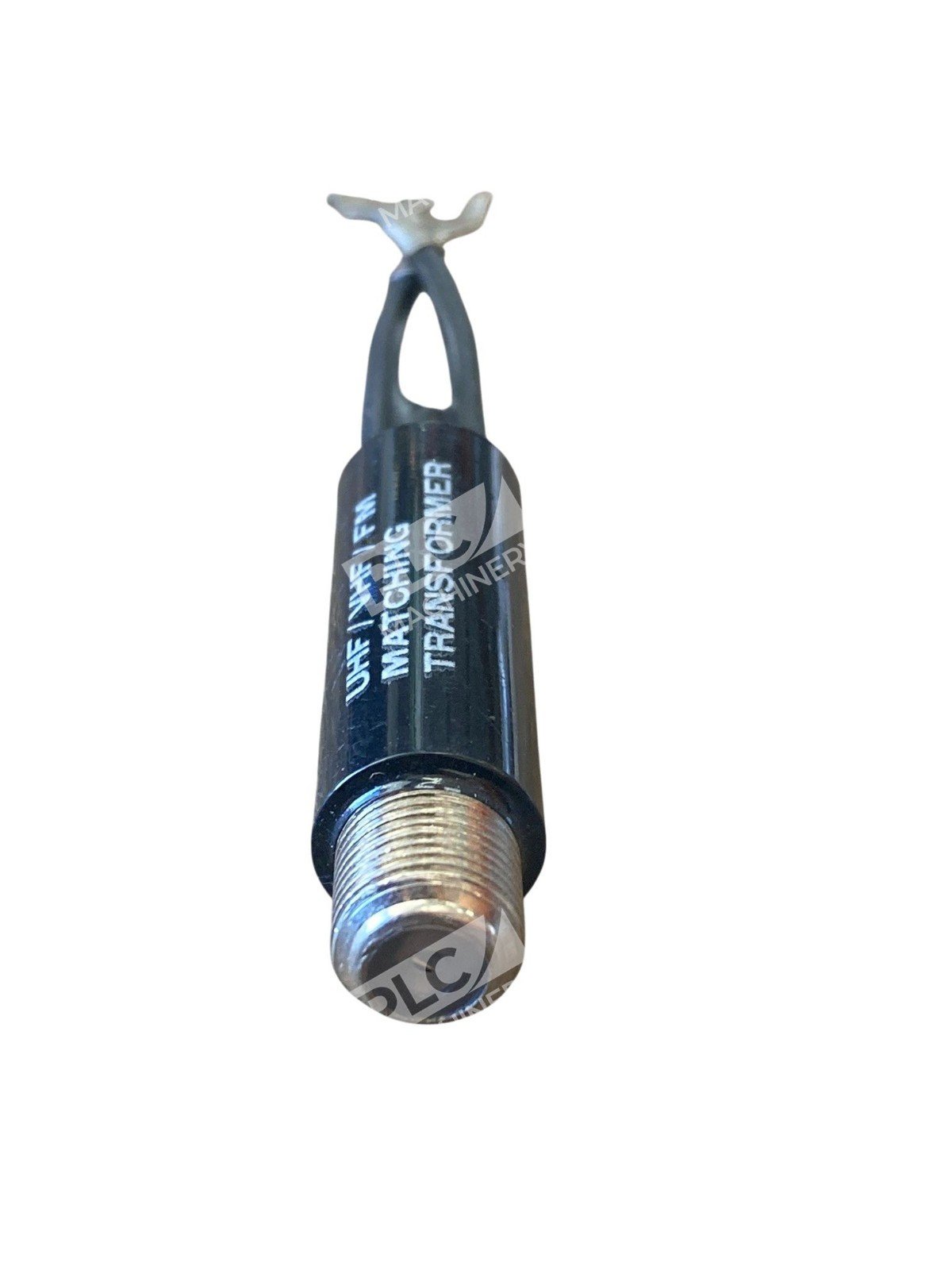

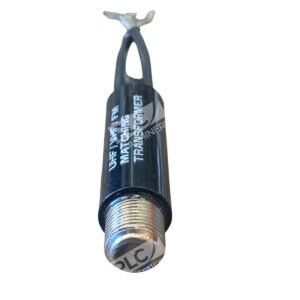

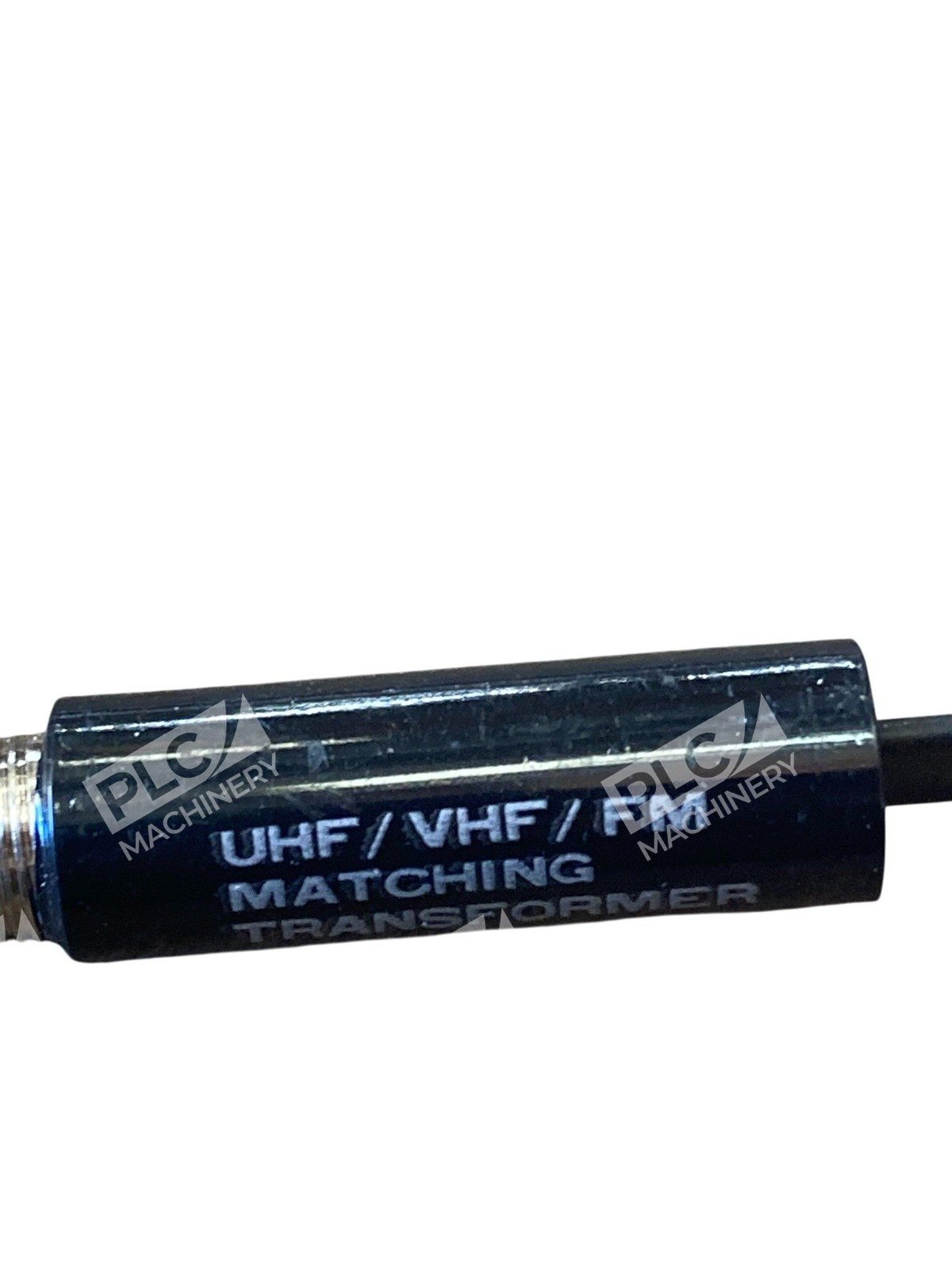

A UHF/VHF/FM Matching Transformer, commonly referred to as a balun (short for “balanced to unbalanced”), is an essential device for connecting traditional 300-ohm twin-lead antenna cables to modern 75-ohm coaxial inputs found on contemporary televisions, radios, and other audio-visual equipment.
Key Features
- Impedance Conversion: Effectively converts 300-ohm balanced signals from twin-lead antennas to 75-ohm unbalanced signals suitable for coaxial cable inputs, ensuring optimal signal transfer and minimizing loss.
- Broad Frequency Range: Designed to operate across a wide bandwidth, typically from 5 MHz to 900 MHz, accommodating FM, VHF, and UHF signals.
- Durable Construction: Many models feature weatherproof designs with sealed enclosures and protective boots, making them suitable for both indoor and outdoor installations.

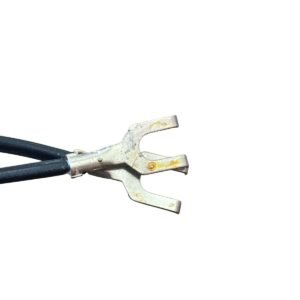

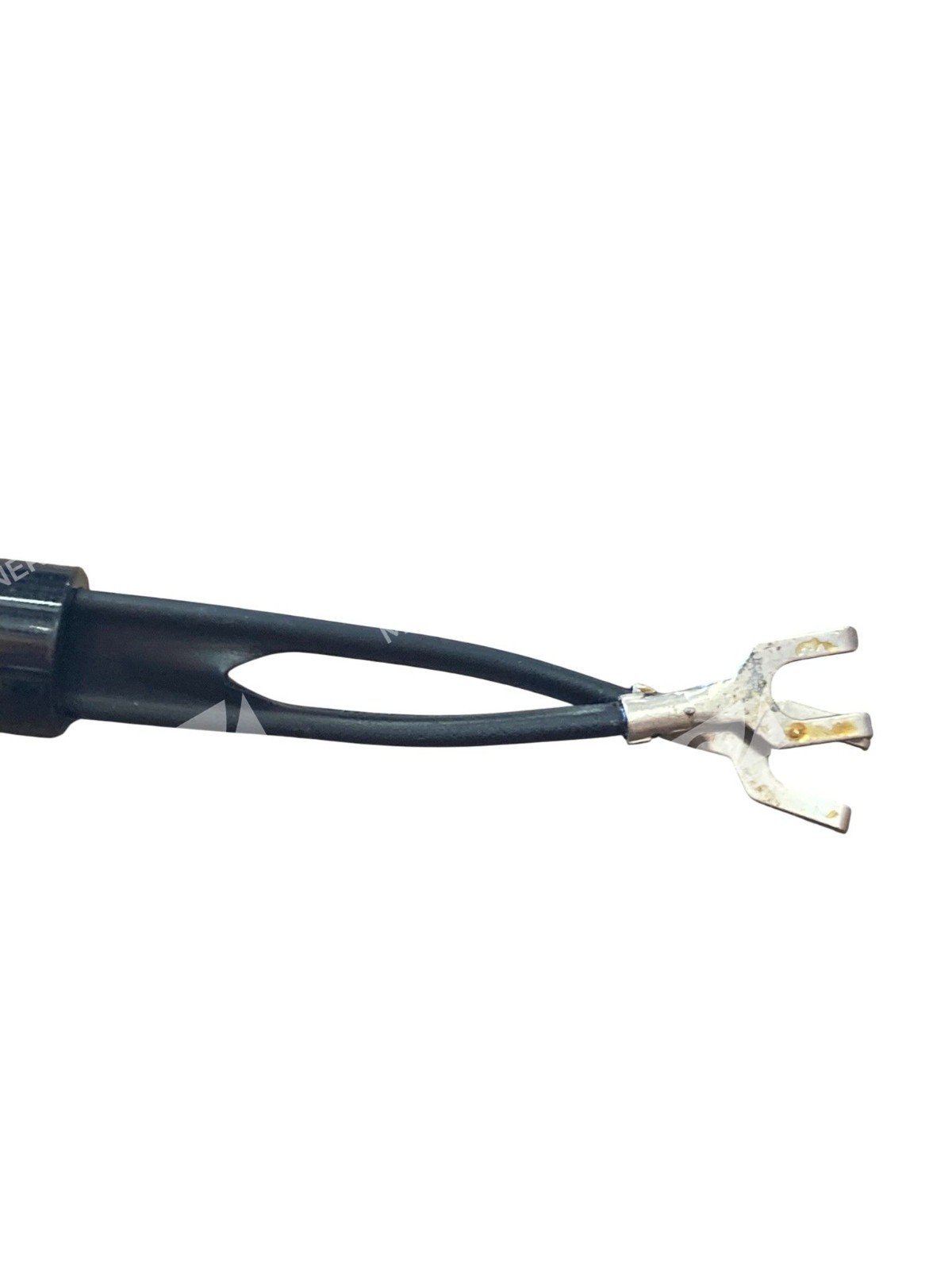

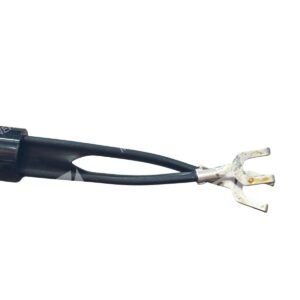

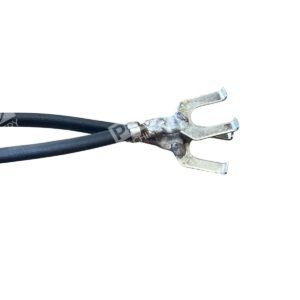

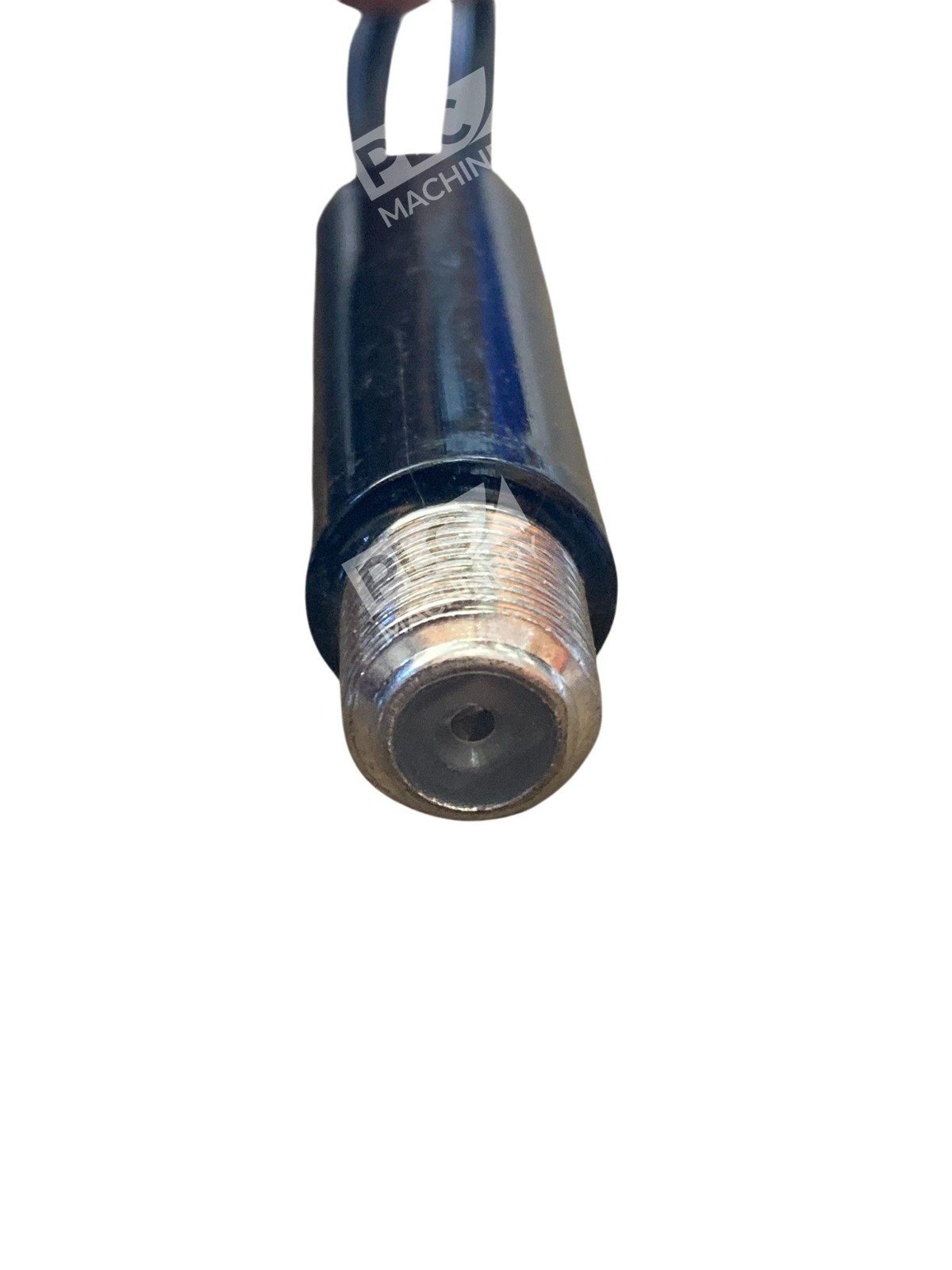

- Easy Installation: Equipped with twin-lead terminals for antenna connection and F-type coaxial connectors for device input, facilitating straightforward setup without the need for specialized tools.
Applications
Matching transformers are ideal for integrating older antenna systems with modern equipment, enhancing signal reception for television and radio broadcasts. They are particularly useful in areas with weak signal strength, as they help maintain signal integrity over long cable runs.
Product Variations
Various models are available to suit different installation needs:
- Indoor Models: Compact and lightweight, designed for easy integration within home entertainment systems.
- Outdoor Models: Built with robust materials and weatherproof features to withstand environmental elements, ensuring long-term reliability.
By utilizing a UHF/VHF/FM Matching Transformer, users can bridge the gap between legacy antenna systems and contemporary devices, ensuring clear and reliable reception of broadcast signals.
