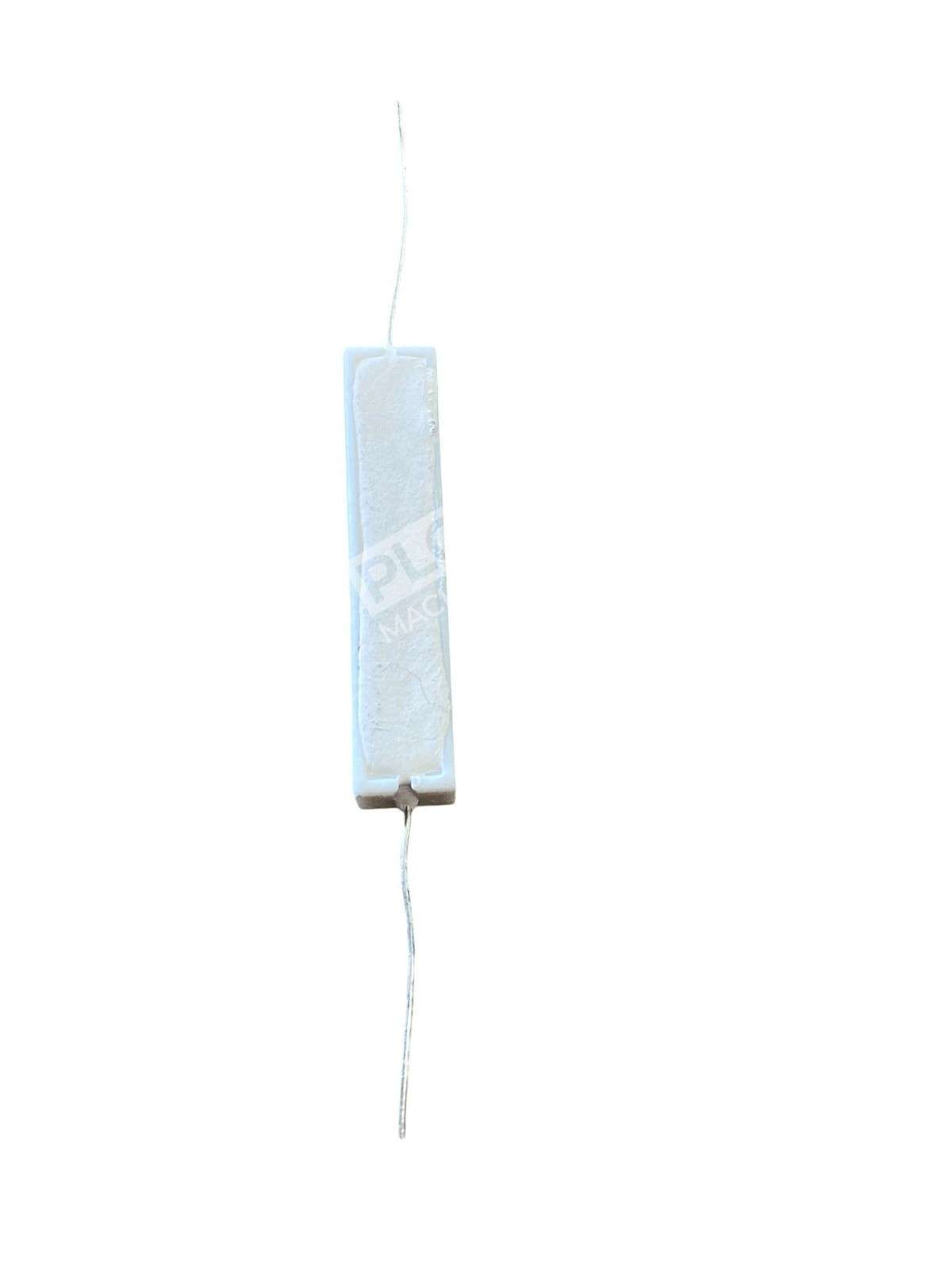

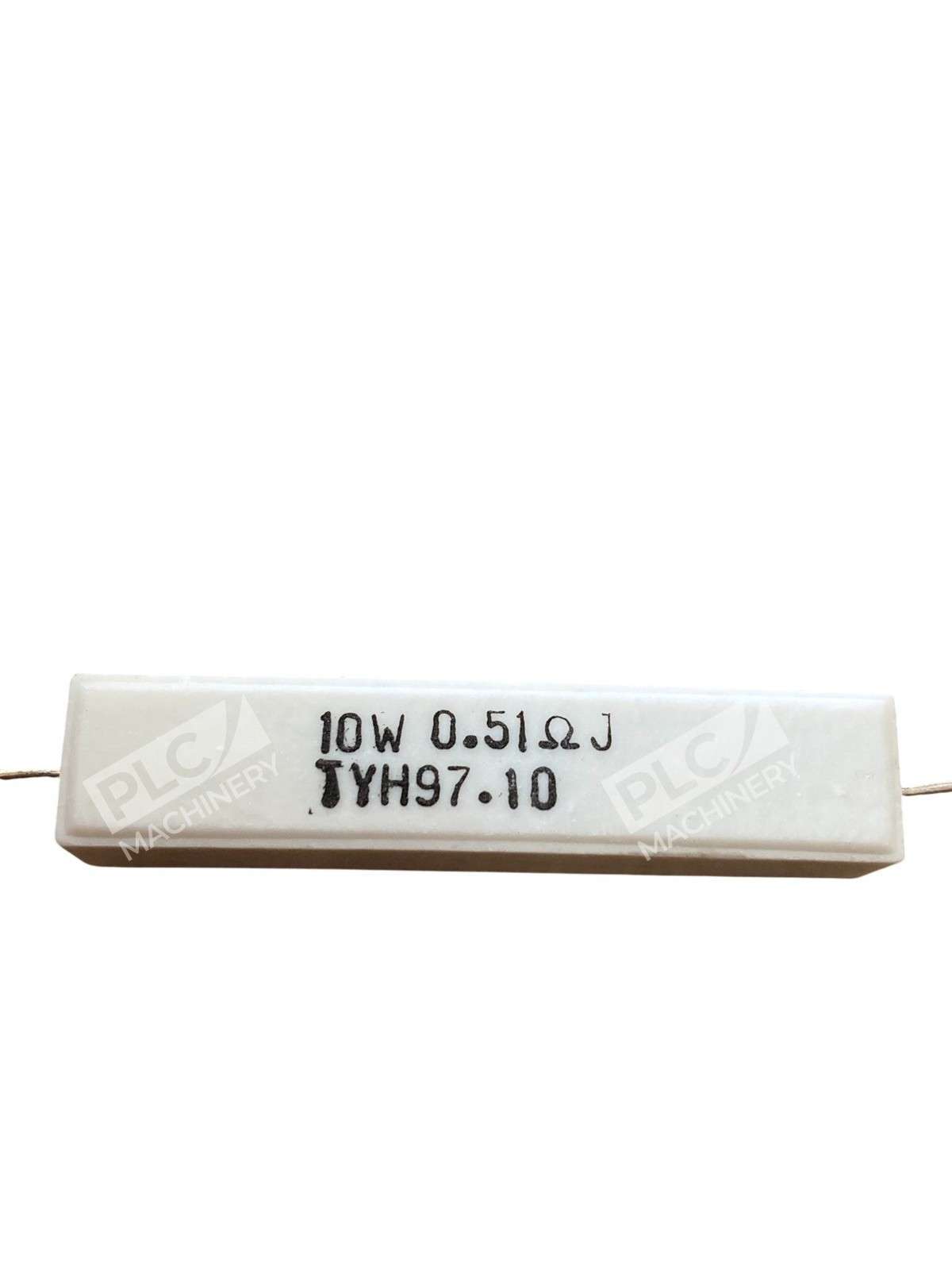

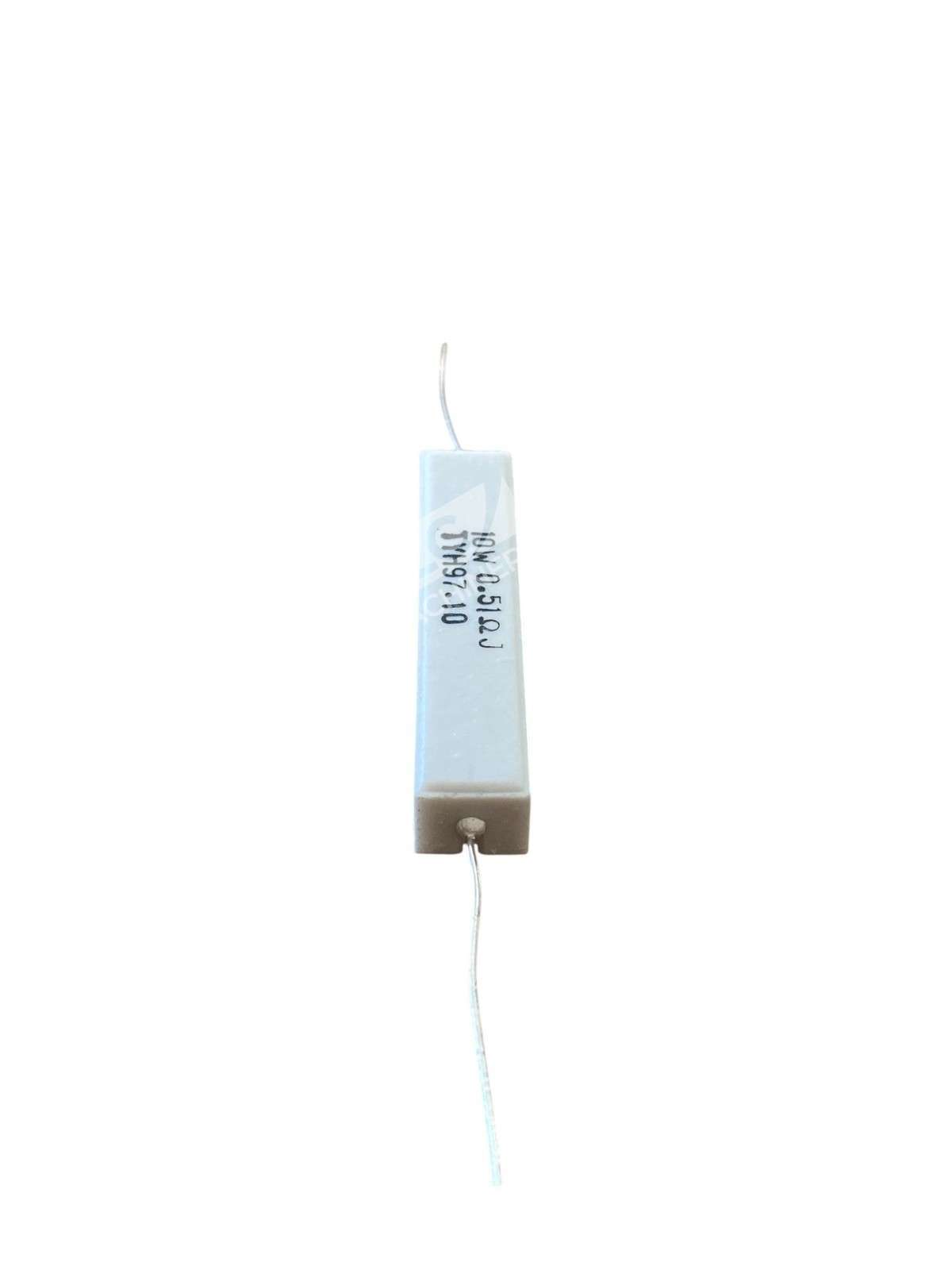

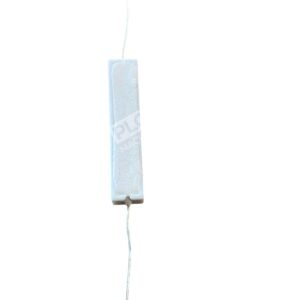

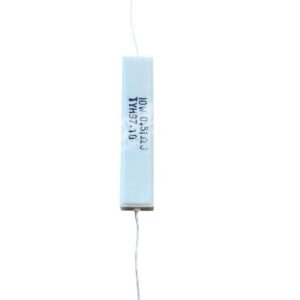

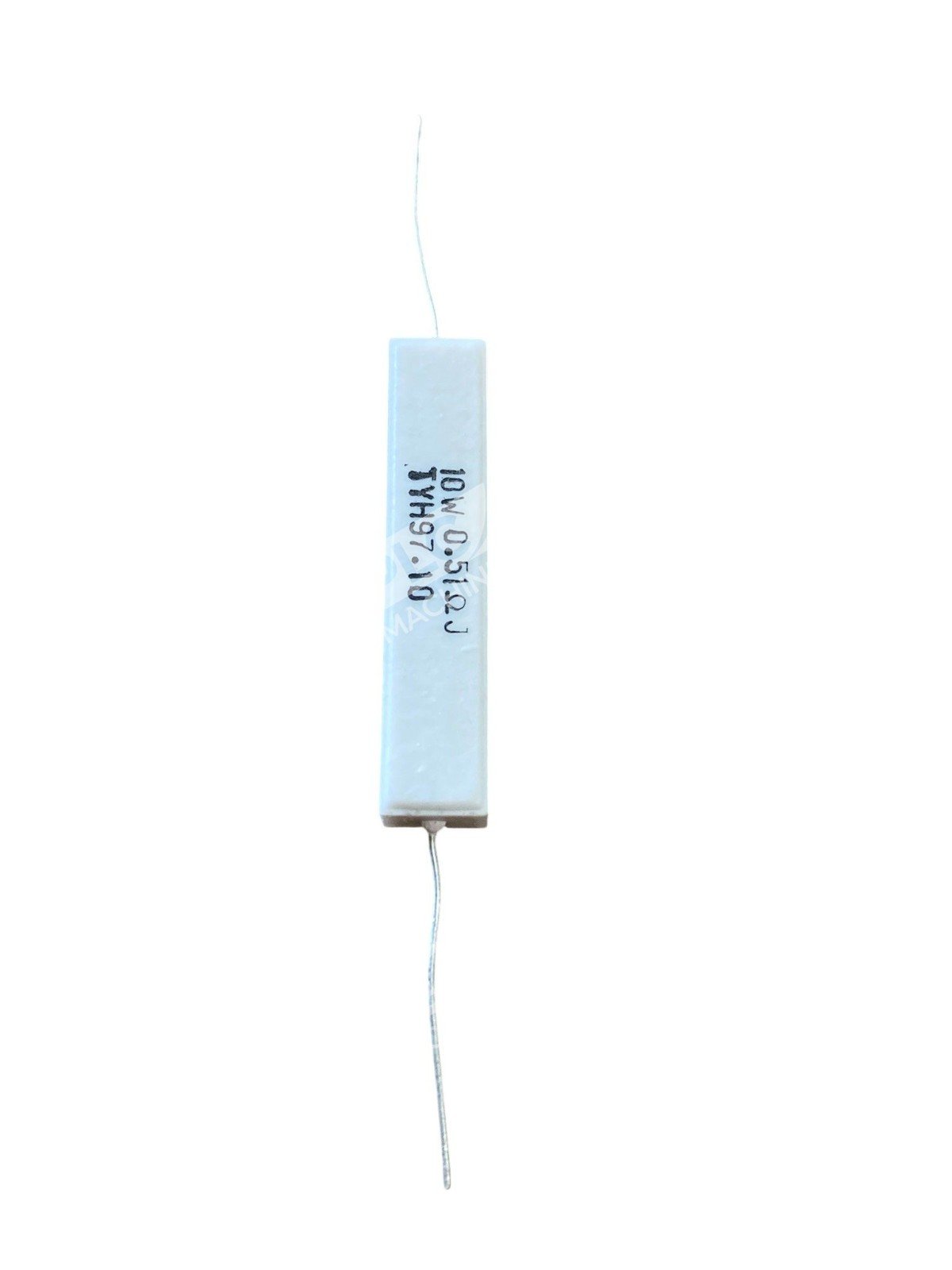

TYH97.10 Ceramic Wirewound Power Resistor Cement 0.51Ω 10W ±5%

TYH97.10 Ceramic Wirewound Power Resistor Cement 0.51Ω 10W ±5%

The TYH97.10 is a high-quality ceramic wirewound power resistor designed to deliver reliable performance in various electronic applications. With a resistance value of 0.51 ohms and a power rating of 10 watts, this resistor is ideal for circuits requiring precise current control and power dissipation.

Key Features

• Resistance Value: 0.51Ω
• Power Rating: 10W
• Tolerance: ±5%
• Construction: Wirewound
• Encapsulation: Cement-coated ceramic housing
• Temperature Coefficient: ±400ppm/°C for resistance values between 0.01Ω and 20Ω
• Operating Temperature Range: -55°C to +155°C
• Dielectric Withstanding Voltage: 1,000VAC

Design and Construction

The resistor features a robust wirewound construction, ensuring durability and stability under high-power conditions. The ceramic housing, sealed with a cement coating, provides excellent heat dissipation and flame resistance, enhancing the component’s safety and longevity.

Applications

Due to its precise resistance value and high power rating, the TYH97.10 resistor is suitable for a wide range of applications, including:

• Power adapters
• Audio equipment
• Audio frequency dividers
• Instruments and meters
• Television sets
• Automotive electronics

Dimensions

The resistor’s compact design allows for easy integration into various circuit layouts. Typical dimensions are approximately 48mm in length, 10mm in width, and 9mm in height, with lead diameters of 0.8mm and lead lengths of 27mm on each end.

Performance Characteristics

The TYH97.10 resistor exhibits excellent performance characteristics, including:

• High load capacity
• Low noise operation
• Good heat dissipation
• Moisture resistance
• Shock resistance
• Short-term overload resistance

These attributes make it a reliable choice for applications requiring stable and efficient power dissipation.

Compliance and Standards

The TYH97.10 resistor complies with industry standards, ensuring quality and reliability in its performance. It meets specifications for temperature coefficient, dielectric withstanding voltage, and resistance tolerance, making it suitable for use in demanding electronic environments.

In summary, the TYH97.10 Ceramic Wirewound Power Resistor is a dependable component that combines precise resistance, high power handling, and robust construction, making it an excellent choice for various electronic applications.
