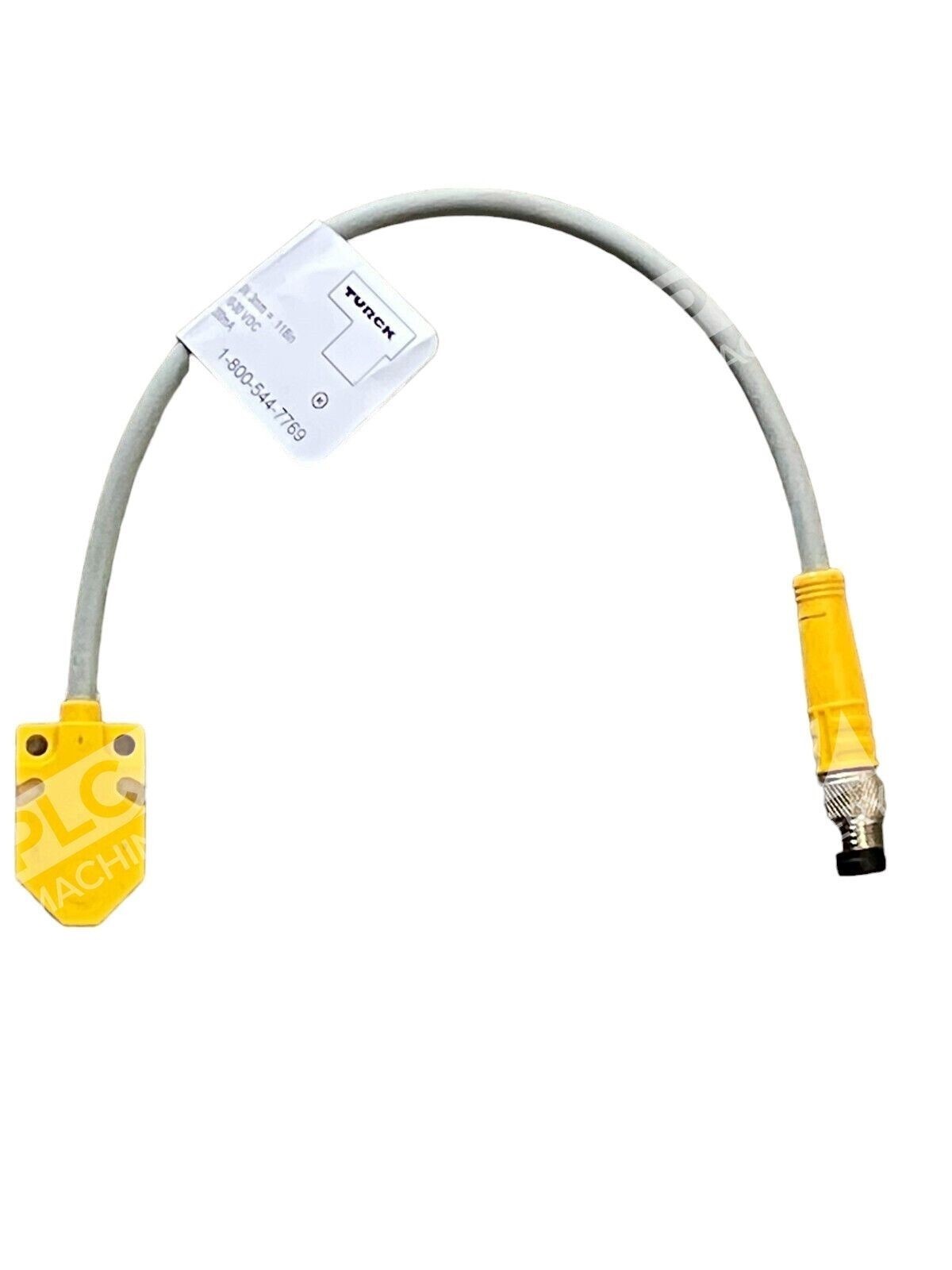

Turck BI 3-Q06-AP6X2-0.2M-PSG 3M Inductive Sensor

Turck BI 3-Q06-AP6X2-0.2M-PSG 3M Inductive Sensor

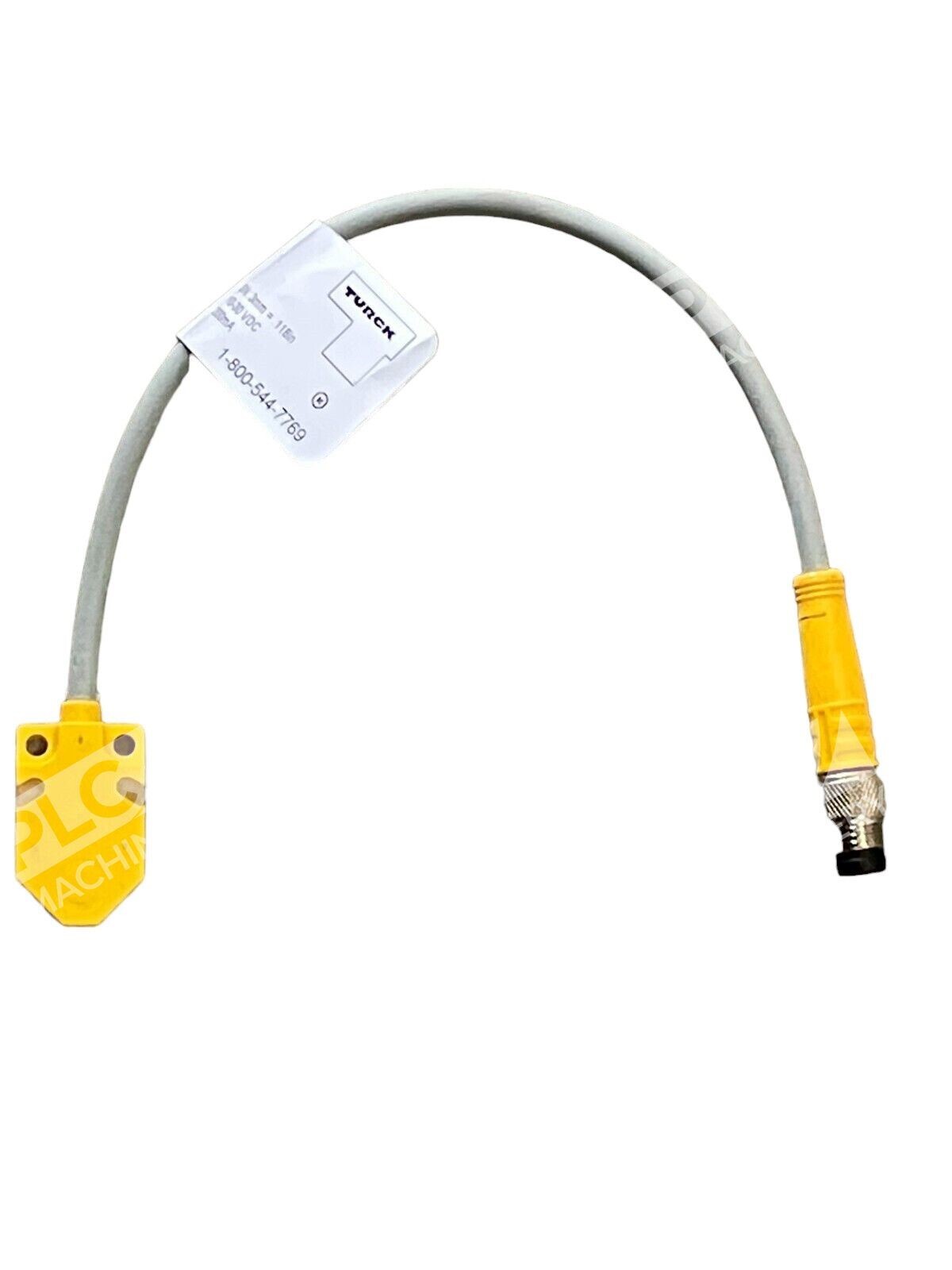

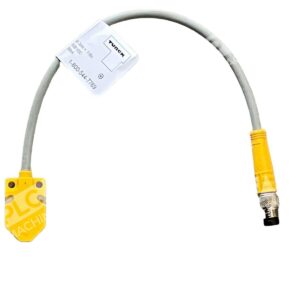

The Turck BI 3-Q06-AP6X2-0.2M-PSG 3M is a high-performance inductive sensor designed for precise and reliable object detection in industrial applications. Its compact rectangular design, measuring 27.8 x 17.3 x 6 mm, allows for easy integration into various systems.

Key Features

• Design and Construction: Rectangular housing with a height of 6 mm, featuring an active face on the top for optimal sensing capabilities.
• Material: Constructed from durable plastic (PA12-GF30), ensuring longevity and resistance to industrial environments.
• Electrical Specifications: Operates on a DC 3-wire system with a voltage range of 10 to 30 VDC, providing flexibility for different power supplies.
• Output Function: Equipped with a normally open (NO) contact and PNP output, facilitating straightforward integration with control systems.
• Switching Distance: Offers a rated switching distance of 3 mm, suitable for close-range object detection.
• Mounting: Designed for flush mounting, allowing seamless installation without protrusions.
• Connection: Features a 0.2-meter pigtail cable with an M8 x 1 snap-lock connector, ensuring secure and quick connections.
• Environmental Protection: Rated IP67, providing complete protection against dust ingress and temporary immersion in water.
• Operating Temperature: Functions effectively within a temperature range of -25°C to +70°C, accommodating various industrial conditions.

The Turck BI 3-Q06-AP6X2-0.2M-PSG 3M inductive sensor is engineered to deliver reliable performance in demanding industrial environments, making it an ideal choice for applications requiring precise object detection and robust construction.
