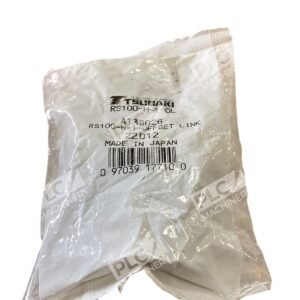

The Tsubaki RS100-H-1-OL Offset Link, also known as a half link, is an essential component designed for ANSI 100 Heavy Duty Roller Chains. This offset link is specifically engineered to adjust the chain length by a single pitch, accommodating applications that require an odd number of pitches.
Key Features
- Compatibility: Tailored for ANSI 100 Heavy Duty Roller Chains with a 1.25-inch pitch, ensuring seamless integration and optimal performance.
- Durability: Constructed with through-hardened pins and link plates, the RS100-H-1-OL offers enhanced tensile strength and shock load resistance, making it suitable for demanding industrial applications.
- Design: The offset link design allows for precise chain length adjustments, facilitating maintenance and installation in systems where exact chain length is critical.
Technical Specifications
- Pitch (P): 1.25 inches
- Roller Diameter (R): 0.75 inches
- Width Between Roller Link Plates (W): 0.75 inches
- Average Tensile Strength: 31,900 lbs
- Maximum Allowable Load: 5,510 lbs
Applications
The RS100-H-1-OL Offset Link is ideal for various heavy-duty applications, including:
- Industrial Machinery
- Conveyor Systems
- Agricultural Equipment
- Construction Equipment
- Material Handling Equipment
- Power Transmission Systems
- Forestry and Lumber Mills
- Cement and Aggregate Industry
Installation Considerations
While offset links provide flexibility in chain length adjustments, it’s important to note that their use may reduce the fatigue strength of the chain. Therefore, offset links should be used judiciously, especially in high-speed or shock-loaded applications. For optimal performance and safety, ensure proper installation and regular maintenance of the chain system.
In summary, the Tsubaki RS100-H-1-OL Offset Link is a robust and reliable solution for adjusting the length of ANSI 100 Heavy Duty Roller Chains, offering enhanced strength and versatility for a wide range of industrial applications.
