Tend 15A 250VAC Micro Basic Switch Panel Mount Plunger TM-1307

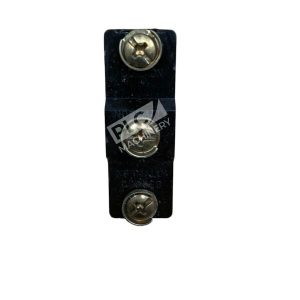

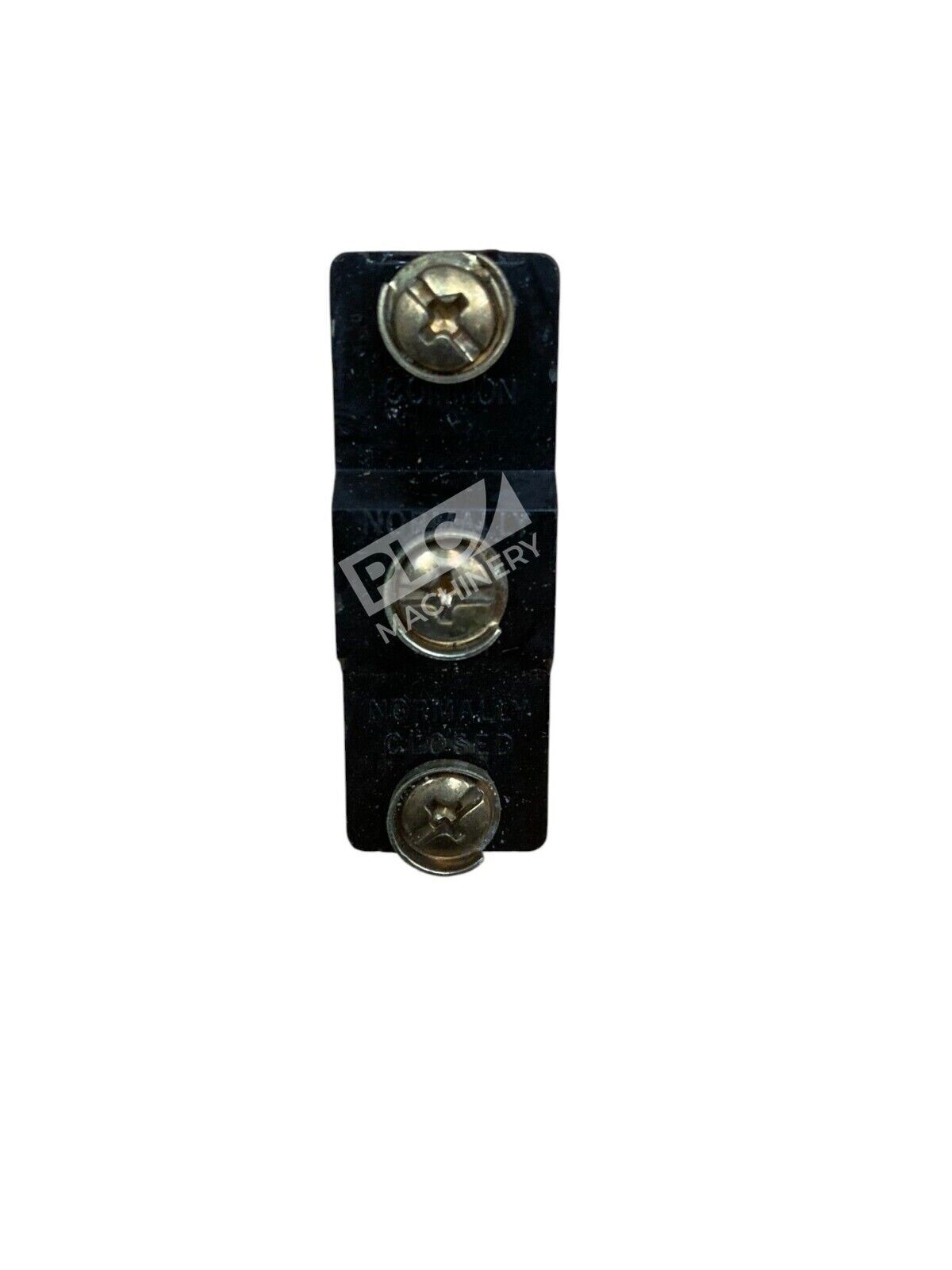

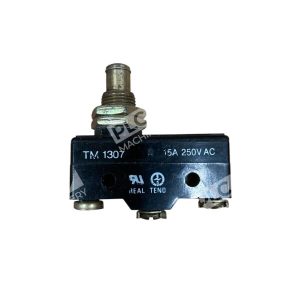

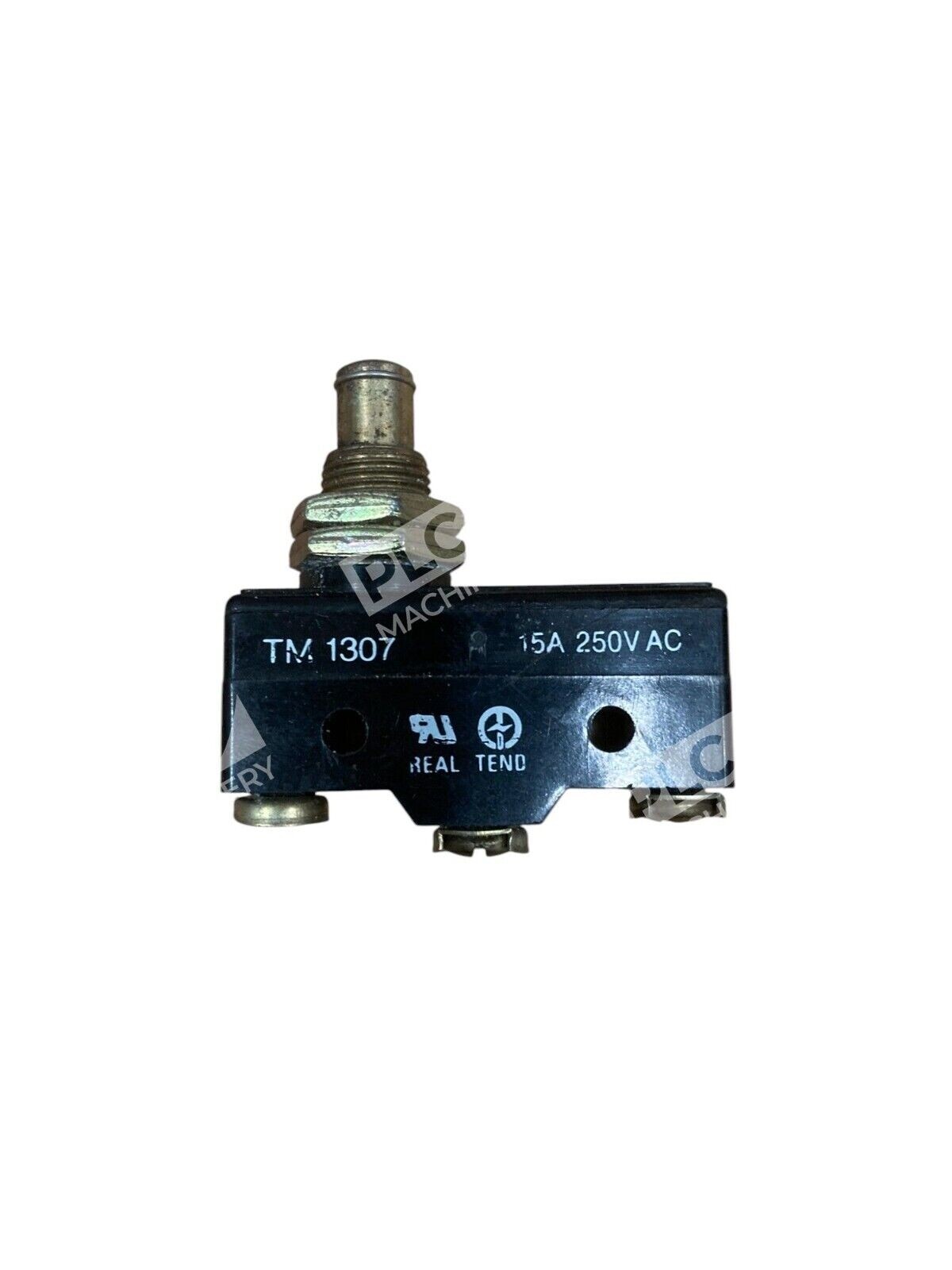

Tend TM-1307 Micro Basic Switch with Panel Mount Plunger

The Tend TM-1307 is a high-precision micro switch designed for reliable performance in various industrial applications. Its robust construction and versatile features make it an ideal choice for professionals seeking durability and accuracy.

Key Features

• High Switching Capacity: Capable of handling up to 15A at 250VAC, ensuring efficient operation in demanding environments.
• Panel Mount Plunger Actuator: Equipped with a panel mount plunger actuator for precise and consistent actuation.
• Versatile Contact Configuration: Features a single-pole double-throw (SPDT) configuration, providing both normally open (NO) and normally closed (NC) contacts for flexible integration.
• Durable Construction: Built with high-quality materials to withstand rigorous use, enhancing longevity and reliability.
• Easy Installation: Designed for straightforward panel mounting, facilitating quick and secure installation.

Technical Specifications

• Rated Voltage: 250VAC
• Rated Current: 15A
• Contact Configuration: SPDT (1NO, 1NC)
• Actuator Type: Panel Mount Plunger
• Operating Speed: 0.01mm to 1m/sec
• Operating Frequency: Electrical: 20 operations/minute
• Contact Resistance: 15mΩ max. (initial value)
• Insulation Resistance: 100MΩ min. (at 500VDC)
• Dielectric Strength: 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity; 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts; 1500VAC, 50/60 Hz for 1 minute between each terminal and ground
• Vibration Resistance: 10-55Hz, 1.5mm double amplitude
• Shock Resistance: Mechanical durability: 1,000m/Sec² (approximately 100G’s); Malfunction: 300m/Sec² (approximately 30G’s)
• Ambient Temperature: -15℃ to +80℃
• Humidity: General purpose type: 35-85% RH; Sealed type: 35-95% RH max.
• Weight: Approximately 22 to 58g
• Electrical Life: Above 500,000 operations

Applications

The TM-1307 micro switch is suitable for a wide range of applications, including:

• Industrial automation systems
• Machine tools
• Construction equipment
• Electrical appliances
• Control panels

Its high precision and reliability make it an excellent choice for applications requiring consistent and accurate switching performance.
