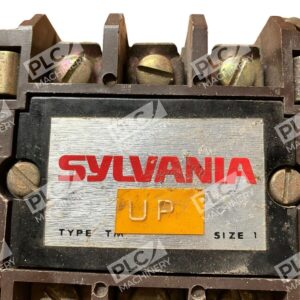

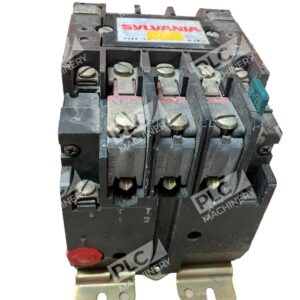

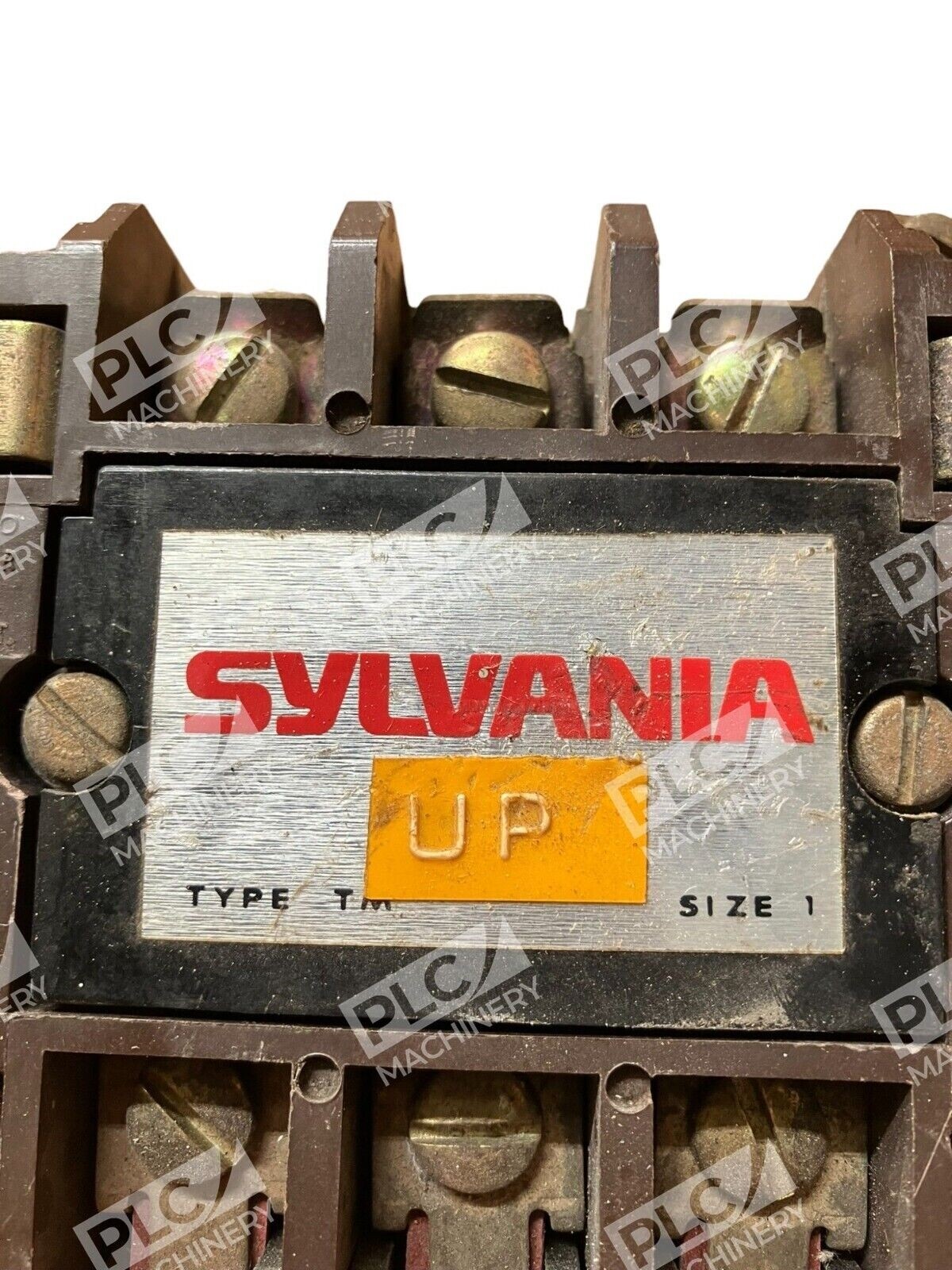

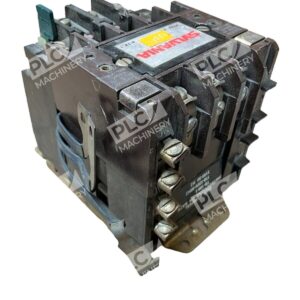

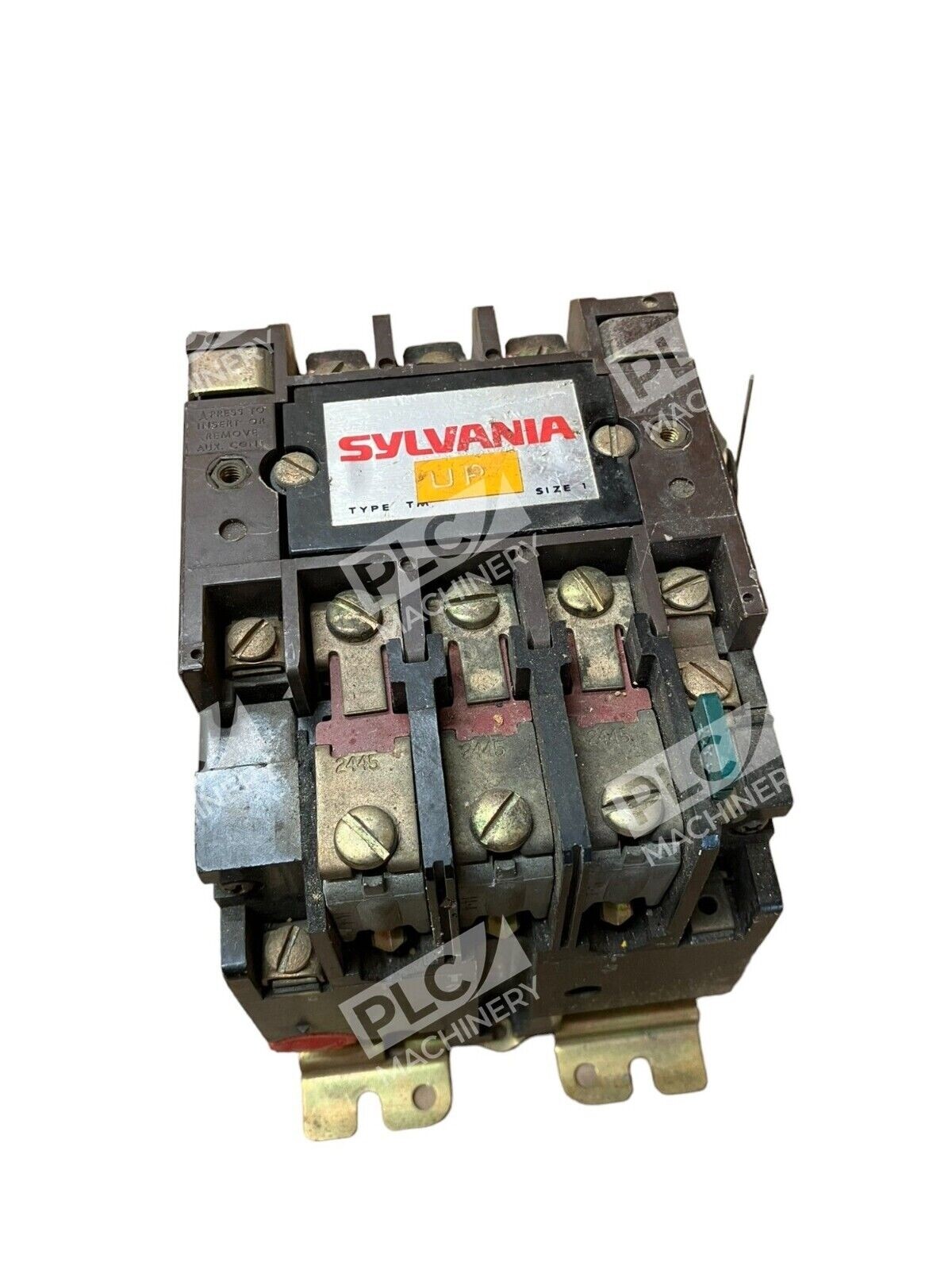

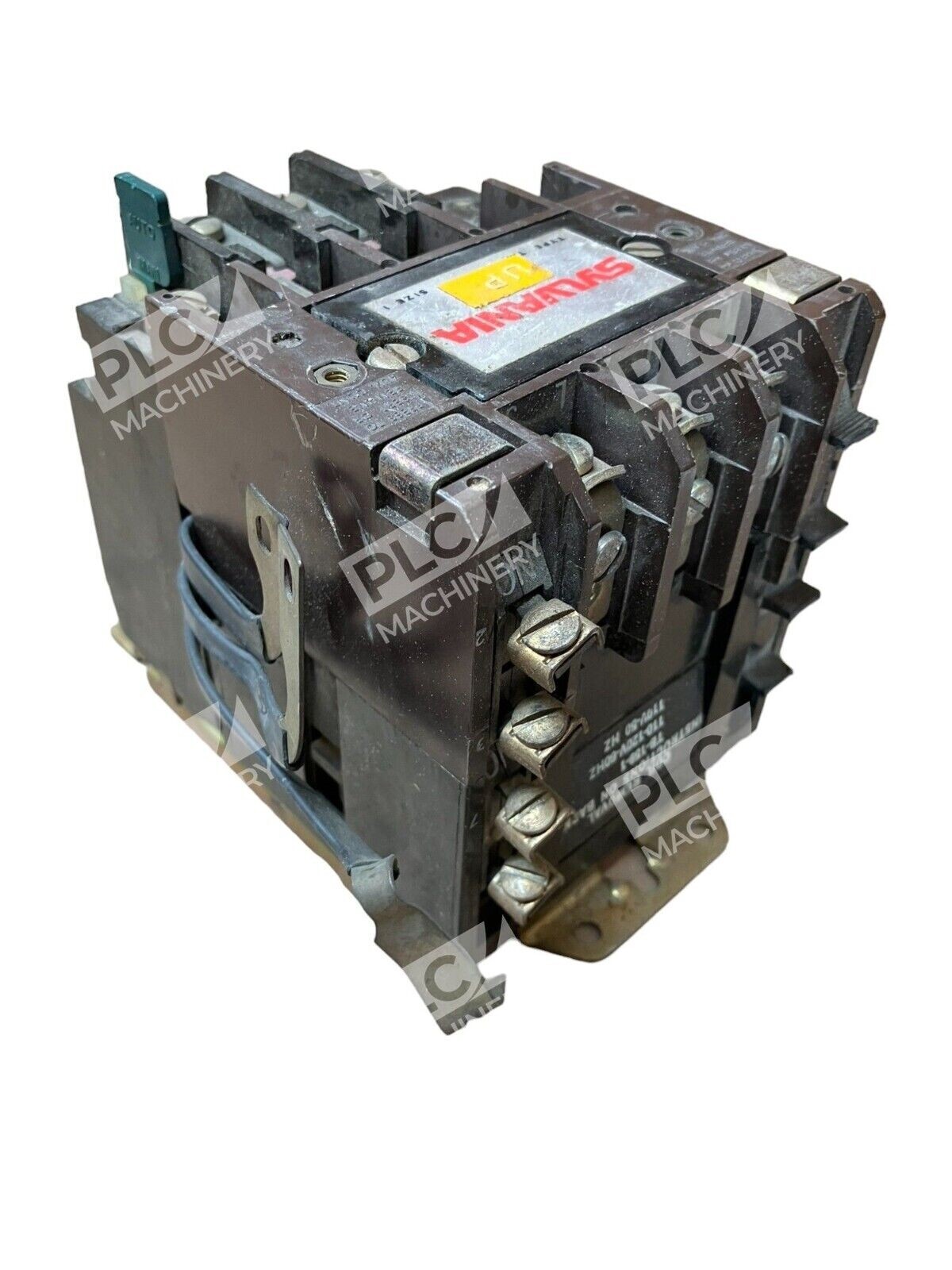

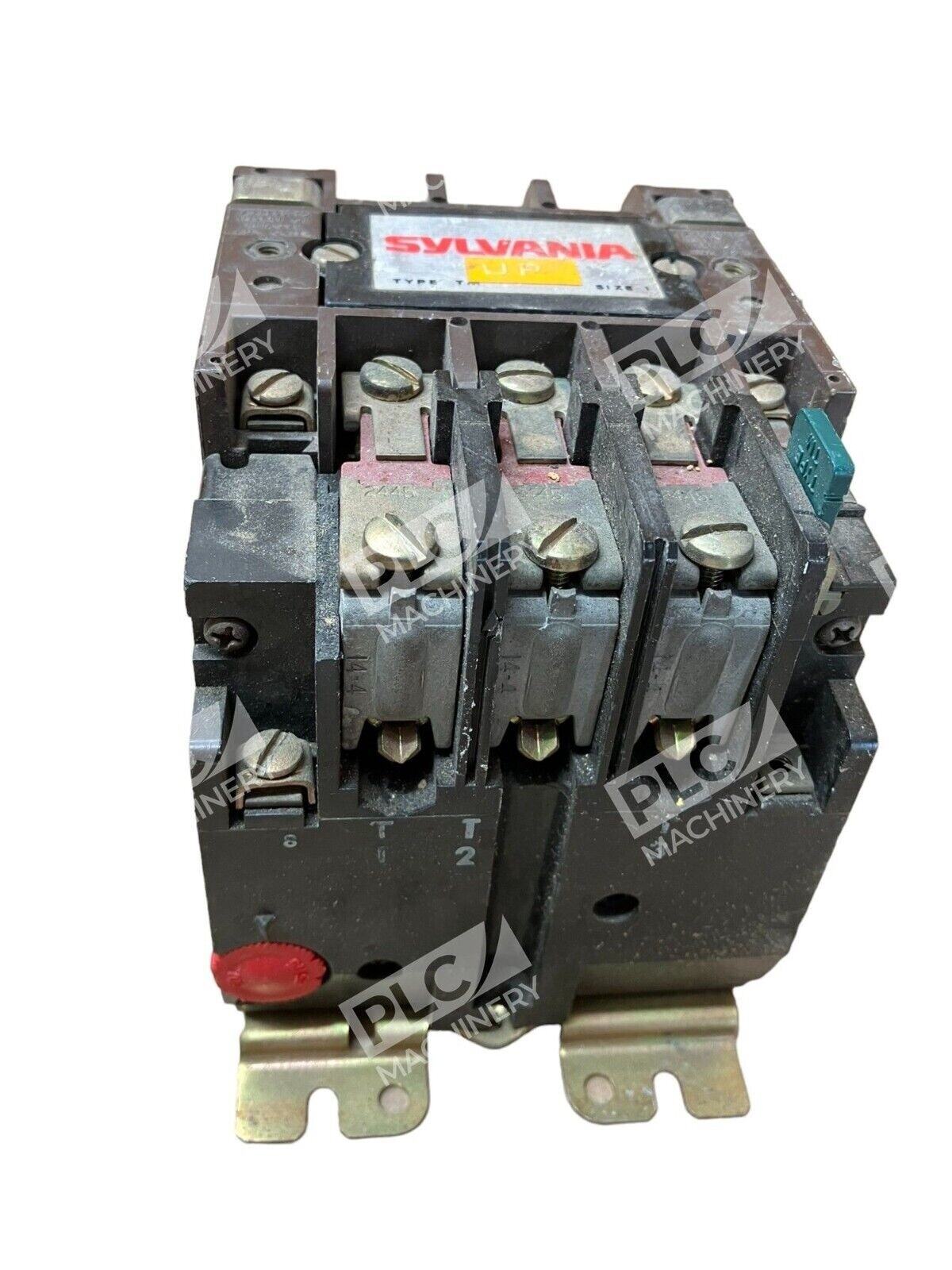

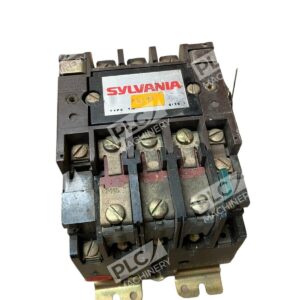

Sylvania A30U031 Nema Size 1 27A 3 Phase Starter

The Sylvania A30U031 NEMA Size 1 27A 3 Phase Starter is a robust and reliable solution designed for the full-voltage starting and stopping of AC squirrel cage motors. With a 27-ampere rating, this non-reversing starter is well-suited for various industrial applications.

Key Features

• Amperage Rating: 27 Amperes
• Phase Configuration: 3-Phase

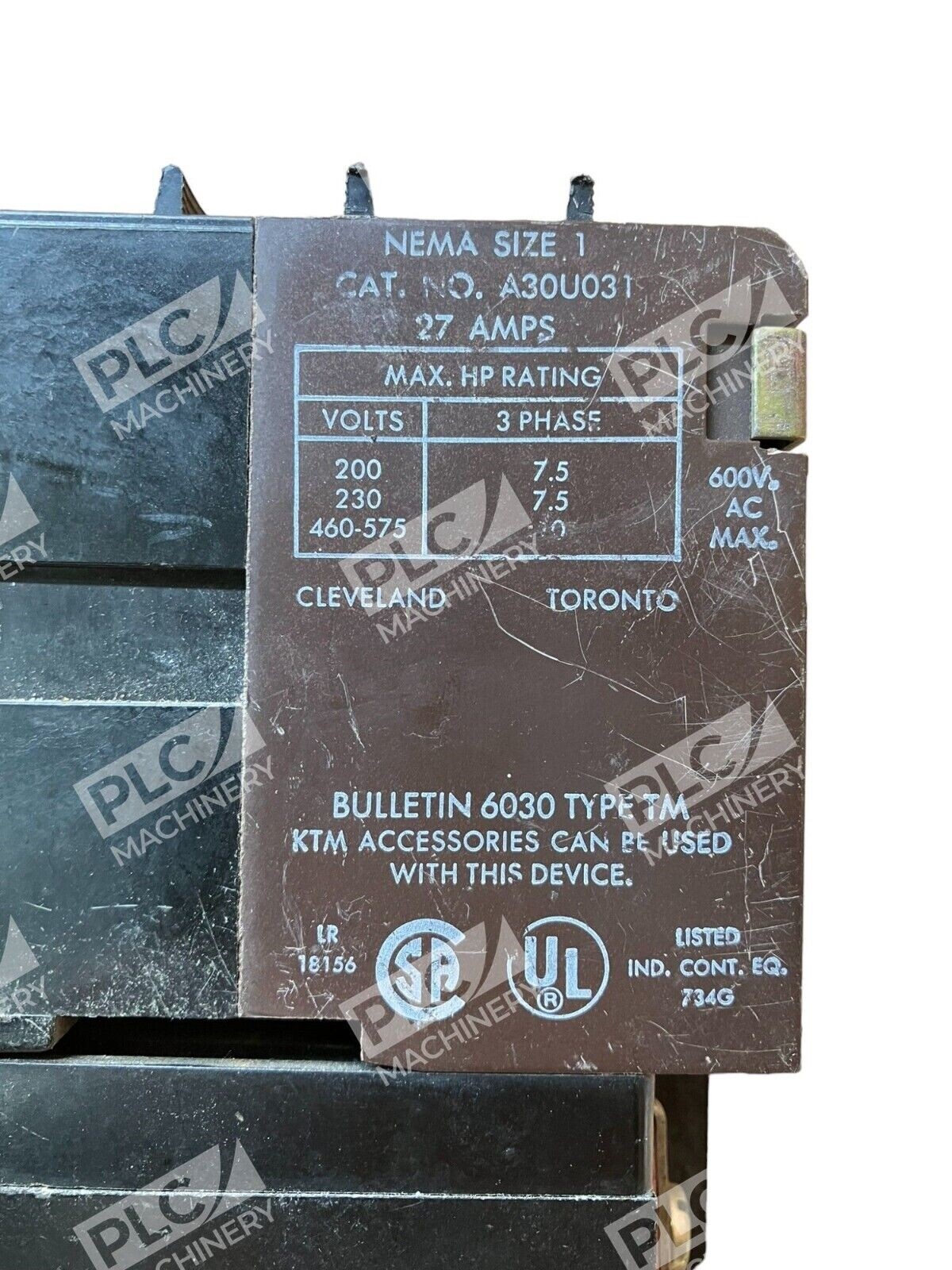

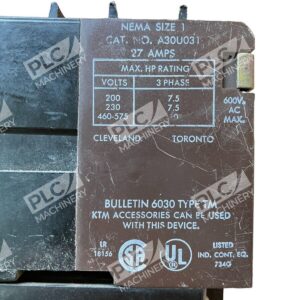

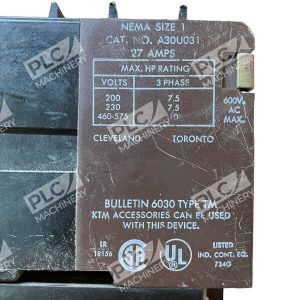

• Horsepower Ratings:
  • 7.5 HP at 200 and 230 VAC
  • 10 HP at 460 and 575 VAC
• Overload Protection: Equipped with a melting alloy type overload relay utilizing Type B thermal units to detect overcurrent conditions
• Short Circuit Current Rating (SCCR): 5 kA maximum per UL508A when protected by an appropriate circuit breaker or fuse

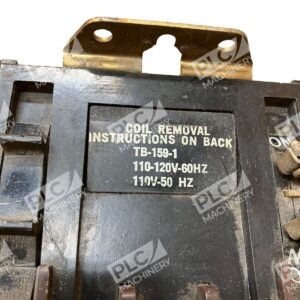

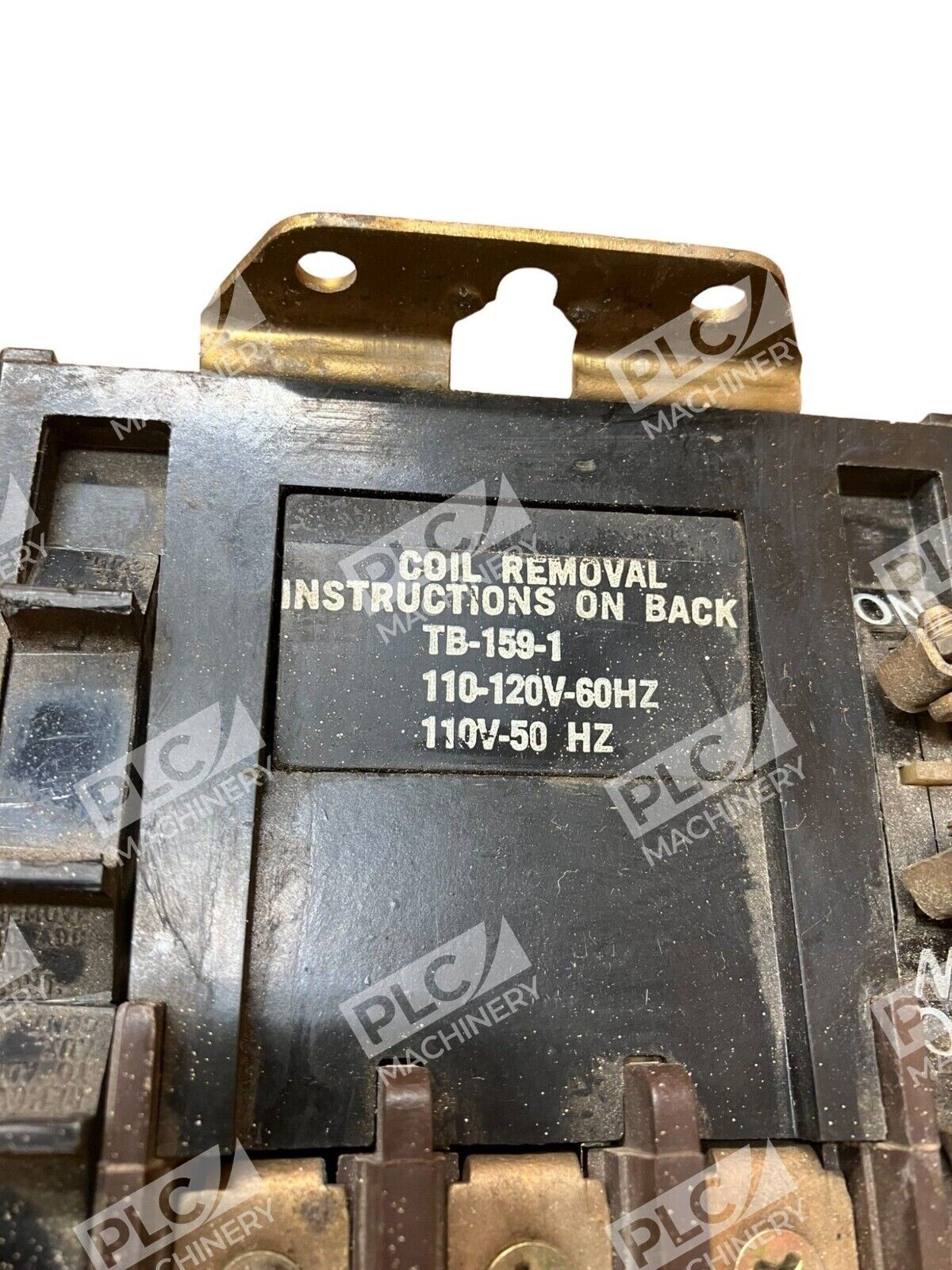

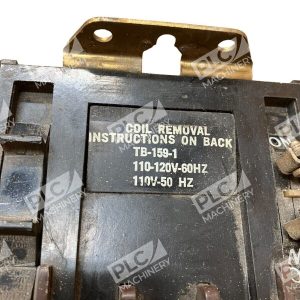

• Coil Voltage Options: Available with replaceable coils in a variety of voltages, including 120 VAC 50/60 Hz
• Enclosure Type: Painted sheet steel NEMA 1 general-purpose enclosure
• Certifications: UL Listed, CSA Certified, and NEMA Compliant

Dimensions

• Height: 10.00 inches (254 mm)
• Width: 6.00 inches (152 mm)
• Depth: 5.56 inches (141 mm)

Applications

This motor starter is ideal for industrial environments requiring dependable motor control solutions. Its design ensures efficient operation and protection of motors in various settings.

Please note that specifications may vary based on the specific model and configuration. For detailed information and compatibility, refer to the product documentation or consult with a qualified professional.
