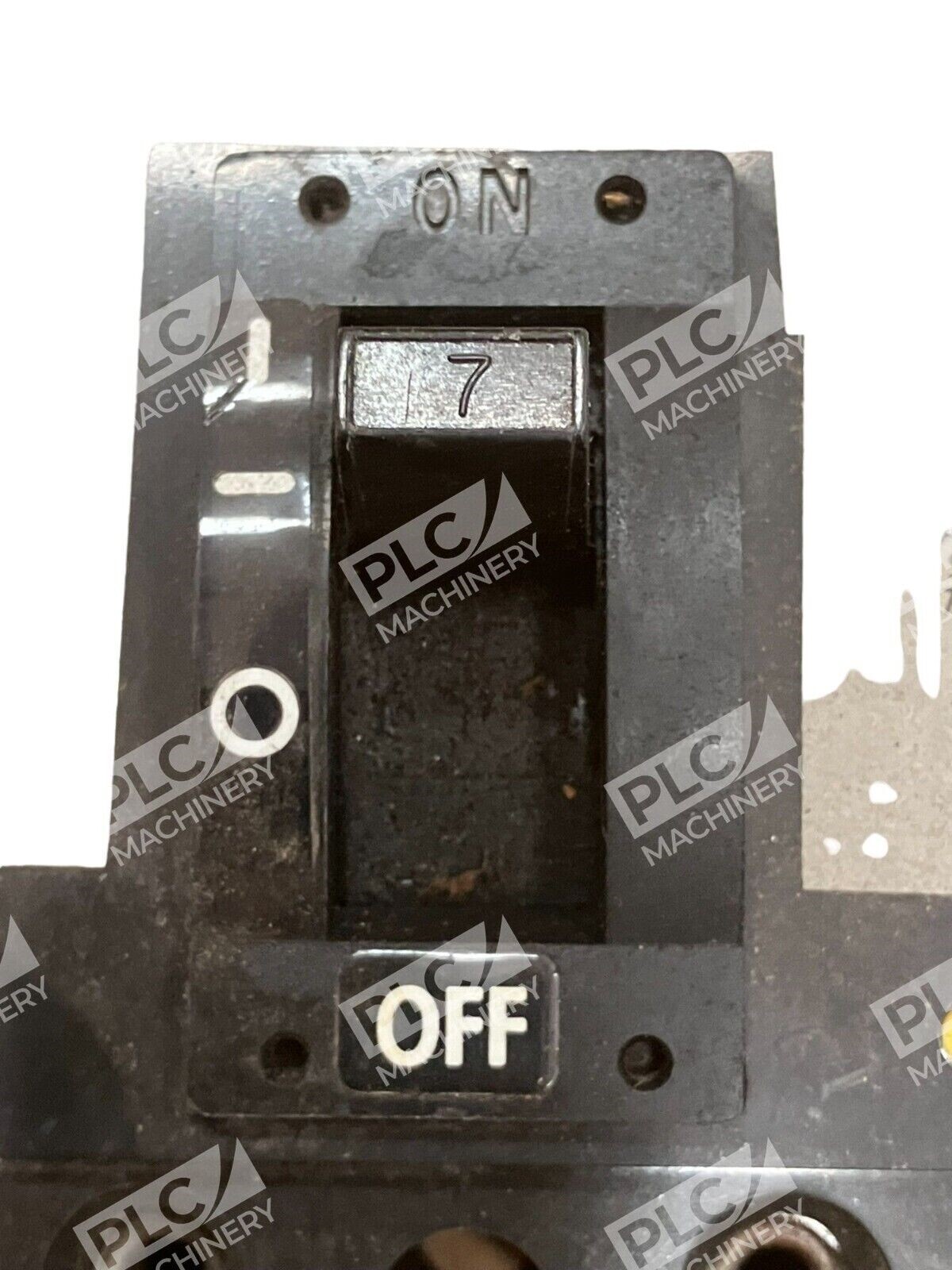

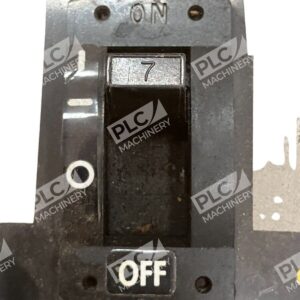

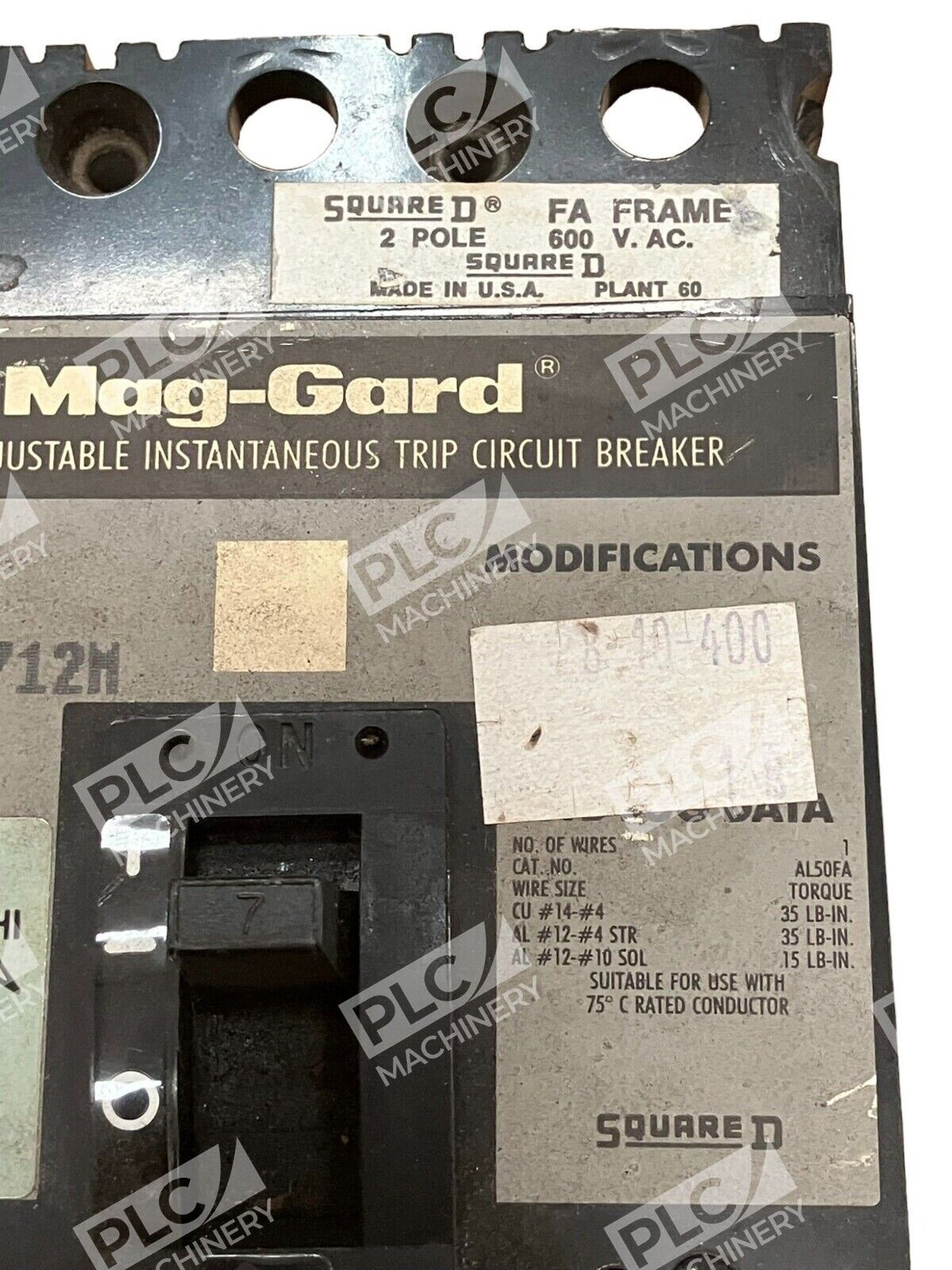

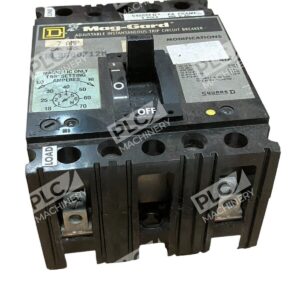

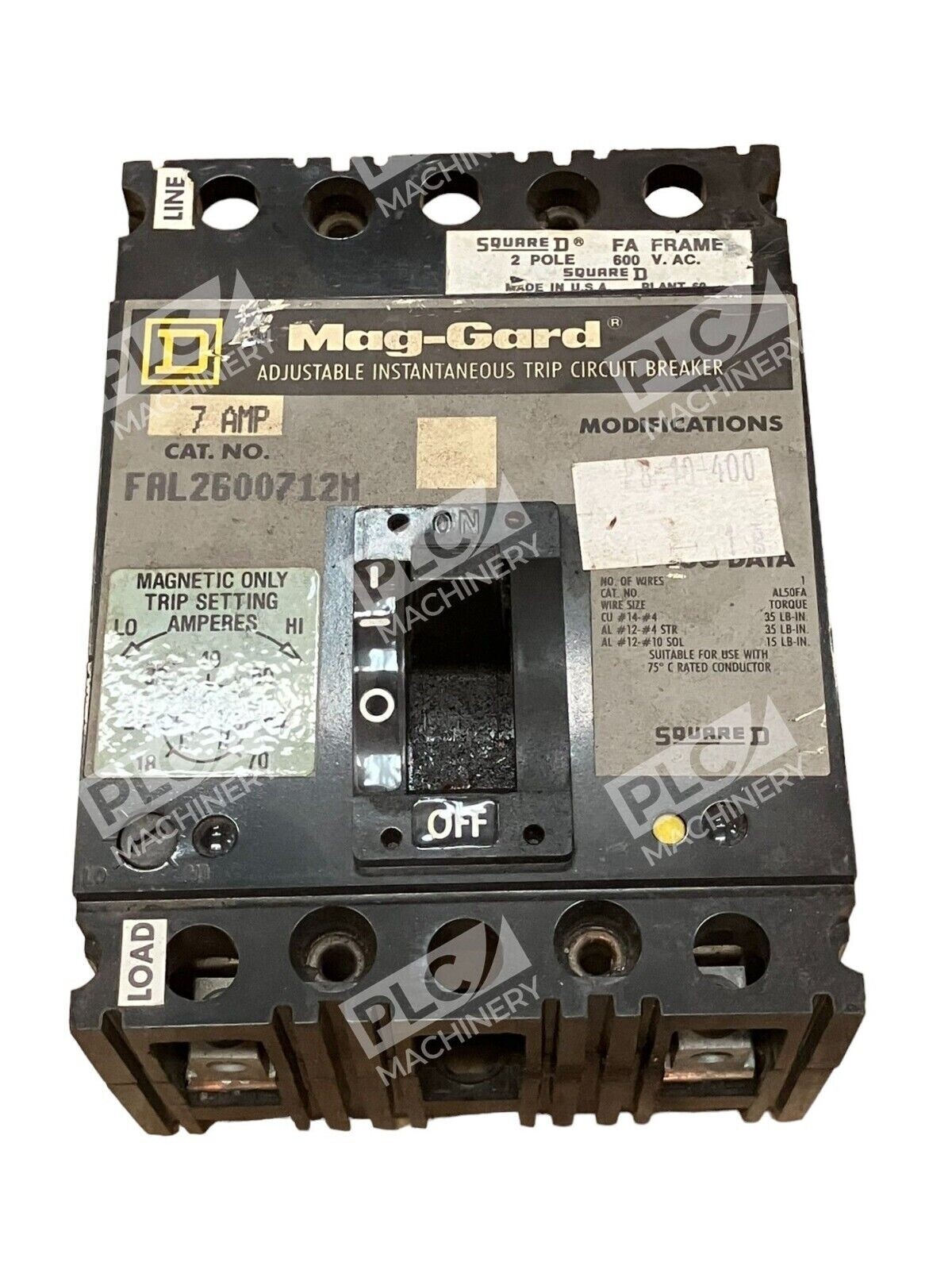

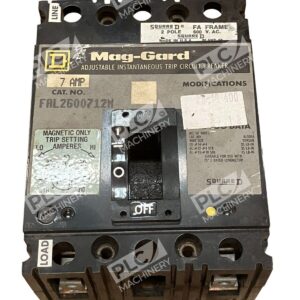

The Square D FAL2600712M is a 7-amp, 2-pole, 600VAC Mag-Gard molded case circuit breaker designed to provide reliable protection against short circuits and overloads in various electrical systems.
Key Features
- Amperage Rating: 7 Amps
- Voltage Rating: 600 VAC
- Poles: 2
- Interrupting Capacity: 14kA at 600V
- Frame Type: F Frame
- Protection Type: Magnetic Only (Mag-Gard)

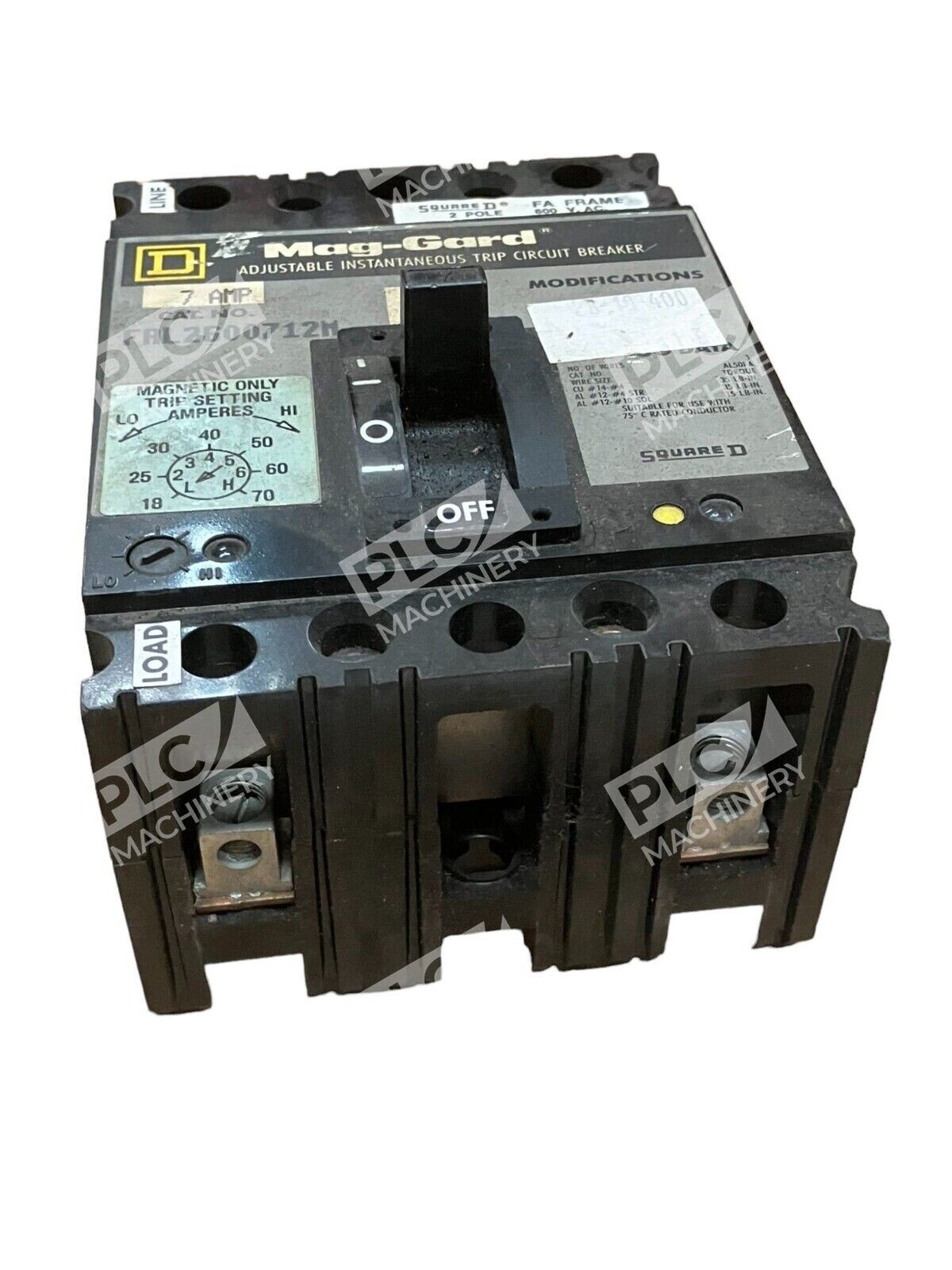

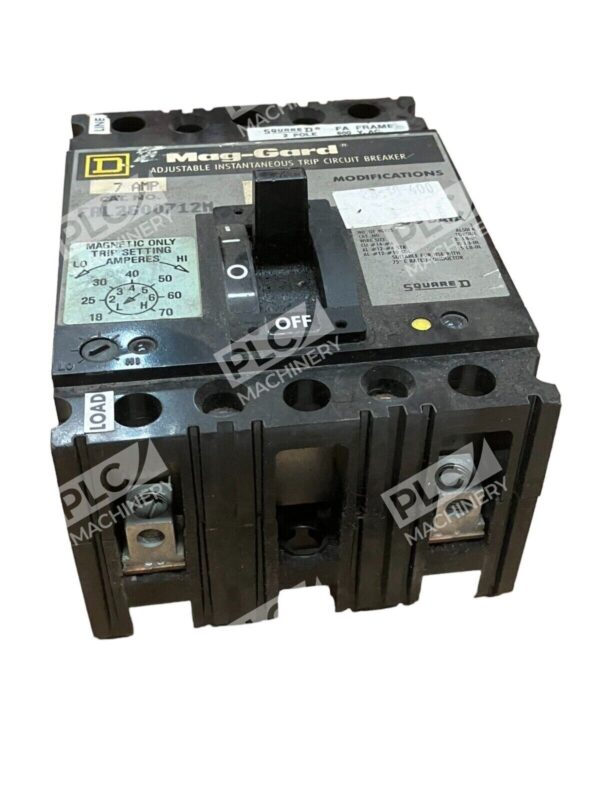

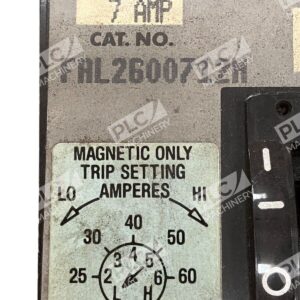

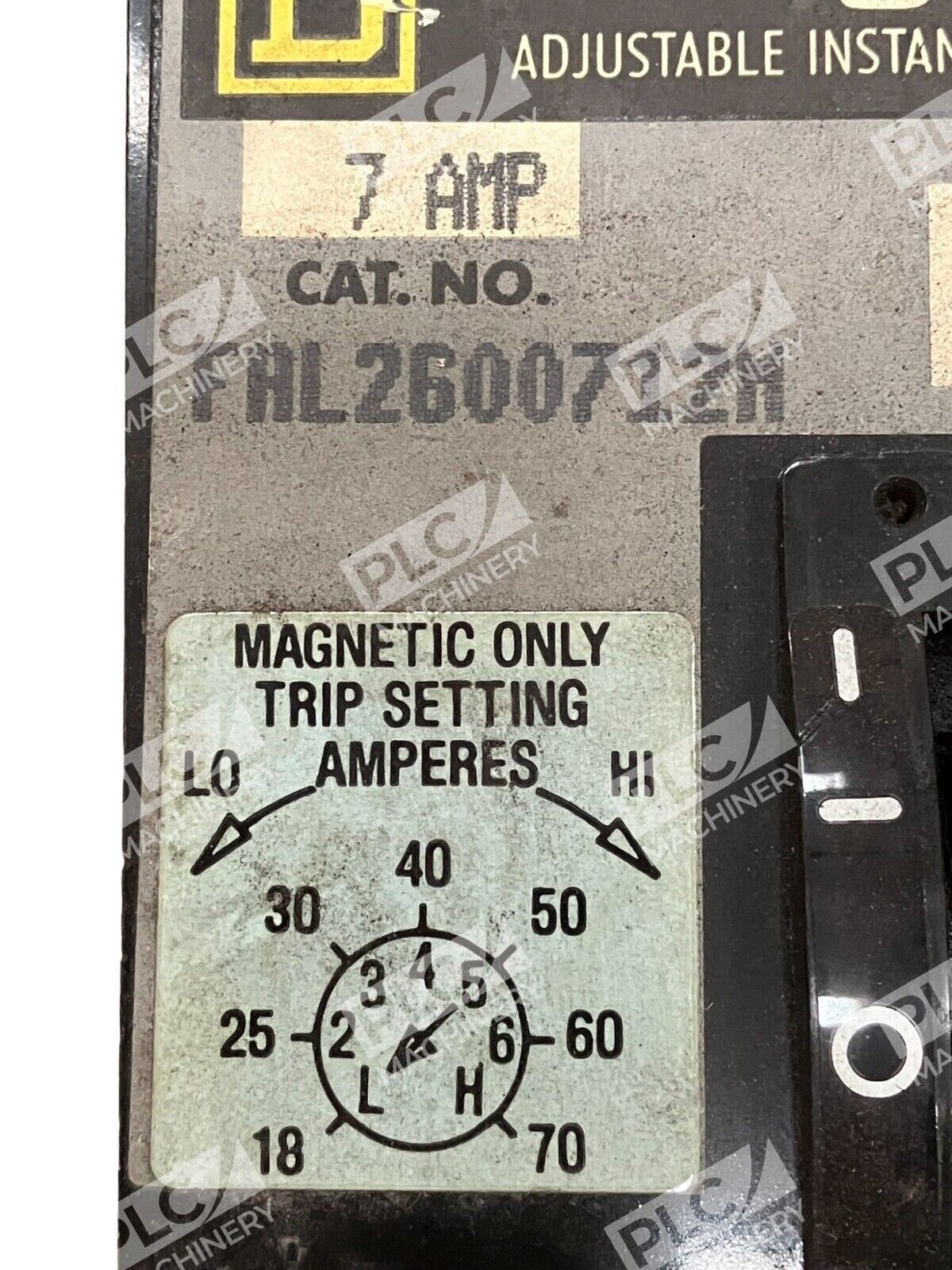

- Instantaneous Trip Range: Adjustable from 18 to 70 Amps
Design and Functionality
The FAL2600712M features a magnetic-only trip mechanism, making it ideal for applications requiring precise protection against short circuits without the need for thermal overload protection. Its adjustable instantaneous trip setting allows for customization to specific operational requirements, enhancing system safety and reliability.
Applications
This circuit breaker is suitable for a wide range of industrial and commercial applications, including motor control centers, panelboards, and other electrical distribution systems where dependable short-circuit protection is essential.
Installation
Designed for ease of installation, the FAL2600712M comes equipped with lugs on both the line and load sides, facilitating straightforward integration into existing electrical setups.
In summary, the Square D FAL2600712M 7A Mag-Gard 2-Pole 600VAC circuit breaker offers robust and adjustable short-circuit protection, making it a reliable choice for safeguarding electrical systems in various industrial and commercial environments.
