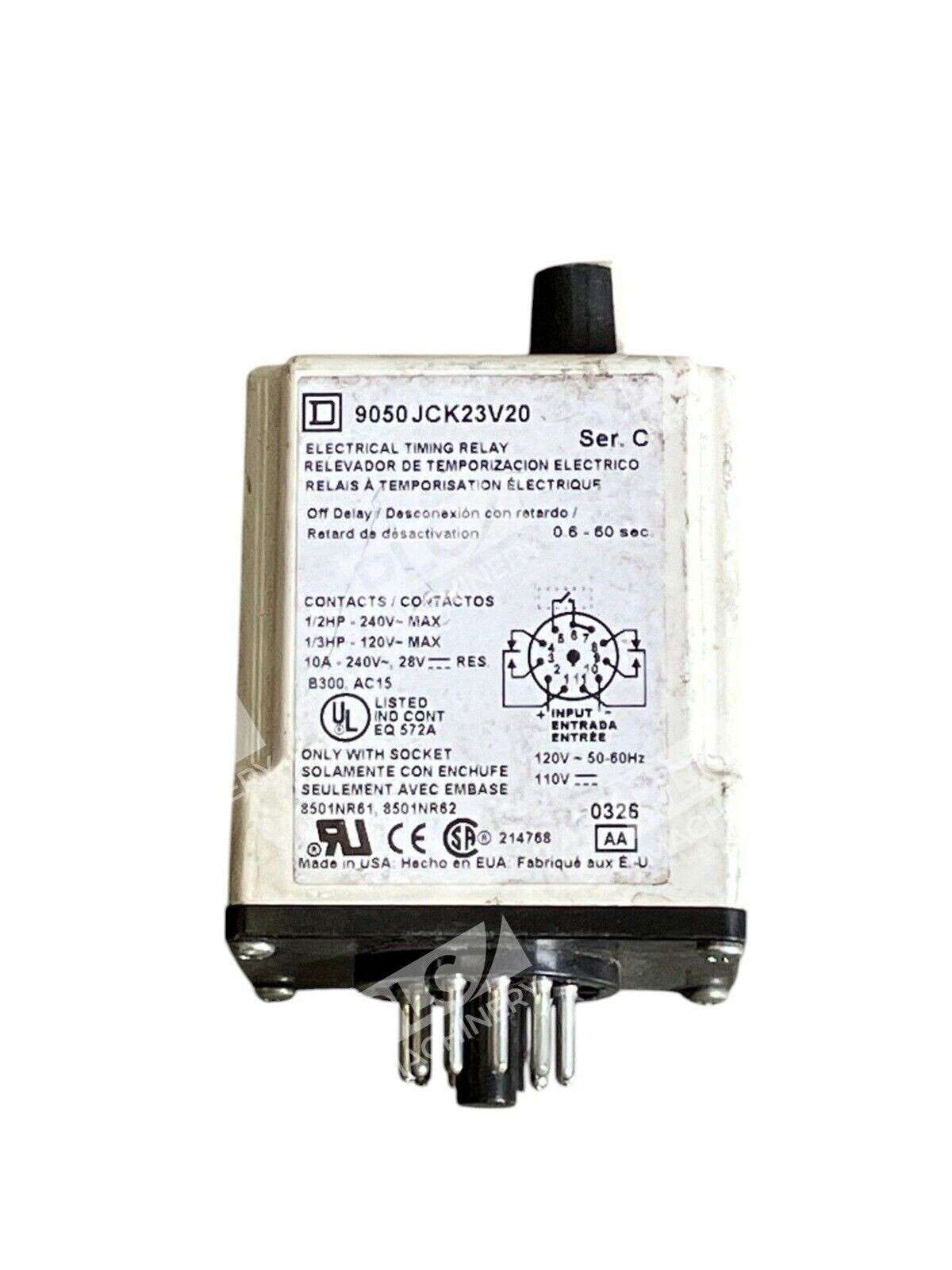

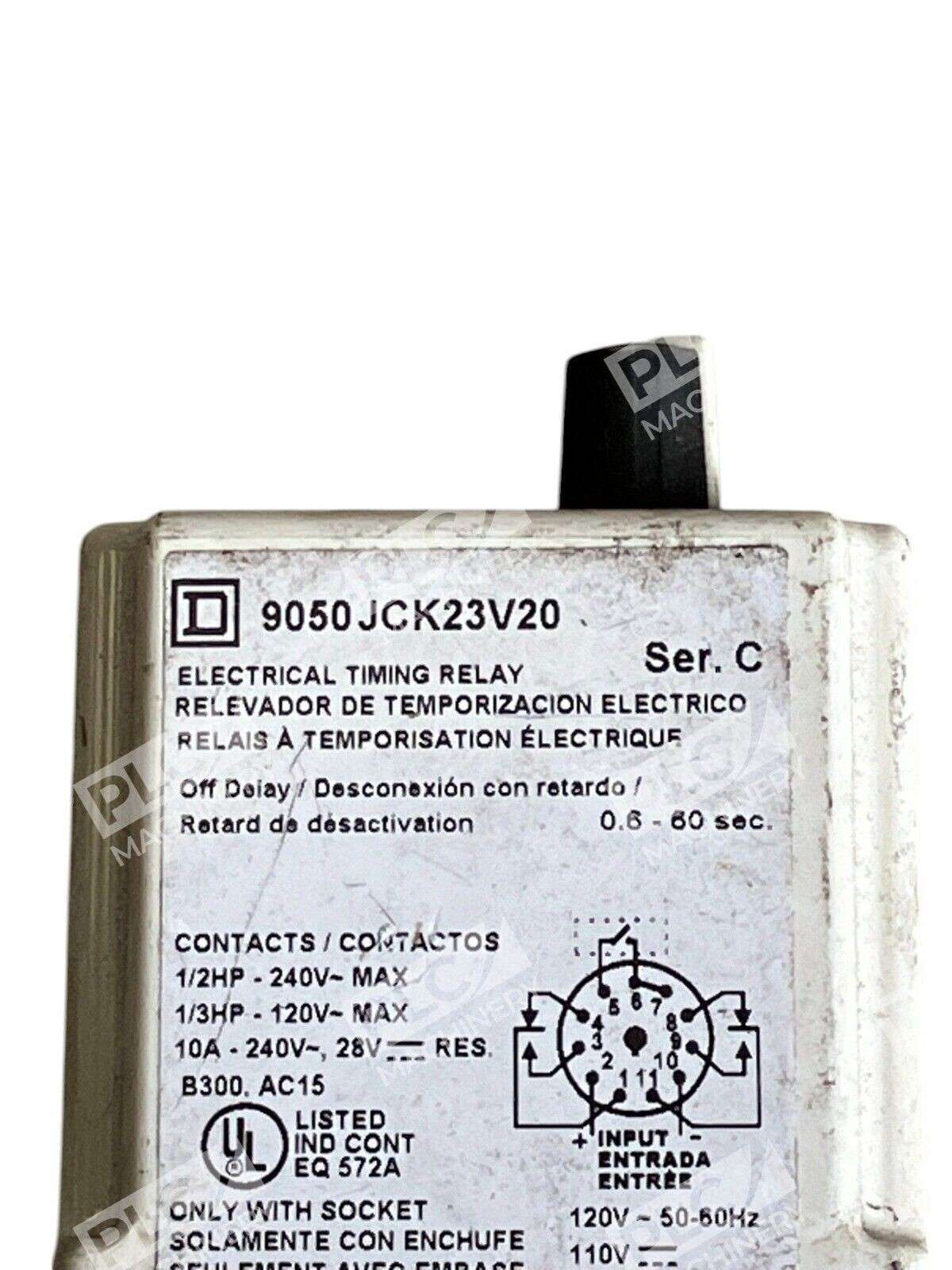

The Square D 9050JCK23V20 /C is a versatile and reliable off-delay timing relay designed to provide precise control in various industrial applications. This plug-in timer offers adjustable time delays, ensuring flexibility and accuracy in operation.

Key Features

• Adjustable Time Delay: The relay features a time delay range from 0.6 to 60 seconds, easily set using the knob located on the top of the unit. ([rexelusa.com](https://www.rexelusa.com/p/264715/square-d/timing-relay-type-jck-plug-in-off-delay-adj-time-06-to-60-sec-10a-240-vac-120-vac-110-vdc/785901032632/9050jck23v20?utm_source=openai))
• Off-Delay Operation: Designed for off-delay timing, the relay initiates the time delay when the trigger switch opens, returning the contacts to their original state upon completion of the delay. ([rexelusa.com](https://www.rexelusa.com/p/264715/square-d/timing-relay-type-jck-plug-in-off-delay-adj-time-06-to-60-sec-10a-240-vac-120-vac-110-vdc/785901032632/9050jck23v20?utm_source=openai))
• High Contact Rating: Equipped with DPDT contacts rated at 10 amperes resistive at 120 VAC, 240 VAC, and 30 VDC, and 3 amperes inductive at the same voltages. ([rexelusa.com](https://www.rexelusa.com/p/264715/square-d/timing-relay-type-jck-plug-in-off-delay-adj-time-06-to-60-sec-10a-240-vac-120-vac-110-vdc/785901032632/9050jck23v20?utm_source=openai))
• Versatile Mounting Options: Compatible with 8501NR61 or 8501NR62 relay sockets, which can be mounted on 35 mm DIN 3 mounting track or directly to a panel. ([rexelusa.com](https://www.rexelusa.com/p/264715/square-d/timing-relay-type-jck-plug-in-off-delay-adj-time-06-to-60-sec-10a-240-vac-120-vac-110-vdc/785901032632/9050jck23v20?utm_source=openai))
• Wide Operating Voltage: Operates with input voltages of 120 VAC or 110 VDC, providing flexibility in various electrical systems. ([rexelusa.com](https://www.rexelusa.com/p/264715/square-d/timing-relay-type-jck-plug-in-off-delay-adj-time-06-to-60-sec-10a-240-vac-120-vac-110-vdc/785901032632/9050jck23v20?utm_source=openai))
• Certifications: UL listed when used with the appropriate 8501NR relay socket, UL component recognized, and CSA certified, ensuring compliance with industry standards. ([rexelusa.com](https://www.rexelusa.com/p/264715/square-d/timing-relay-type-jck-plug-in-off-delay-adj-time-06-to-60-sec-10a-240-vac-120-vac-110-vdc/785901032632/9050jck23v20?utm_source=openai))

Specifications

• Time Delay Range: 0.6 to 60 seconds
• Contact Configuration: 2 NO + 2 NC (DPDT)
• Contact Rating: 10 A at 120 VAC, 240 VAC, and 30 VDC (resistive); 3 A at 120 VAC, 240 VAC, and 30 VDC (inductive)
• Operating Voltage: 120 VAC / 110 VDC
• Mounting: Socket mount with 11 pins
• Operating Temperature: -18 to 150°F (-28 to 65°C)
• Dimensions: 43 mm W x 104 mm D x 61 mm H

The Square D 9050JCK23V20 /C timing relay is an ideal solution for applications requiring precise off-delay timing, offering reliability, flexibility, and ease of installation in a compact design.
