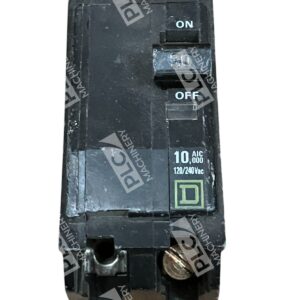

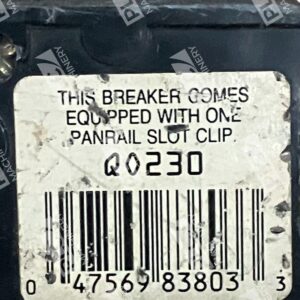

Square D QO230 2-Pole 30A Circuit Breaker
The Square D QO230 is a 2-pole, 30-amp miniature circuit breaker designed to provide reliable overcurrent protection for residential and commercial electrical systems. Engineered for efficiency and safety, this breaker is part of the renowned QO series, known for its quick make, quick break mechanism and VisiTrip™ indicator.
Key Features
- Amperage Rating: 30 Amps
- Voltage Rating: 120/240 VAC
- Interrupting Rating: 10 kA
- Mounting Type: Plug-In
- Number of Poles: 2
- Trip Type: Thermal-Magnetic
- Wire Size Compatibility: Accepts 14 to 8 AWG copper or aluminum wires

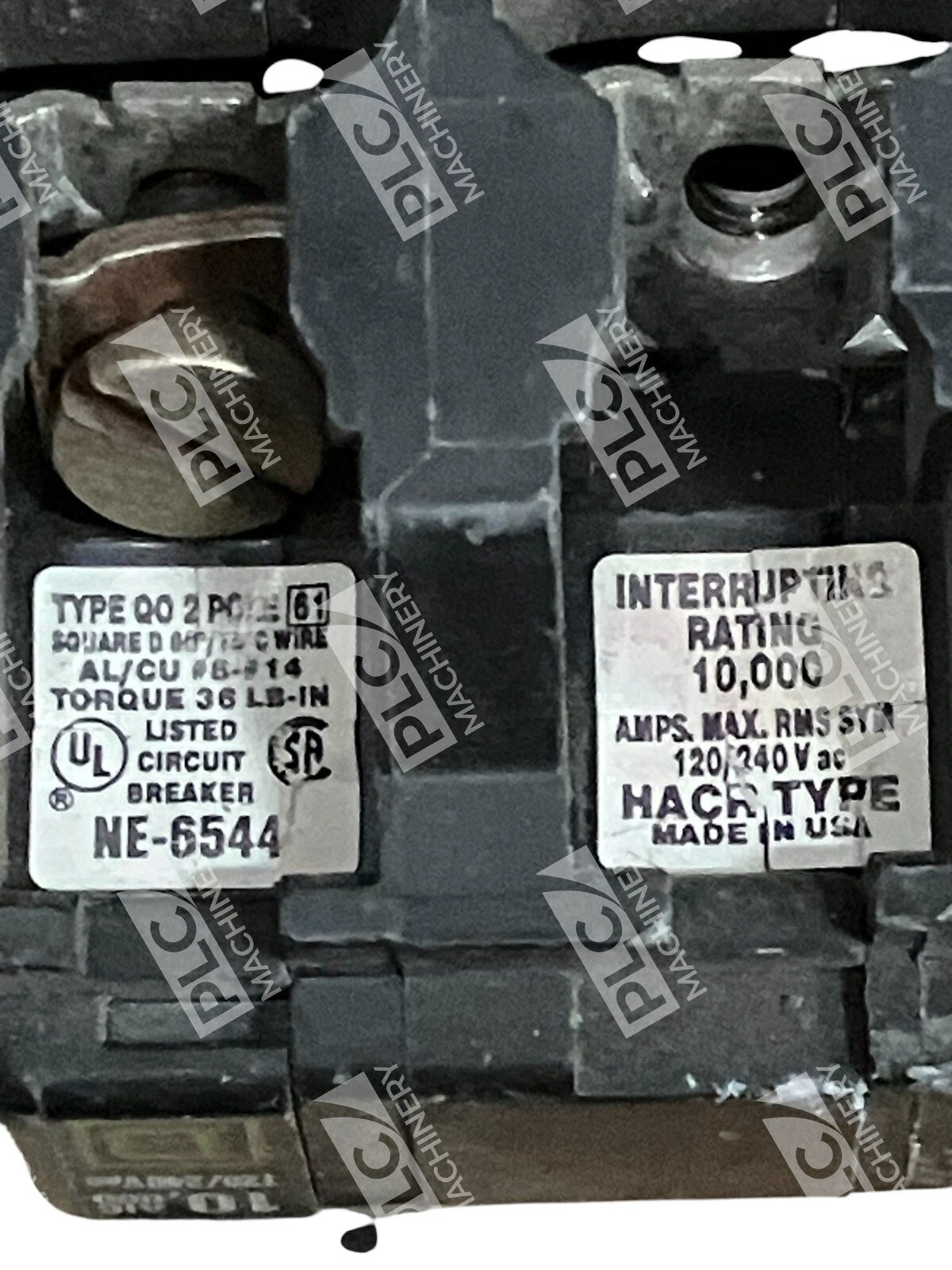

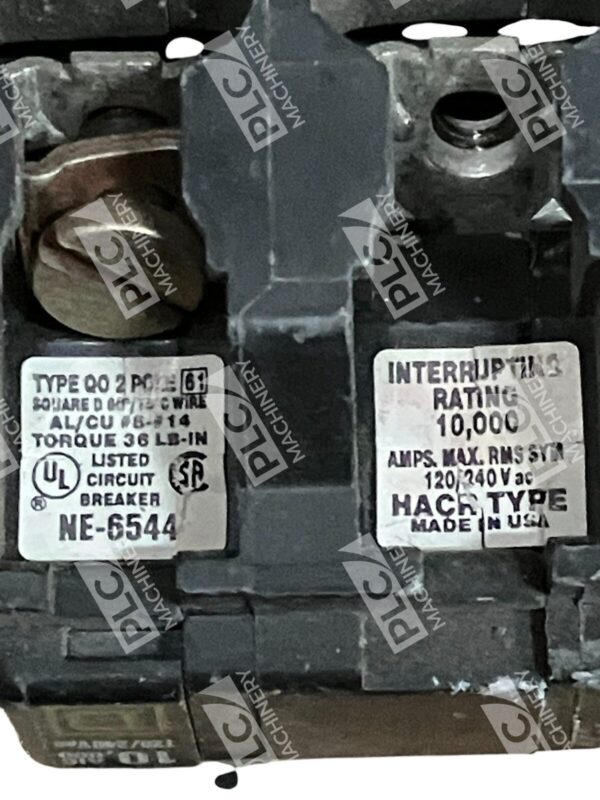

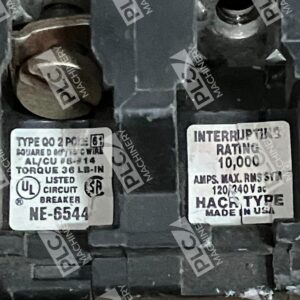

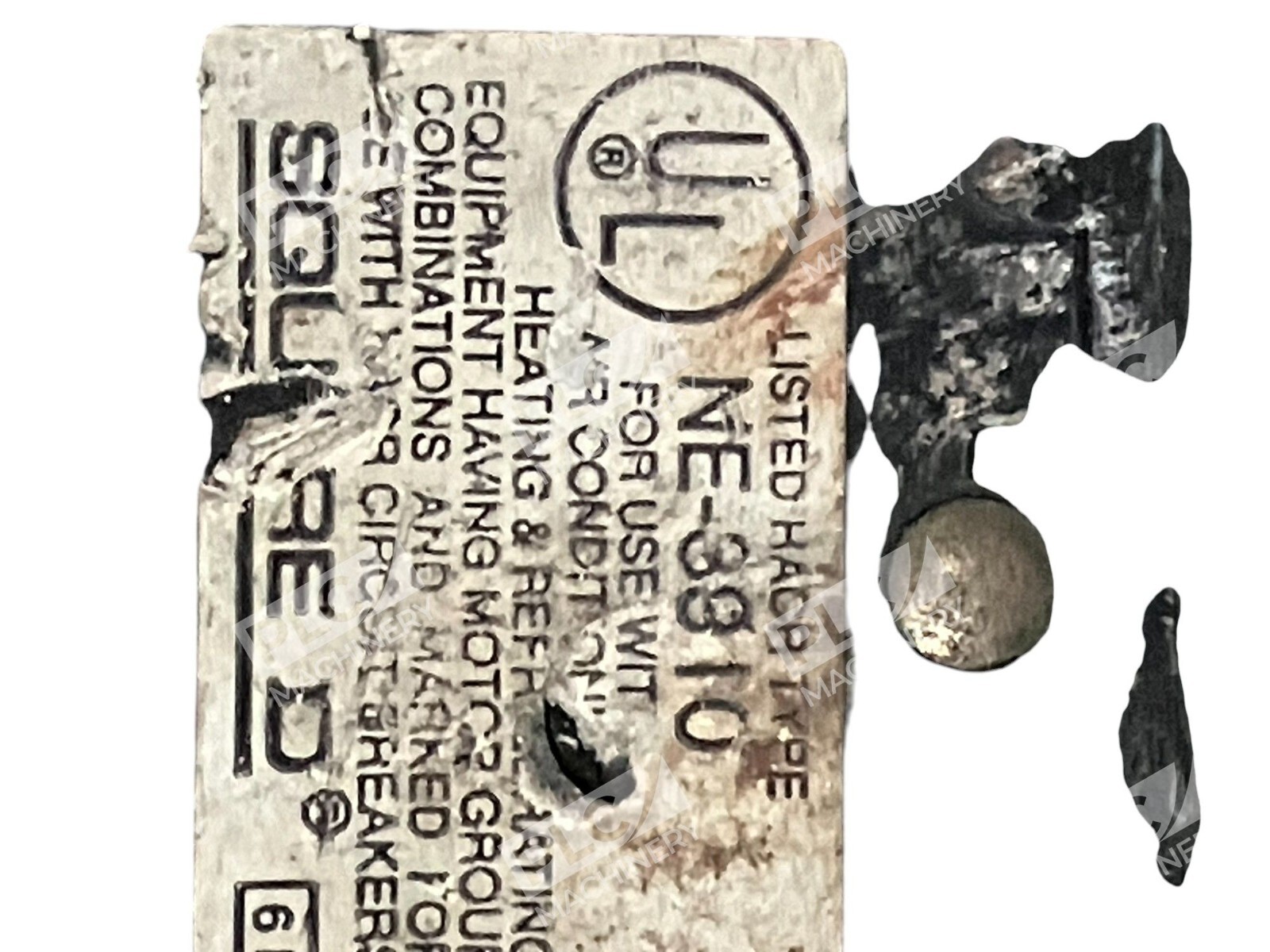

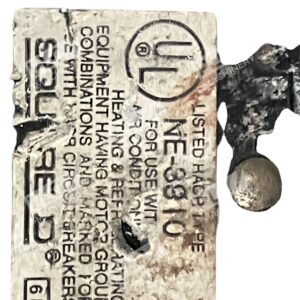

- Certifications: UL Listed, CSA Certified, HACR Rated
Design and Installation
The QO230 features a plug-on design, facilitating straightforward installation in QO load centers, NQ and NQOD panelboards, and Speed-D™ switchboard distribution panels. Its compact dimensions—approximately 2.91 inches in length, 1.5 inches in width, and 3 inches in height—allow for efficient use of panel space.
Safety and Performance
Equipped with a thermal-magnetic trip mechanism, the QO230 provides both long-time and instantaneous protection against overloads and short circuits. The VisiTrip™ indicator offers a visual cue when the breaker has tripped, aiding in quick identification and resolution of issues.
Applications
Ideal for residential and light commercial applications, the Square D QO230 circuit breaker ensures dependable protection for electrical circuits, safeguarding equipment and enhancing overall system safety.
