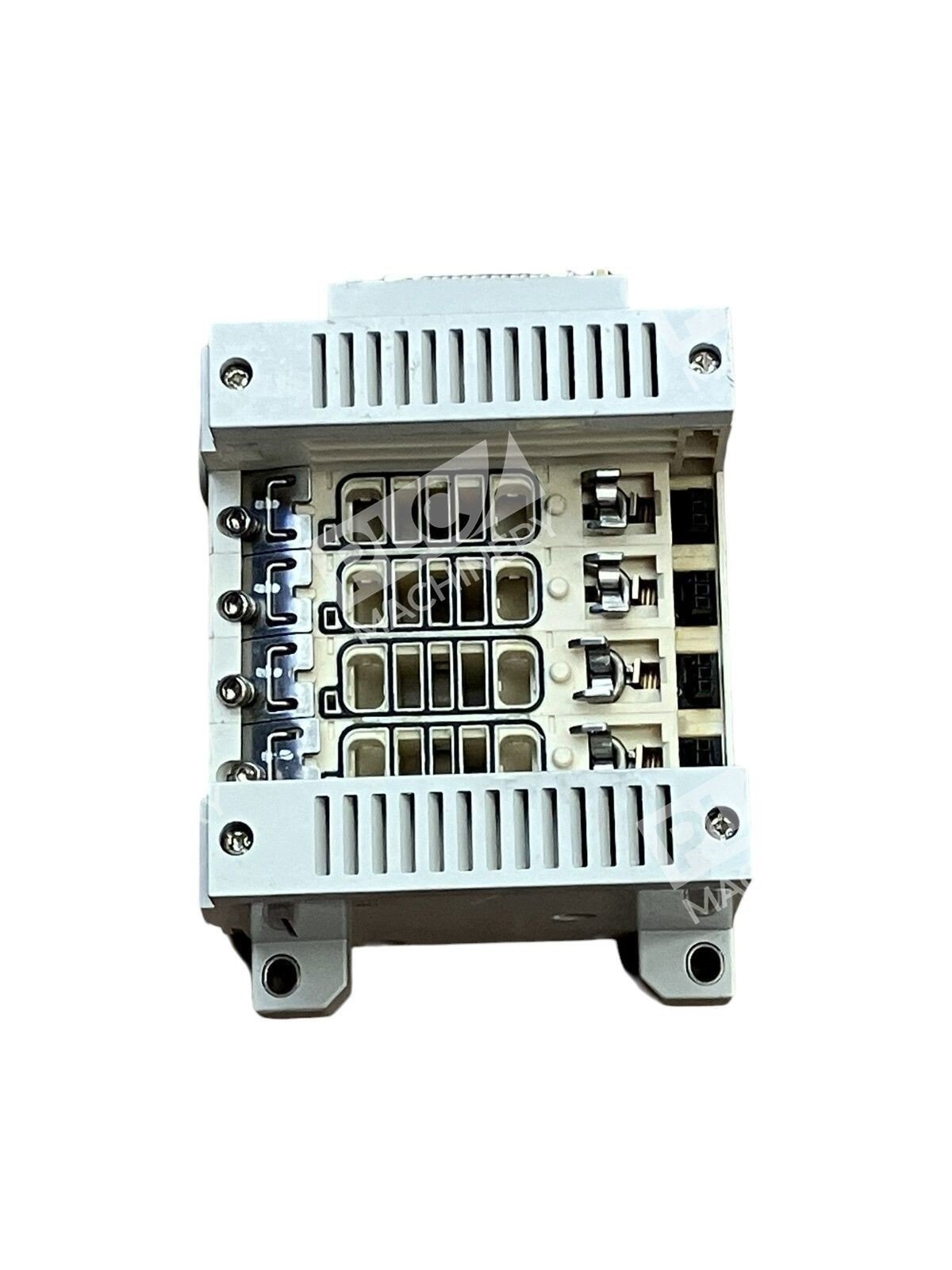

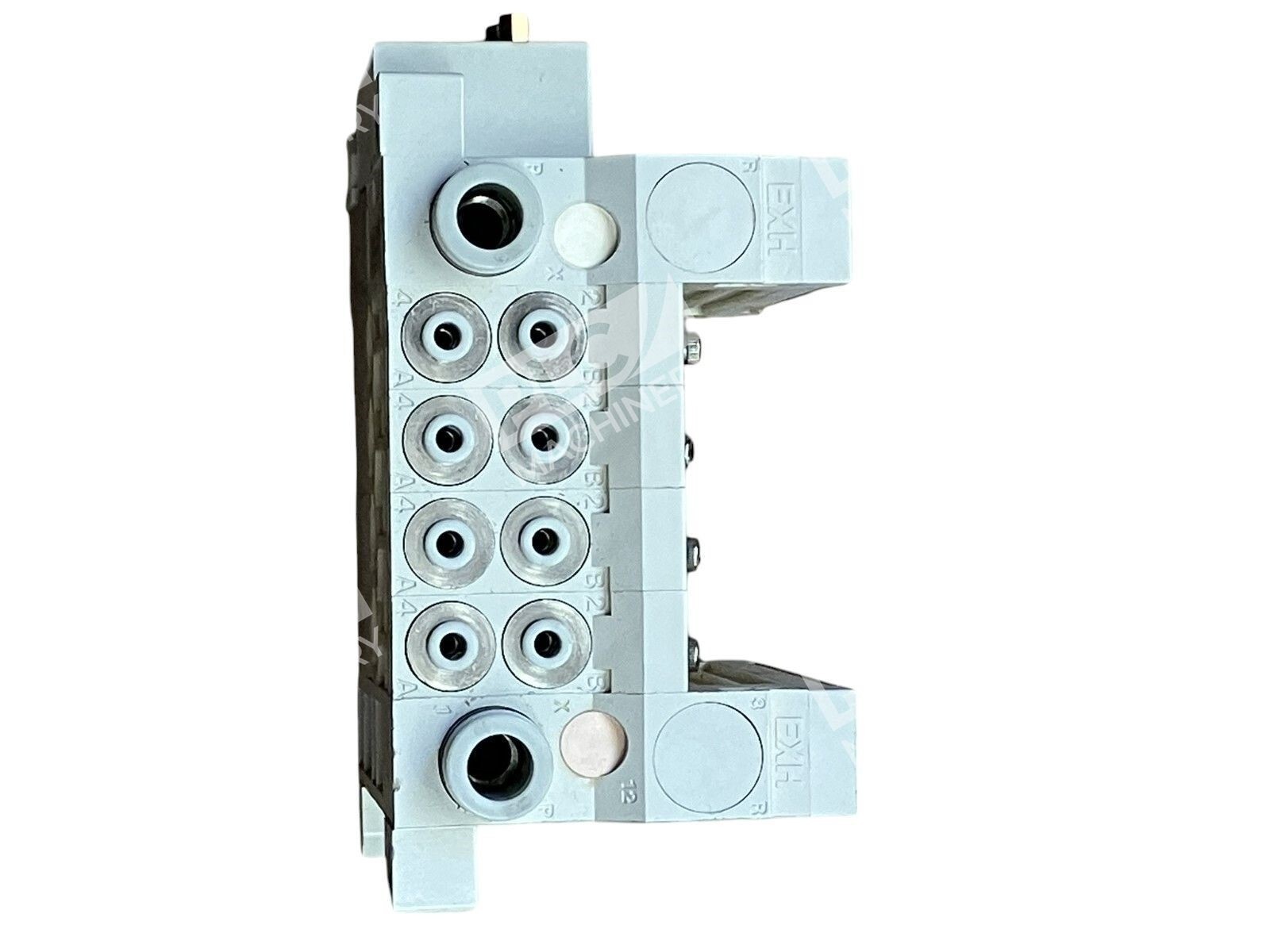

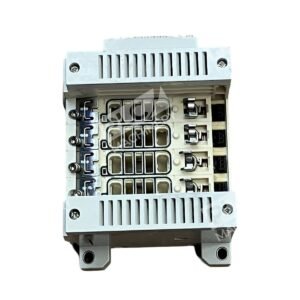

SMC VV5Q21-04C4FS0-S-X50US 4 Station Valve Manifold Base

SMC VV5Q21-04C4FS0-S-X50US 4 Station Valve Manifold Base

The SMC VV5Q21-04C4FS0-S-X50US is a 4-station valve manifold base designed for seamless integration with VQ2000 series valves. This base-mounted, plug-in type manifold offers efficient and reliable pneumatic control solutions for various industrial applications.

Key Features

• Base Mounted, Plug-in Design: Facilitates quick and easy installation, reducing setup time and labor costs.

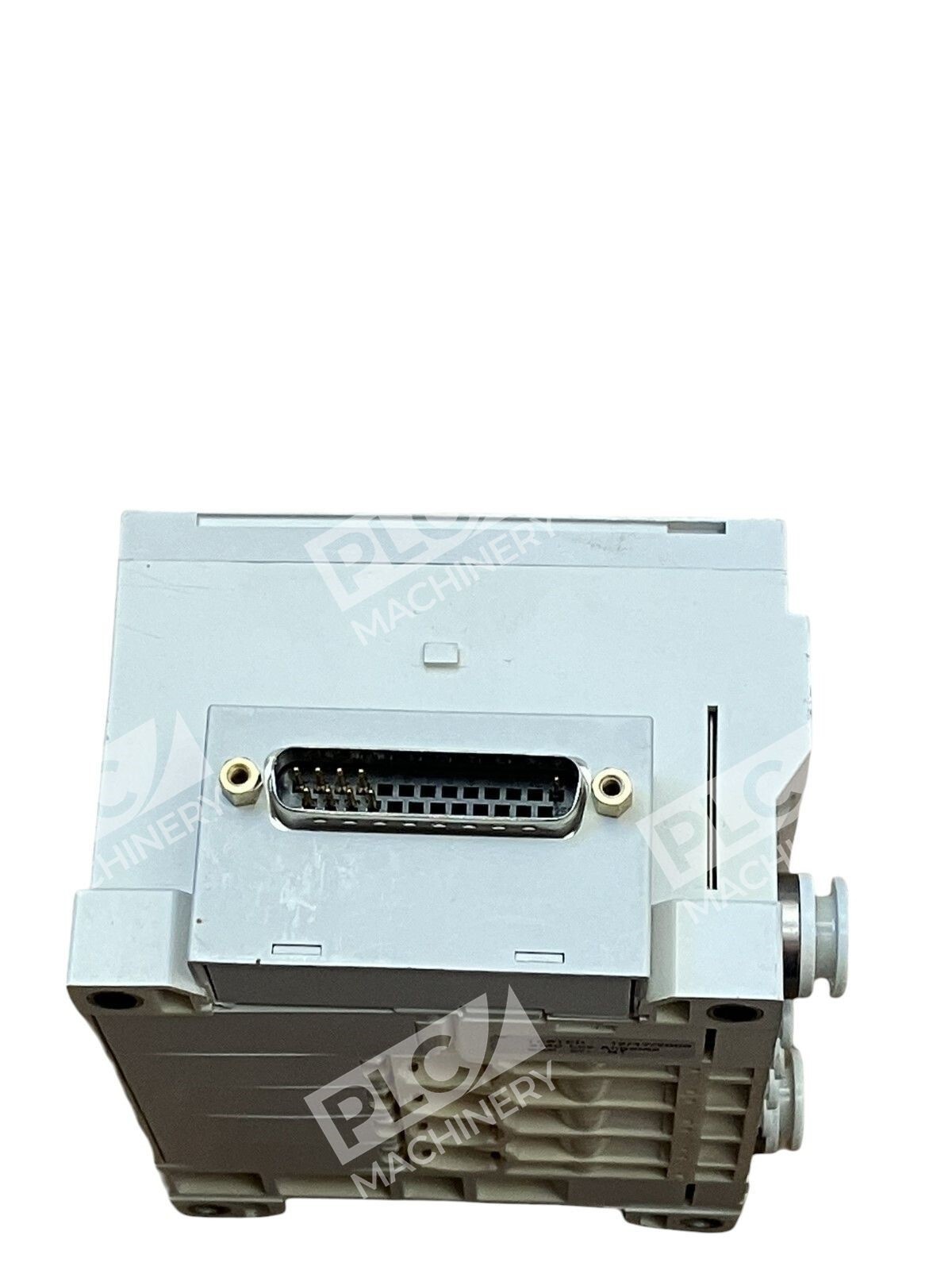

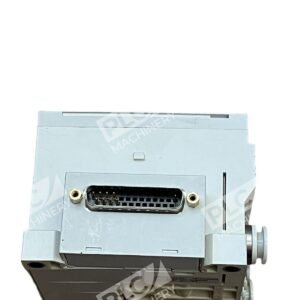

• Flat Ribbon Connector: Equipped with a 26-pin standard flat ribbon connector, with options for 10, 16, and 20 pins, providing flexibility in electrical connections.
• Flexible Receptacle Positioning: Offers top or side receptacle positions to accommodate different installation requirements.
• Expandable Stations: Supports up to 24 stations as standard, allowing for scalability in pneumatic systems.
• Multiple Port Sizes: Available in 12 port sizes, ensuring compatibility with various piping configurations.
• Optional DIN Rail Mount: Provides the option for DIN rail mounting, enhancing versatility in system design.

Applications

Ideal for applications requiring high-speed, frequent operation, and stable response times, the VV5Q21-04C4FS0-S-X50US manifold base is suitable for industries such as automotive manufacturing, packaging, and material handling.

Specifications

• Series: VQ2000
• Stations: 4
• Connector Type: Flat Ribbon, 26-pin standard
• Port Sizes: 12 options available
• Mounting Options: Base mounted with optional DIN rail mount

For detailed configuration options and to ensure compatibility with your specific application, please refer to the product catalog or contact an SMC representative.
