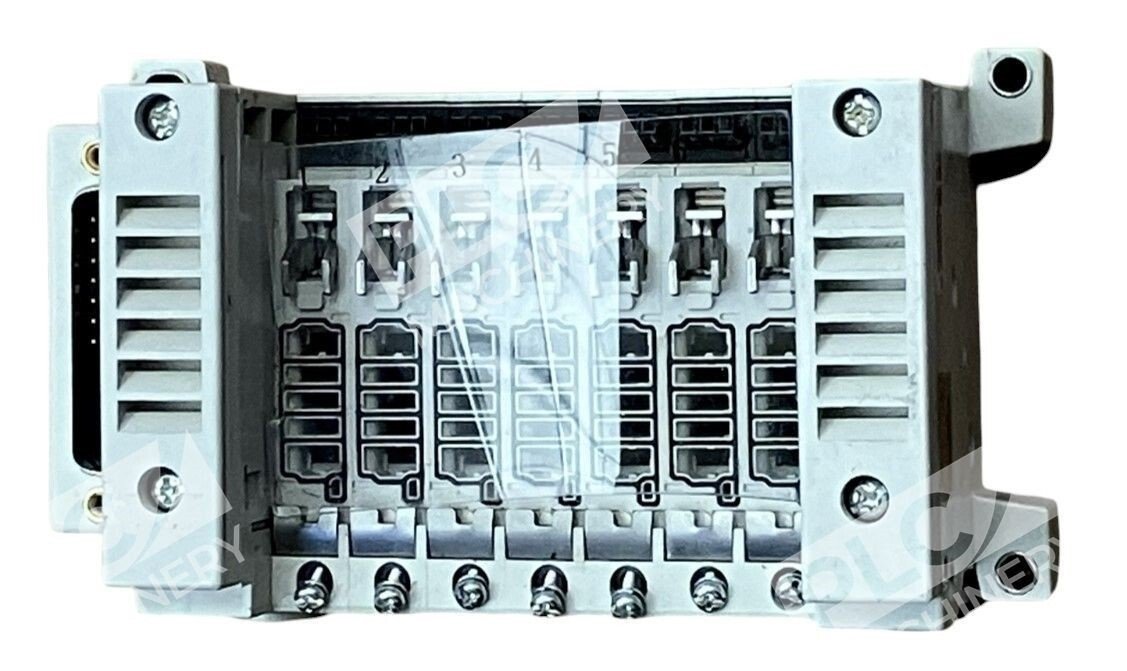

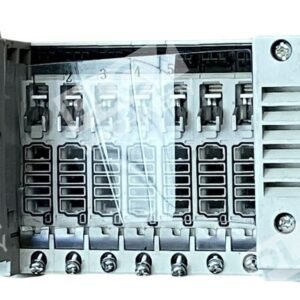

SMC VV5Q11-C01-07-DAL01096 7 Station Pneumatic Manifold Base

SMC VV5Q11-C01-07-DAL01096 7 Station Pneumatic Manifold Base

The SMC VV5Q11-C01-07-DAL01096 is a 7-station pneumatic manifold base designed to streamline the integration and operation of VQ1000 series valves in automated systems. This manifold base offers a compact and efficient solution for managing multiple pneumatic valves, enhancing both performance and maintenance processes.

Key Features

• Plug-in Design: Facilitates quick and easy installation of VQ1000 series valves, reducing setup time and simplifying maintenance.
• 7-Station Configuration: Accommodates up to seven valves, allowing for centralized control and efficient use of space.

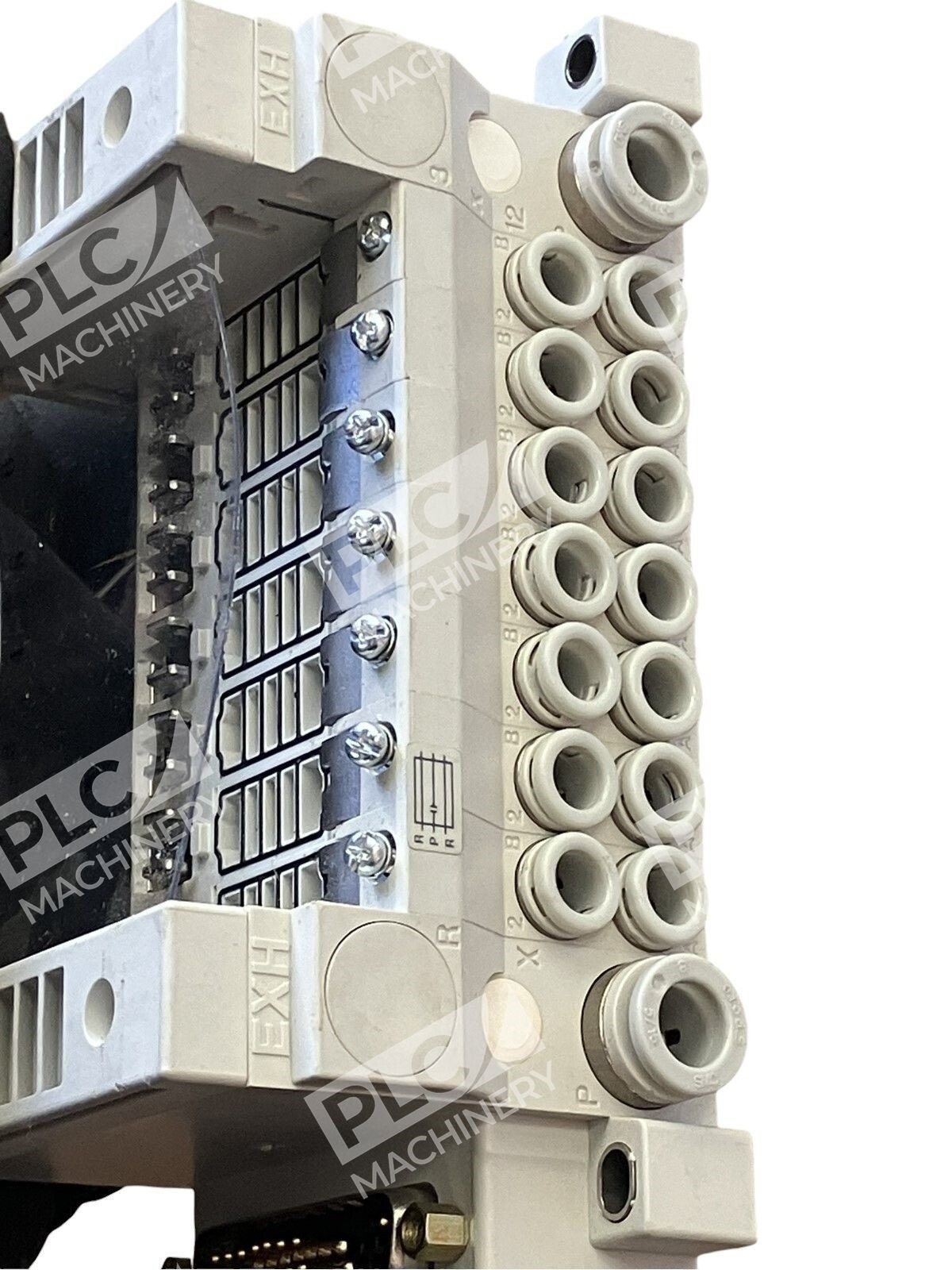

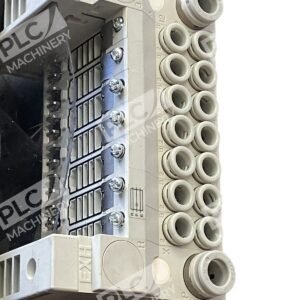

• One-Touch Fittings: Equipped with built-in one-touch fittings that expedite piping connections, minimizing labor and potential for errors.
• Innovative Mounting: Allows for individual valve replacement without the need to disassemble the entire manifold, ensuring minimal downtime during maintenance.
• Compact and Lightweight: Designed to save space and reduce the overall weight of the pneumatic system, contributing to more efficient machine design.

Specifications

• Series: VV5Q11
• Number of Stations: 7
• Compatible Valves: VQ1000 series
• Port Sizes: Available in various sizes to suit different piping requirements

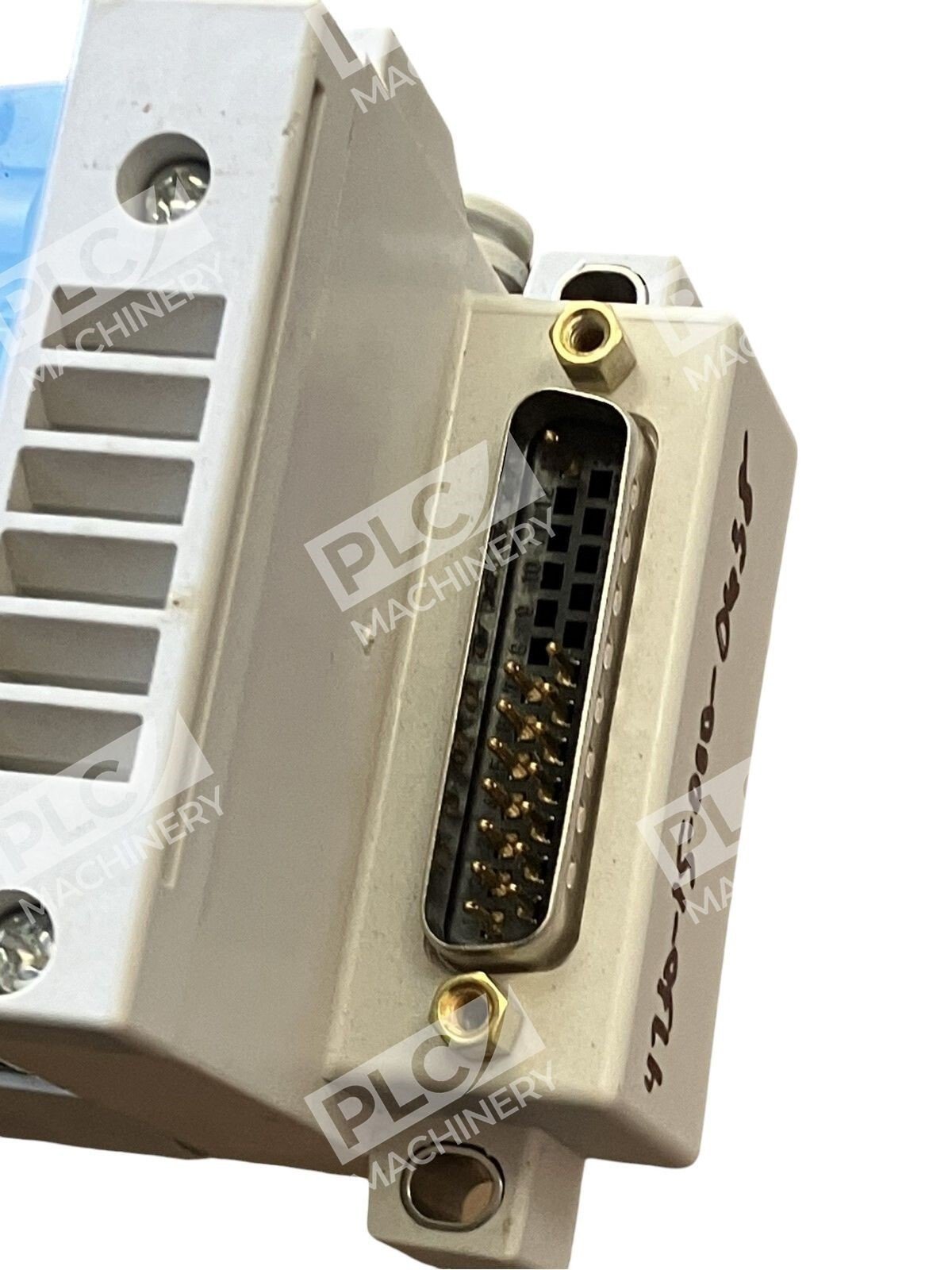

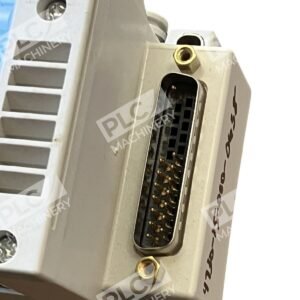

• Electrical Entry: Options for top or side receptacle positions to accommodate diverse installation needs
• Mounting Options: Optional DIN rail mounting for flexible installation

The SMC VV5Q11-C01-07-DAL01096 manifold base is an ideal choice for applications requiring high-speed, frequent operation, and stable response times. Its user-friendly design and robust construction make it a reliable component in complex pneumatic systems.
