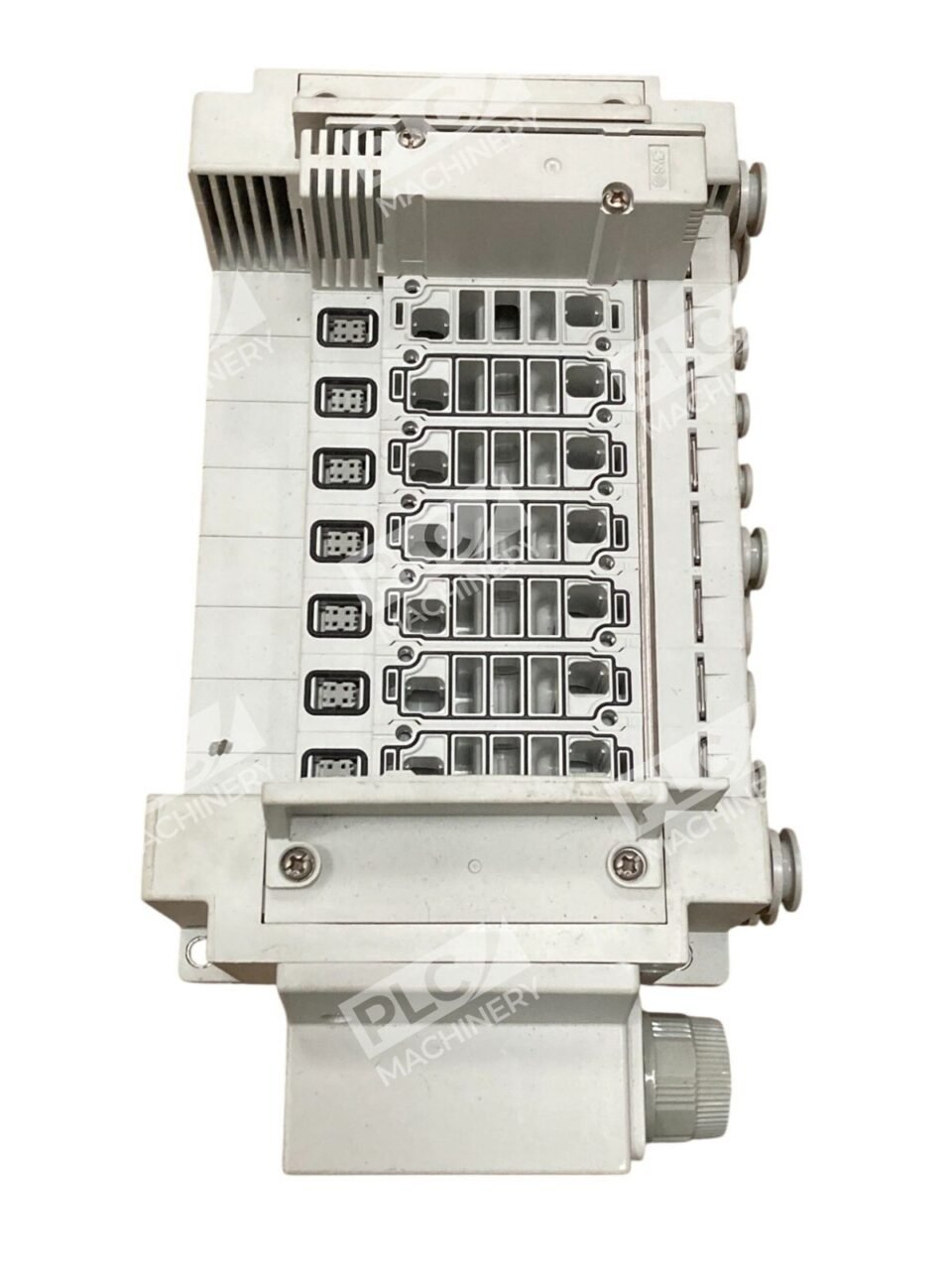

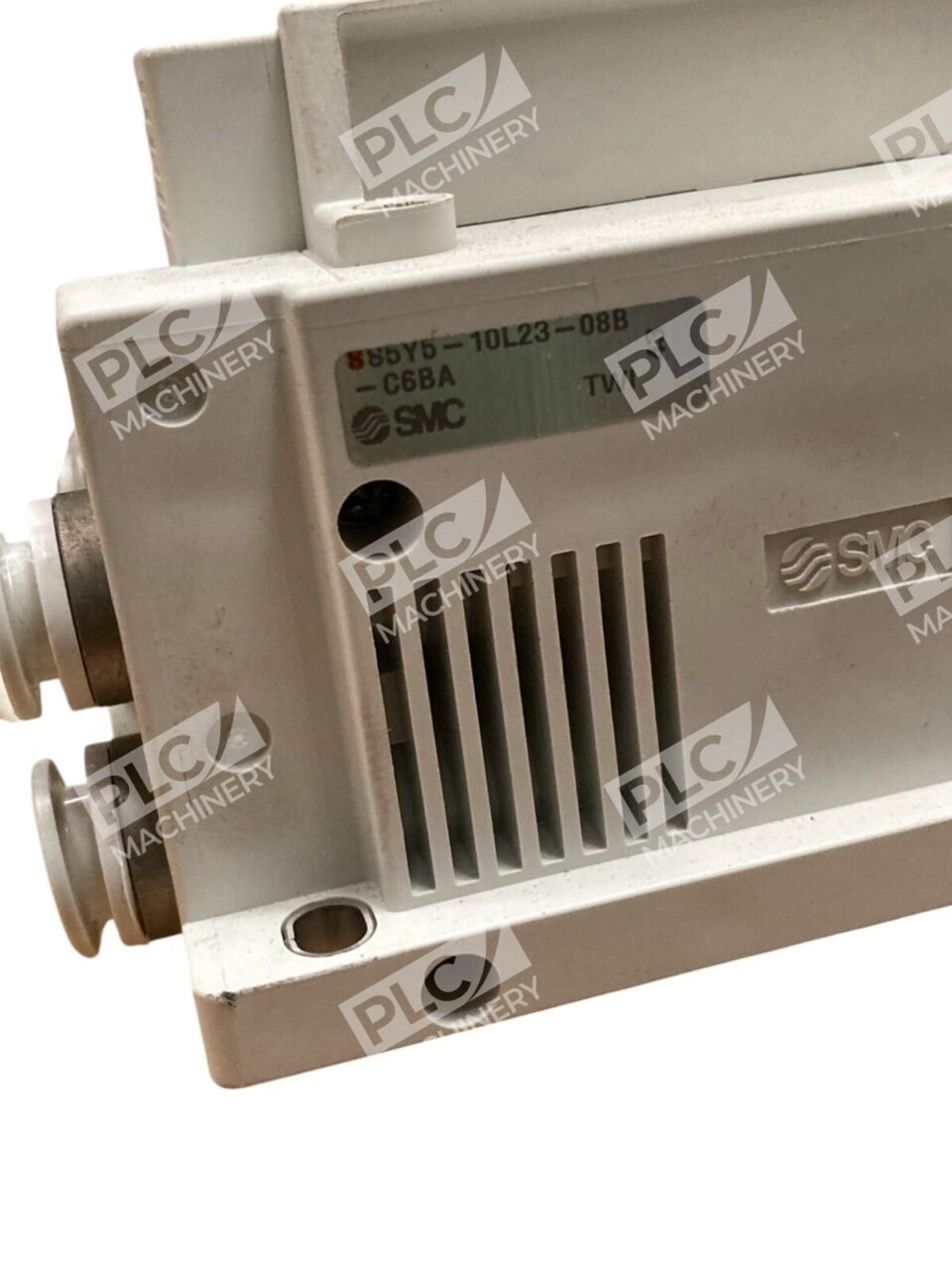

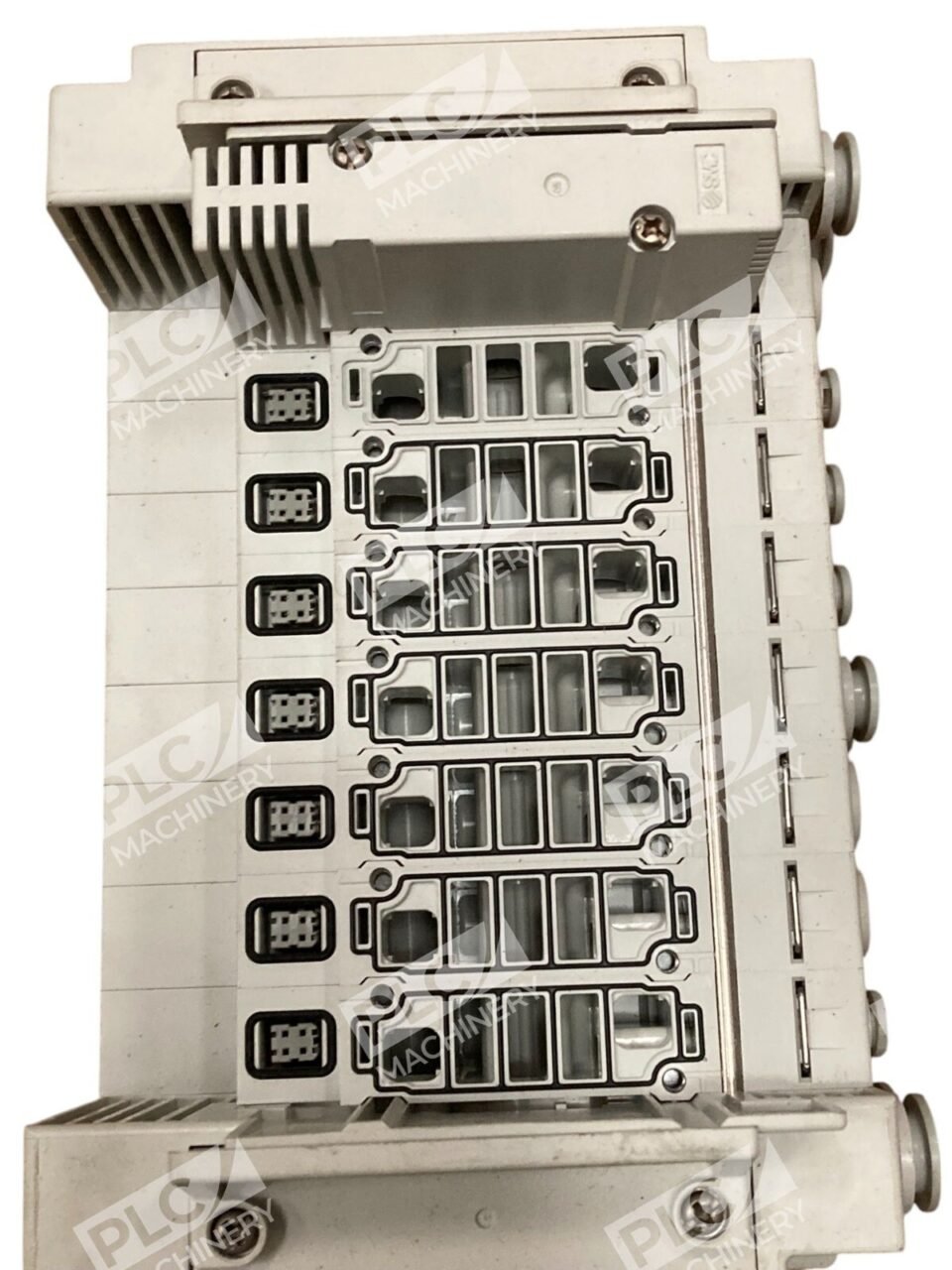

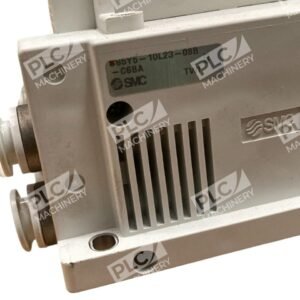

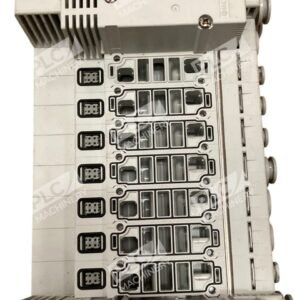

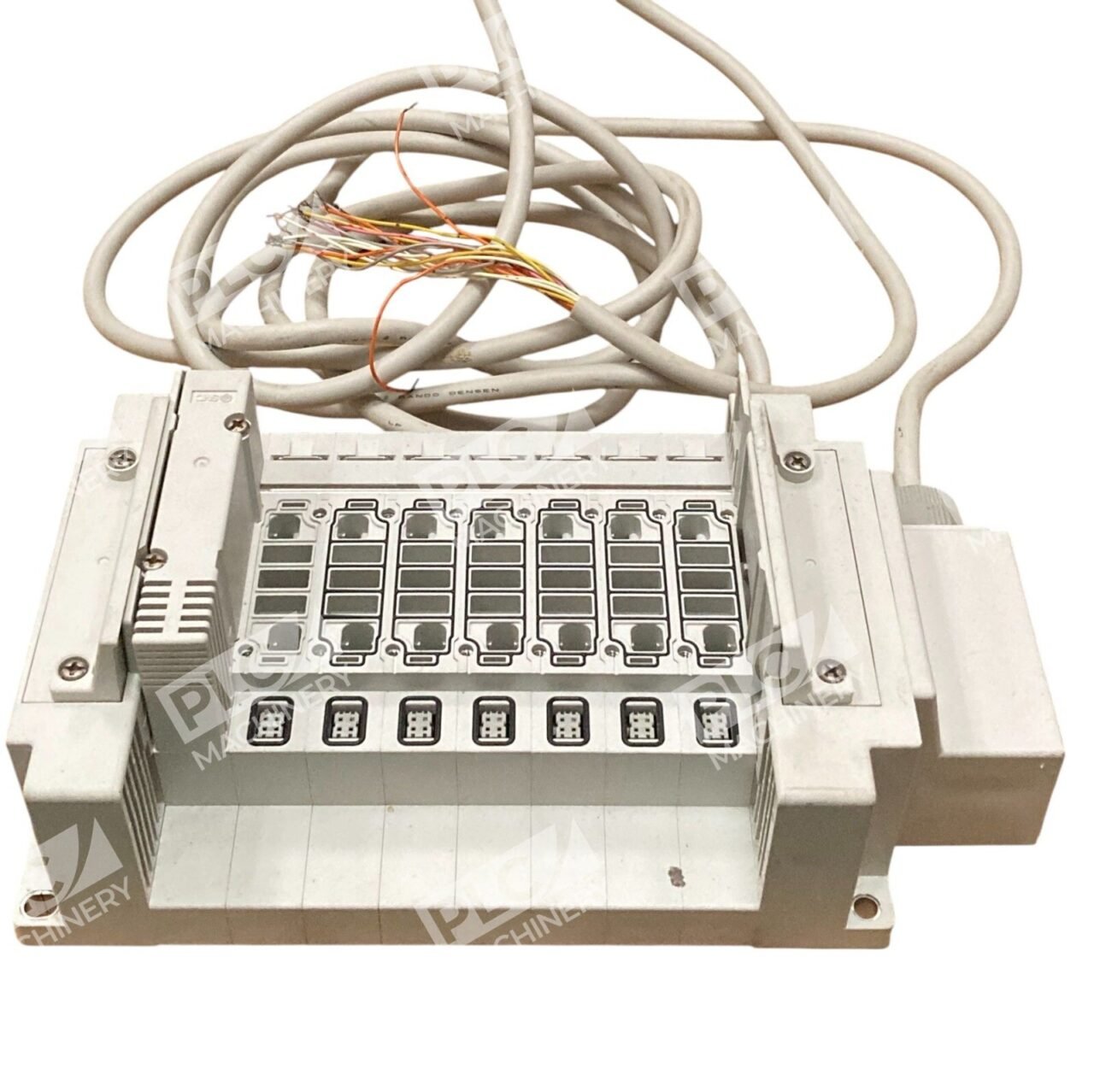

SMC SS5Y5-10L23-08B-C6BA 8-Station Manifold Base w/ Fittings

SMC SS5Y5-10L23-08B-C6BA 8-Station Manifold Base with Fittings

The SMC SS5Y5-10L23-08B-C6BA is an 8-station manifold base designed for the SY5000 series valves. This manifold base offers enhanced performance and reliability, making it suitable for various pneumatic applications.

Key Features

• Plug-in Connector Base: Facilitates easy installation and maintenance with a plug-in connector design.
• Flexible Porting Options: Supports side or bottom ported configurations to accommodate diverse piping requirements.
• External Pilot Availability: Offers the option for external pilot configurations, enhancing versatility in system design.

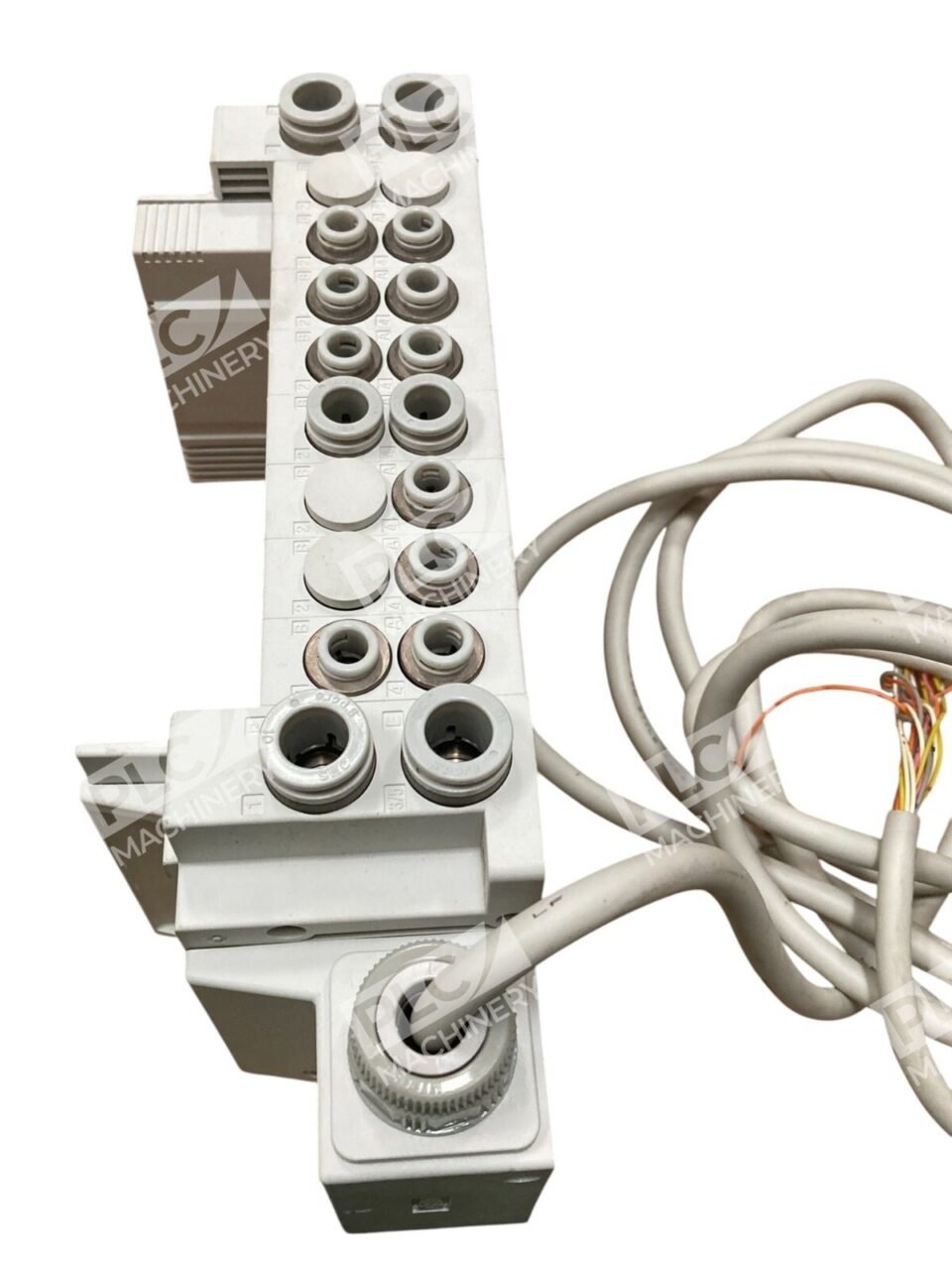

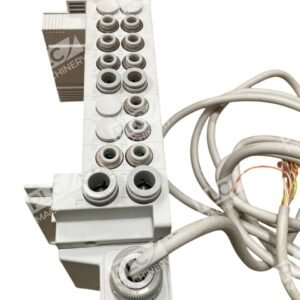

• One-Touch Fittings: Equipped with one-touch fittings for quick and secure tubing connections.
• Energy Efficiency: Features a power-saving circuit with a consumption of 0.1 W, reducing operational costs.
• Extended Service Life: Designed for durability with a service life of up to 200 million cycles for metal seals and 70 million cycles for rubber seals.

Specifications

• Series: SY5000
• Type: Side Ported
• Valve Stations: 8
• P, E Port Outlets: Both Sides
• SUP/EXH Block Assembly Specifications: Standard/Internal Pilot Specification
• A/B Port Size: One-touch Fitting for Φ6
• Mounting and Option: Name Plate (Without Station Number)

The SMC SS5Y5-10L23-08B-C6BA manifold base is engineered to optimize space and energy usage while providing reliable performance in pneumatic systems.
