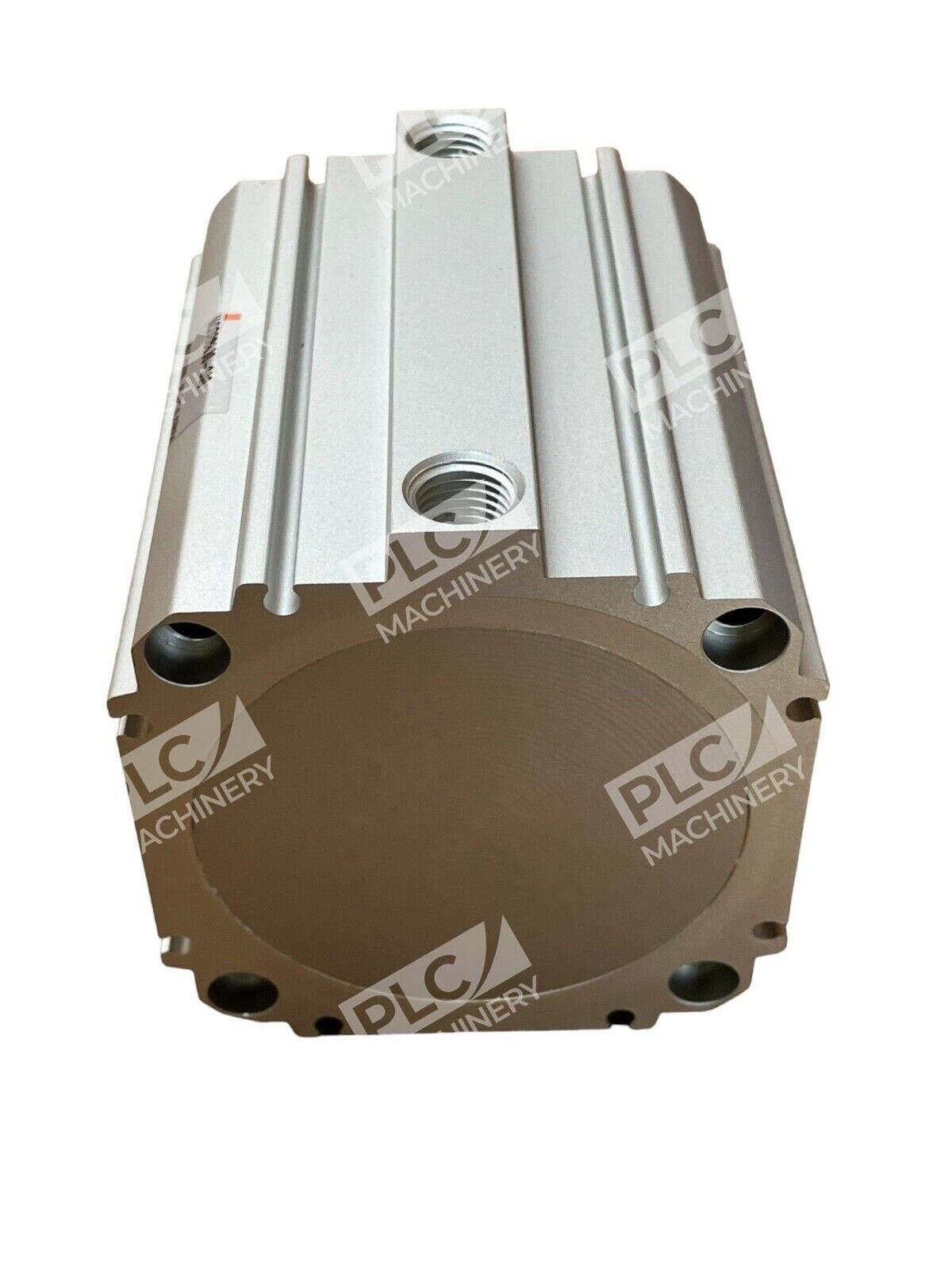

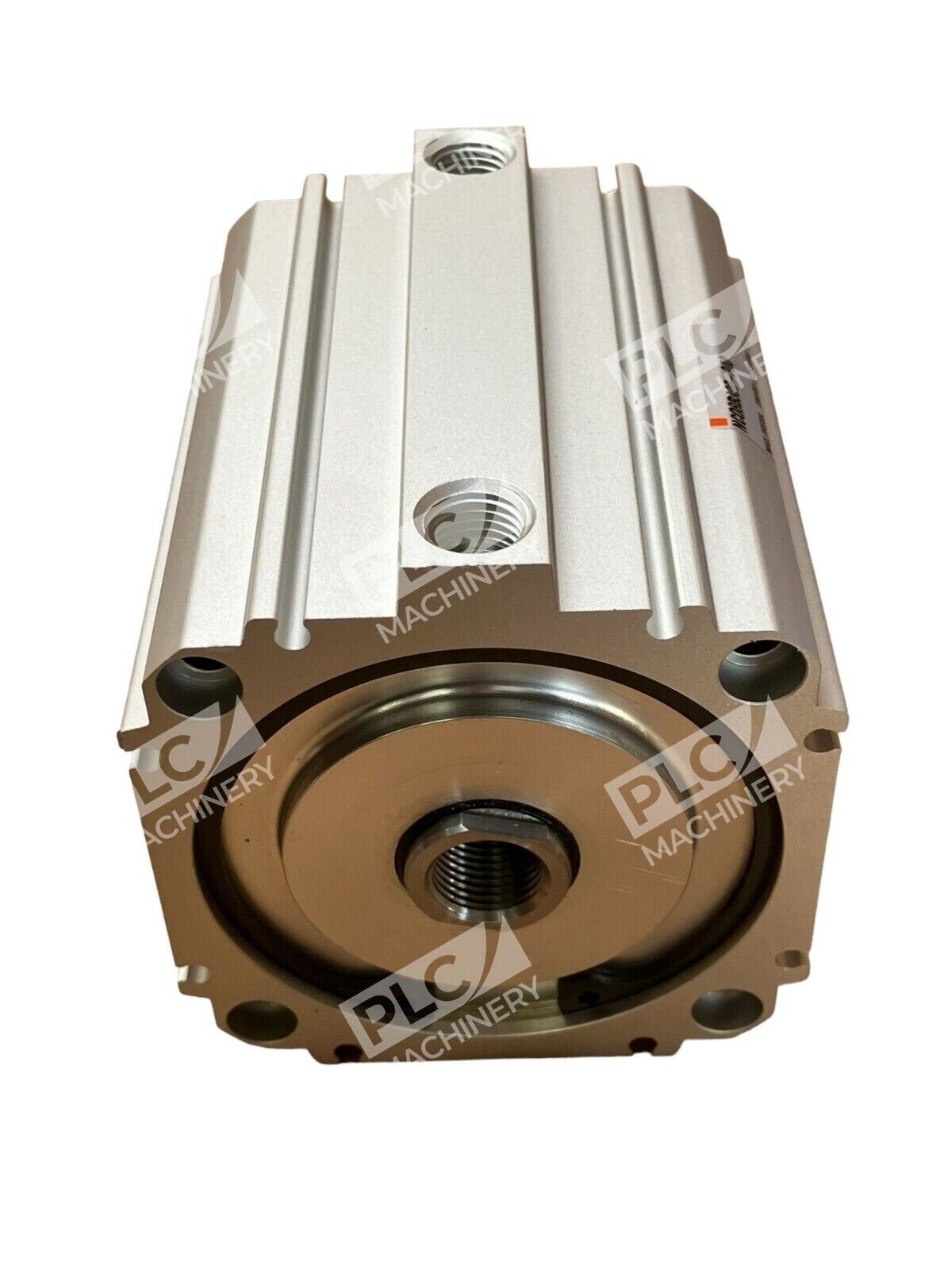

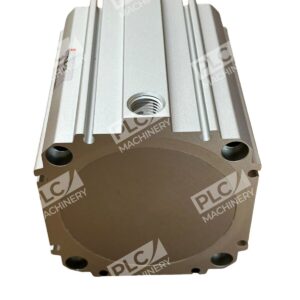

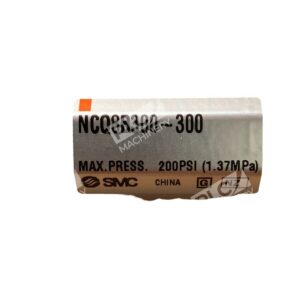

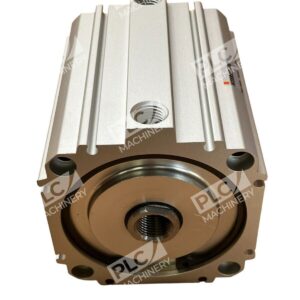

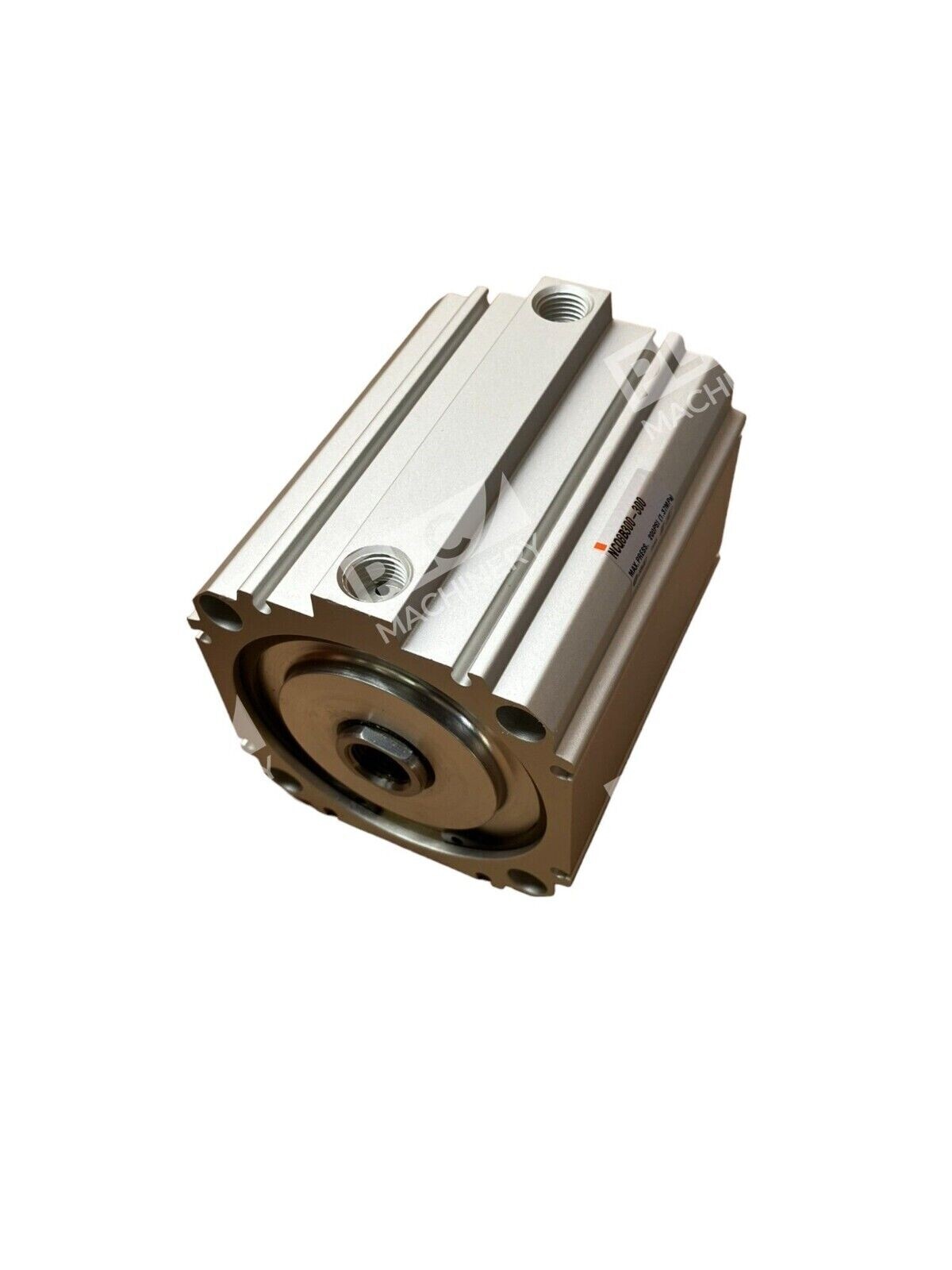

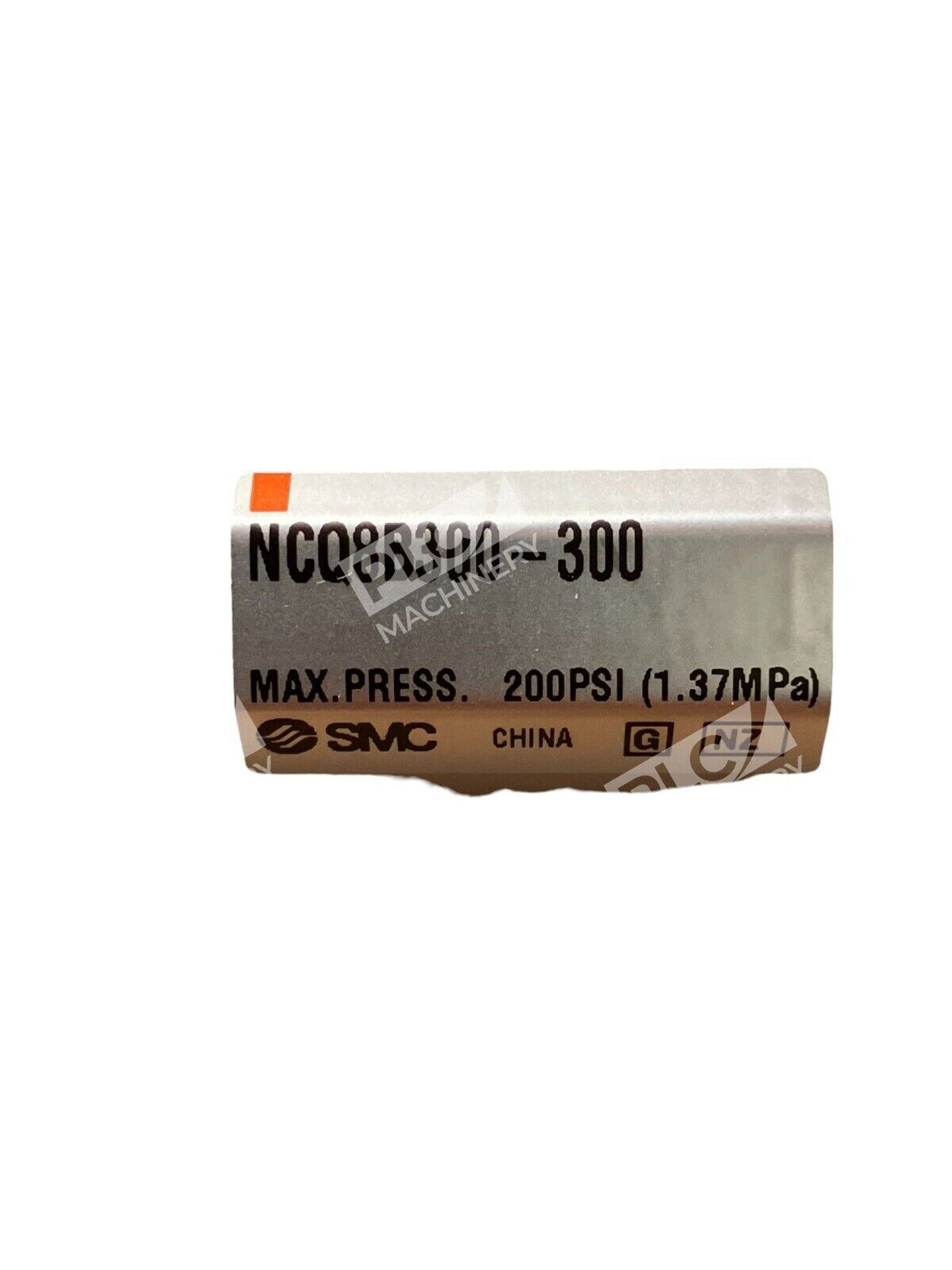

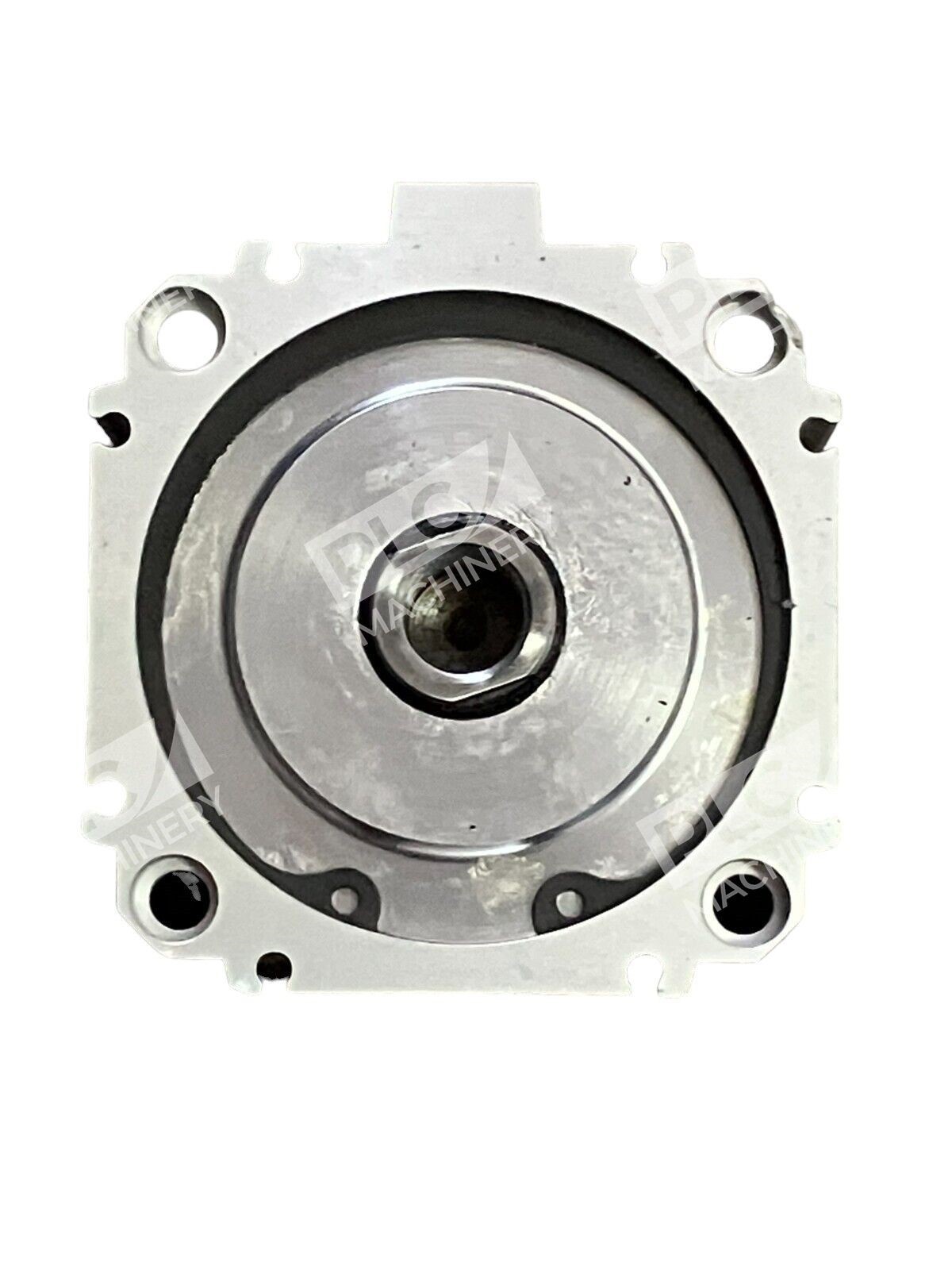

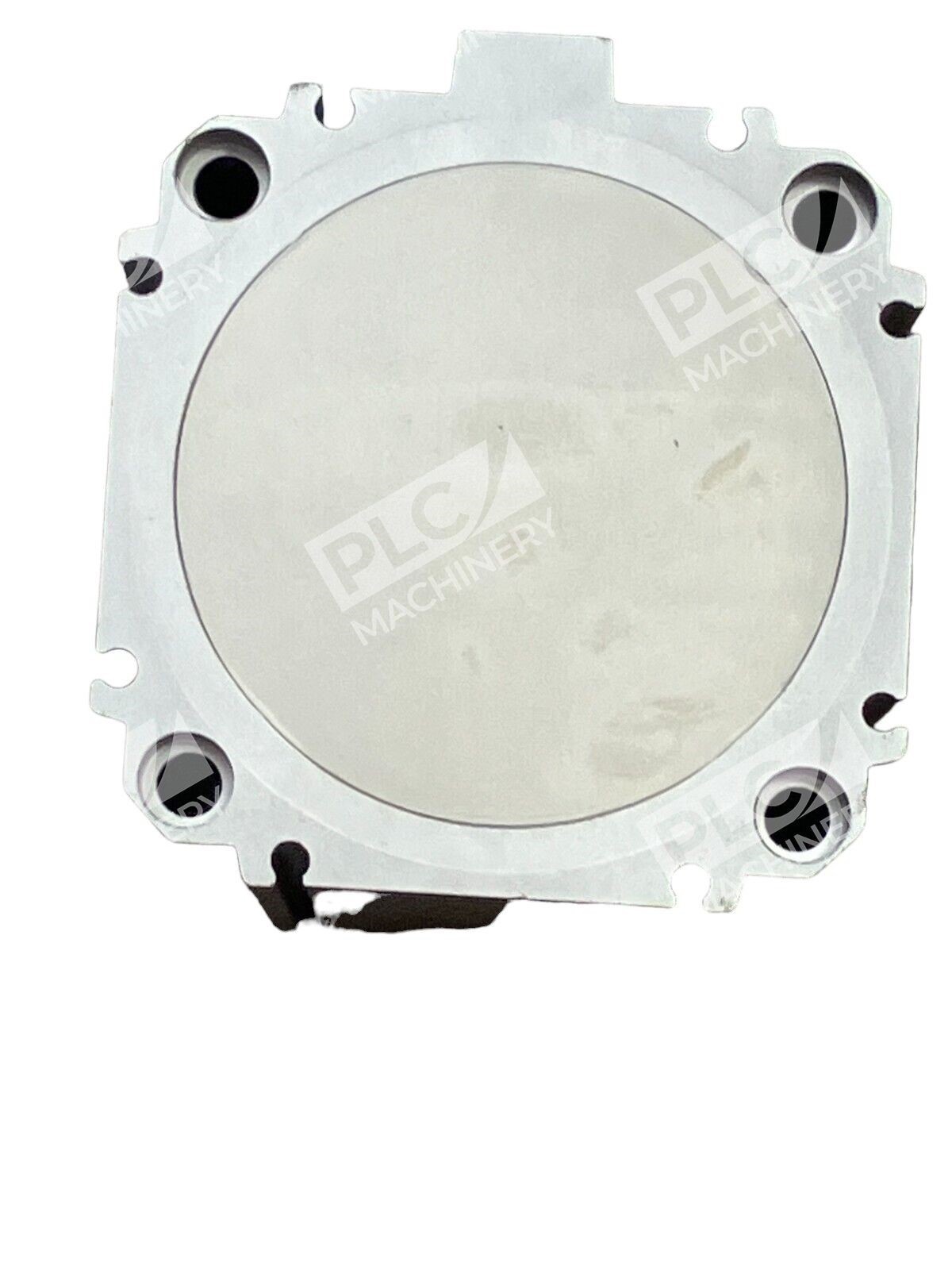

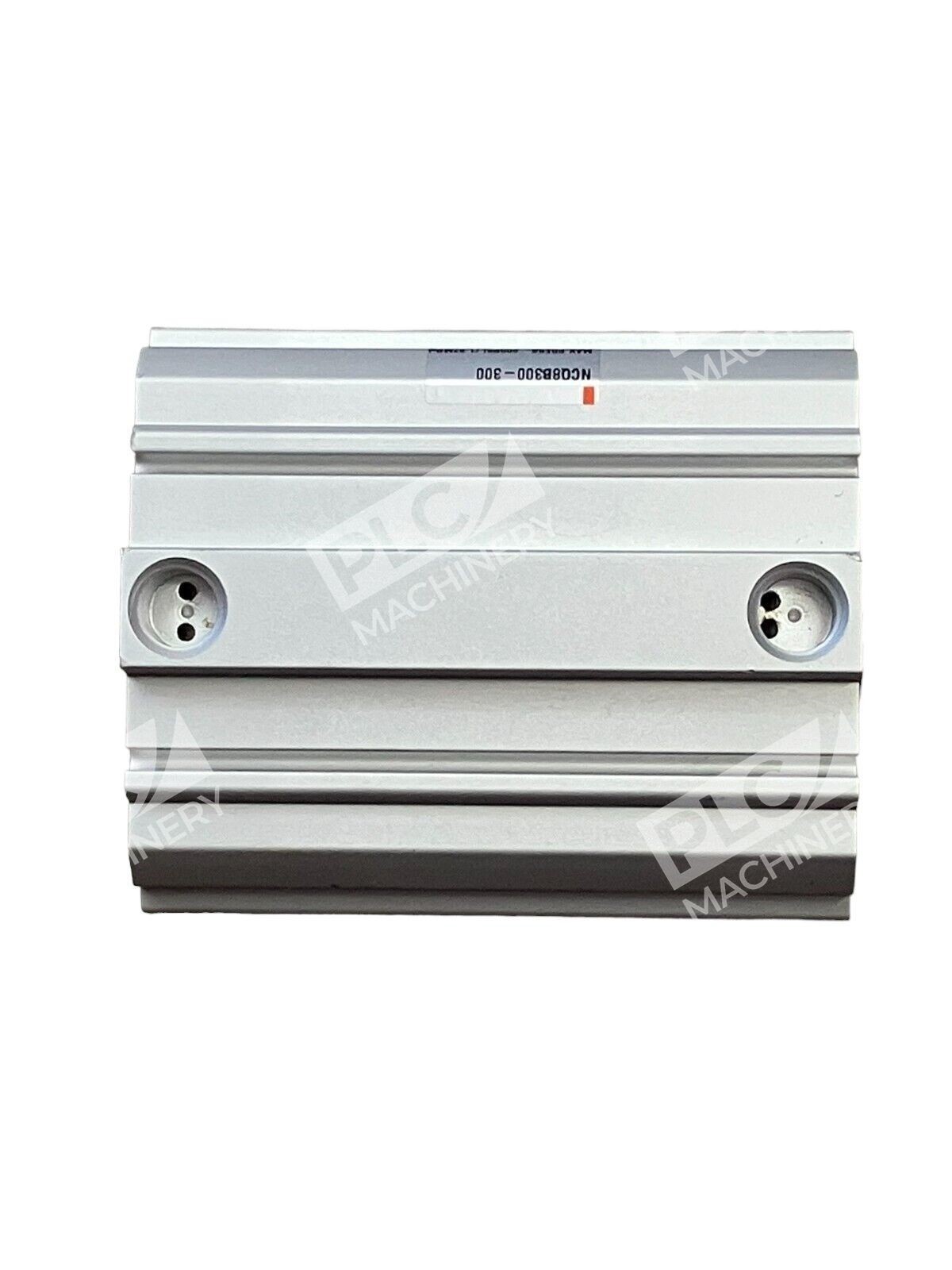

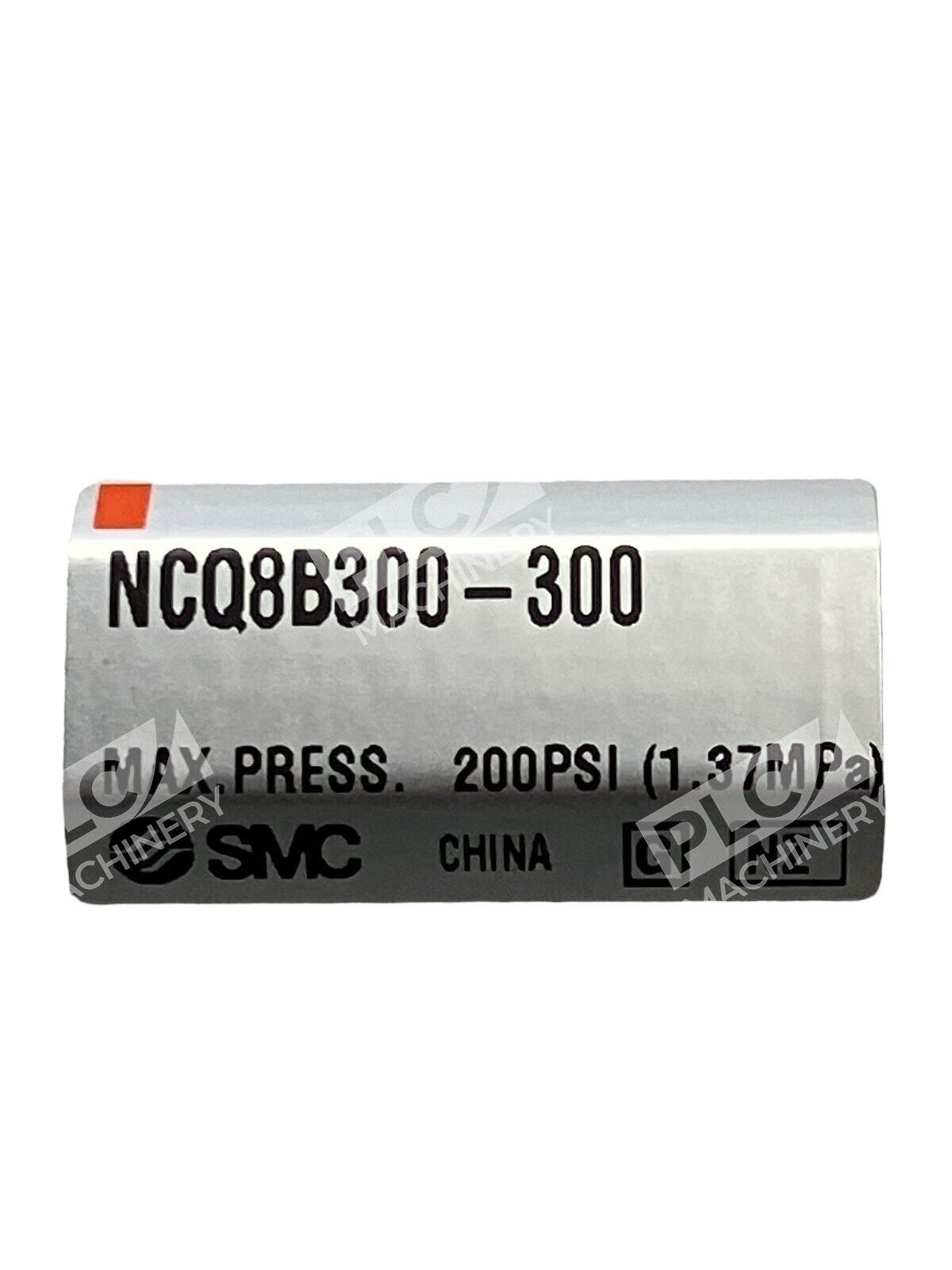

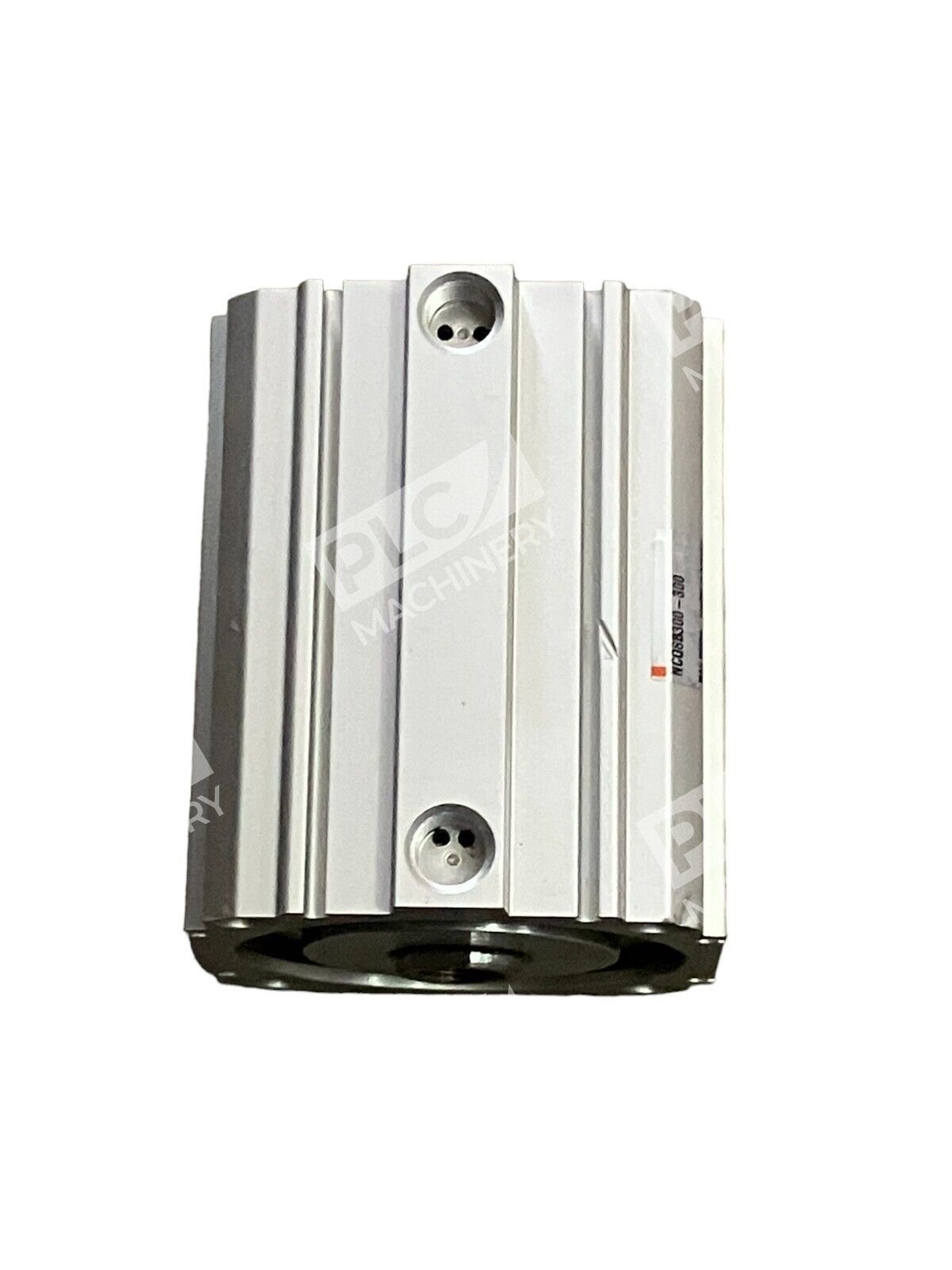

SMC NCQ8B300-300 Compact Cylinder NNB
The SMC NCQ8B300-300 is a compact, double-acting pneumatic cylinder designed for efficient performance in various industrial applications. Its square body design allows for close center-to-center mounting, making it ideal for installations where space is limited.
Key Features
- Double-Acting Operation: Ensures consistent force during both extension and retraction strokes, enhancing operational efficiency.
- Compact Design: The square body facilitates close center-to-center mounting, optimizing space utilization.
- Auto Switch Capability: Easily mountable on multiple sides, allowing for flexible sensor integration.
- Maintenance-Friendly: The retaining ring method simplifies seal replacement by allowing easy collar removal.
Specifications
- Bore Diameter: 3.000 inches
- Stroke Length: 3.000 inches
- Maximum Operating Pressure: 200 psi
- Operating Temperature Range: 15°F to 150°F
- Port Size: 1/4 NPT
- Rod Size/Thread: 5/8-18 Female UNF
- Mounting Type: Through Hole
- Overall Dimensions: Length: 4.38 inches, Width: 3.56 inches, Height: 3.84 inches
The SMC NCQ8B300-300 Compact Cylinder is a reliable and efficient solution for various pneumatic applications, offering a blend of performance and ease of maintenance.
