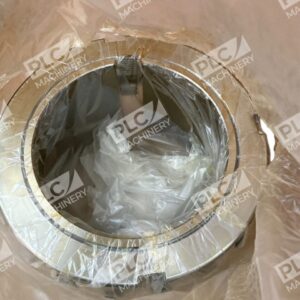

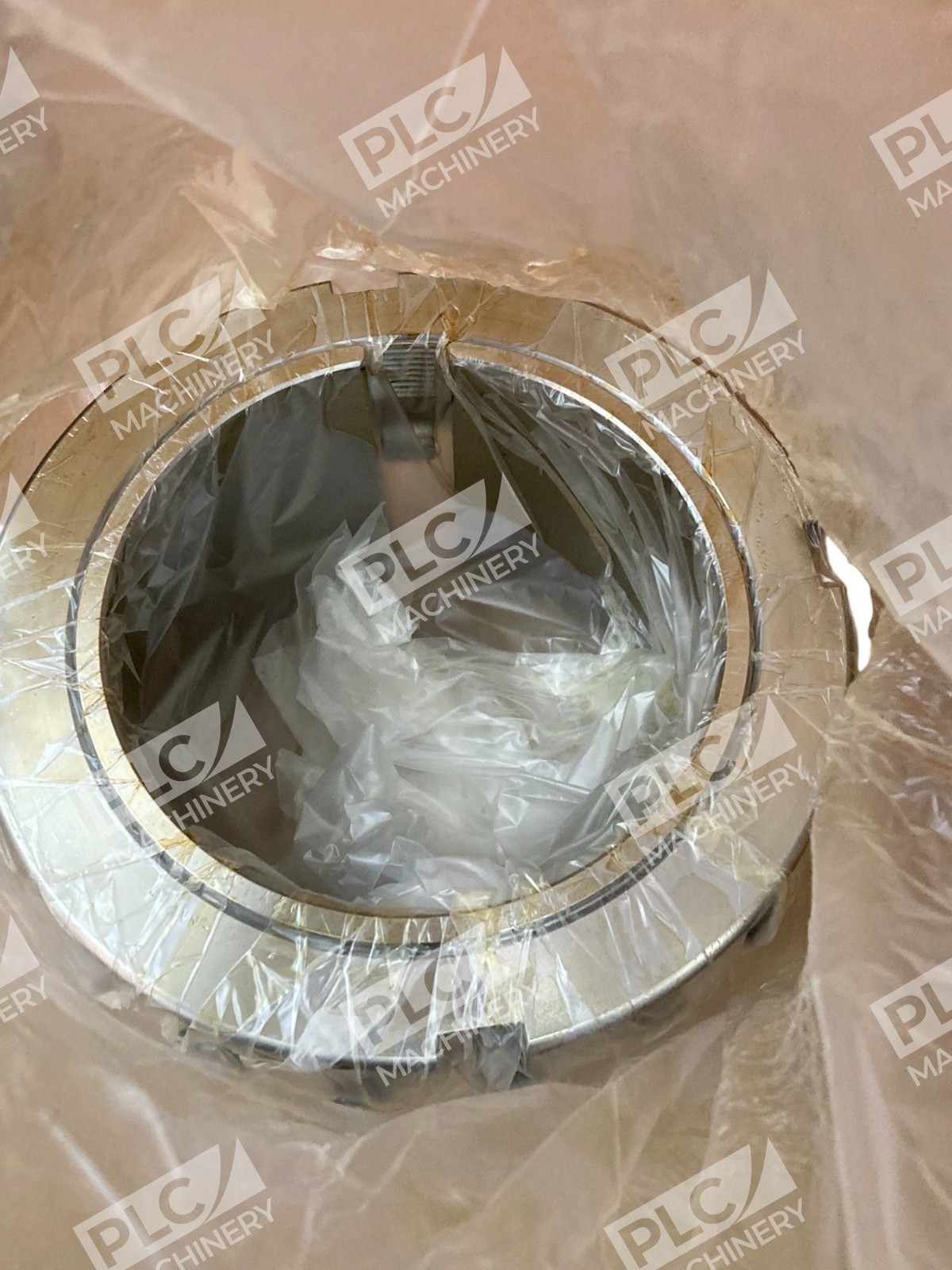

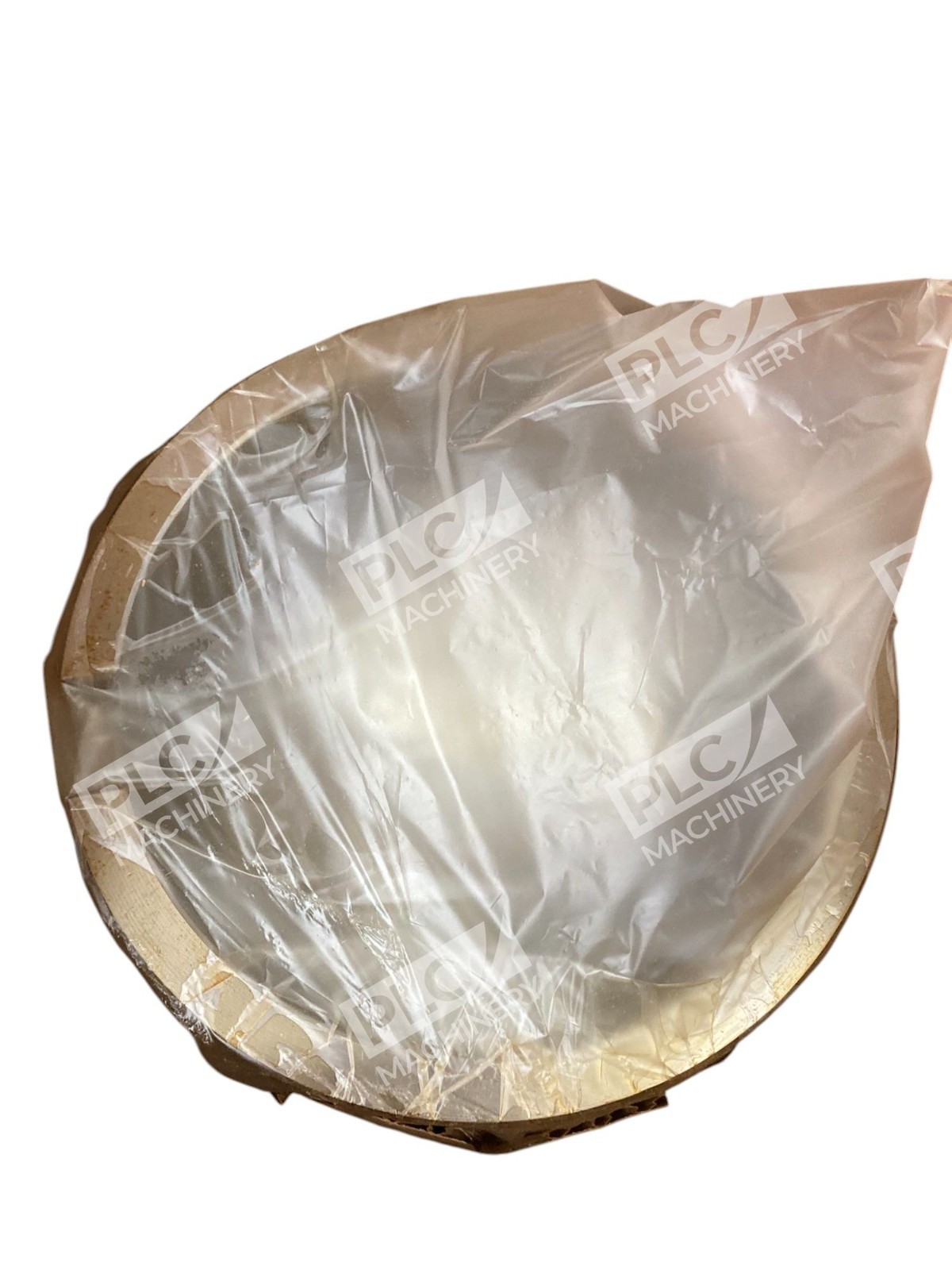

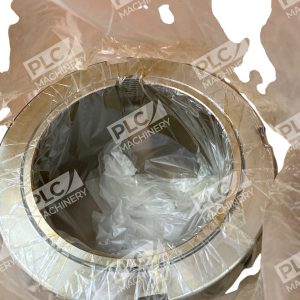

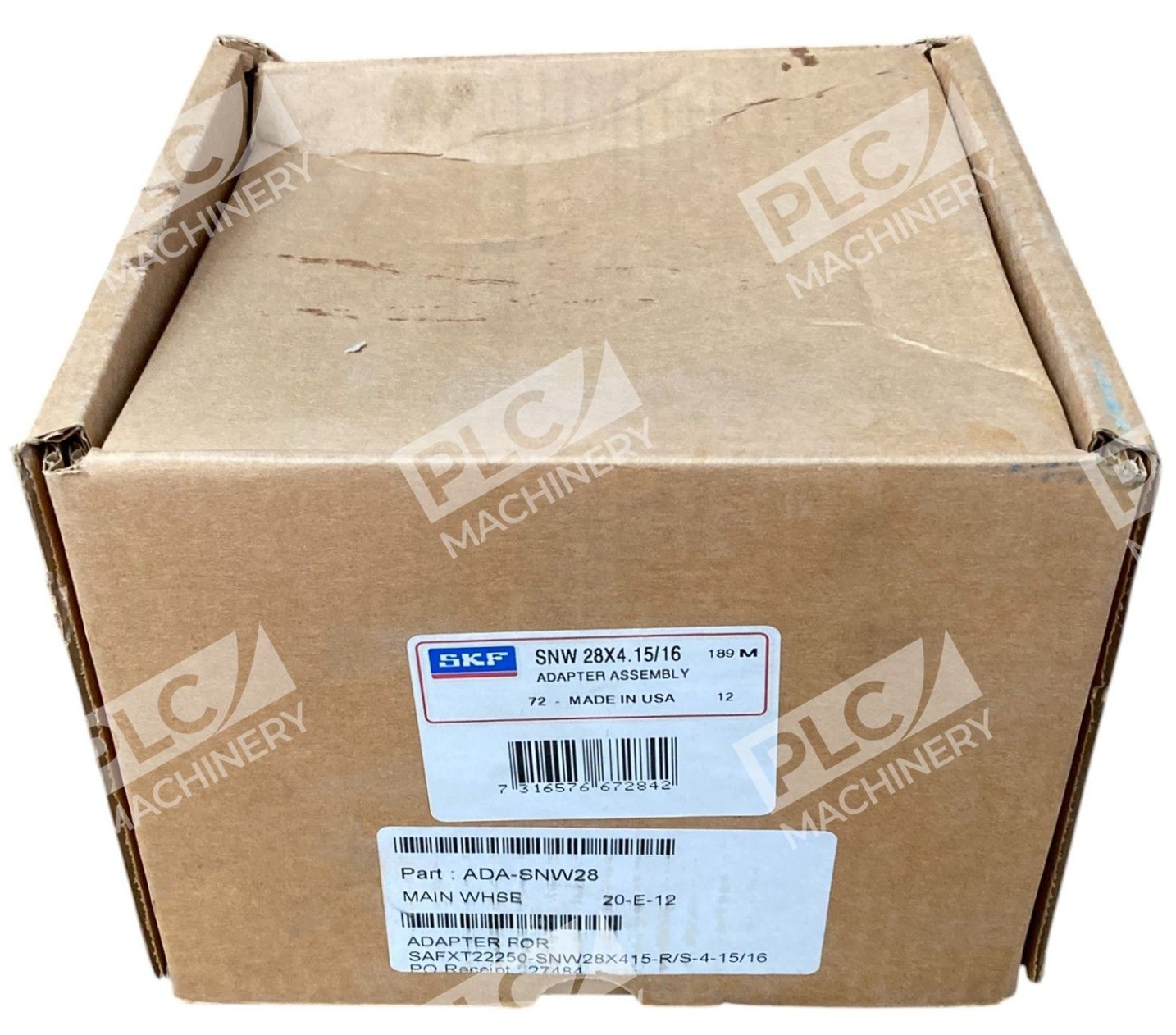

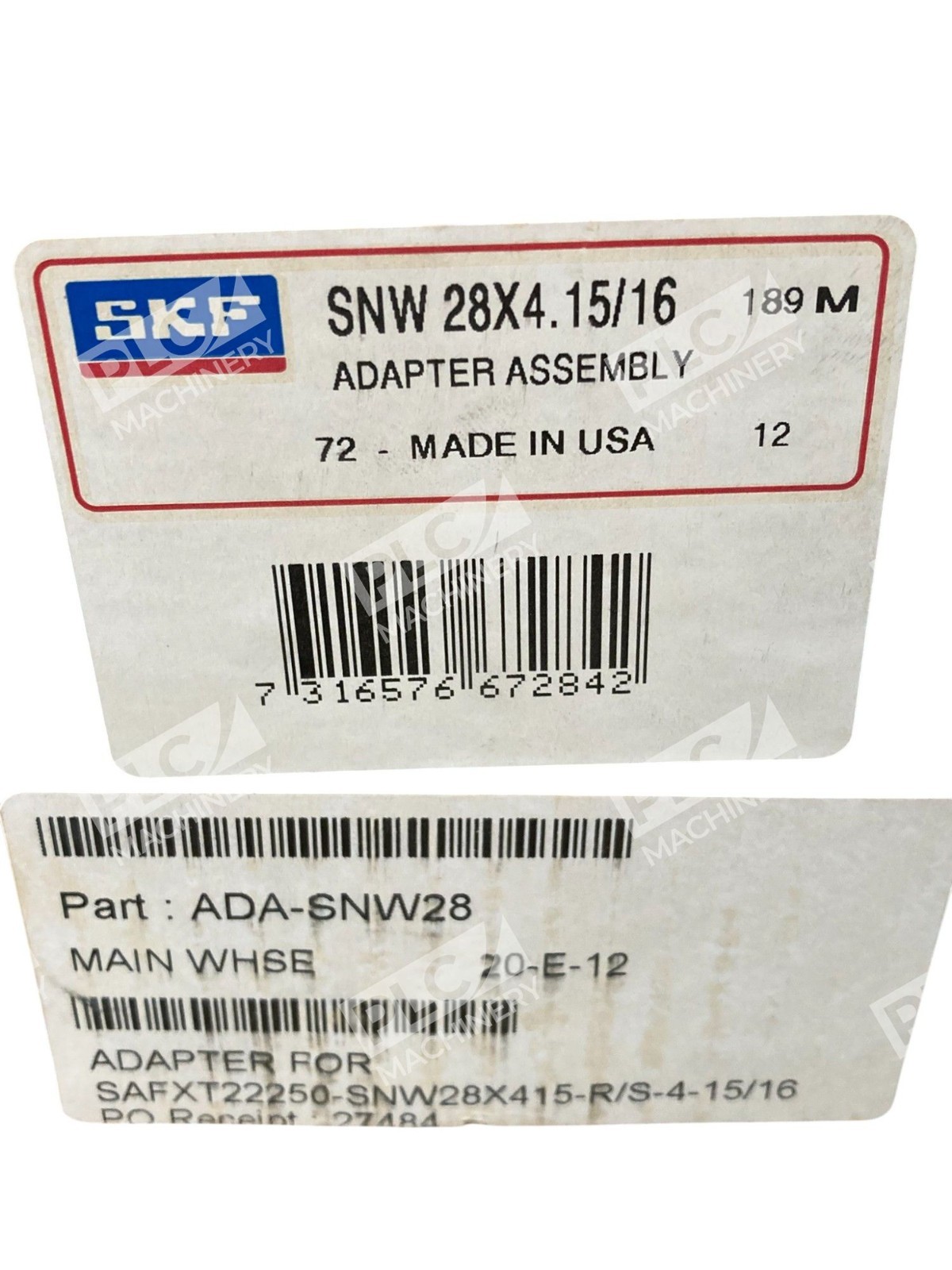

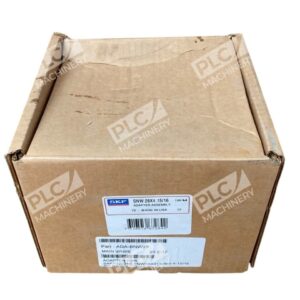

SKF Adapter Assembly SNW 28X4.15/16

SKF Adapter Assembly SNW 28X4.15/16

The SKF Adapter Assembly SNW 28X4.15/16 is engineered to facilitate the secure mounting of bearings with tapered bores onto cylindrical shafts. This assembly simplifies the installation and removal process, ensuring a precise and reliable fit for various industrial applications.

Key Features

• Material: Constructed from high-quality steel, offering durability and resistance to wear.
• Series: Part of the SNW series, known for its compatibility with a wide range of bearings.
• Shaft Diameter: Designed for shafts with a diameter of 4-15/16 inches.
• Inside Diameter: 4-15/16 inches, matching the shaft diameter for a snug fit.
• Outside Diameter: Measures 7.099 inches, providing ample surface area for secure bearing placement.
• Thread Size: Equipped with a 5.497-inch thread, ensuring compatibility with corresponding lock nuts.
• Overall Length: 5.5118 inches, accommodating various bearing widths.
• Width: 1.063 inches, offering a compact profile without compromising strength.

Applications

This adapter assembly is ideal for use in industries requiring precise bearing alignment and secure attachment, such as manufacturing, mining, and material handling. Its robust construction and design ensure optimal performance in demanding environments.

Installation and Compatibility

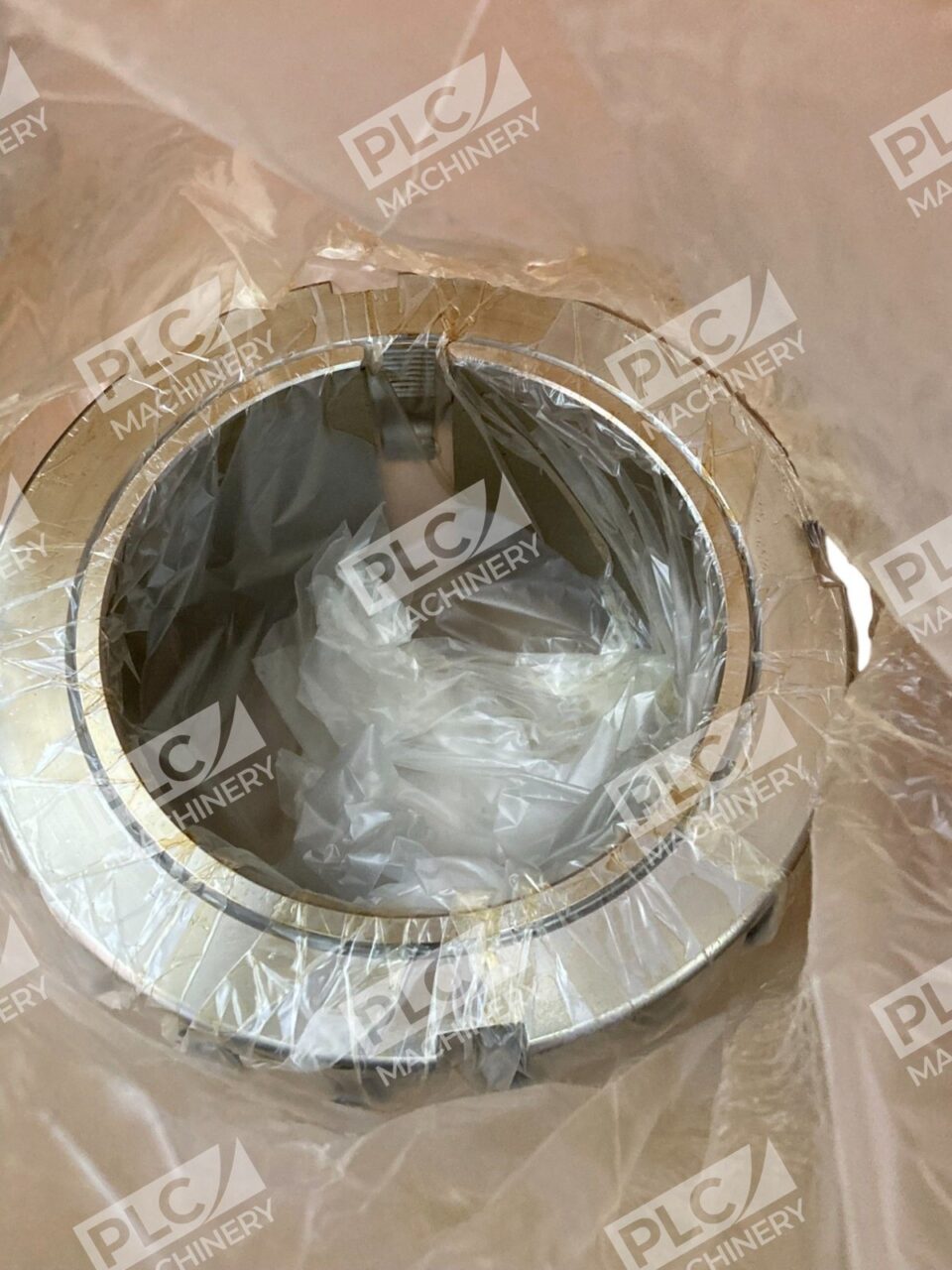

The SNW 28X4.15/16 adapter sleeve is compatible with bearings featuring tapered bores, facilitating easy mounting onto cylindrical shafts. The assembly includes a lock nut and lock washer, providing a complete solution for bearing installation. Proper installation ensures enhanced bearing performance and longevity.

Specifications

By integrating the SKF Adapter Assembly SNW 28X4.15/16 into your machinery, you ensure a secure and efficient bearing setup, contributing to the overall reliability and performance of your equipment.
