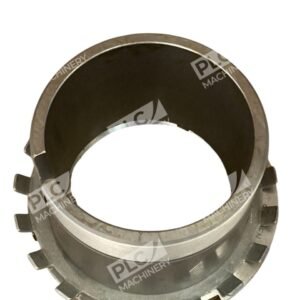

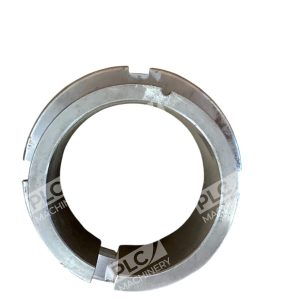

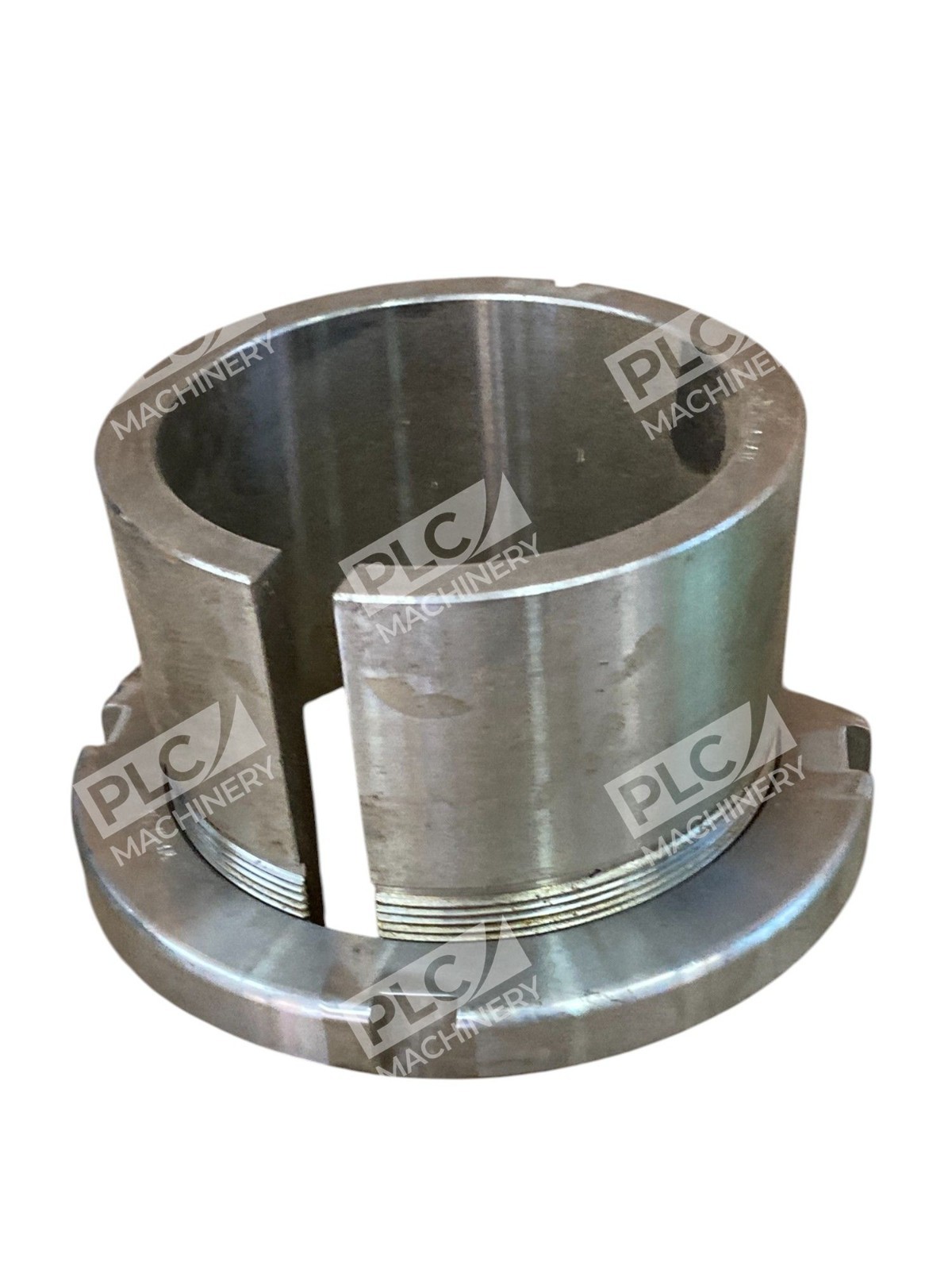

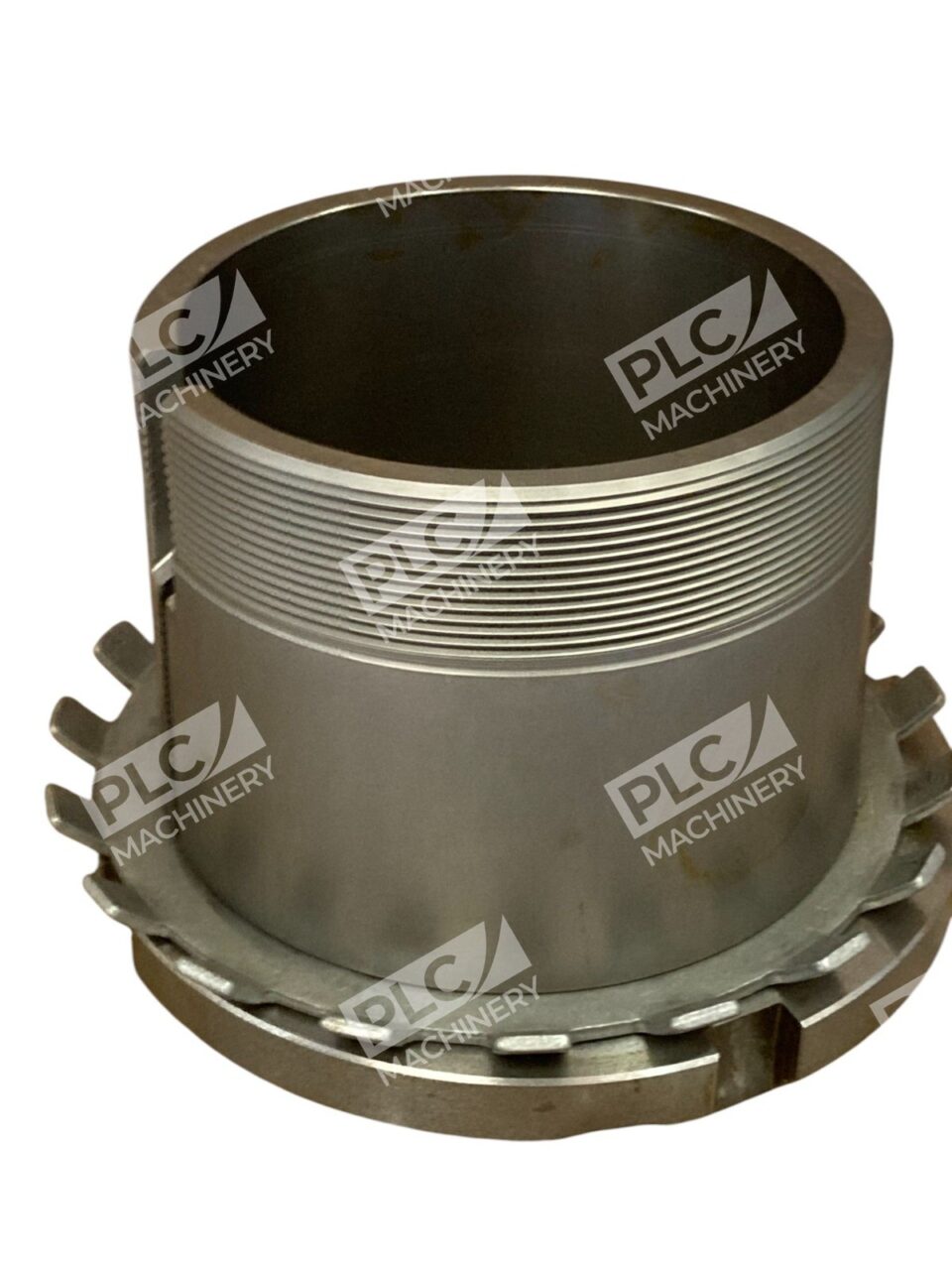

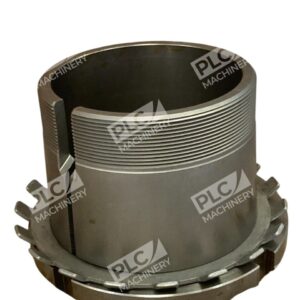

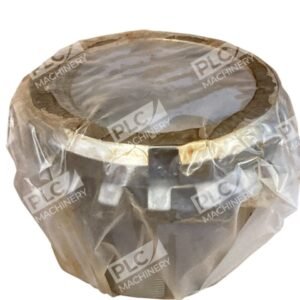

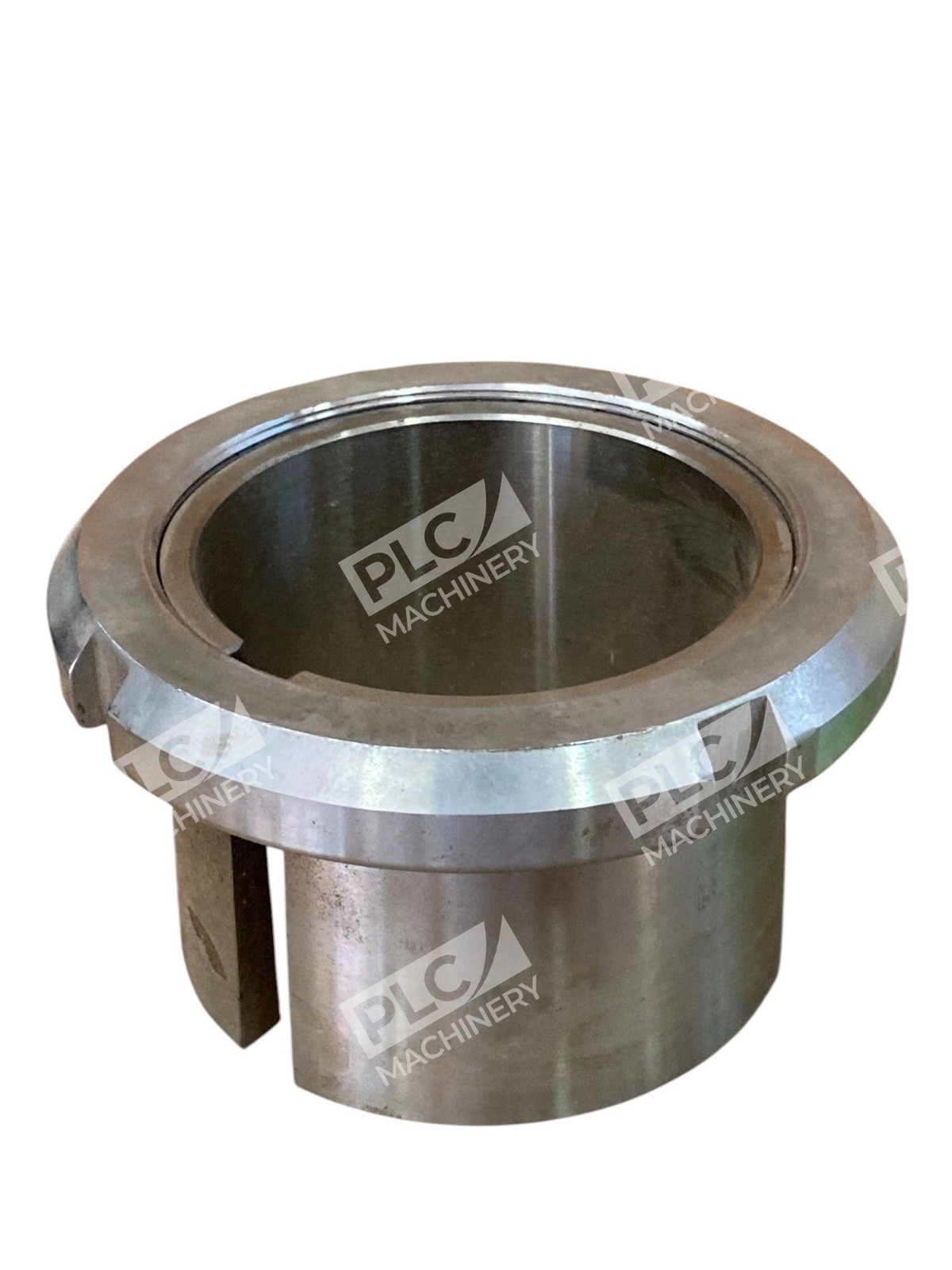

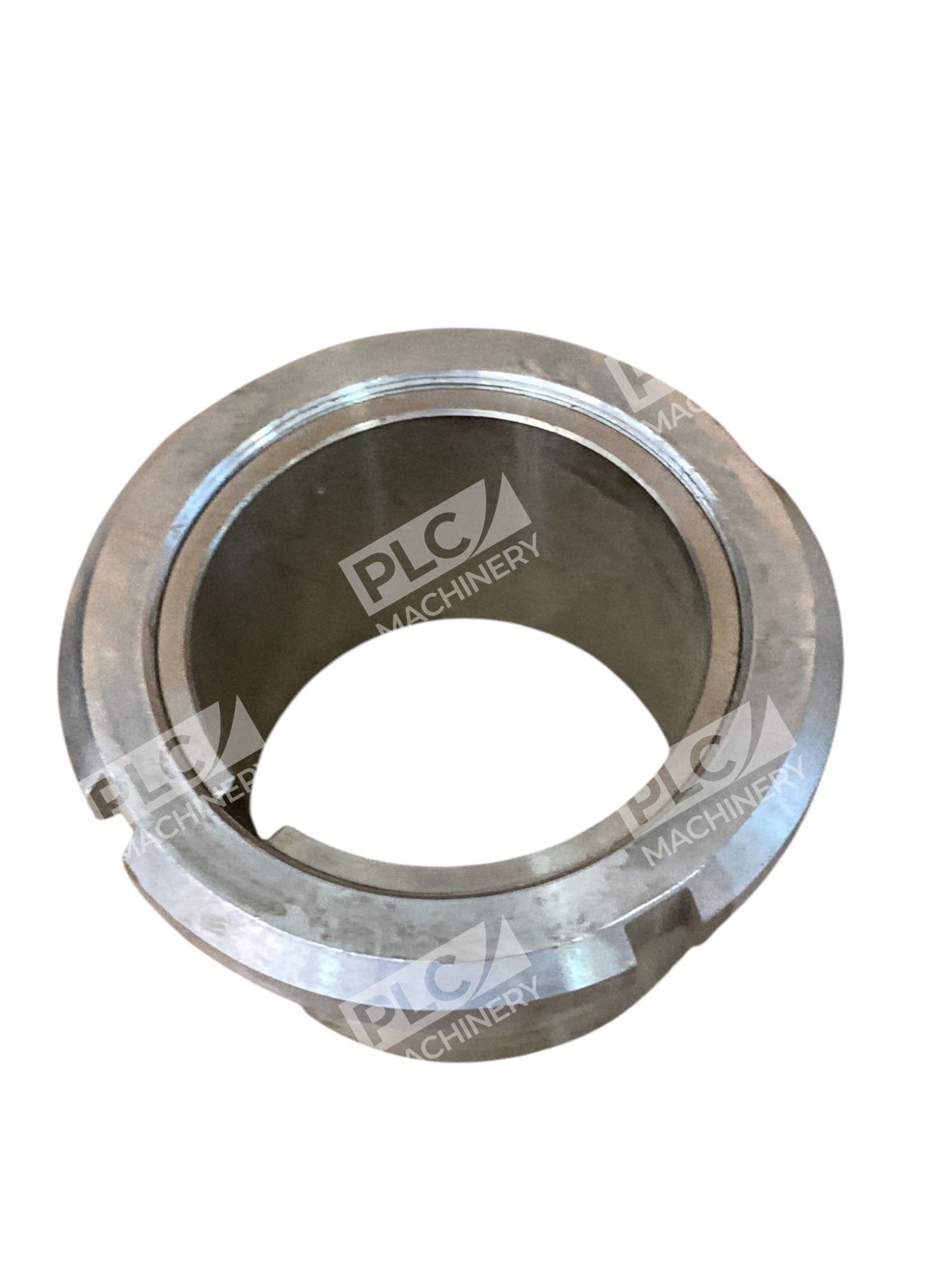

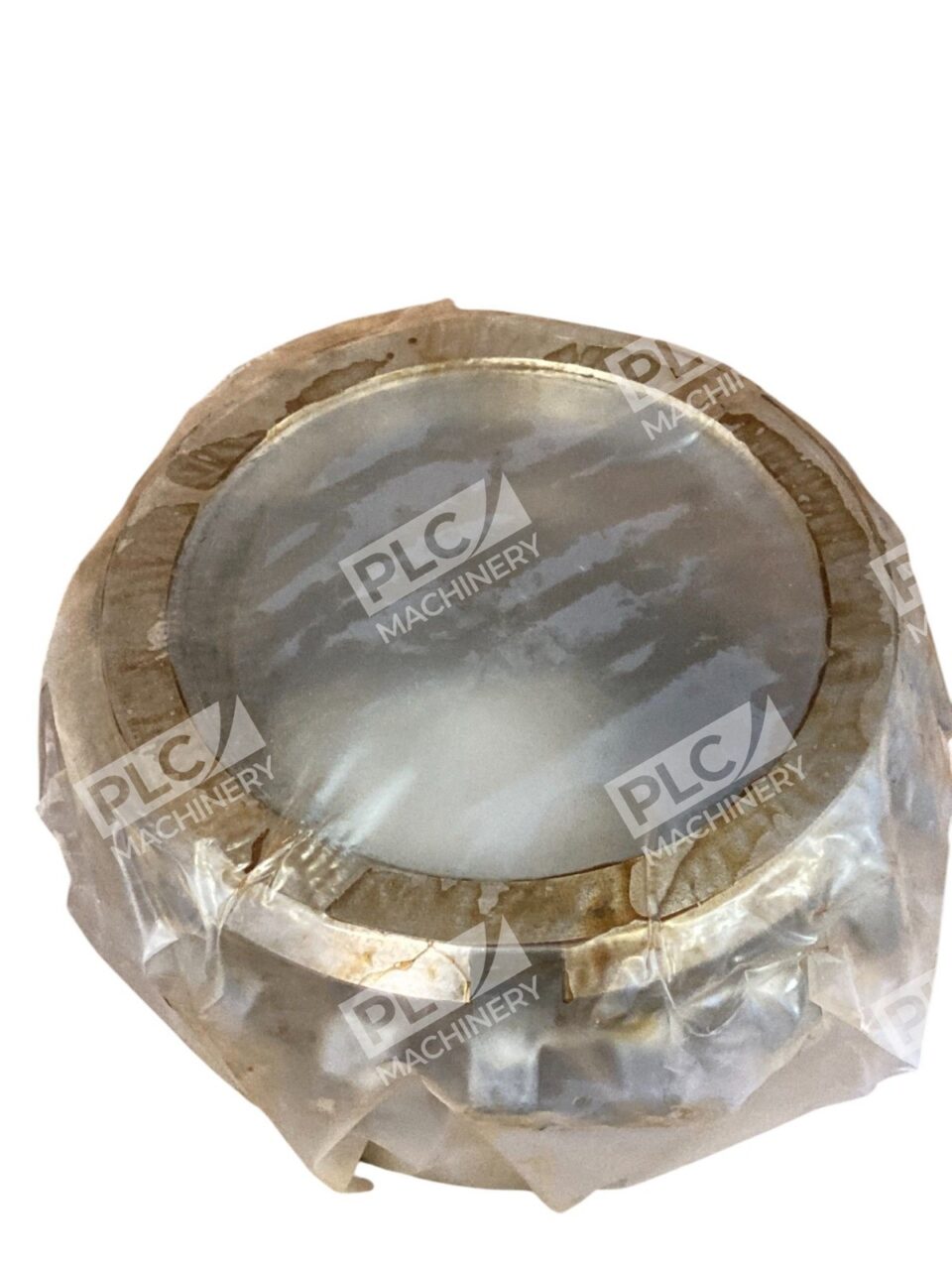

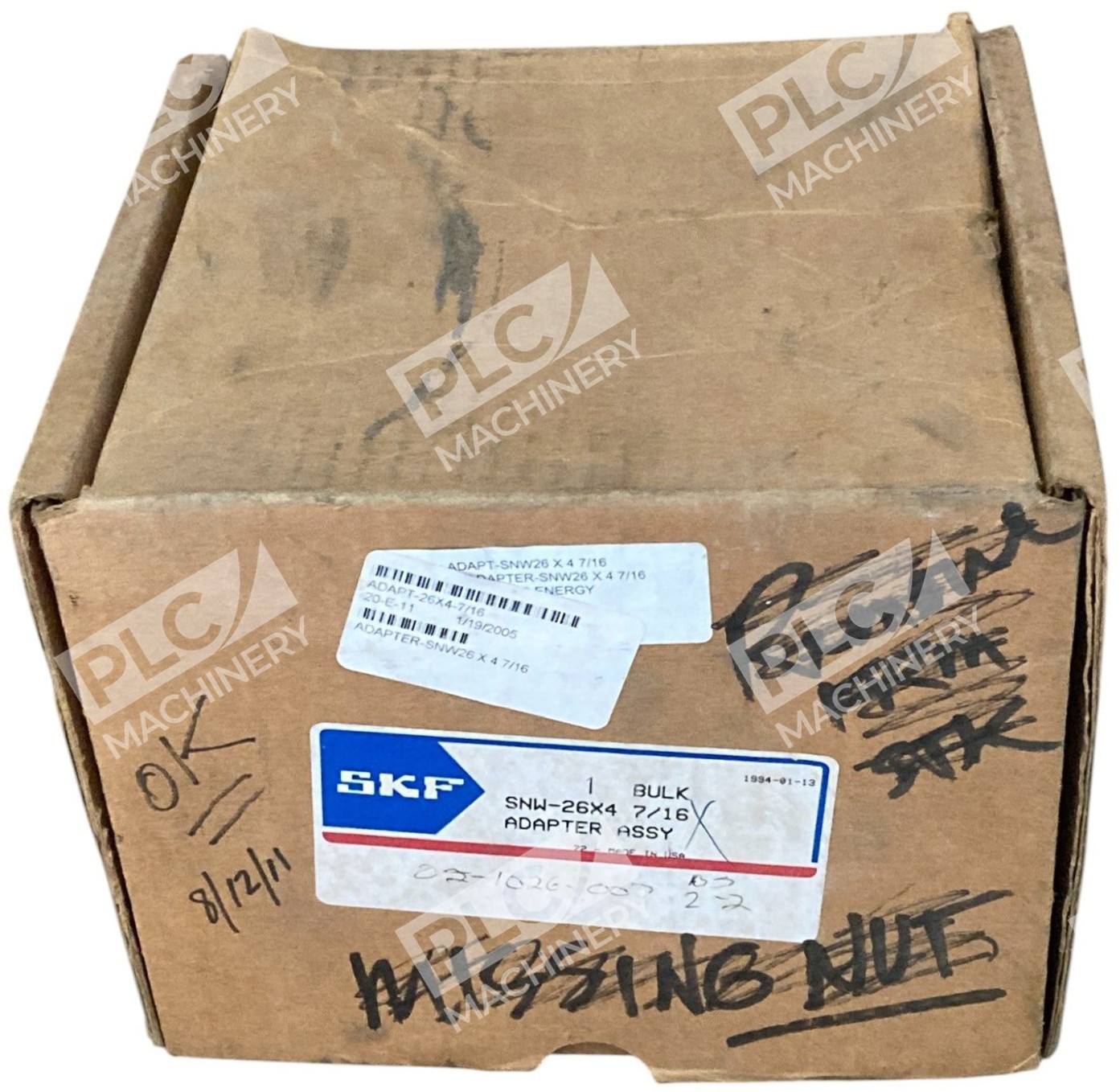

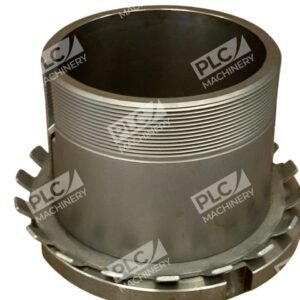

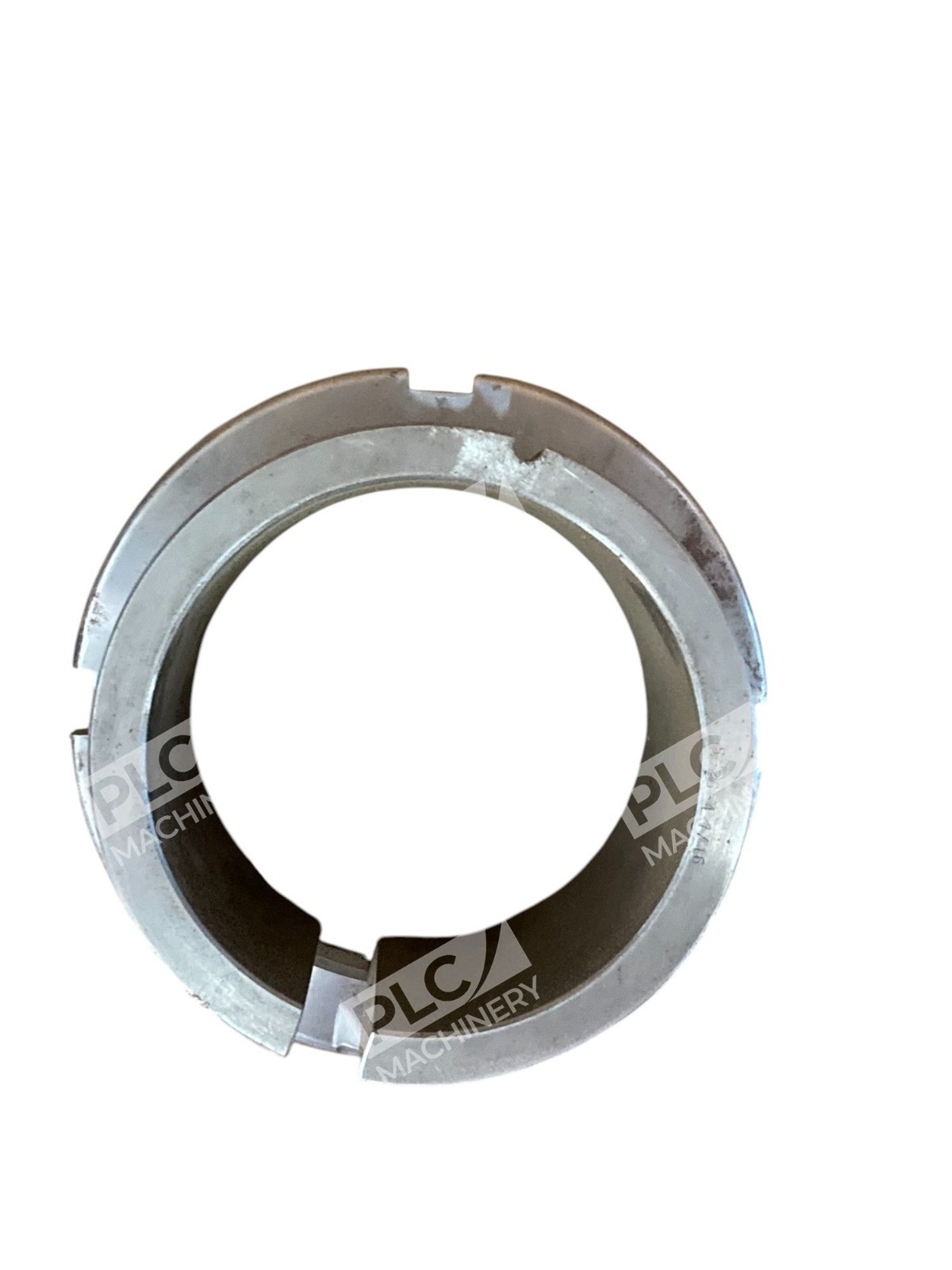

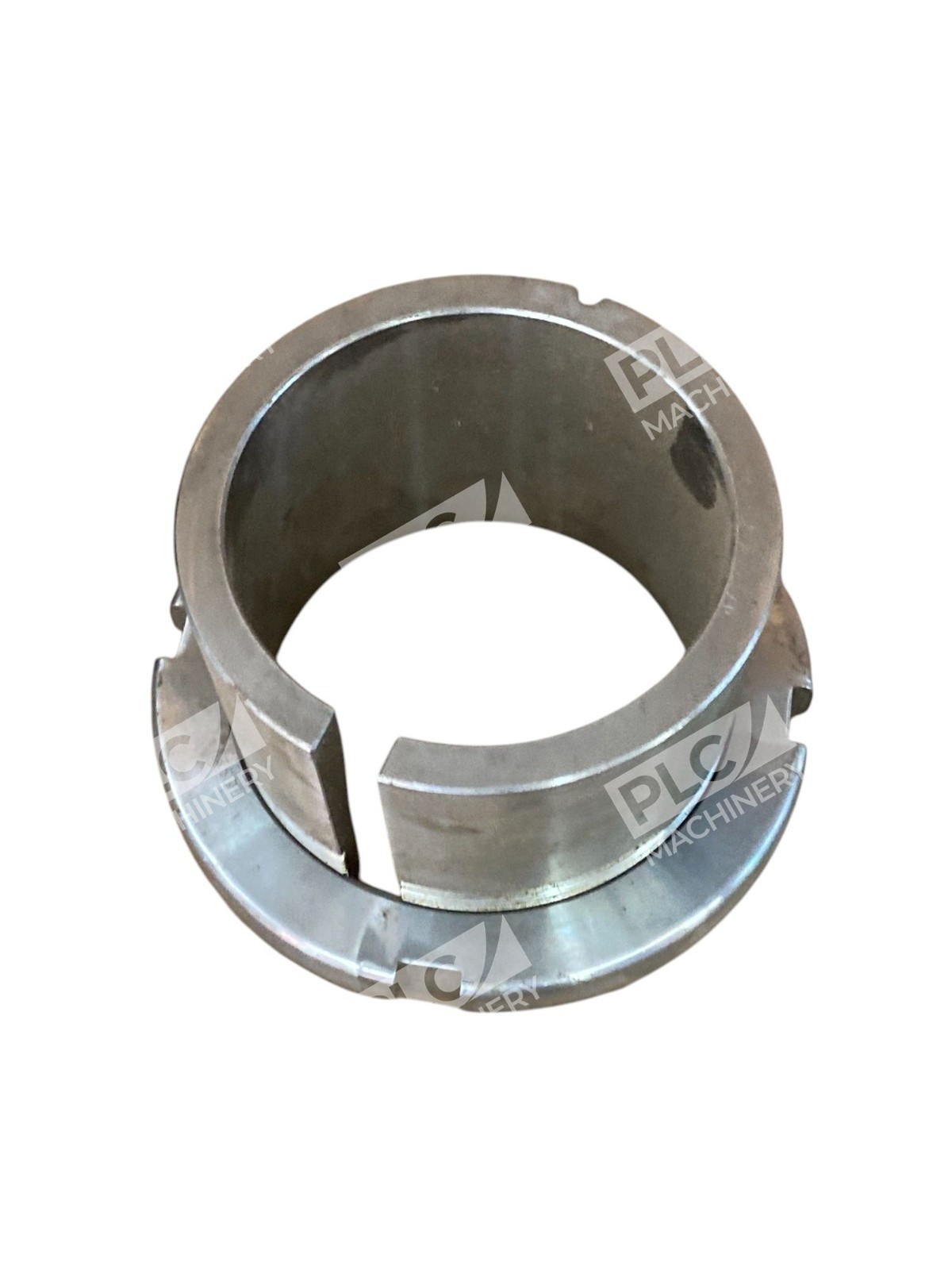

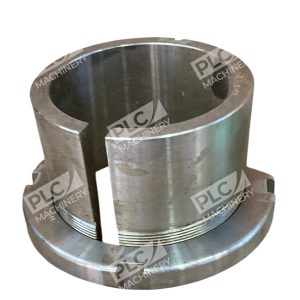

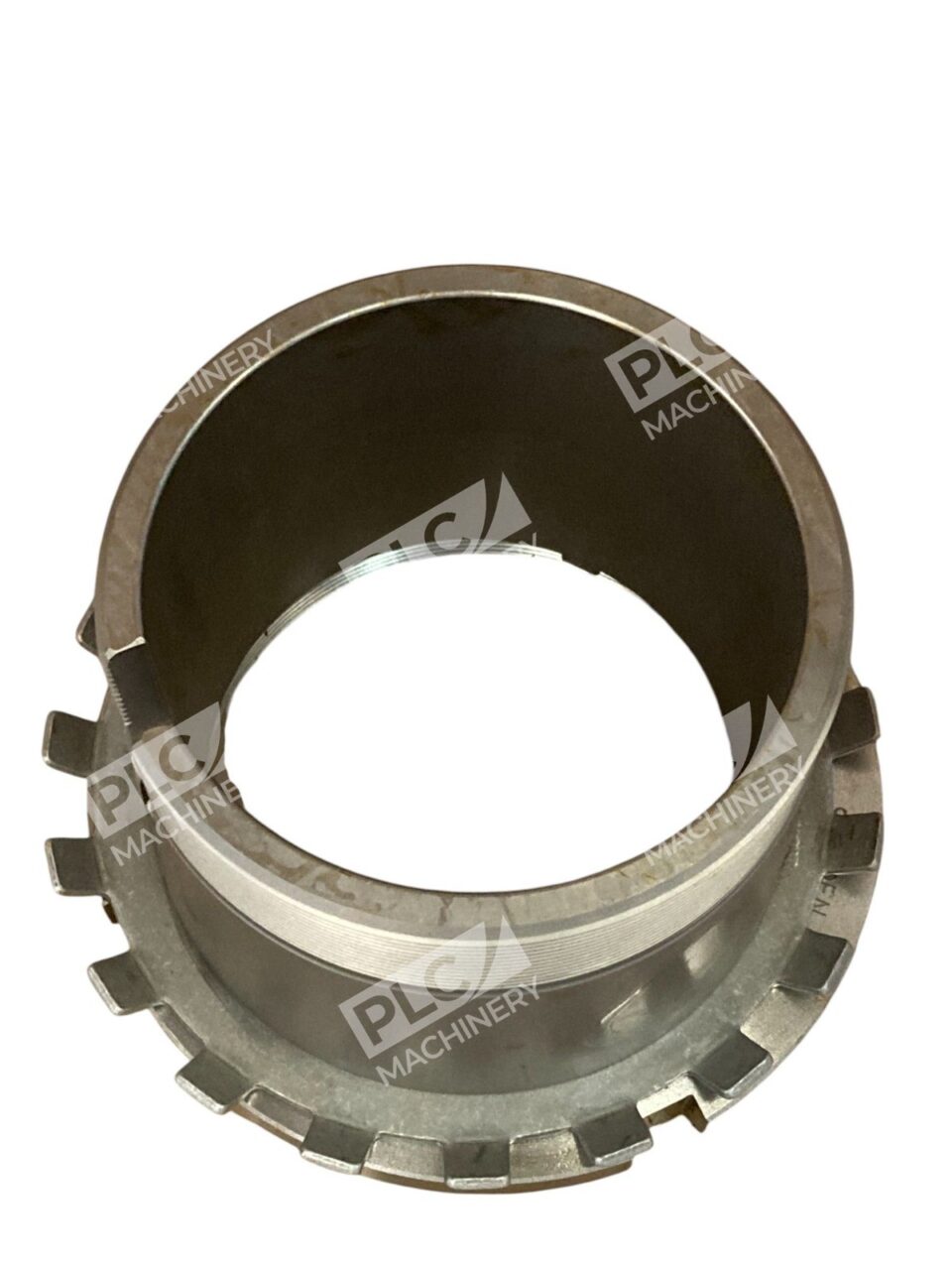

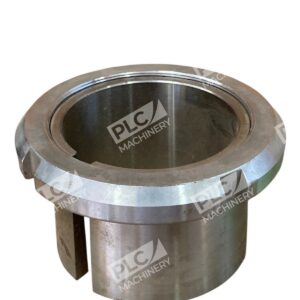

The SKF Adapter Assembly SNW 26X4.7/16 is a precision-engineered component designed to facilitate the mounting of bearings with tapered bores onto cylindrical shafts. This adapter sleeve simplifies the installation and removal process, ensuring a secure fit and optimal performance in various industrial applications.
Key Features
- Material: Constructed from high-quality steel, offering durability and resistance to wear.
- Shaft Diameter: Accommodates shafts with a diameter of 4-7/16 inches (4.4375 inches).
- Outside Diameter: Measures 6.755 inches, providing a robust interface for bearing support.
- Thread Size: Features a thread size of 5.106-12, ensuring compatibility with corresponding lock nuts.
- Overall Length: The sleeve has an overall length of 5.1181 inches, facilitating proper alignment and fit.
- Width: With a width of 1 inch, it ensures stability and support for the mounted bearing.
- Series: Part of the SNW series, known for its reliability and compatibility with various bearing types.
Applications
The SNW 26X4.7/16 adapter sleeve is commonly used in conjunction with 22200K series roller bearings, providing a secure and efficient method for mounting bearings onto shafts in machinery and equipment across industries such as manufacturing, mining, and material handling.
Installation and Compatibility

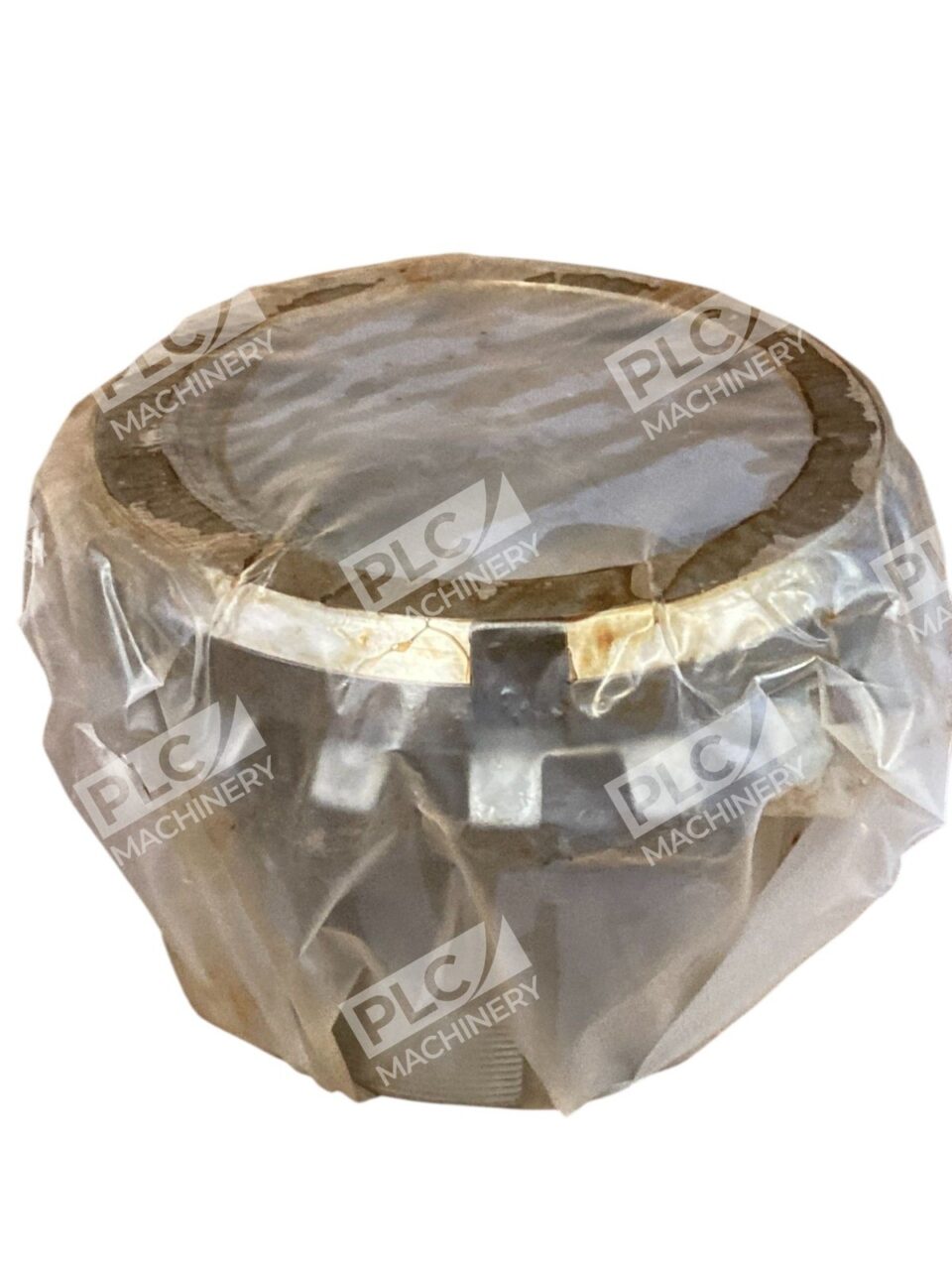

Designed for ease of installation, this adapter sleeve includes a lock nut (AN26) and a lock washer (W26), ensuring a secure fit and preventing loosening during operation. Its tapered design allows for precise positioning of the bearing, reducing the risk of misalignment and extending the service life of the assembly.
By utilizing the SKF SNW 26X4.7/16 adapter sleeve, maintenance professionals can achieve a reliable and efficient bearing setup, contributing to the overall performance and longevity of their equipment.
