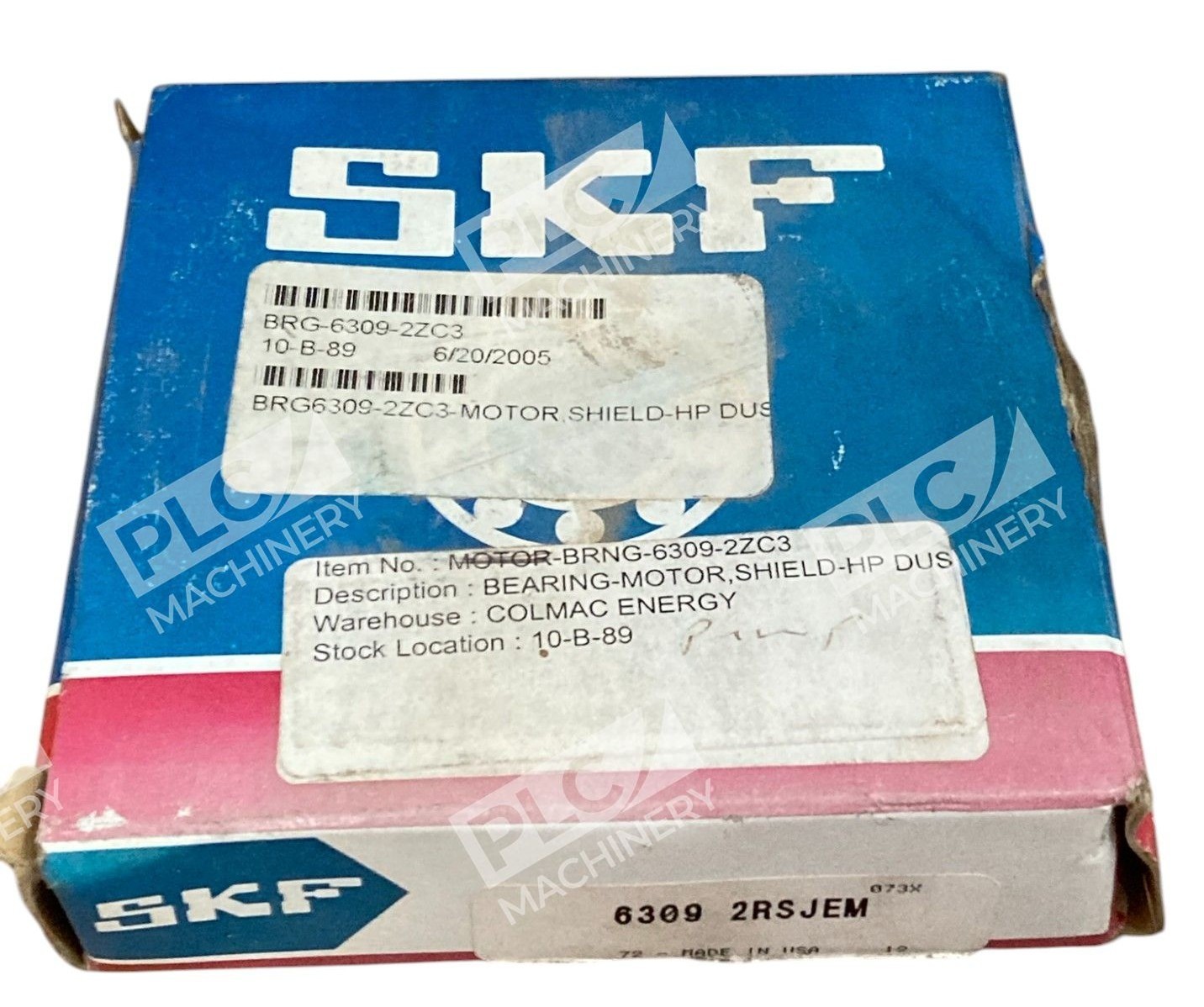

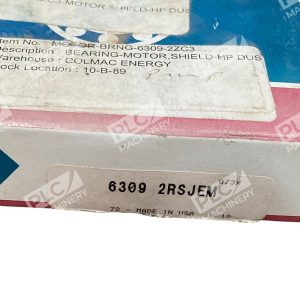

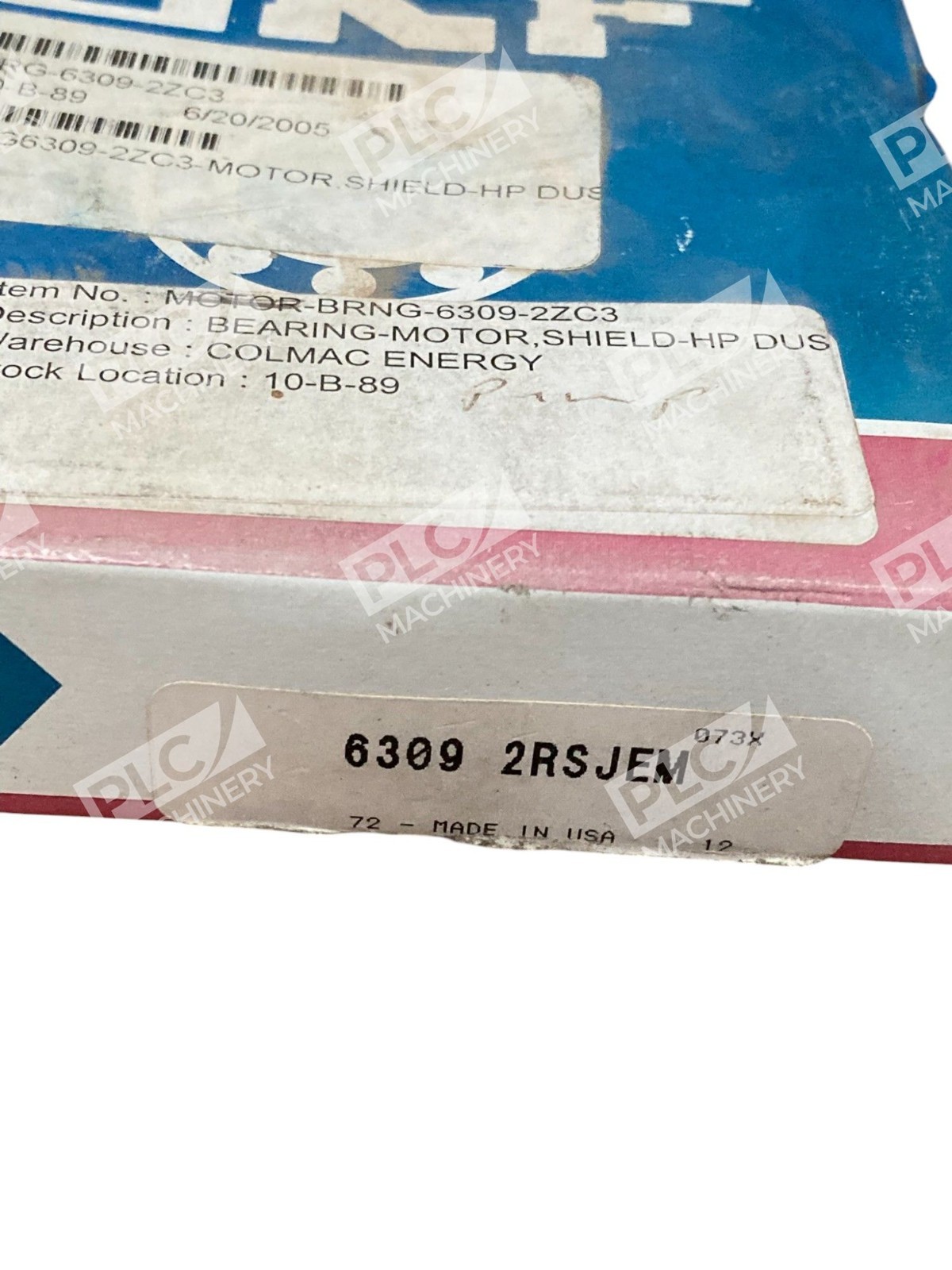

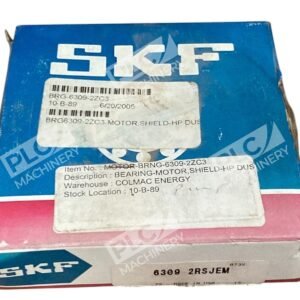

SKF 6309-2ZC3 Ball Bearing 6309 2RSJEM
The SKF 6309-2ZC3 and 6309 2RSJEM are high-quality, single-row deep groove ball bearings designed for versatile applications. These bearings are engineered to accommodate both radial and axial loads, making them suitable for high-speed operations.
Key Features
- Deep Groove Design: Ensures efficient load distribution and high-speed capability.
- Sealed Enclosure: Both models feature seals on both sides, providing protection against contaminants and retaining lubrication.
- High Load Capacity: Capable of handling dynamic loads up to 55.3 kN and static loads up to 31.5 kN.
- Temperature Resilience: Operates effectively within a temperature range of -22°F to 284°F (-30°C to 120°C).
- Material Composition: Constructed with bearing steel for durability and longevity.
Applications
These bearings are ideal for use in:
- Electric motors
- Pumps
- Gearboxes
- Power tools
- Textile machinery
Specifications
| Parameter | Specification |
|---|---|
| Bore Diameter | 45 mm |
| Outer Diameter | 100 mm |
| Width | 25 mm |
| Dynamic Load Rating | 55.3 kN |
| Static Load Rating | 31.5 kN |
| Limiting Speed | 9,500 rpm |
| Reference Speed | 15,000 rpm |
| Weight | Approximately 0.87 kg |
The SKF 6309-2ZC3 and 6309 2RSJEM bearings are reliable choices for various industrial applications, offering durability, high load capacity, and efficient performance.
