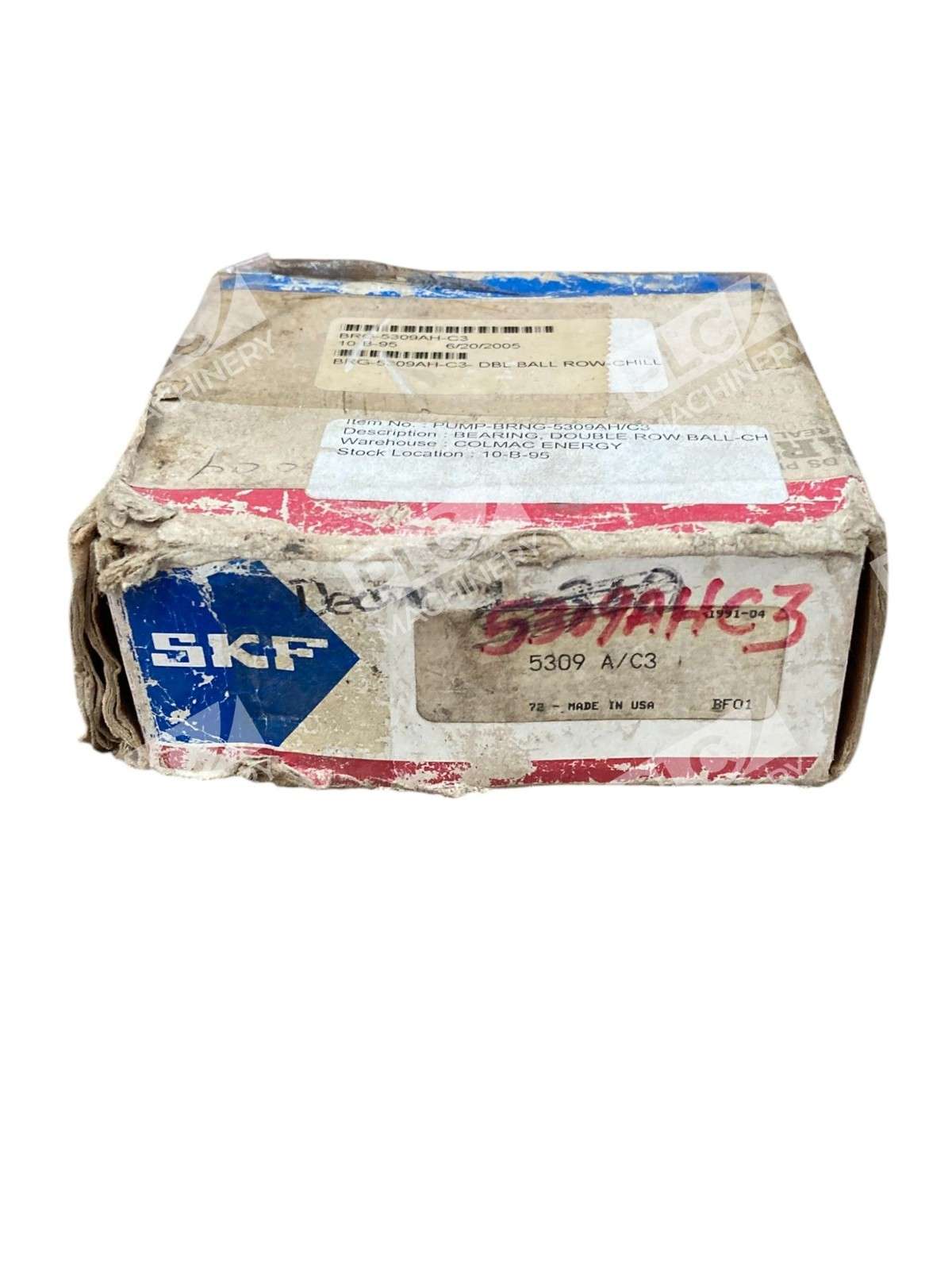

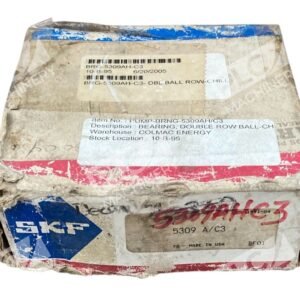

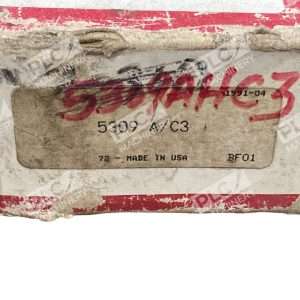

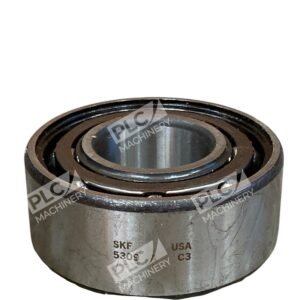

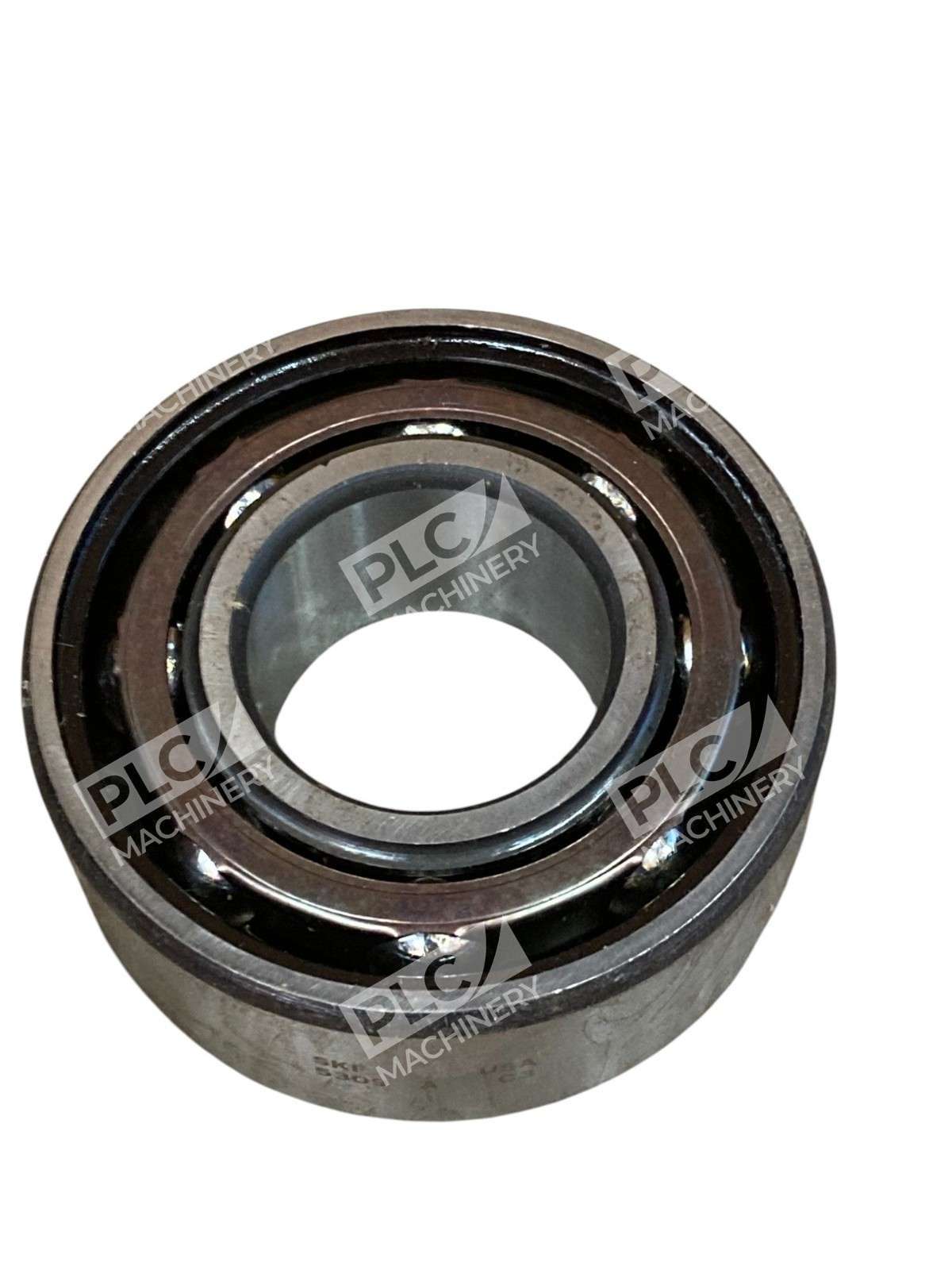

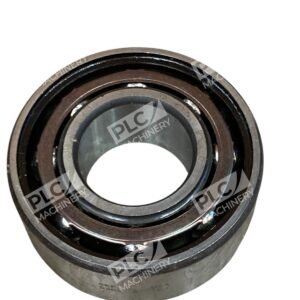

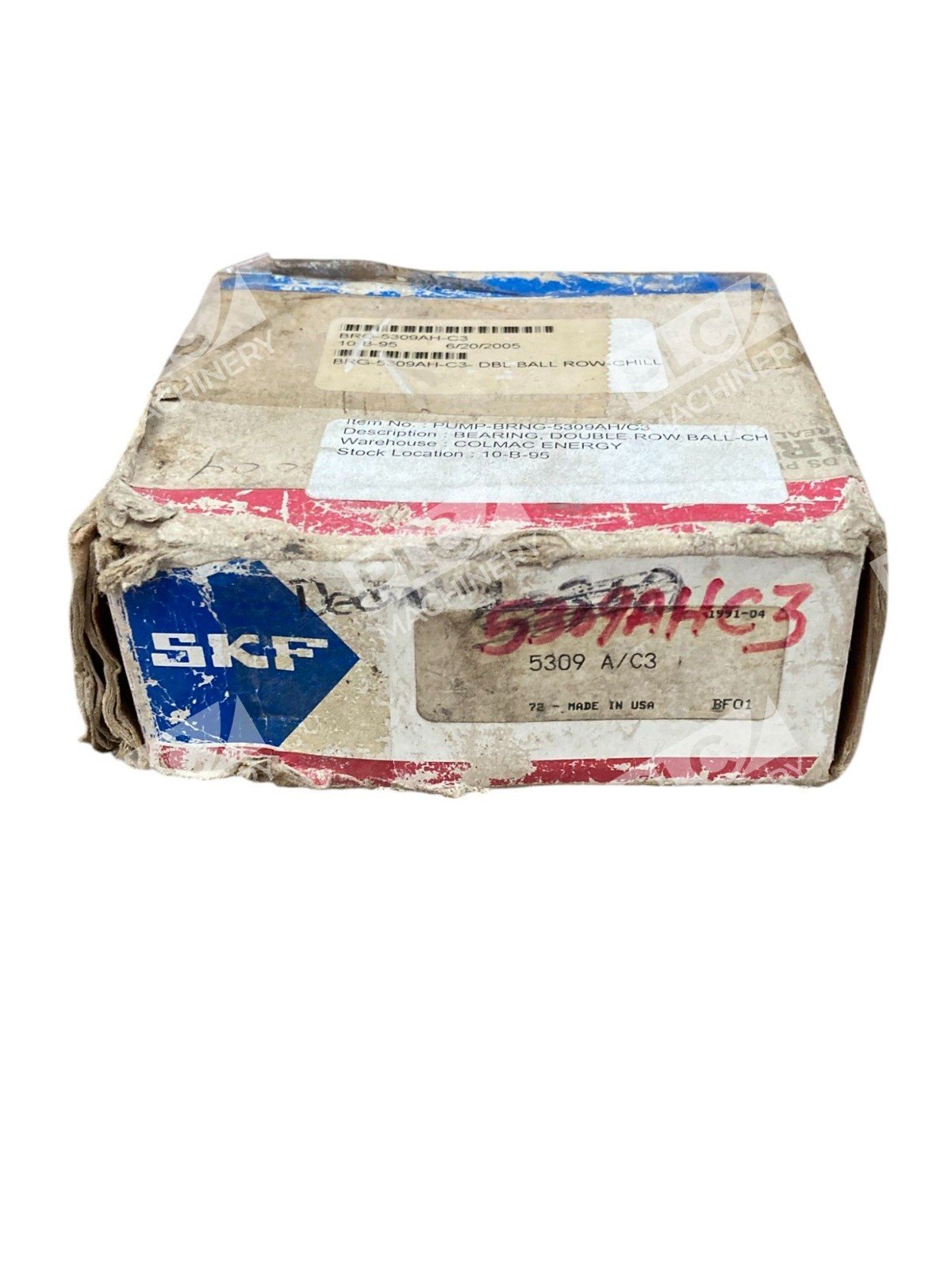

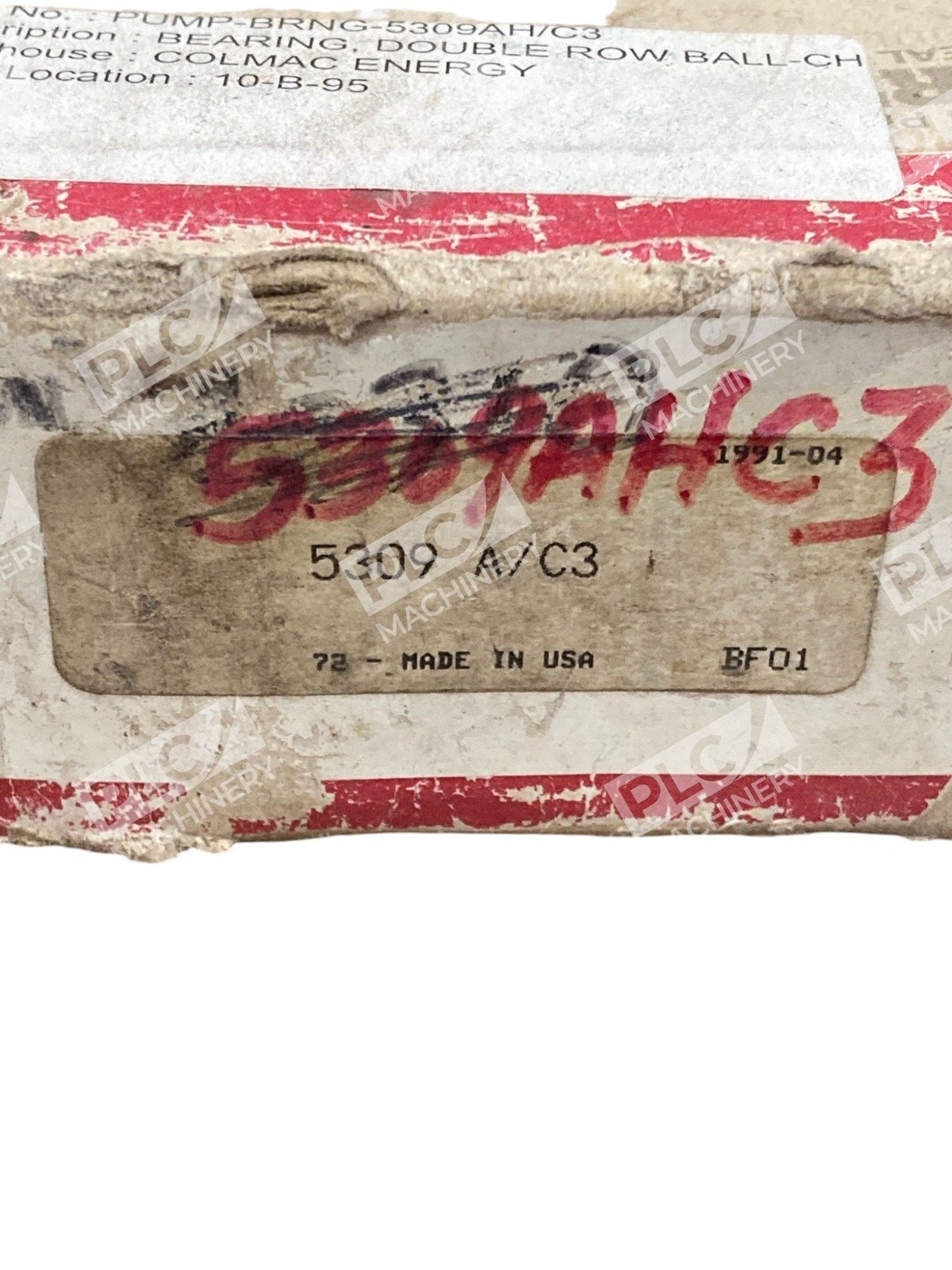

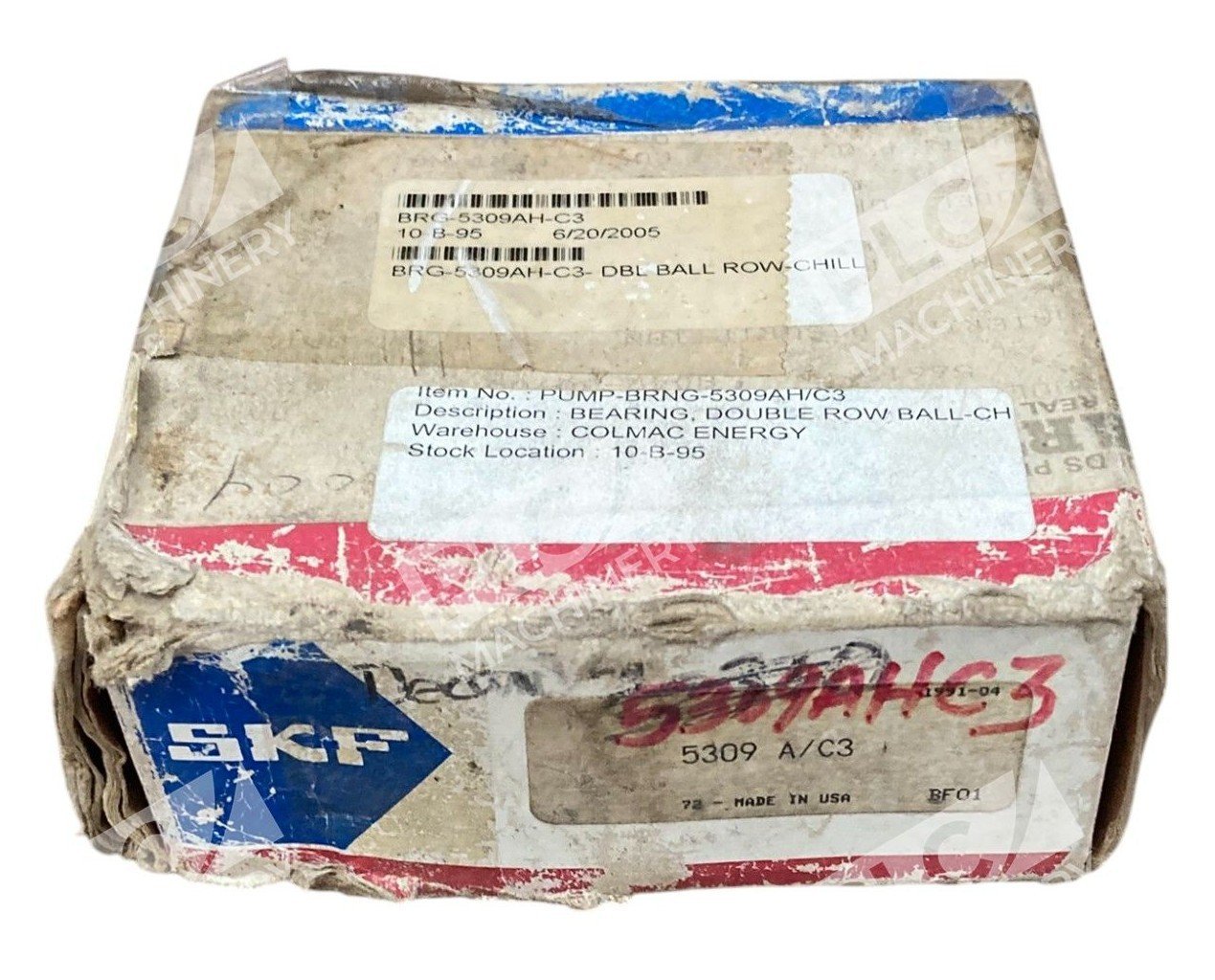

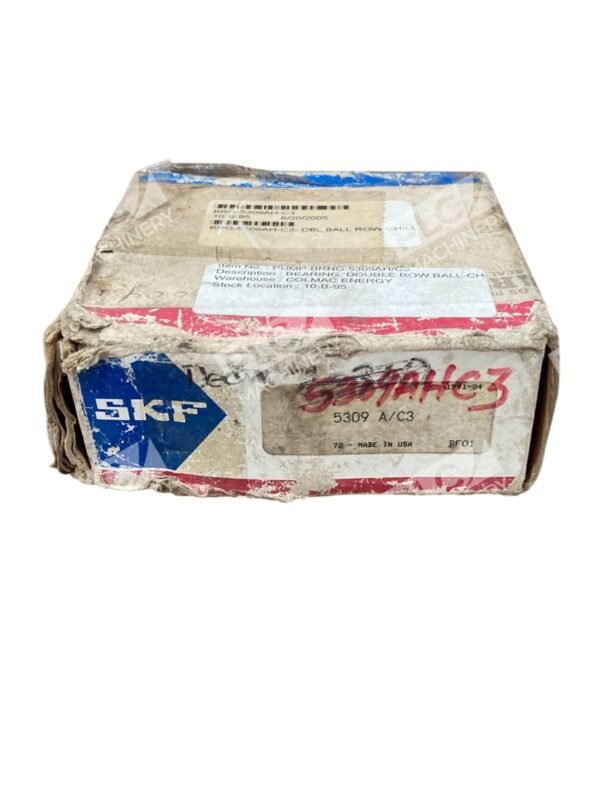

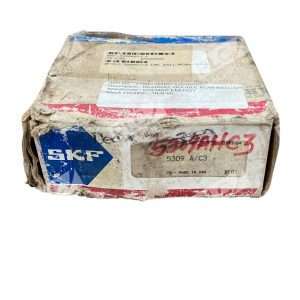

SKF 5309 A C3 BF01 Double Row Ball Bearing 5309 A/C3

The SKF 5309 A C3 BF01 is a double-row angular contact ball bearing engineered to handle both radial and axial loads efficiently. Its design is particularly suited for applications requiring high load capacity and rigidity.

Key Features

• Double-Row Design: Provides enhanced load-bearing capacity and rigidity compared to single-row bearings.
• Angular Contact: Optimized to support combined loads, accommodating both radial and axial forces.
• Increased Internal Clearance (C3): Allows for thermal expansion and operational flexibility under varying conditions.
• BF01 Specification: Indicates specific design features or modifications tailored for particular applications.

Technical Specifications

• Bore Diameter: 45 mm
• Outer Diameter: 100 mm
• Width: 39.7 mm
• Contact Angle: 30°
• Dynamic Load Rating: 75 kN
• Static Load Rating: 53 kN
• Limiting Speed: 6,700 RPM
• Material: High-quality bearing steel
• Weight: Approximately 1.323 kg

Applications

This bearing is ideal for use in machinery where high radial and axial loads are present, such as in industrial gearboxes, conveyors, and heavy-duty pumps. Its robust construction ensures reliable performance in demanding environments.

For optimal performance and longevity, ensure proper installation and maintenance in accordance with SKF’s guidelines.
