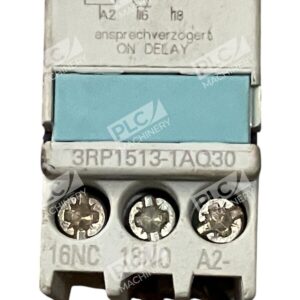

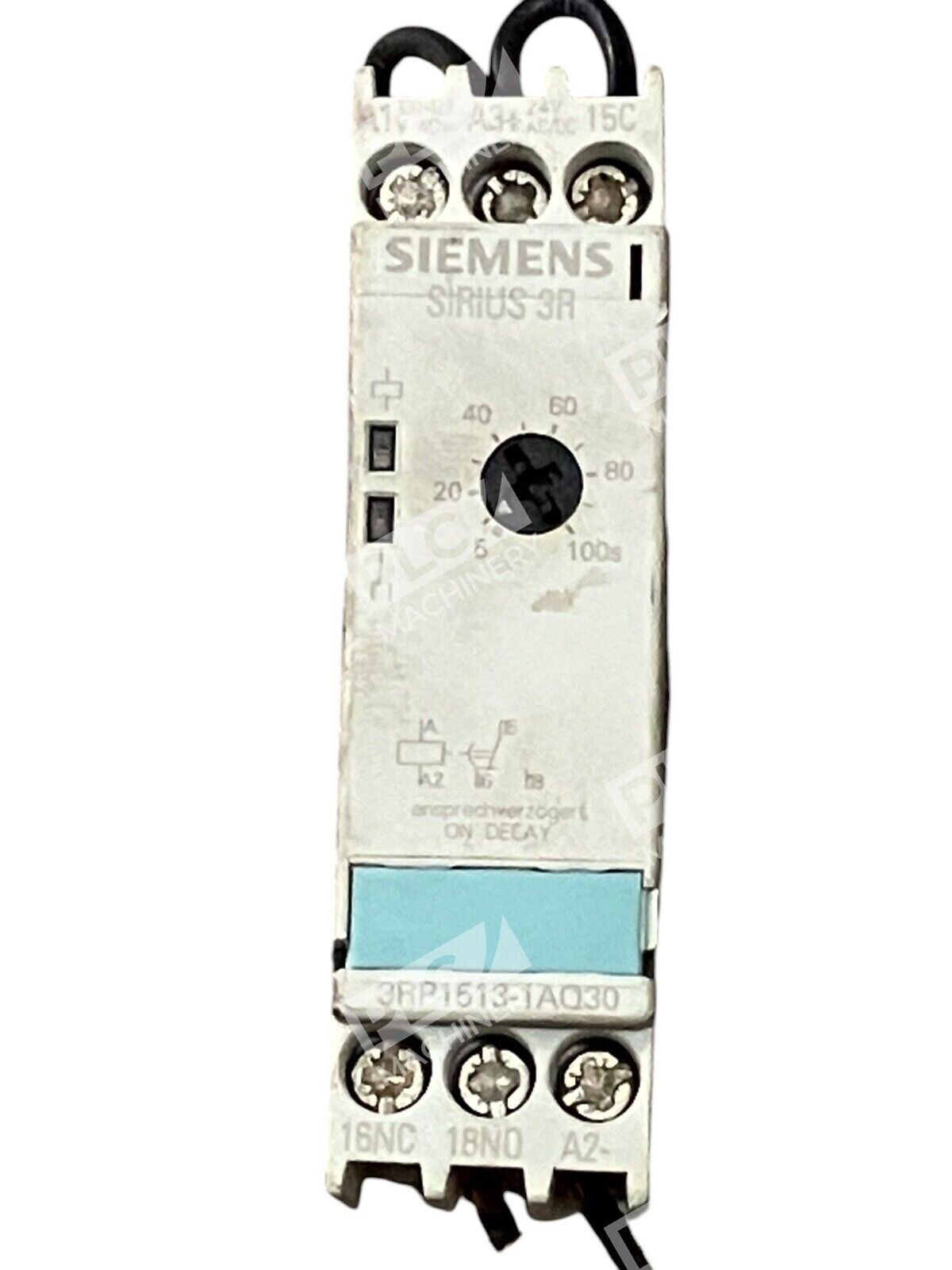

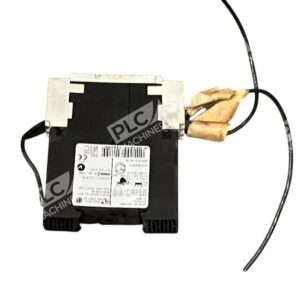

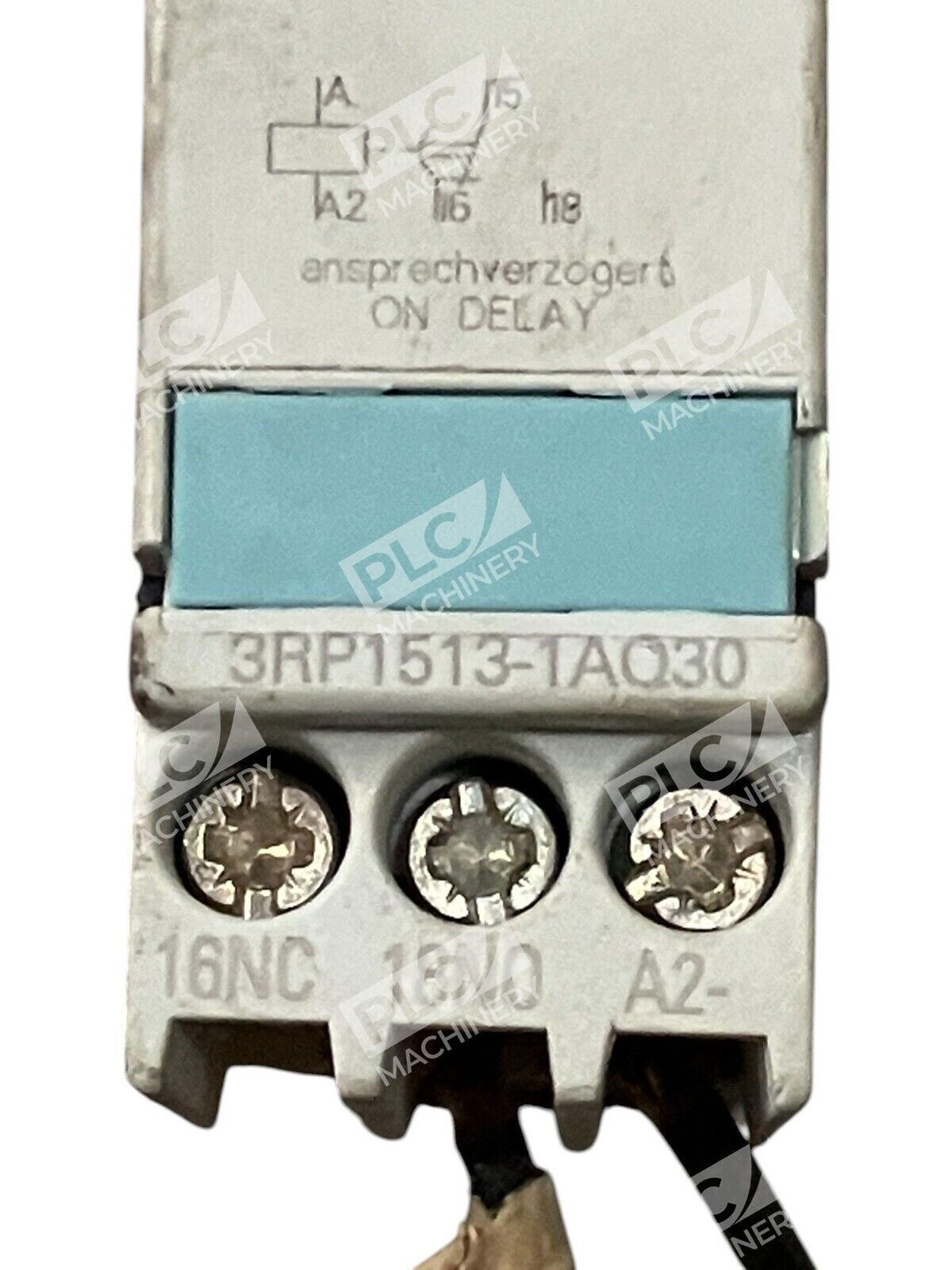

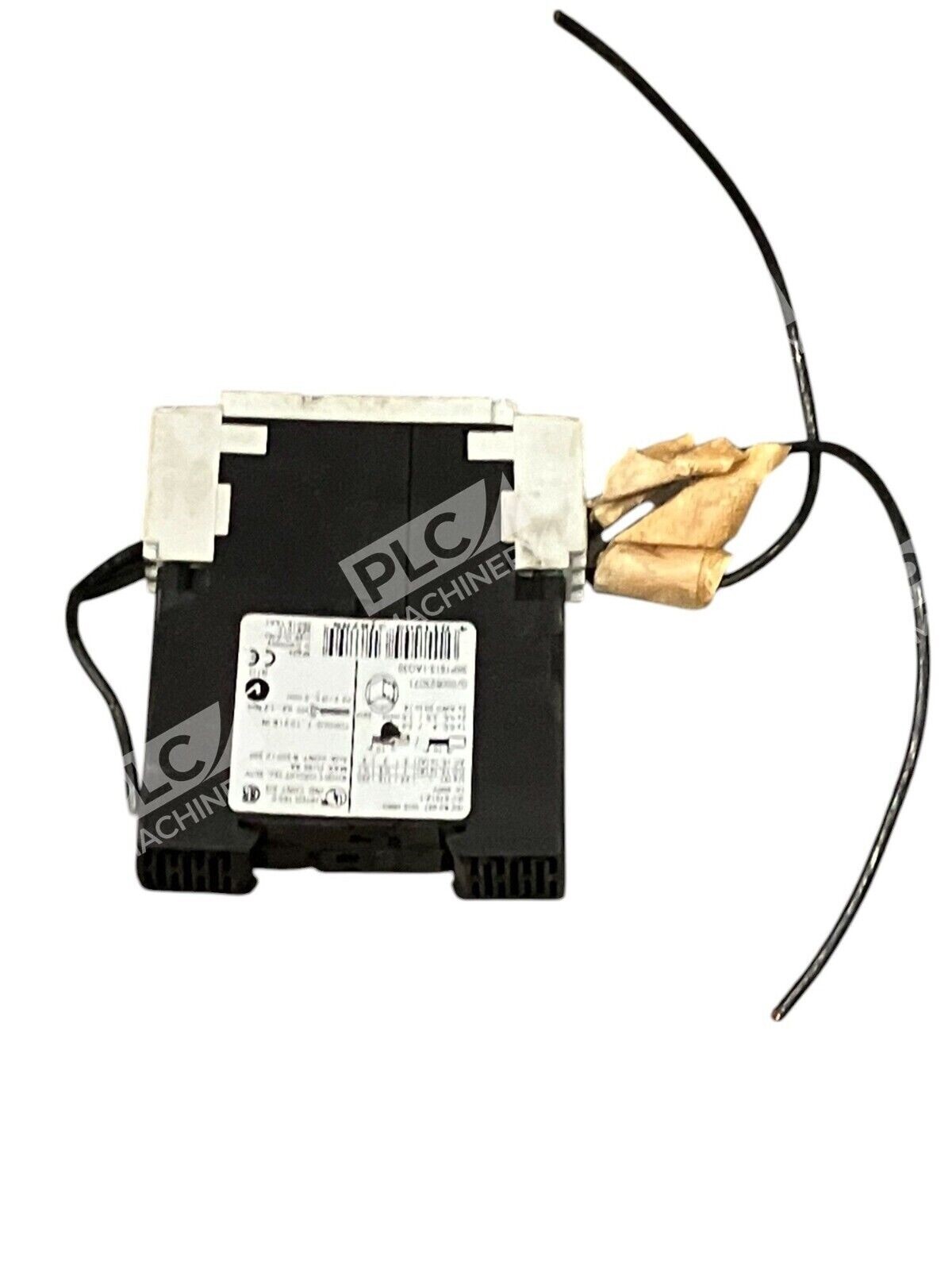

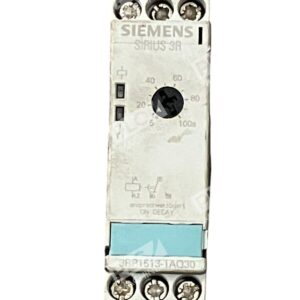

Siemens SIRIUS 3RP1513-1AQ30 Time Delay Relay
The Siemens SIRIUS 3RP1513-1AQ30 is an electronic time delay relay designed for precise control in industrial automation systems. It offers reliable performance with a range of features tailored to meet various timing requirements.
Key Features
- Operation Mode: On-delay
- Time Range: Adjustable from 5 to 100 seconds
- Contact Configuration: Single Pole Double Throw (SPDT) changeover contact
- Coil Voltage: Compatible with 24V DC and 100-127V AC at 50/60 Hz
- Mounting: DIN rail and surface mounting options
- Terminals: Screw terminals for secure connections
- Visual Indicators: Integrated LED for status indication
- Protection Rating: IP20 enclosure
Applications
This time delay relay is suitable for various applications, including:
- Control circuits requiring precise time delays
- Starting and protective circuits
- Automation systems needing reliable timing functions

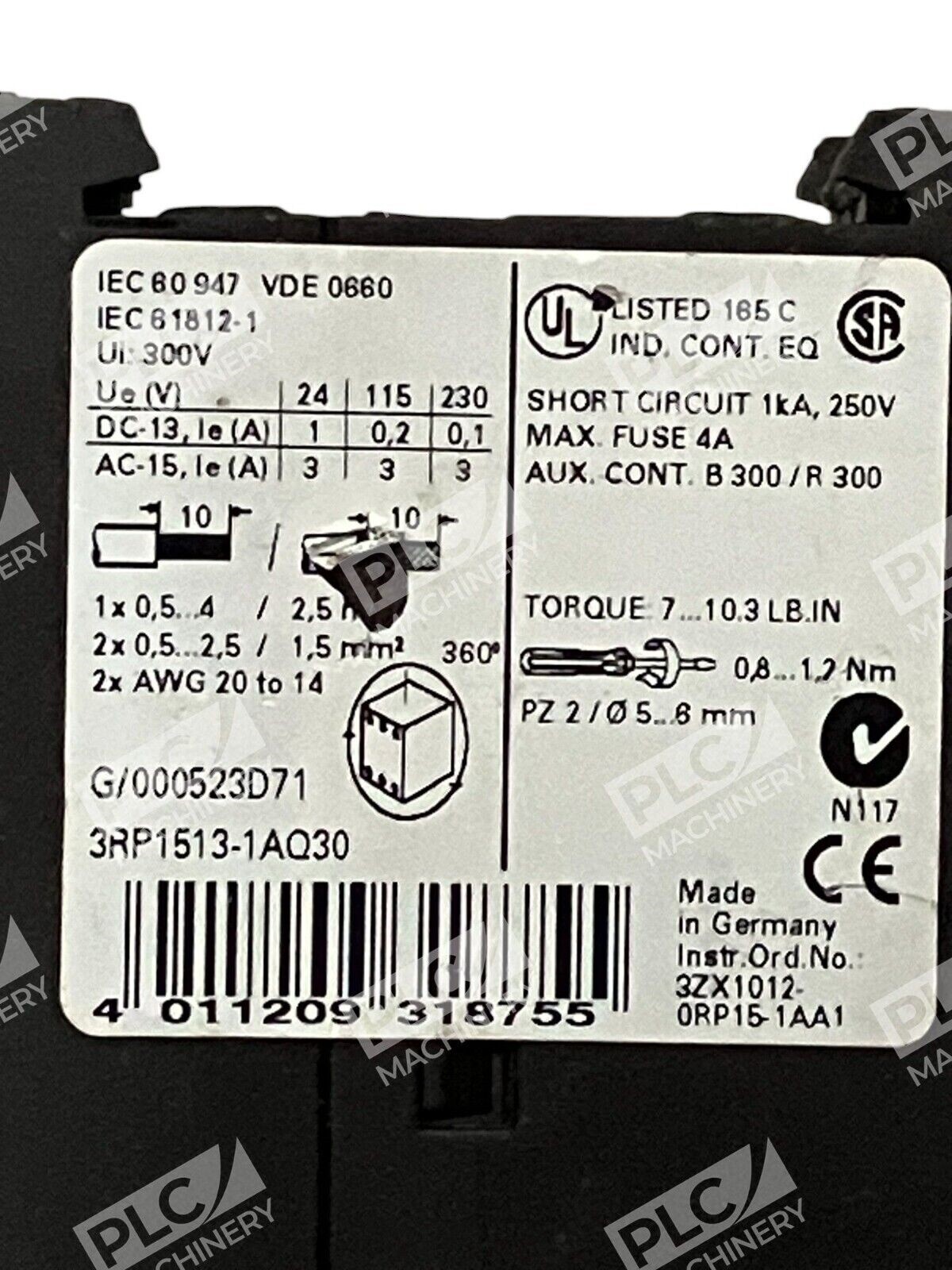

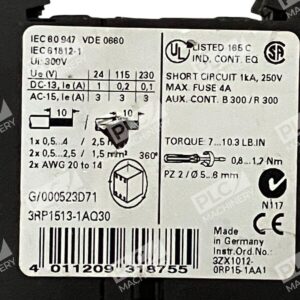

Technical Specifications
- Operating Temperature: -25°C to +60°C
- Mechanical Endurance: Up to 30 million operations
- Electrical Endurance: Approximately 100,000 operations at AC-15, 230V
- Dimensions: 83 mm (H) x 22.5 mm (W) x 91 mm (D)
- Weight: Approximately 0.103 kg
The Siemens SIRIUS 3RP1513-1AQ30 time delay relay combines precision, reliability, and versatility, making it an excellent choice for various industrial timing applications.
