Siemens Simatic S7-200CN EM 223 CN Digital Input Output 6ES7 223-1BL22-0XA8

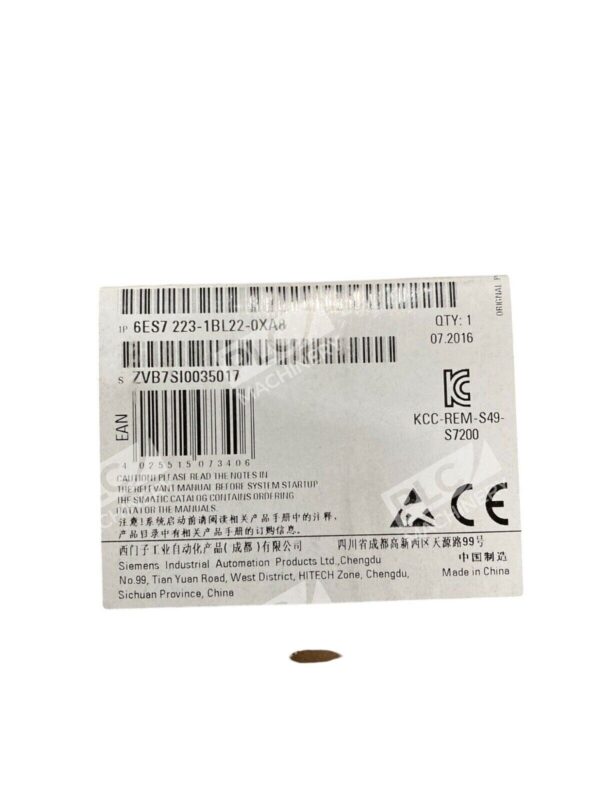

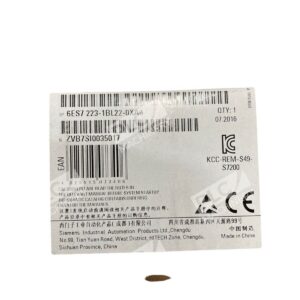

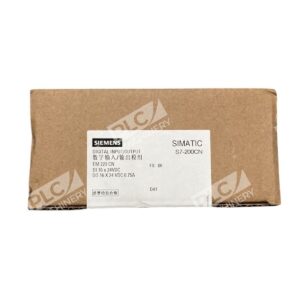

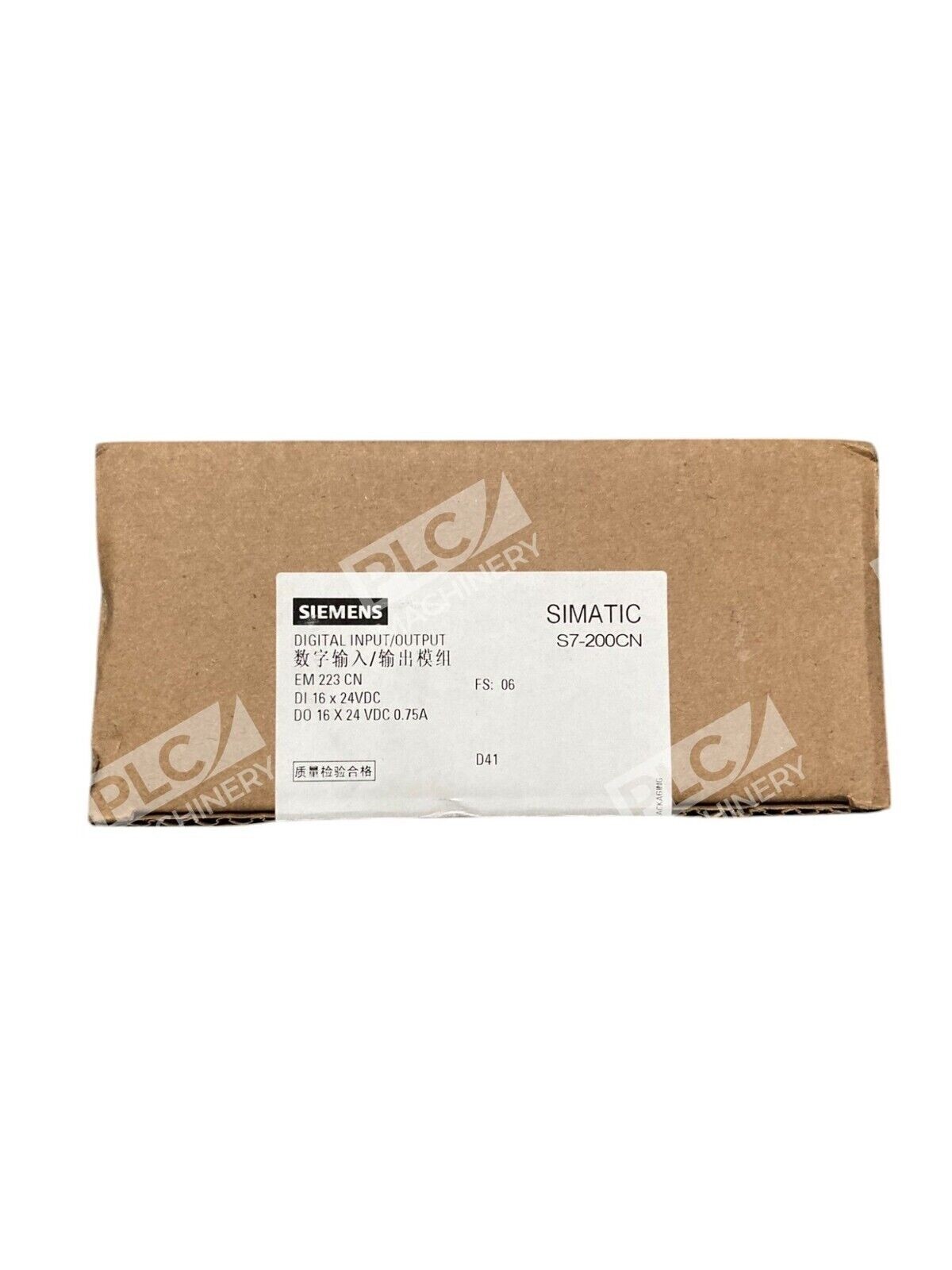

Siemens SIMATIC S7-200CN EM 223 CN Digital Input/Output Module (6ES7 223-1BL22-0XA8)

The Siemens SIMATIC S7-200CN EM 223 CN Digital Input/Output Module (6ES7 223-1BL22-0XA8) is a versatile expansion module designed to enhance the functionality of the S7-22X CPU series. This module provides additional digital input and output capabilities, making it suitable for a wide range of industrial automation applications.

Key Features

• Digital Inputs: 16 channels, 24 V DC, supporting both sink and source configurations.
• Digital Outputs: 16 channels, 24 V DC, with a maximum current of 0.75 A per channel, configured as source outputs.
• Compatibility: Exclusively designed for use with S7-22X CPUs, ensuring seamless integration and optimal performance.
• Certifications: This module holds CE approval, affirming its compliance with European safety and performance standards.

Technical Specifications

• Power Loss: Typical power loss of 6 W.
• Input Voltage: Rated at 24 V DC.
• Input Current: Approximately 4 mA per channel when signal is “1”.
• Output Current: Rated at 750 mA per channel for signal “1”.
• Dimensions: Width: 137.5 mm; Height: 80 mm; Depth: 62 mm.
• Net Weight: Approximately 0.345 kg.

Applications

The EM 223 CN module is ideal for expanding the digital I/O capacity of S7-22X CPU-based systems. It is particularly useful in applications requiring multiple digital inputs and outputs, such as process control, manufacturing automation, and machinery control systems.

Installation and Integration

Designed for straightforward installation, the module connects directly to the S7-22X CPU, facilitating quick system expansion without the need for extensive reconfiguration. Its compact design ensures it fits comfortably within existing control panels.

Compliance and Standards

The module complies with the RoHS directive since March 31, 2008, ensuring it meets environmental and safety standards. Additionally, it holds CE approval, indicating conformity with health, safety, and environmental protection standards for products sold within the European Economic Area.

For detailed technical information and support, please refer to the official Siemens documentation or contact your local Siemens representative.
