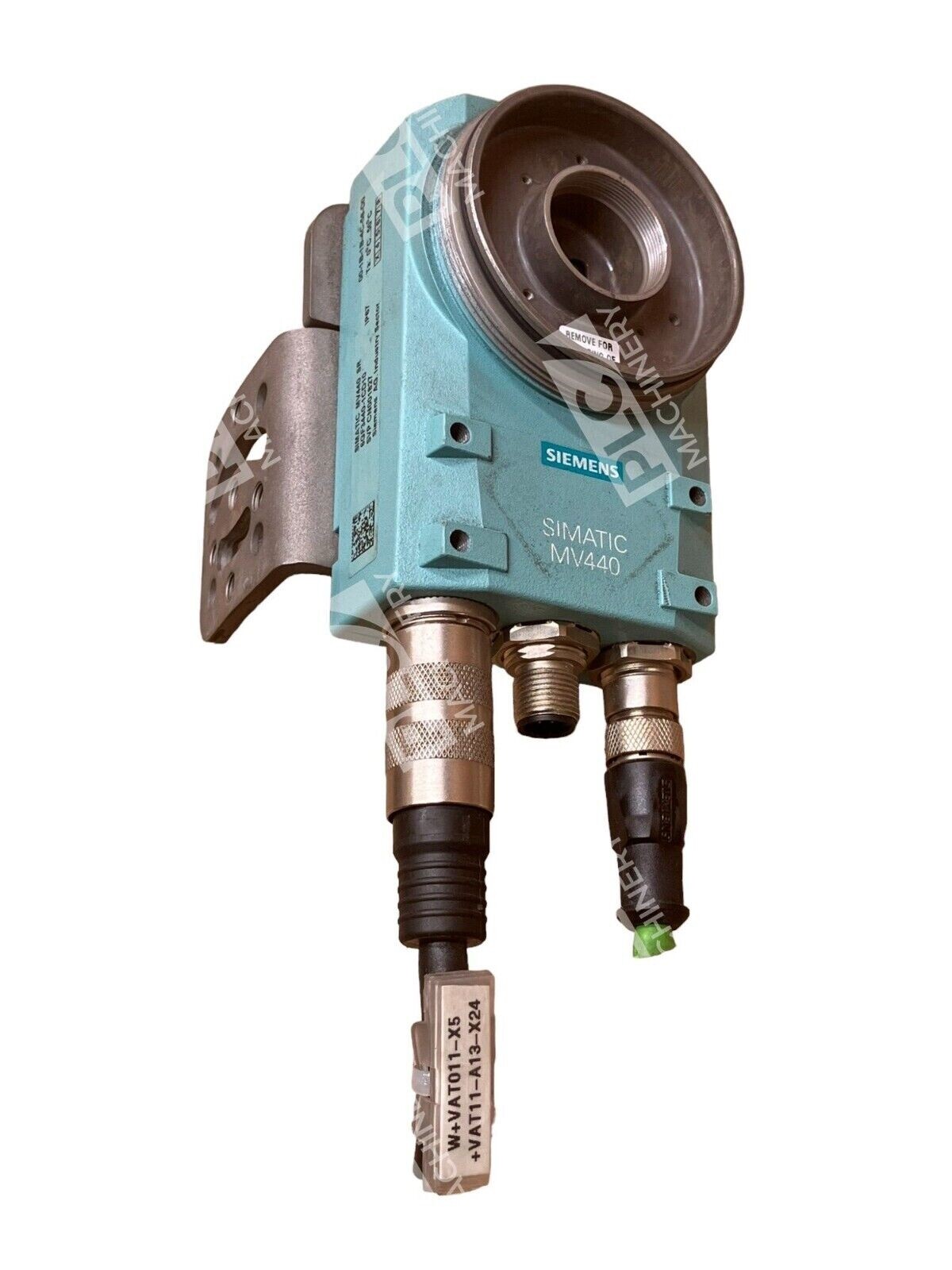

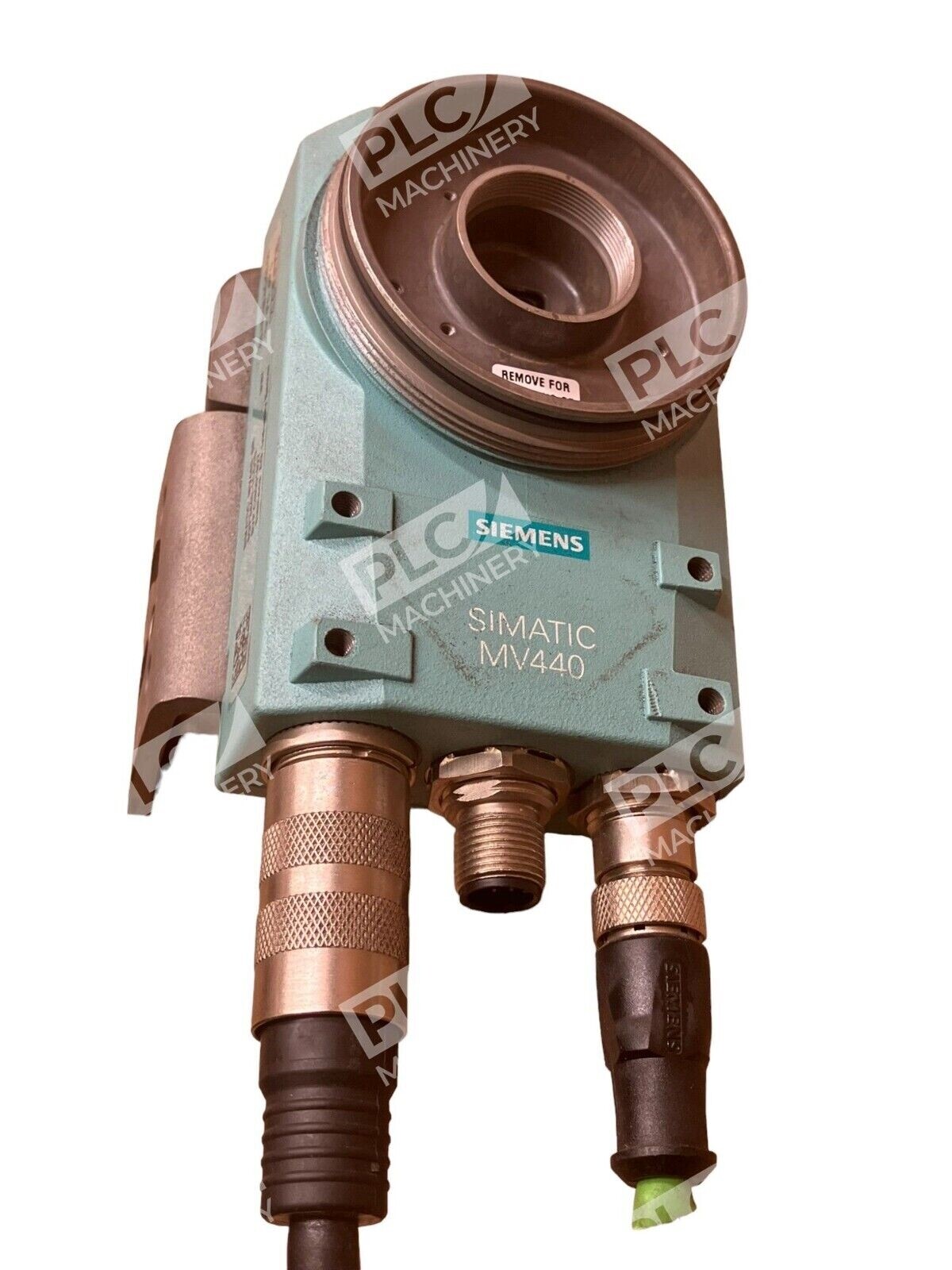

Siemens Simatic MV440 SR Optical Reader 6GF3440-1CD10

Siemens Simatic MV440 SR Optical Reader 6GF3440-1CD10

The Siemens Simatic MV440 SR Optical Reader, model 6GF3440-1CD10, is a high-performance device engineered for precise and efficient code reading and object recognition in industrial environments.

Key Features

• High-Resolution Imaging: Equipped with a 1/3″ CCD sensor delivering a resolution of 640 x 480 pixels, ensuring accurate capture of detailed images.
• Versatile Code Reading: Capable of reading both 1D and 2D codes, as well as performing text recognition and object detection, enhancing its applicability across various tasks.
• Flexible Imaging Parameters: Offers adjustable field of view and working distance, allowing customization to meet specific application requirements.
• Power over Ethernet (PoE): Supports PoE, simplifying installation by reducing the need for additional power supplies and cables.
• Robust Design: Achieves an IP67 rating when used with the 6GF3440-8AC1X accessory, providing protection against dust and water ingress, suitable for harsh industrial settings.

Technical Specifications

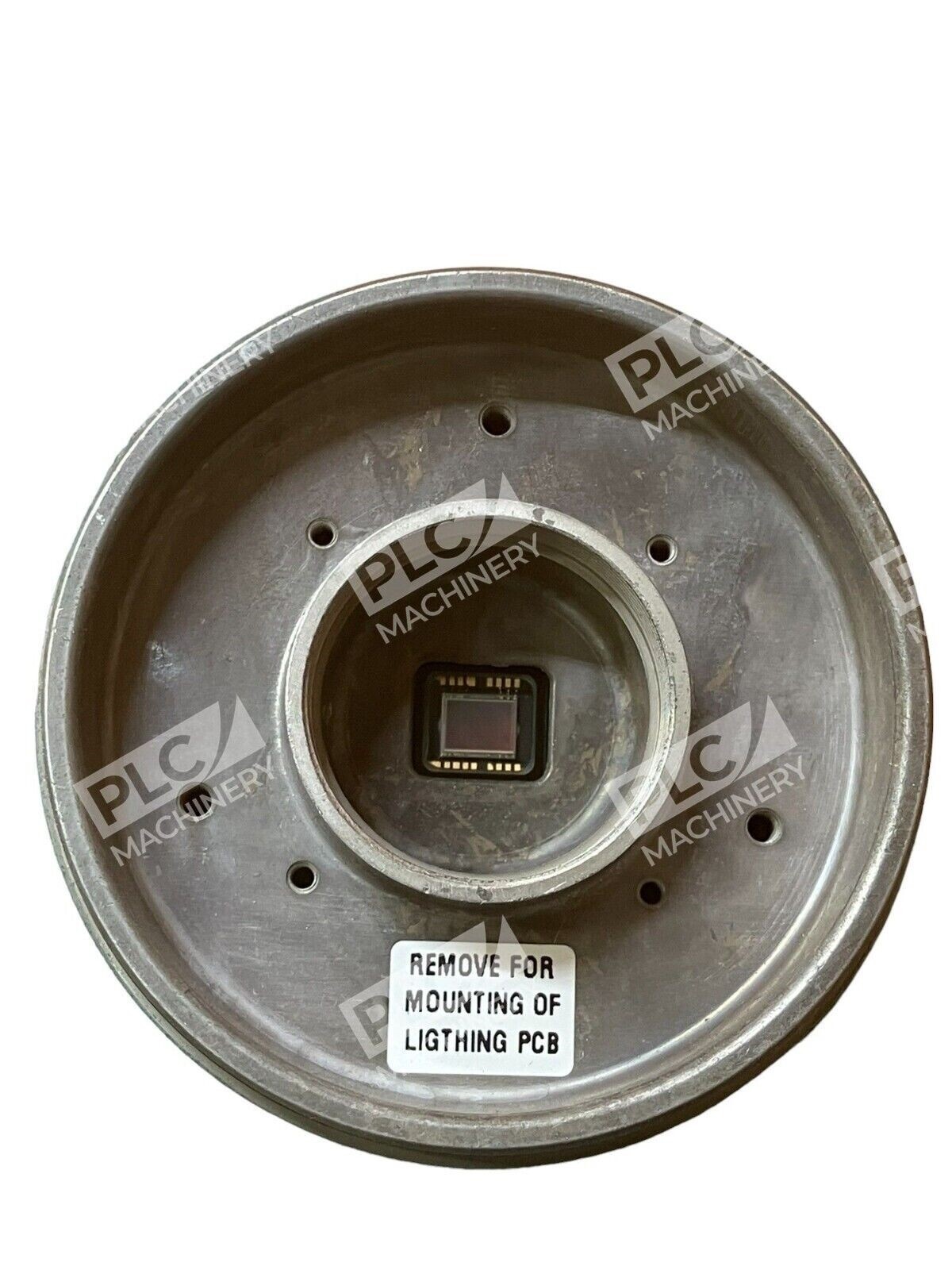

• Image Sensor: 1/3″ CCD chip
• Resolution: 640 x 480 pixels
• Interfaces: 5 digital inputs and 5 digital outputs
• Dimensions: 68 mm (W) x 122 mm (H) x 45 mm (D)
• Weight: Approximately 0.55 kg

Package Contents

The package includes the optical reader unit, a CD-ROM containing relevant software and documentation, and a plastic protective barrel. Please note that cables, lighting components, lenses, and licenses are not included and must be procured separately.

Applications

The Simatic MV440 SR Optical Reader is ideal for applications requiring reliable code reading and object recognition, such as quality control, inventory management, and automated production processes.

For more detailed information and support, please refer to the official Siemens documentation or contact an authorized Siemens representative.
