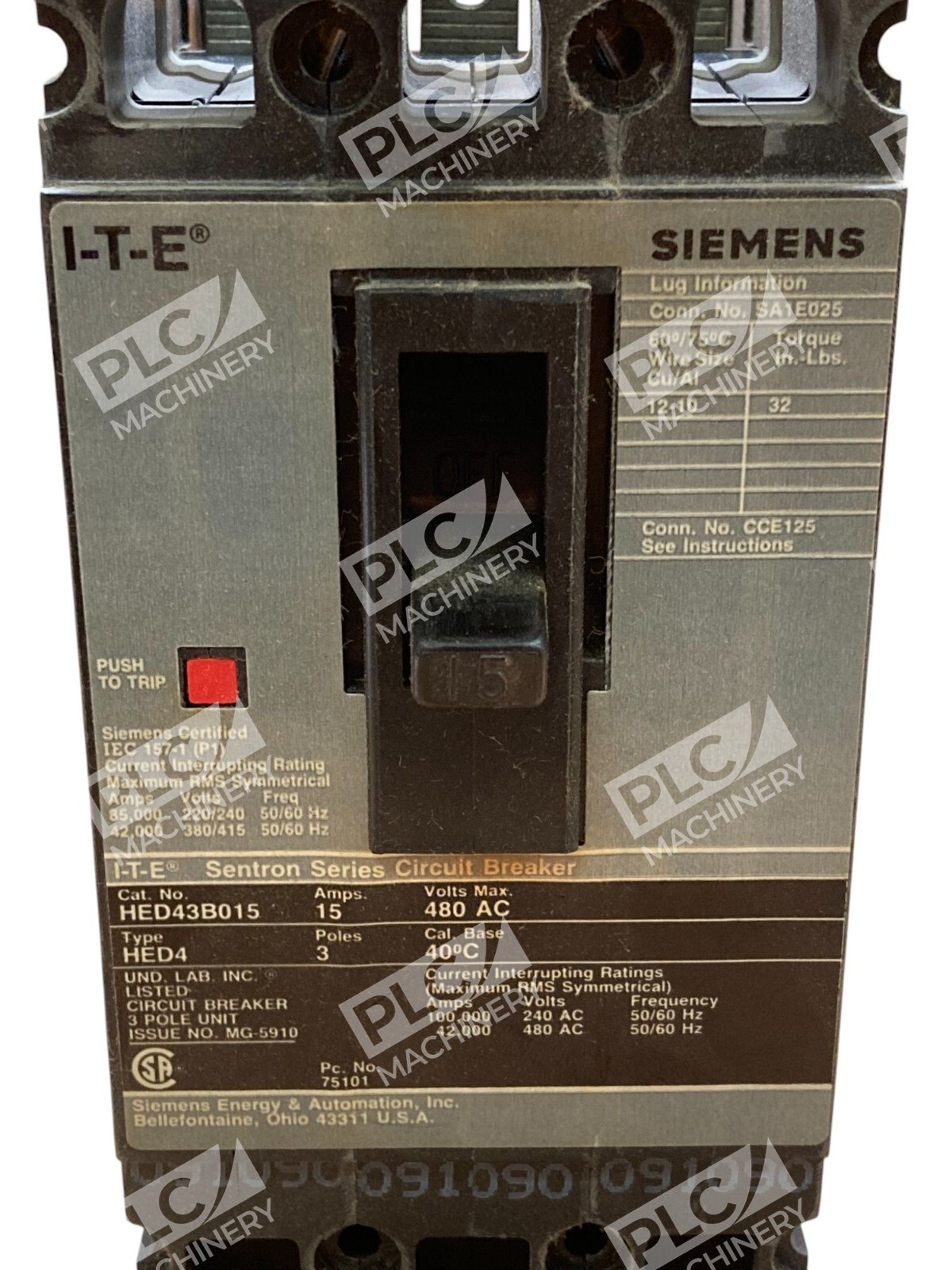

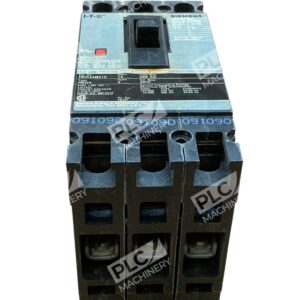

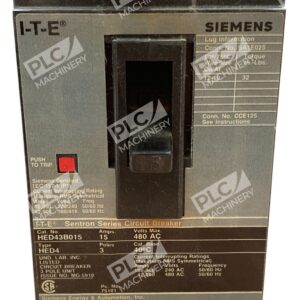

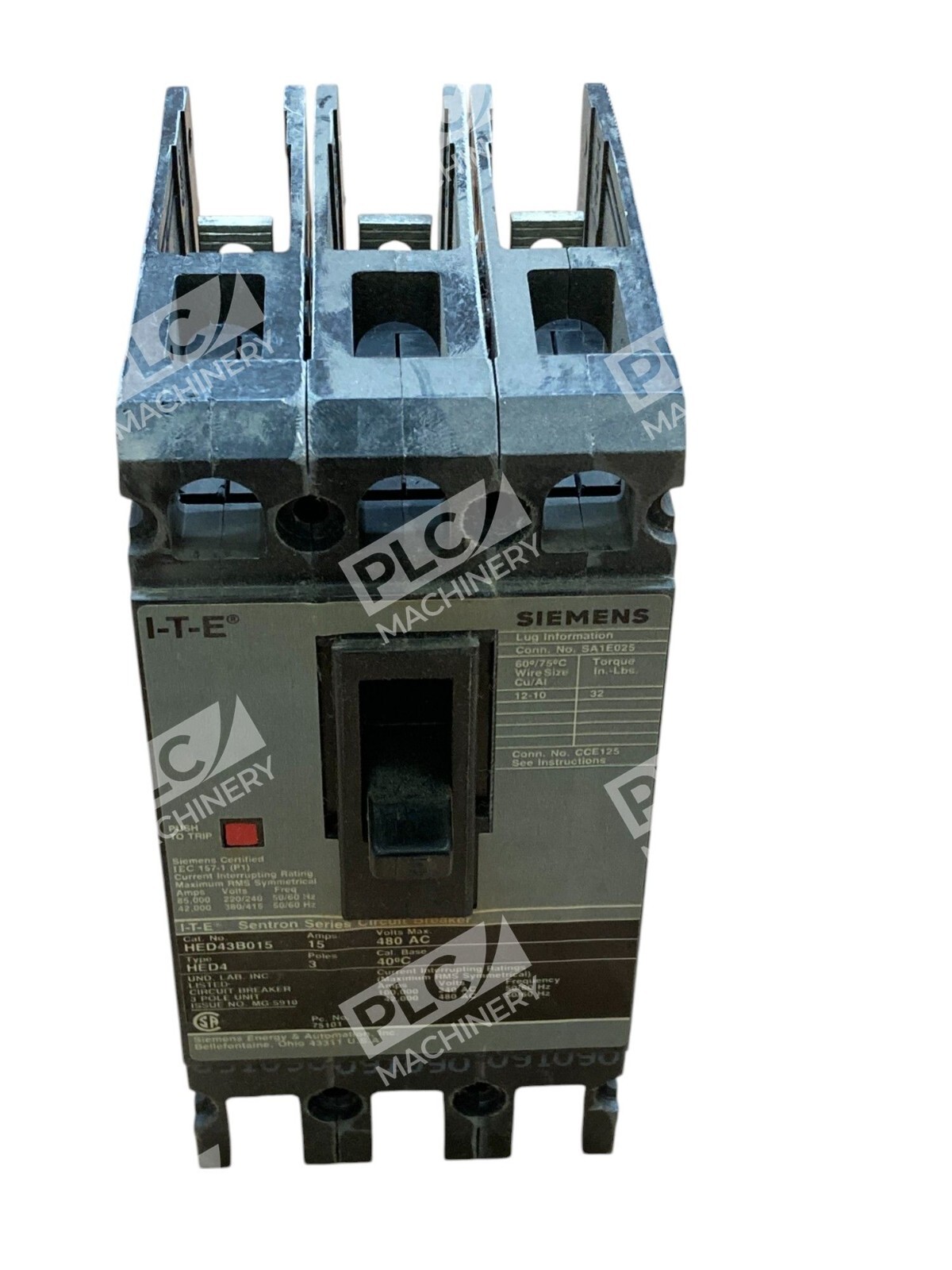

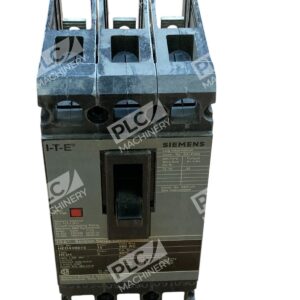

Siemens I-T-E 3-Pole 15A 480VAC HED4 Sentron Series Circuit Breaker HED43B015
The Siemens HED43B015 is a robust 3-pole molded case circuit breaker from the Sentron Series, engineered to deliver reliable protection for electrical systems in commercial and industrial settings. With a 15-ampere current rating and a voltage capacity of 480 VAC, this breaker ensures safety and efficiency in power distribution.
Key Features
- Thermal-Magnetic Trip Unit: Combines thermal overload protection with magnetic short-circuit protection, enhancing system reliability.
- High Interrupting Capacity: Rated at 42 kA at 480 VAC, providing substantial protection against high fault currents.
- Standard ED Frame: Designed for compatibility with various panelboards and distribution systems.

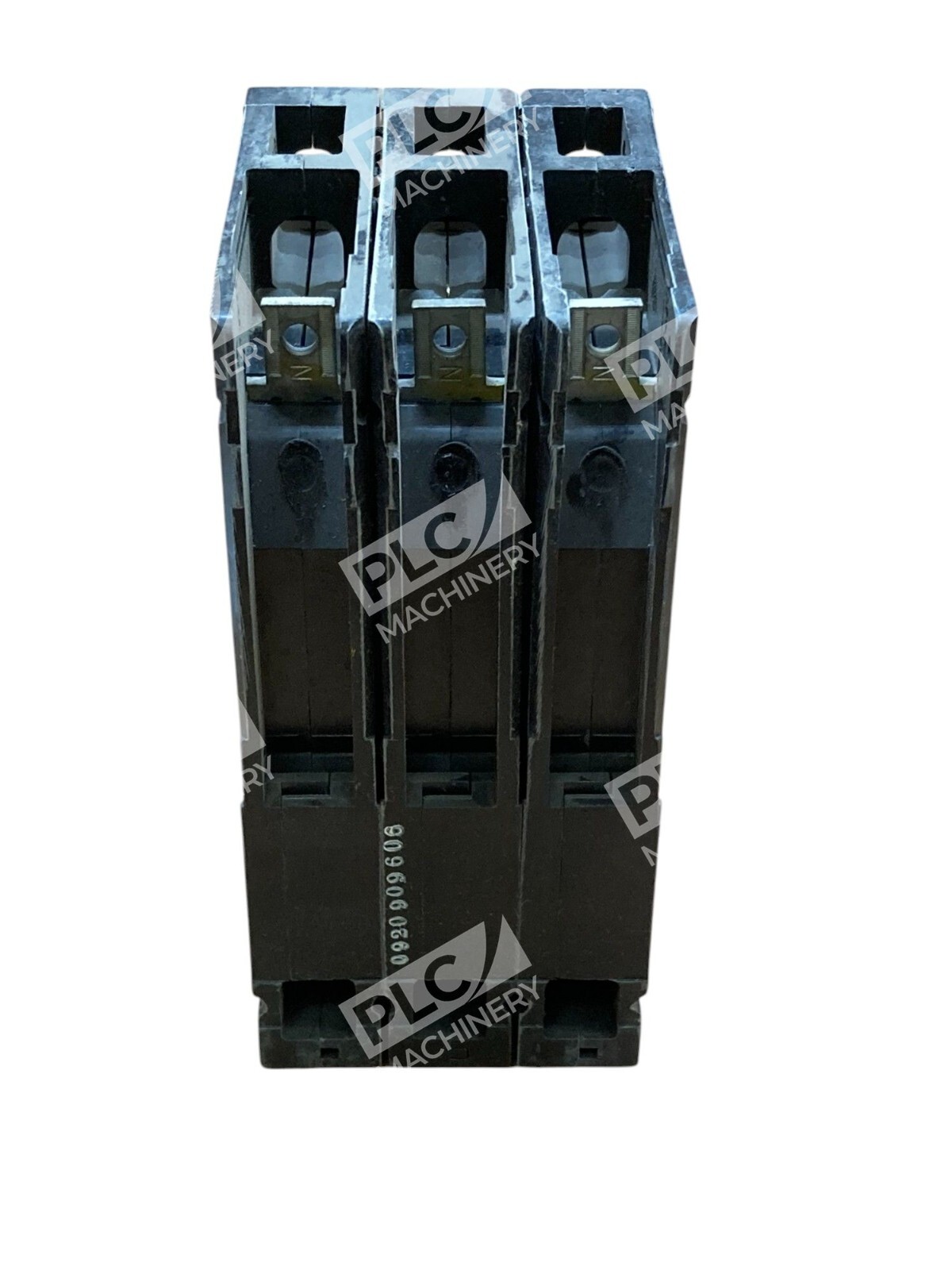

- Load Lug Terminals: Equipped with load-side lugs (SA1E025), accommodating wire sizes ranging from 14-10 AWG for copper and 12-10 AWG for aluminum conductors.
- Compact Dimensions: Measures 3.00 inches in width, 6.35 inches in length, and 3.92 inches in depth, facilitating easy installation in space-constrained environments.
Technical Specifications
- Current Rating: 15 Amperes
- Voltage Rating: 480 VAC
- Interrupting Rating: 42 kA at 480 VAC
- Number of Poles: 3
- Frame Type: ED
- Trip Type: Thermal-Magnetic
- Wire Range: 14-10 AWG (Copper), 12-10 AWG (Aluminum)
- Operating Temperature: 40°C
Applications
Ideal for use in commercial, industrial, and institutional environments, the Siemens HED43B015 circuit breaker is designed to protect electrical circuits from overloads and short circuits. Its high interrupting capacity and reliable trip mechanism make it suitable for safeguarding distribution panels, motor control centers, and various industrial equipment.
By integrating the Siemens HED43B015 into your electrical system, you ensure enhanced safety, reliability, and compliance with industry standards, contributing to the overall efficiency and protection of your power distribution network.
