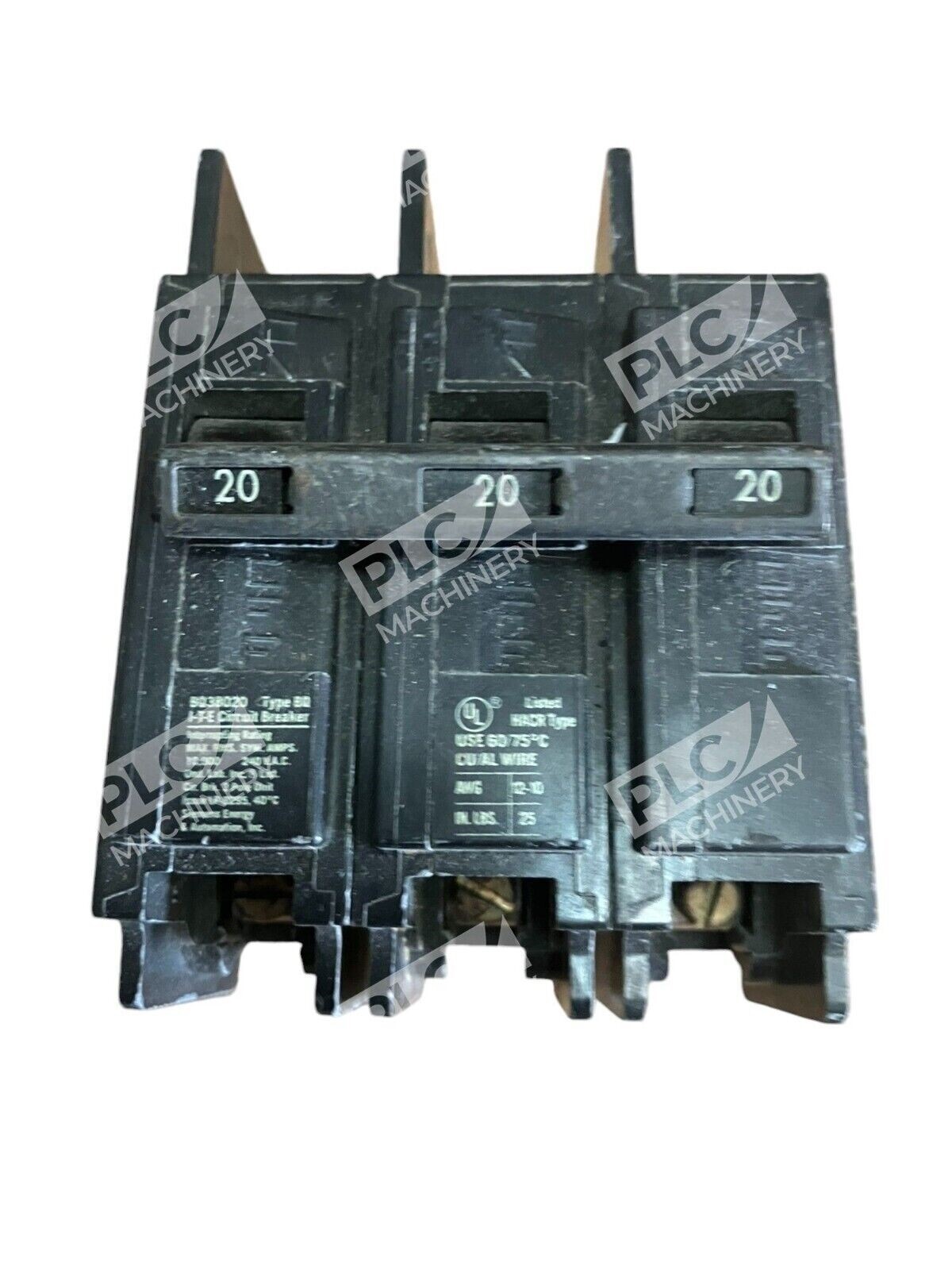

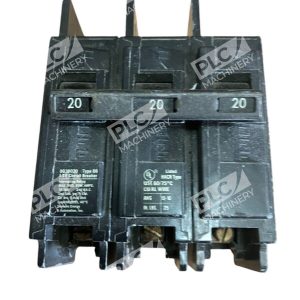

Siemens I-T-E 20A Circuit Breaker BQ3B020

Siemens I-T-E 20A Circuit Breaker BQ3B020

The Siemens I-T-E BQ3B020 is a robust 20-amp, 3-pole molded case circuit breaker designed to provide reliable protection for electrical systems. Engineered for both residential and commercial applications, this breaker ensures safety and efficiency in power distribution.

Key Features

• Amperage Rating: 20 Amps
• Voltage Rating: 240 VAC

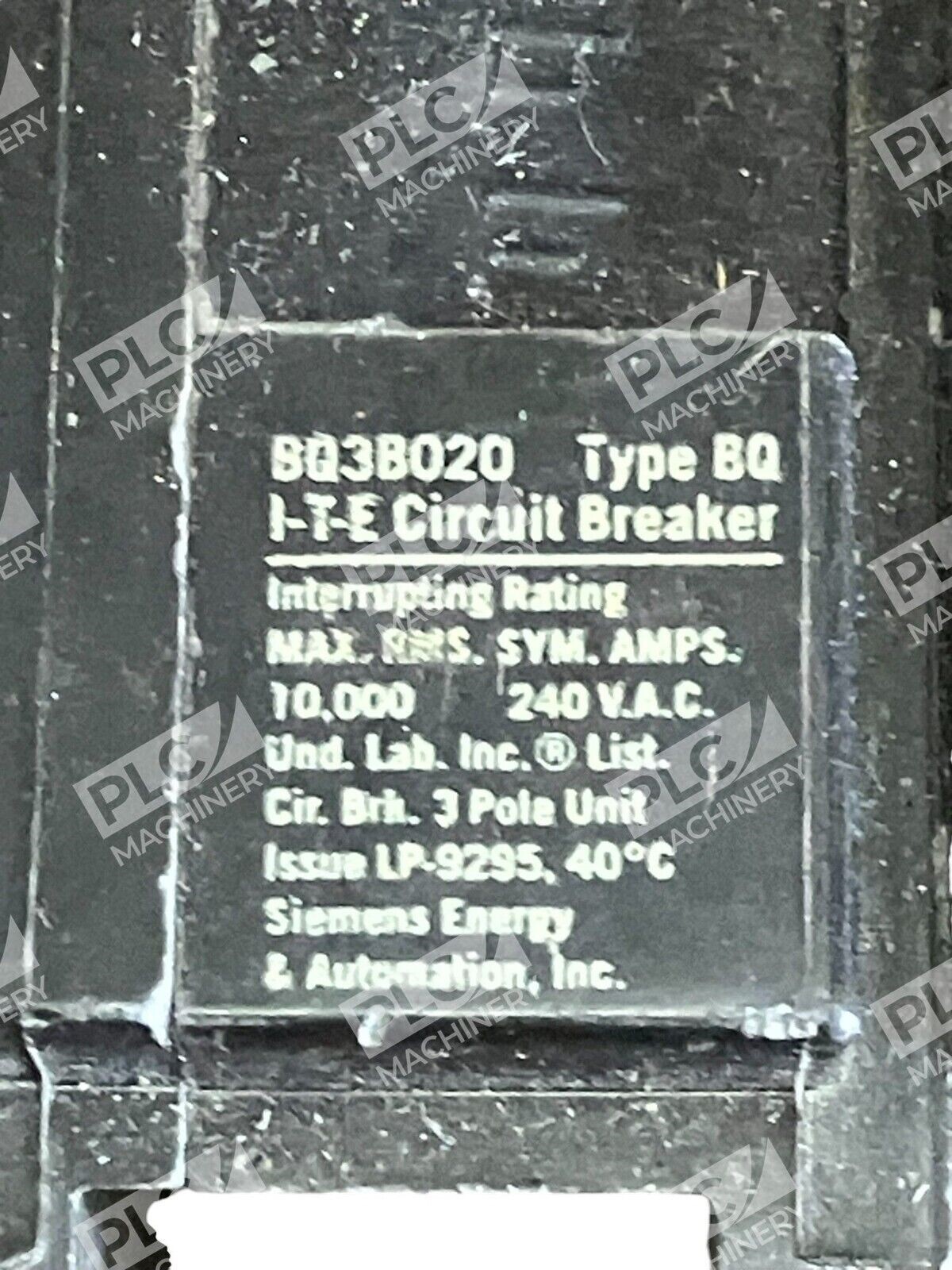

• Interrupting Capacity: 10 kA at 240V
• Number of Poles: 3
• Trip Type: Thermal Magnetic
• Mounting Type: Bolt-On
• Connection Type: Lug-In/Lug-Out
• Wire Size Compatibility: 14 to 10 AWG (Copper), 12 to 10 AWG (Aluminum)
• Operating Temperature: 40°C (104°F)
• Certifications: UL Listed, CSA Certified, CE Marked, HACR Rated

Design and Construction

The BQ3B020 features a compact and durable design, making it suitable for various installation environments. Its bolt-on mounting ensures a secure connection, while the thermal magnetic trip mechanism provides effective protection against overcurrent and short-circuit conditions.

Applications

This circuit breaker is ideal for use in power distribution panels, machinery protection, and HVAC systems, offering dependable performance in safeguarding electrical circuits.

Dimensions

• Length: 12.8 inches
• Width: 4.6 inches
• Height: 3.7 inches

With its high interrupting capacity and reliable design, the Siemens I-T-E BQ3B020 circuit breaker is a trusted choice for ensuring electrical safety and system integrity.
