Siemens 8WD-4328-1XX

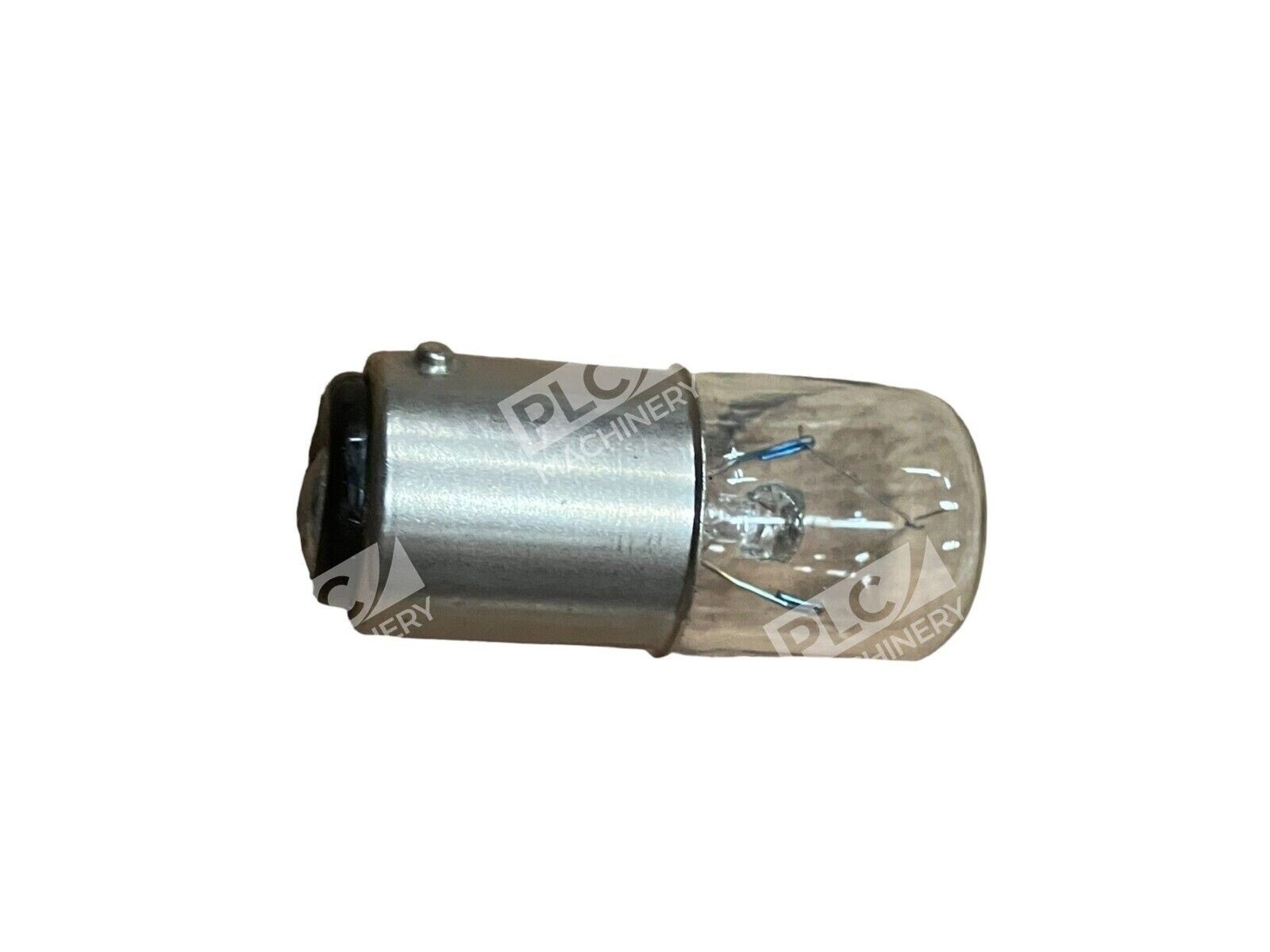

Siemens 8WD4328-1XX Incandescent Lamp

The Siemens 8WD4328-1XX is a high-quality incandescent lamp designed for use in industrial signaling applications. As part of the SIRIUS 8WD4 series, this lamp ensures reliable performance and durability in demanding environments.

Key Features

• Voltage and Power: Operates at 24V AC/DC with a power rating of 5W, providing consistent illumination for signaling purposes.
• Base Type: Equipped with a BA15d lamp base, facilitating easy installation and secure connection.
• Dimensions: Compact design with a height of 42 mm and a width of 16 mm, allowing for seamless integration into signaling columns.
• Compatibility: Specifically designed for use with Siemens 8WD42 and 8WD44 series signaling columns, ensuring optimal performance and compatibility.
• Operating Temperature: Functions effectively within a temperature range of -20°C to 50°C, suitable for various industrial environments.
• Certifications: Complies with international standards, including C-TICK, EAC, and UL approvals, affirming its quality and safety.

Applications

The Siemens 8WD4328-1XX incandescent lamp is ideal for use in industrial signaling columns, providing clear and reliable visual indications in manufacturing plants, processing facilities, and other industrial settings.

Specifications

• Series: SIRIUS 8WD4
• Type: Incandescent Lamp
• Voltage Rating: 24V AC/DC
• Power Rating: 5W
• Base Type: BA15d
• Dimensions: 42 mm (H) x 16 mm (W)
• Operating Temperature: -20°C to 50°C
• Certifications: C-TICK, EAC, UL

For more detailed information and purchasing options, please refer to the official Siemens product catalog or contact authorized Siemens distributors.
