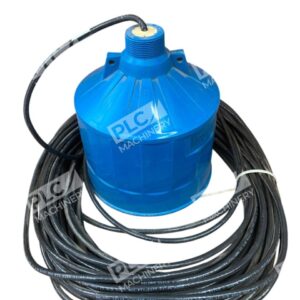

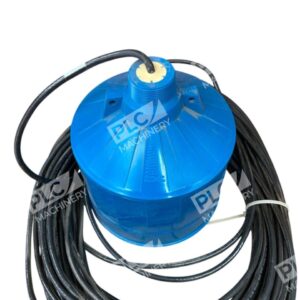

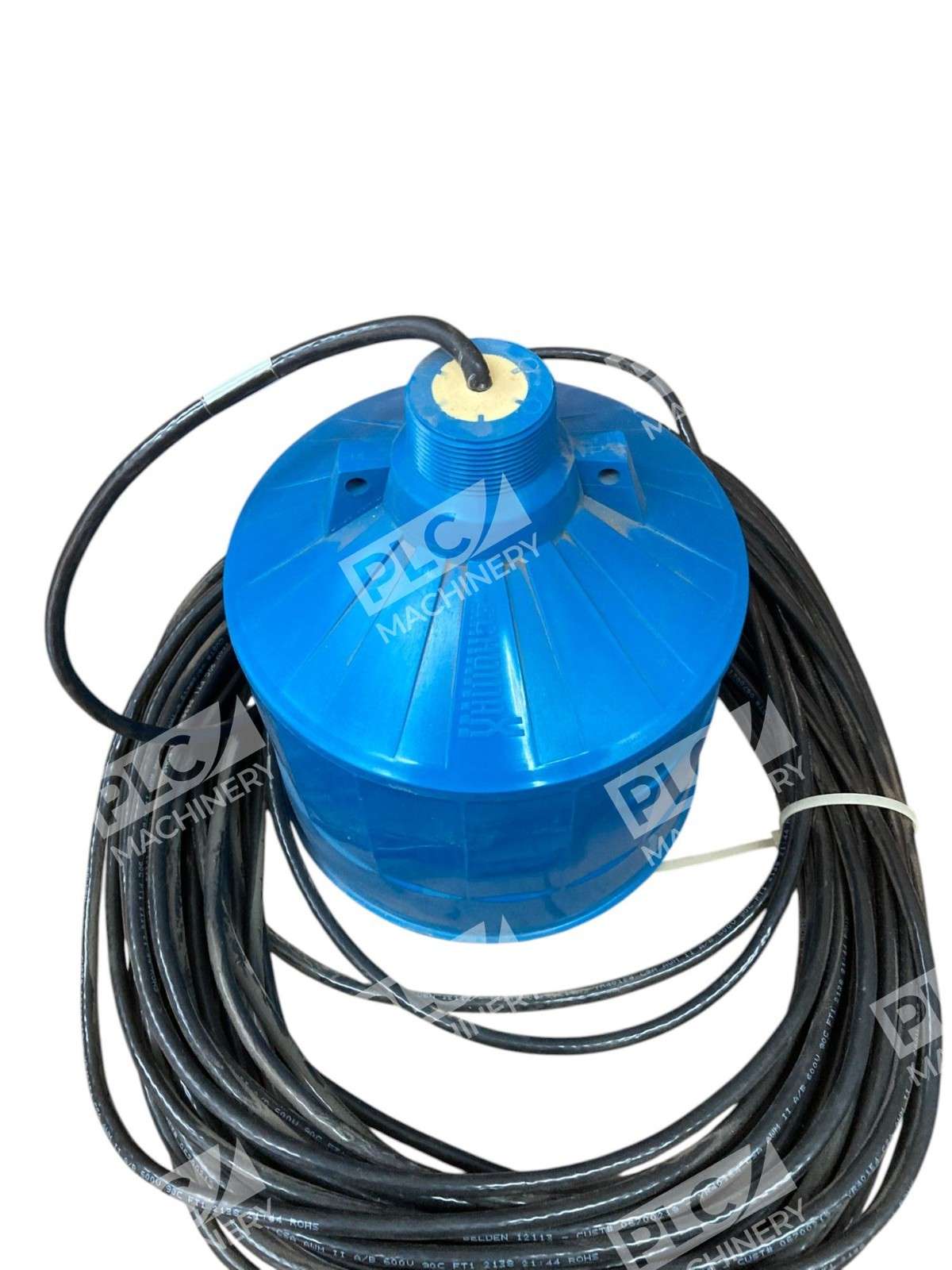

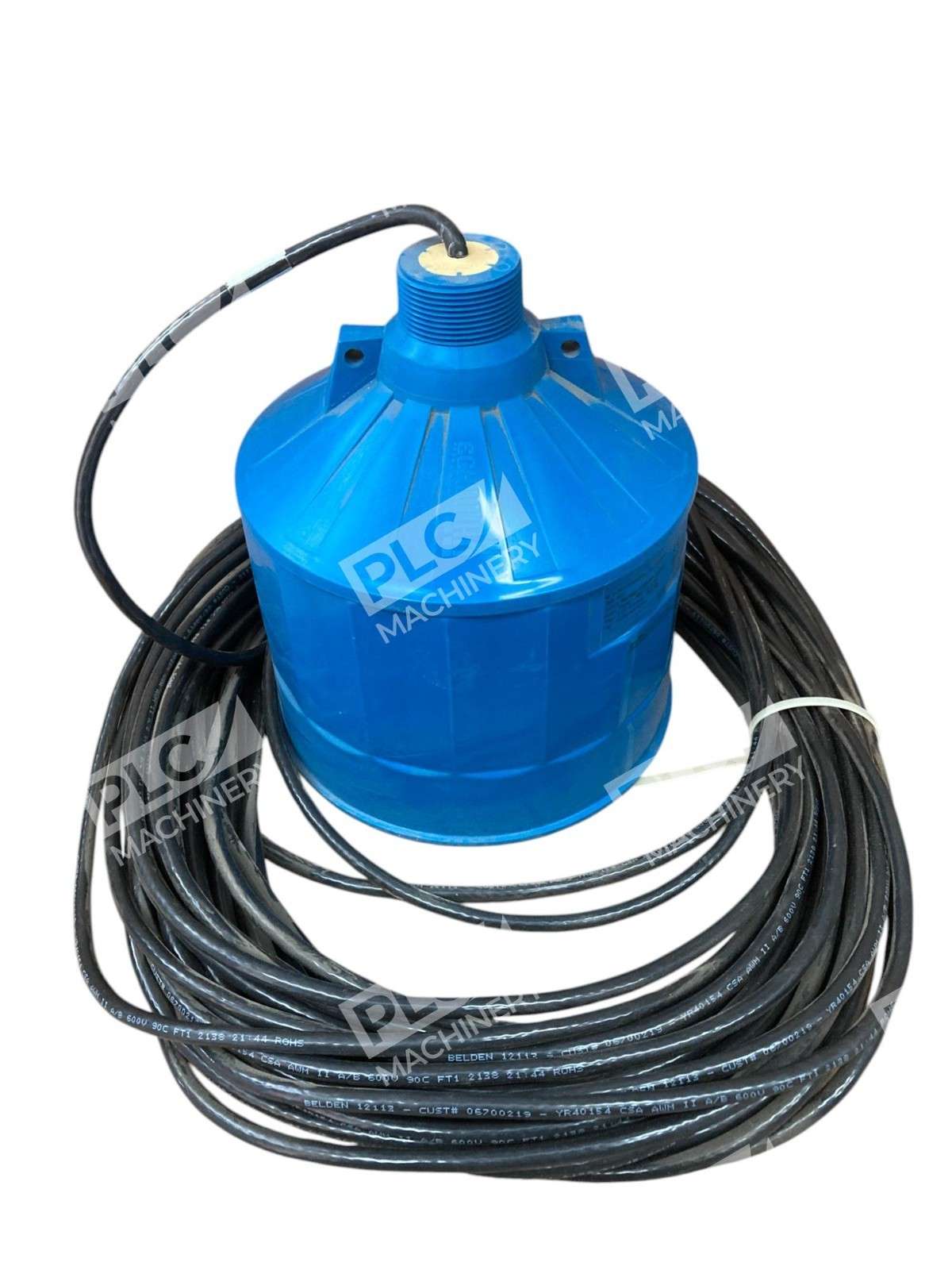

Siemens 7ML11270EA50 XPS-40 Ultrasonic Transducer

The Siemens 7ML11270EA50 XPS-40 Ultrasonic Transducer is engineered for precise, continuous, non-contact level measurement in both liquid and solid applications. This high-frequency ultrasonic transducer is designed to deliver reliable performance across a variety of industrial environments.

Key Features

• Measurement Range: Capable of measuring distances up to 40 meters (131.23 feet), making it suitable for large-scale applications.
• Non-Contact Operation: Utilizes ultrasonic technology to provide accurate level measurements without direct contact with the material, reducing wear and maintenance.
• Robust Construction: Built to withstand harsh conditions, including exposure to steam and corrosive chemicals, ensuring longevity and consistent performance.
• Temperature Compensation: Equipped with an integral temperature sensor that compensates for temperature variations, maintaining measurement accuracy.
• Easy Installation: Features a universal mounting thread compatible with standard fittings, facilitating straightforward installation without the need for flanges.
• Self-Cleaning Design: Designed with self-cleaning surfaces to minimize maintenance requirements and ensure reliable operation over time.

Technical Specifications

• Measuring Range: 0.6 to 40 meters (1.97 to 131.23 feet)
• Process Temperature: -40°C to +95°C (-40°F to +203°F)
• Process Pressure: Up to 8 bar
• Frequency: 30 kHz
• Beam Angle: 6°
• Output: Dependent on Siemens Controller
• Protection Rating: IP66/IP68
• Housing Material: PVDF
• Process Connection: 1 1/2″ universal thread compatible with 1 1/2″ NPT and R 1 1/2″ (BSPT)
• Approvals: ATEX II 2G 1D, FM Class 1 Div 2, SAA

Applications

The XPS-40 Ultrasonic Transducer is ideal for a wide range of applications, including:

• Water and wastewater treatment
• Chemical processing
• Bulk material handling
• Food and beverage industry
• Pharmaceutical manufacturing

Its ability to operate in challenging environments and provide accurate, non-contact measurements makes it a valuable component in process control systems.
