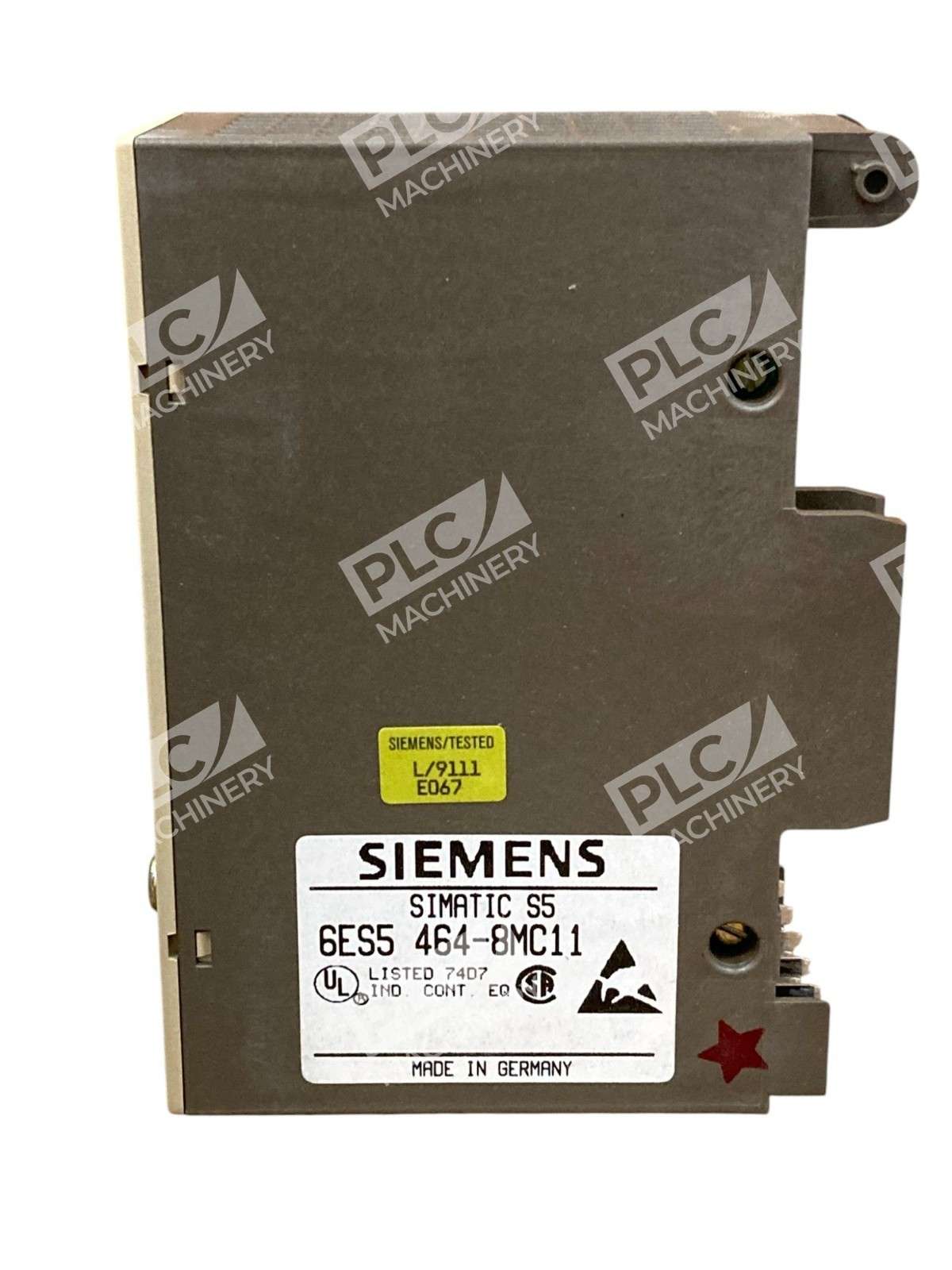

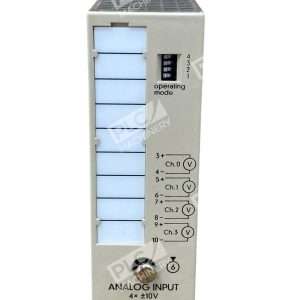

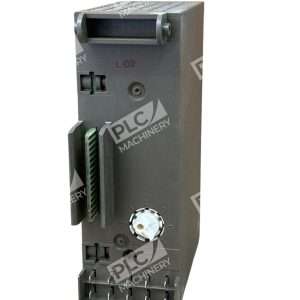

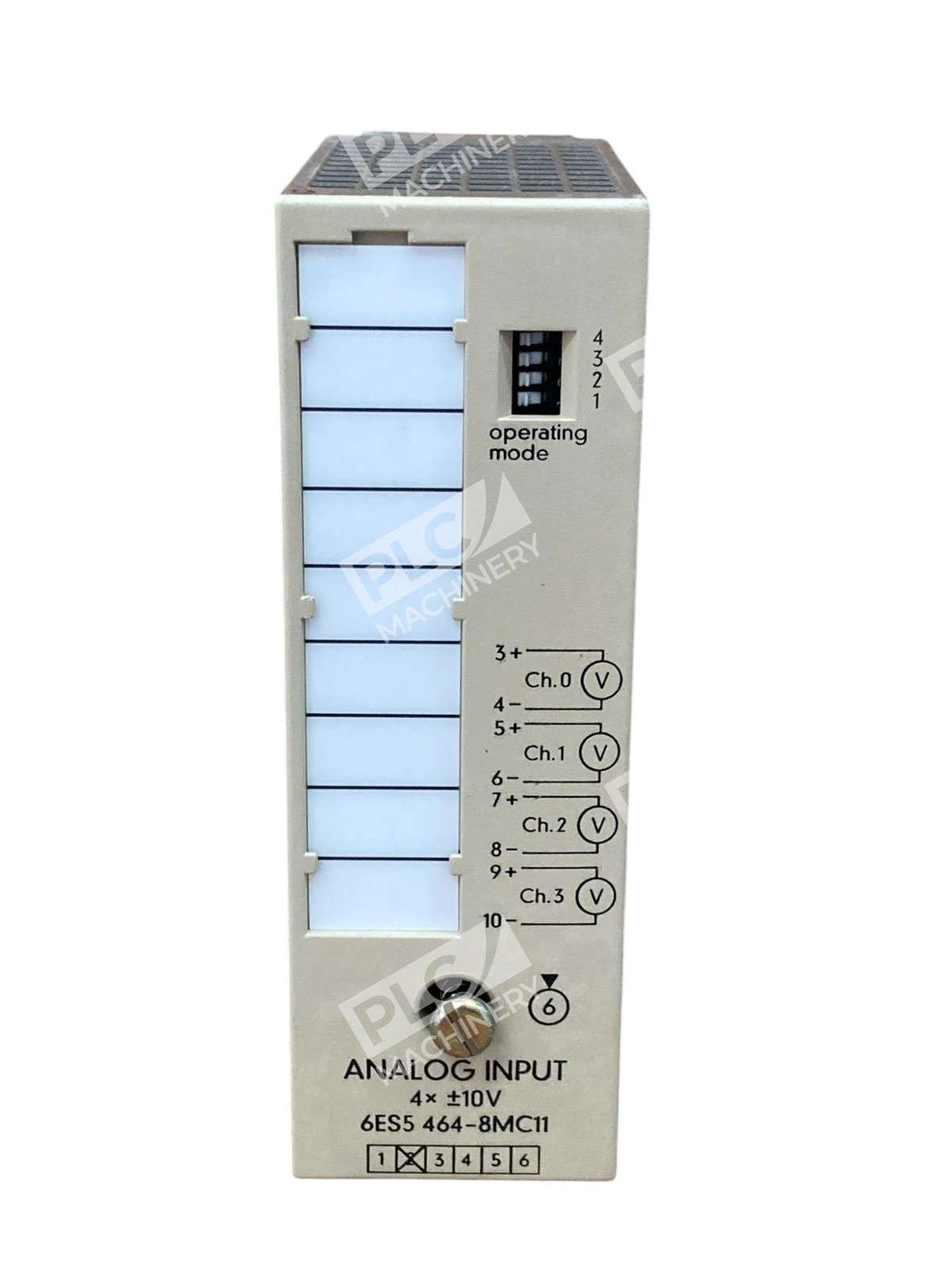

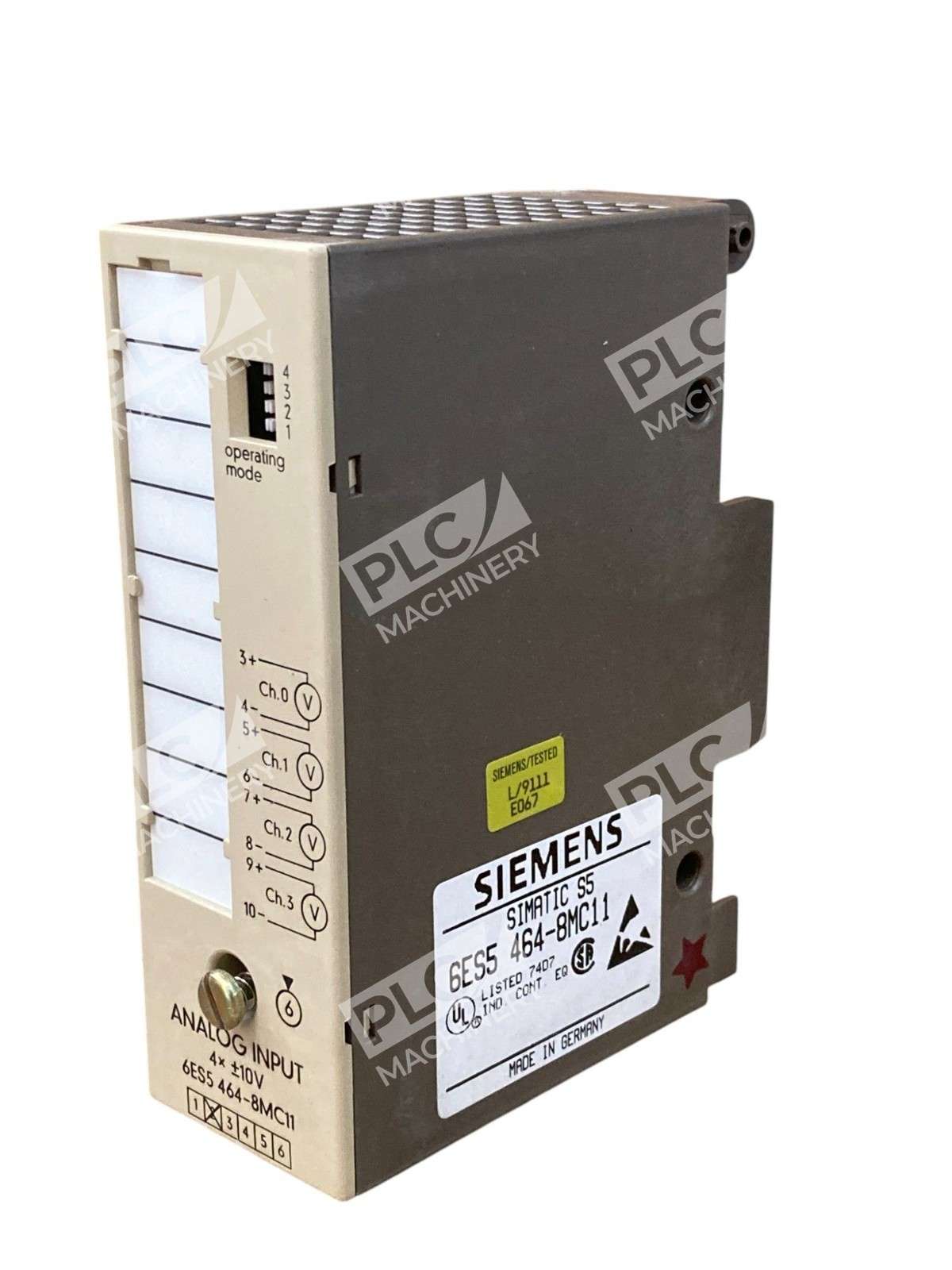

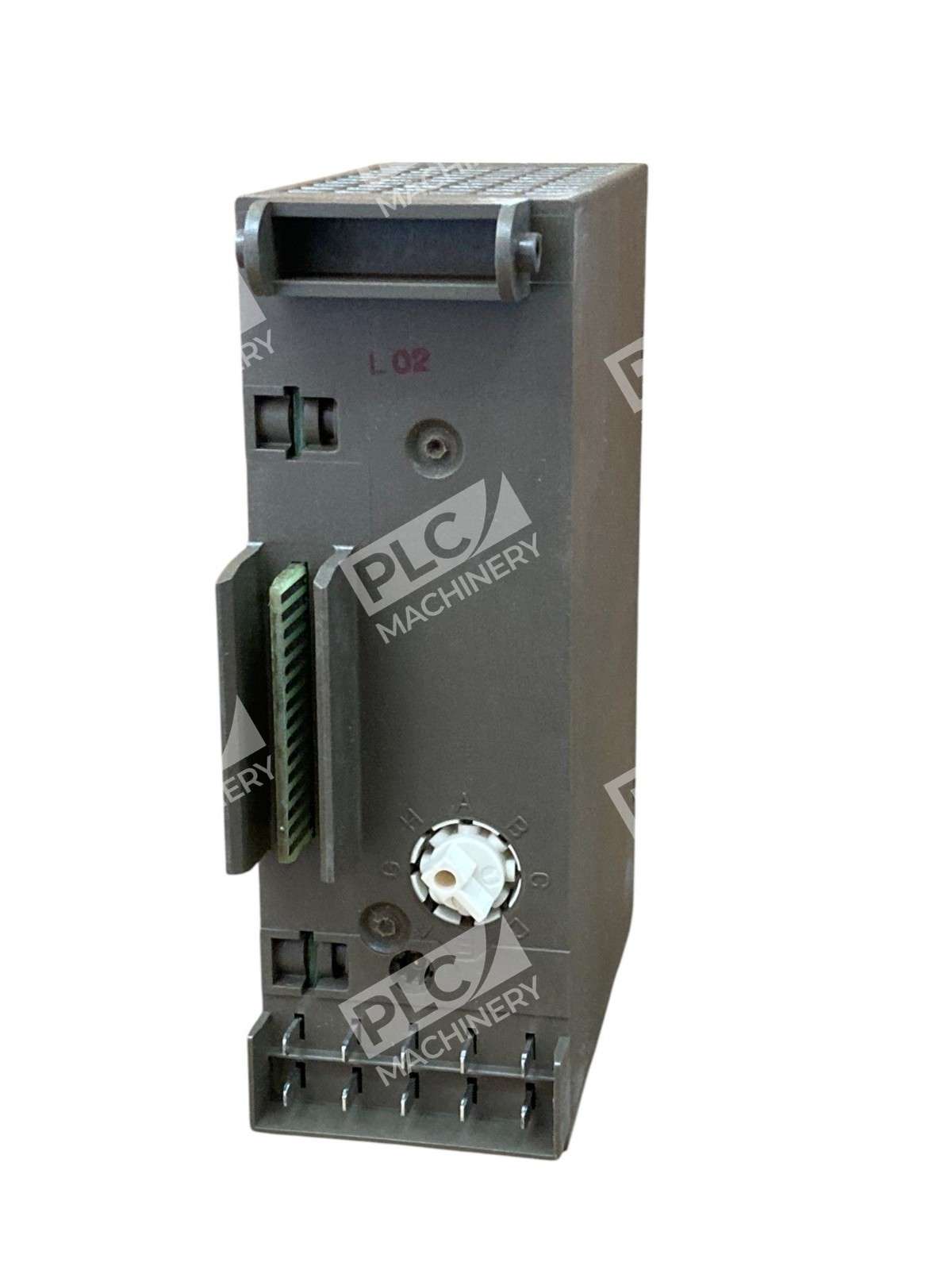

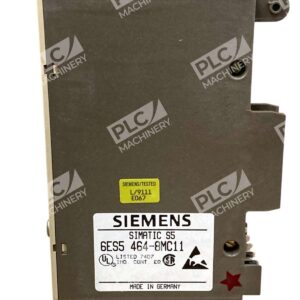

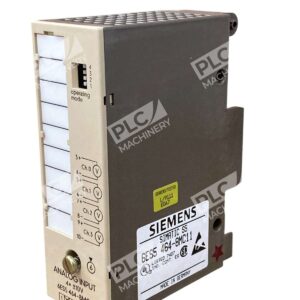

Siemens 6ES5464-8MC11 SIMATIC S5 4-Point Analog Input Module

The Siemens 6ES5464-8MC11 is a high-precision analog input module designed for integration with the SIMATIC S5 series of programmable logic controllers (PLCs). This module is engineered to facilitate accurate analog signal acquisition, making it an essential component for industrial automation systems requiring reliable data processing.

Key Features

• Compatibility: Seamlessly integrates with Siemens S5-90U, S5-95U, S5-100U PLCs, as well as ET 100U and ET 200U distributed I/O systems.
• Input Channels: Equipped with four isolated analog input channels, each supporting a ±10V input range, allowing for versatile signal measurement.
• Galvanic Isolation: Ensures electrical isolation between input channels and the system ground, enhancing signal integrity and protecting against potential interference.
• High Accuracy: Delivers precise analog-to-digital conversion, crucial for applications demanding exact data acquisition.
• Robust Design: Constructed to withstand the rigors of industrial environments, ensuring durability and long-term operational reliability.

Technical Specifications

• Input Range: ±10V
• Number of Inputs: 4
• Galvanic Isolation: Yes (inputs to grounding point; not between inputs)
• Input Resistance: 50 kΩ
• Basic Error Limits: ±0.2% (operational error limits at 25°C, referred to the input ranges of the module)
• Operational Error Limits: ±0.45% (0 to 60°C, referred to the input ranges of the module)
• Digital Representation of Input Signal: 12 bits + sign (2048 units = rated value)
• Integration Time: 20 ms at 50 Hz; 16.6 ms at 60 Hz
• Current Consumption from +9V (CPU): Typically 70 mA
• Power Loss of the Module: Typically 0.7 W
• Weight: Approximately 230 g

Applications

The 6ES5464-8MC11 module is ideal for various industrial applications, including:

• Process control systems requiring precise analog input measurements.
• Monitoring and control of machinery and equipment in manufacturing plants.
• Integration into distributed I/O systems for expanded input capabilities.

By incorporating the Siemens 6ES5464-8MC11 analog input module into your automation setup, you can achieve enhanced accuracy and reliability in analog signal processing, contributing to the overall efficiency and performance of your industrial operations.
