Siemens 6.3-10A Overload Relay 3UA54 00-1J

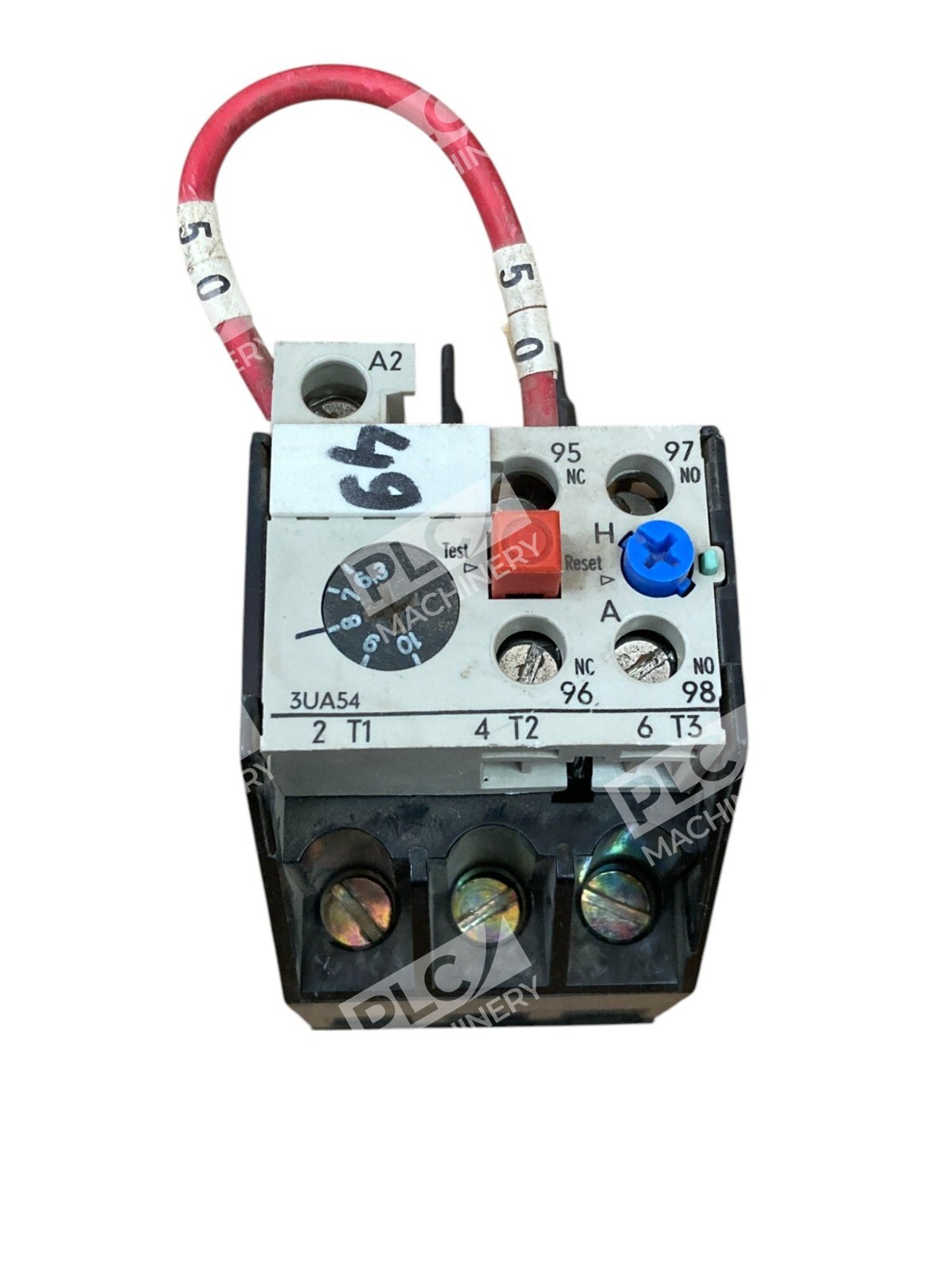

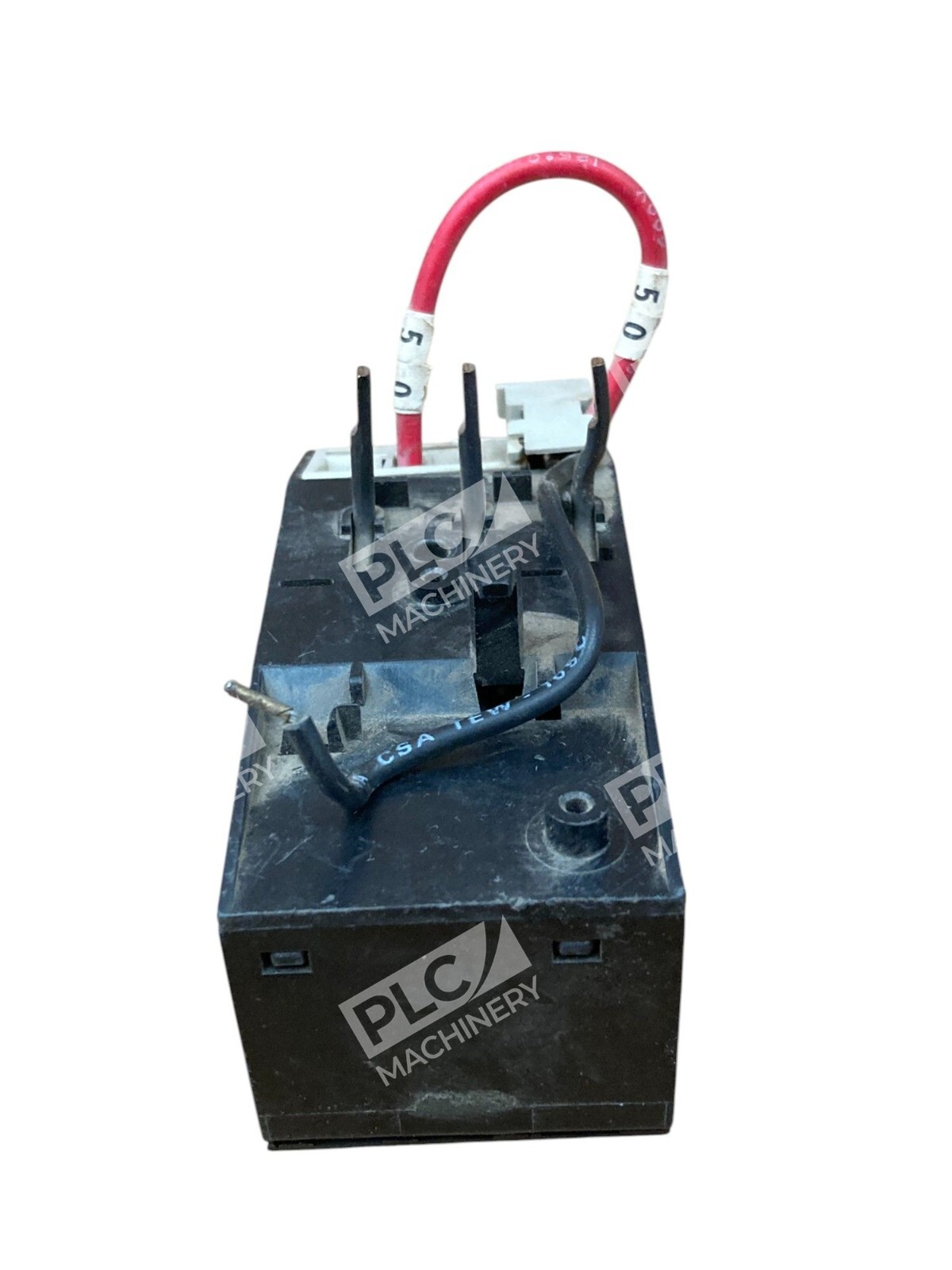

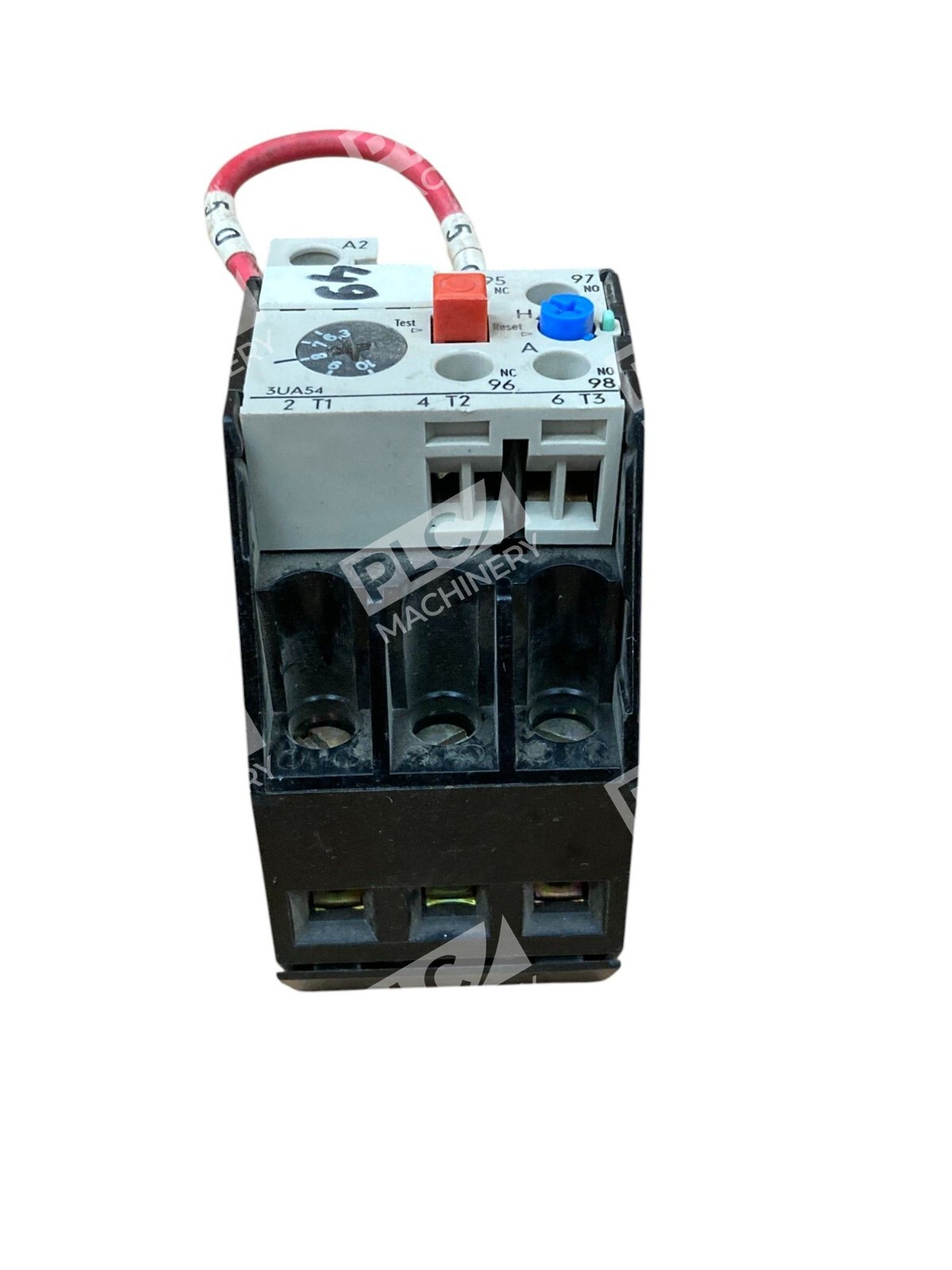

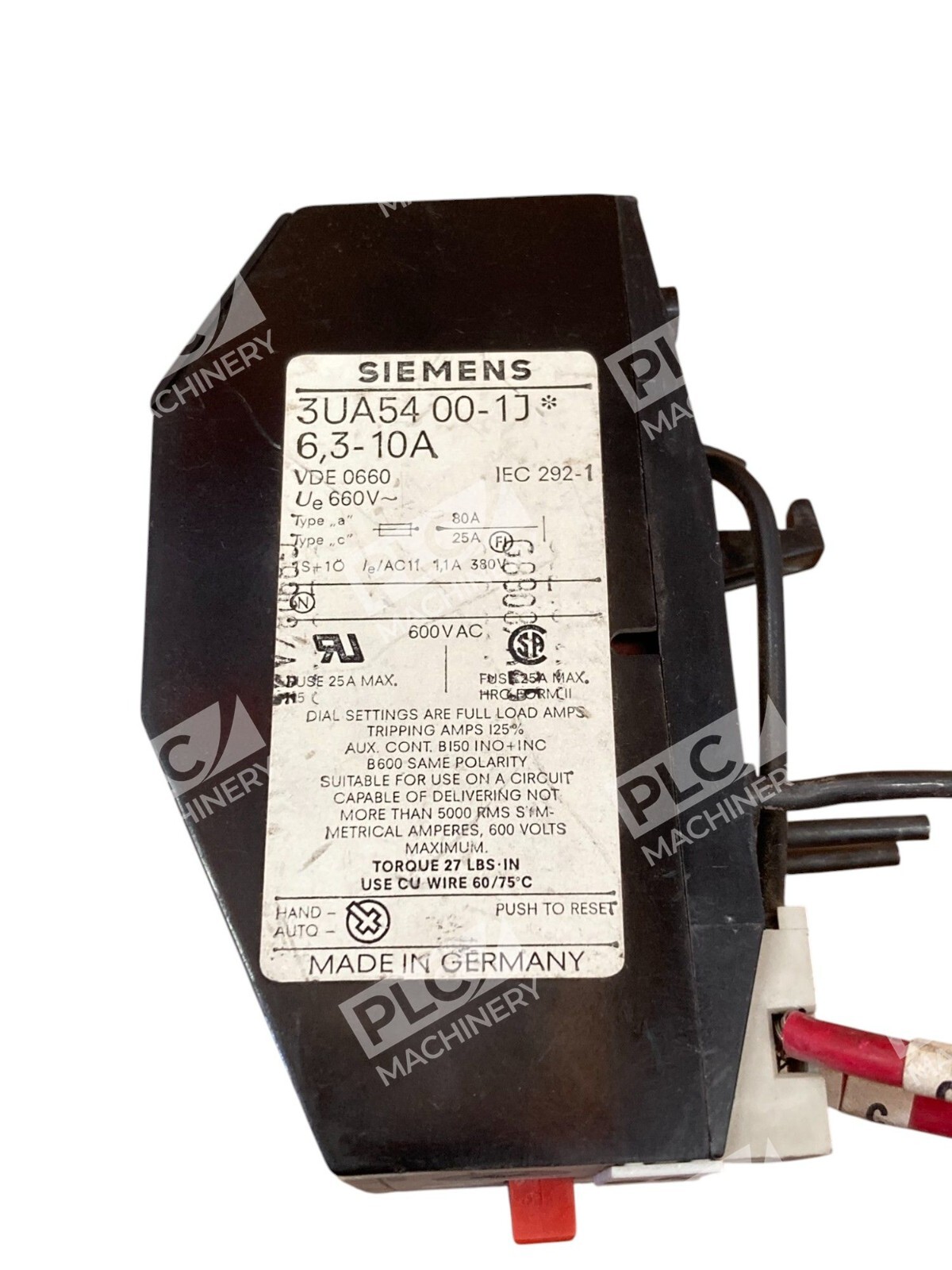

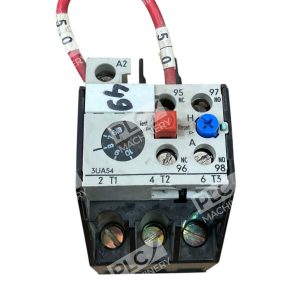

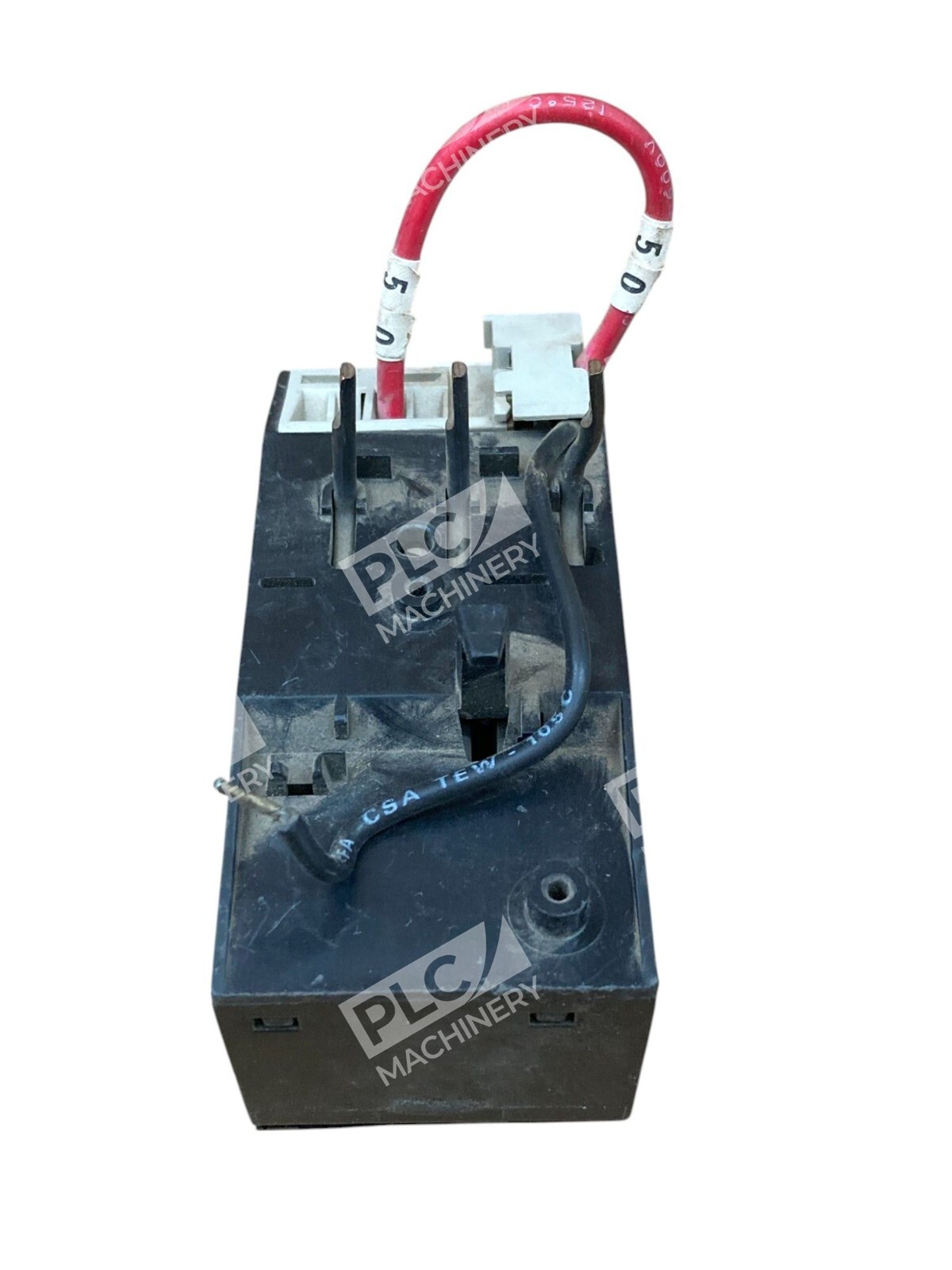

Siemens 3UA54 00-1J Overload Relay

The Siemens 3UA54 00-1J Overload Relay is a thermal overload protection device designed to safeguard electrical motors and circuits from excessive current conditions. With a current setting range of 6.3 to 10 amperes, this relay ensures reliable performance in various industrial applications.

Key Features

• Current Range: Adjustable between 6.3 and 10 A, allowing flexibility to match specific motor requirements.
• Voltage Rating: Suitable for systems operating up to 600V AC, accommodating a wide range of industrial voltage standards.
• Auxiliary Contacts: Equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) contact, facilitating integration into control circuits.
• Compatibility: Designed for seamless mounting onto Siemens contactors, including models 3TF32, 3TF33, 3TF42, and 3TF43, ensuring easy installation and system compatibility.
• Protection Class: Tripping class 10A, providing timely response to overload conditions to protect equipment.

Applications

This overload relay is ideal for protecting motors and electrical circuits in various industrial settings, including manufacturing plants, processing facilities, and other environments where reliable motor protection is essential.

Installation and Maintenance

The 3UA54 00-1J is designed for straightforward installation onto compatible Siemens contactors. Regular maintenance and periodic testing are recommended to ensure optimal performance and longevity of the relay and the equipment it protects.

By incorporating the Siemens 3UA54 00-1J Overload Relay into your electrical systems, you can enhance operational safety and prevent potential damage caused by overcurrent situations.
