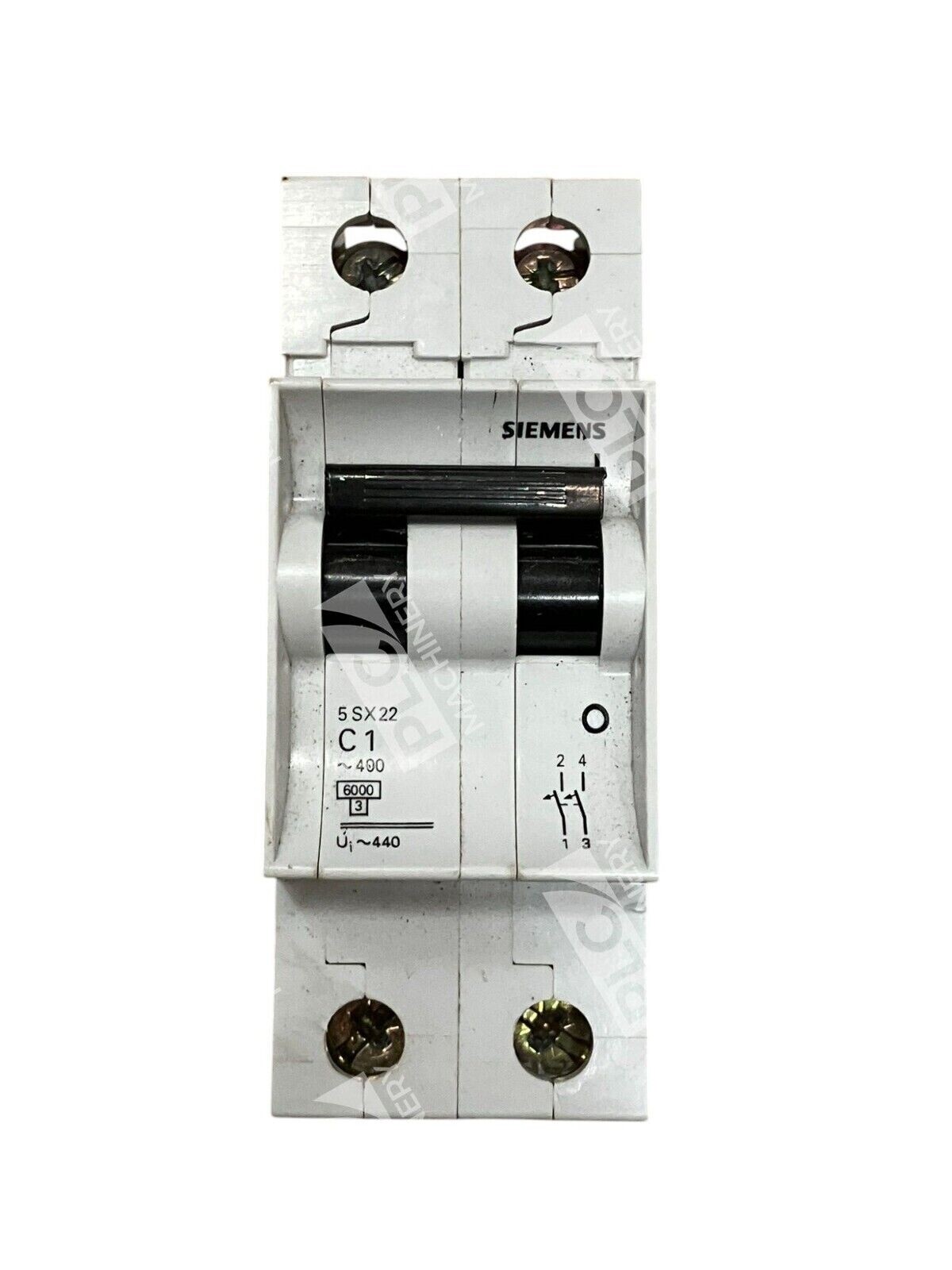

The Siemens 5SX2-201-7 is a 2-pole miniature circuit breaker designed to provide reliable protection for electrical circuits. With a current rating of 1 ampere and a voltage rating of 400V AC, it is suitable for various industrial and commercial applications.
Key Features
- Current Rating: 1A
- Voltage Rating: 400V AC
- Number of Poles: 2
- Breaking Capacity: 6kA at 400V AC
- Tripping Characteristic: C Curve
- Mounting: DIN Rail
- Actuator: Toggle
- Terminal Connection: Screw Clamp
- Trip Type: Thermal Magnetic
Design and Construction
The 5SX2-201-7 features a compact design with a width of approximately 1.39 inches, a depth of 3 inches, and a height of 3.54 inches. Its thermoplastic housing ensures durability and safety. The circuit breaker is designed for easy installation on standard DIN rails, making it suitable for various panel configurations.
Applications
This circuit breaker is ideal for protecting electrical circuits in industrial and commercial settings. Its 1A current rating makes it suitable for low-current applications, while the 2-pole design allows for the protection of both live and neutral conductors.
Compliance and Standards
The Siemens 5SX2-201-7 complies with international standards, including EN 60898-1 and EN 60947-2, ensuring reliable performance and safety in various applications.
Additional Information
The 5SX2-201-7 is part of Siemens’ 5SX2 series of miniature circuit breakers, known for their high performance and reliability. Its thermal magnetic trip mechanism provides protection against both overloads and short circuits, ensuring the safety of electrical installations.
