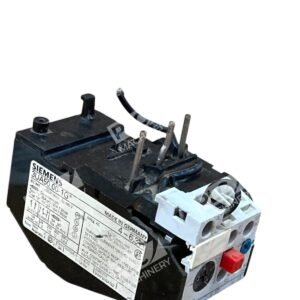

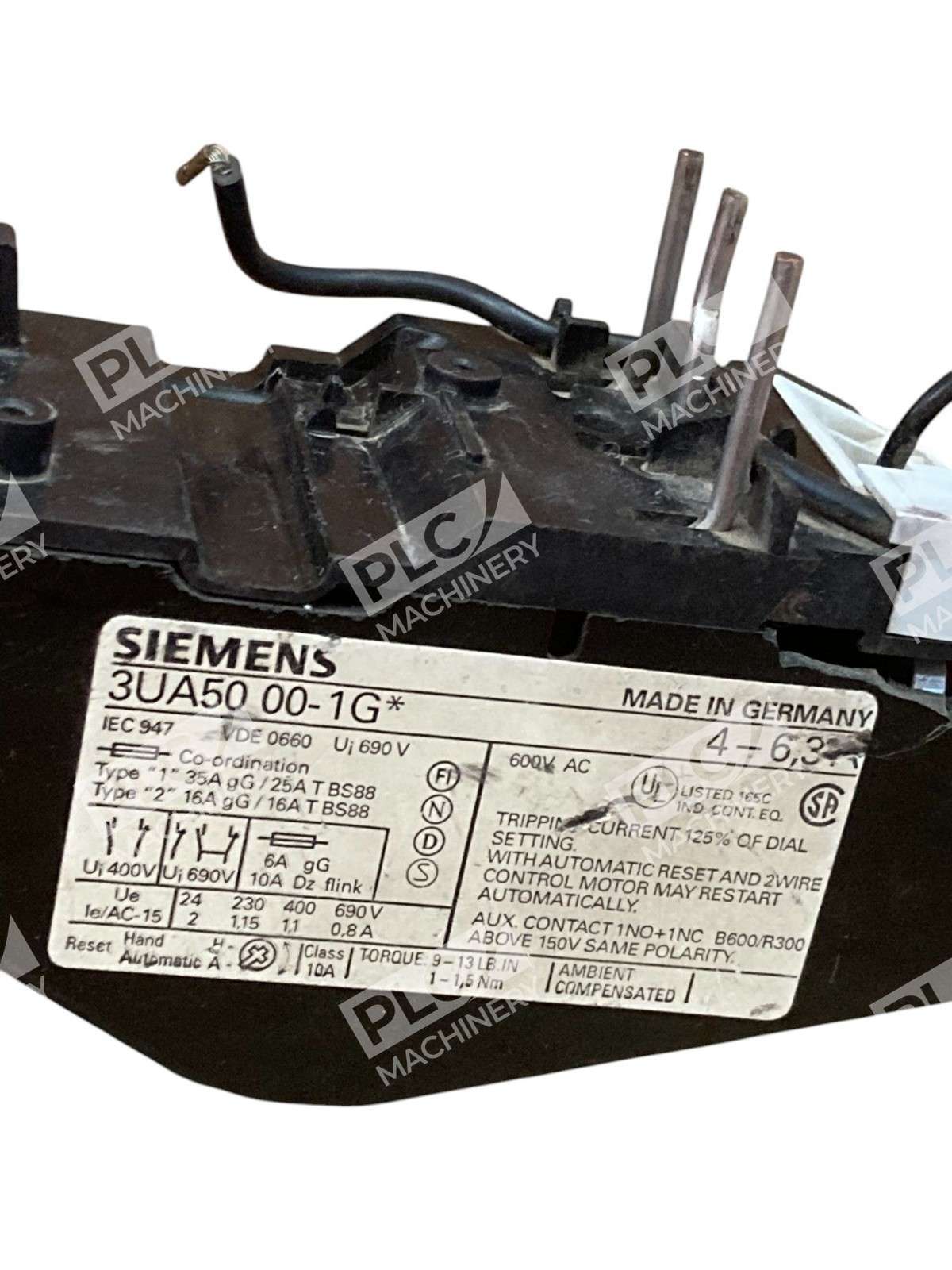

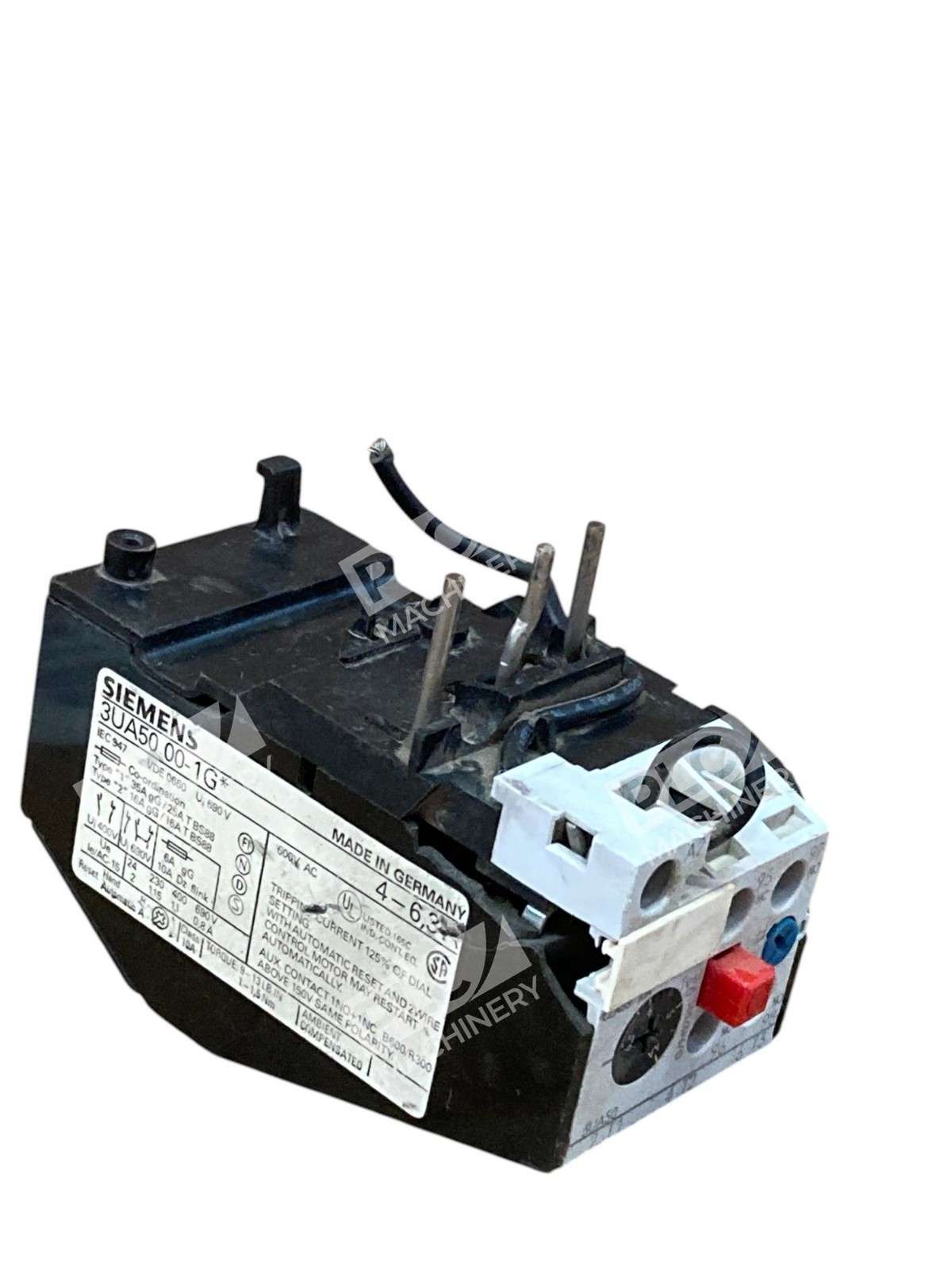

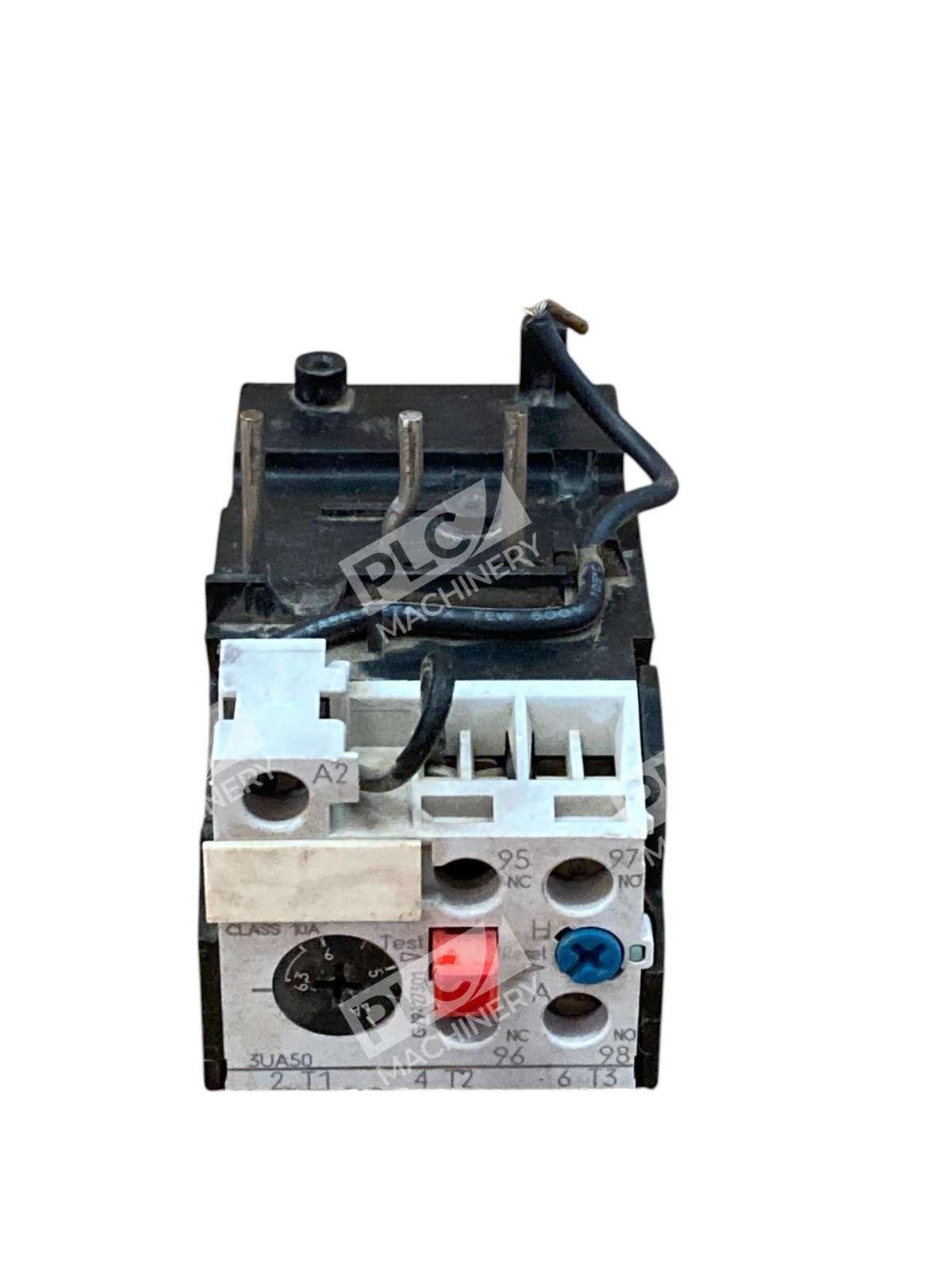

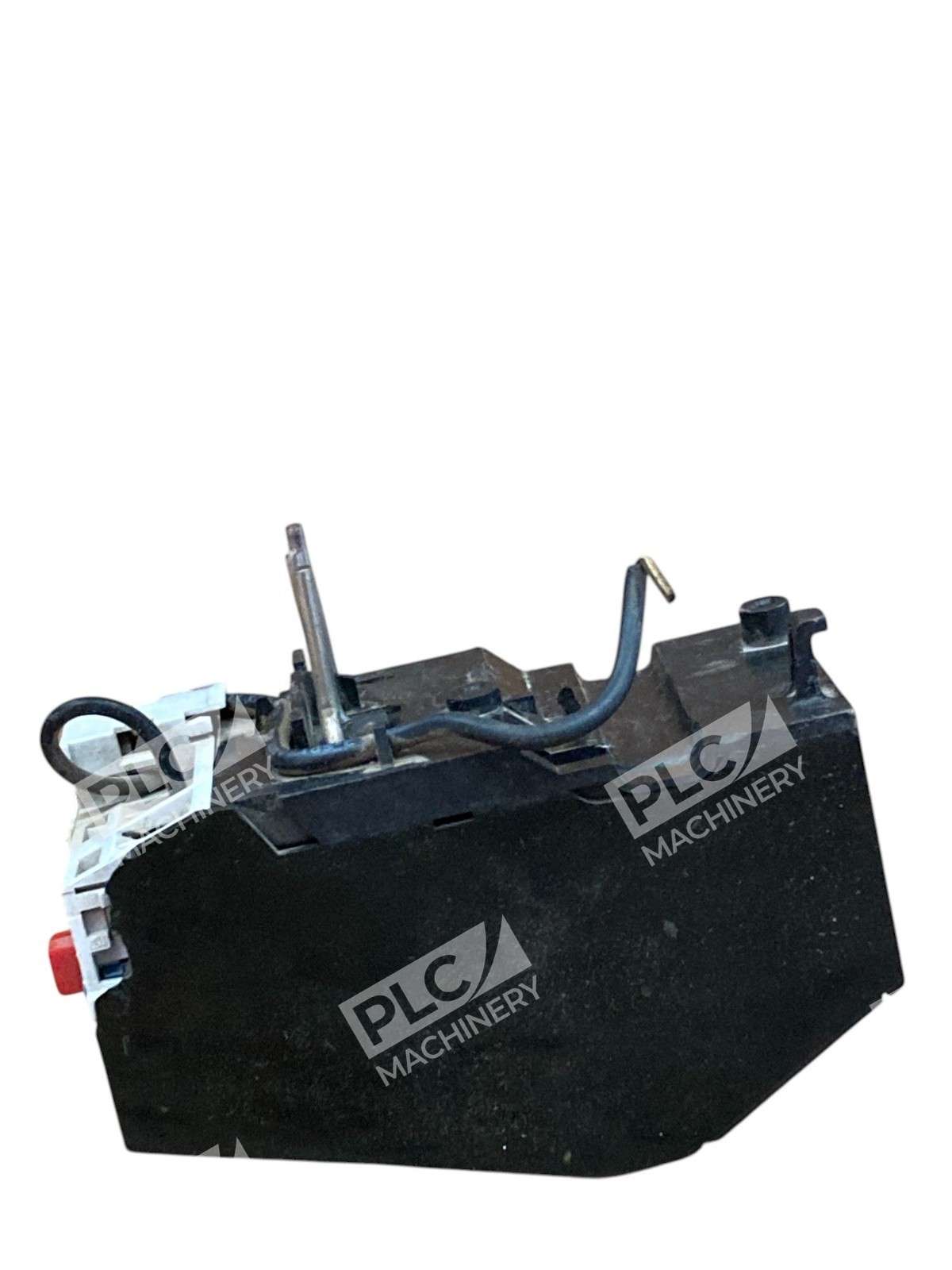

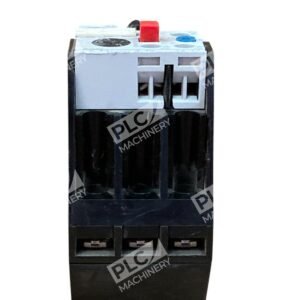

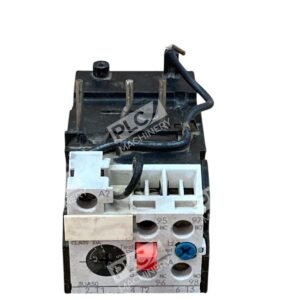

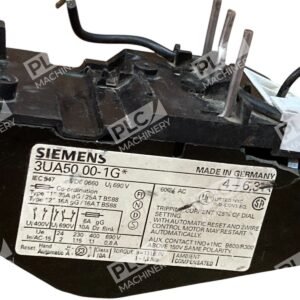

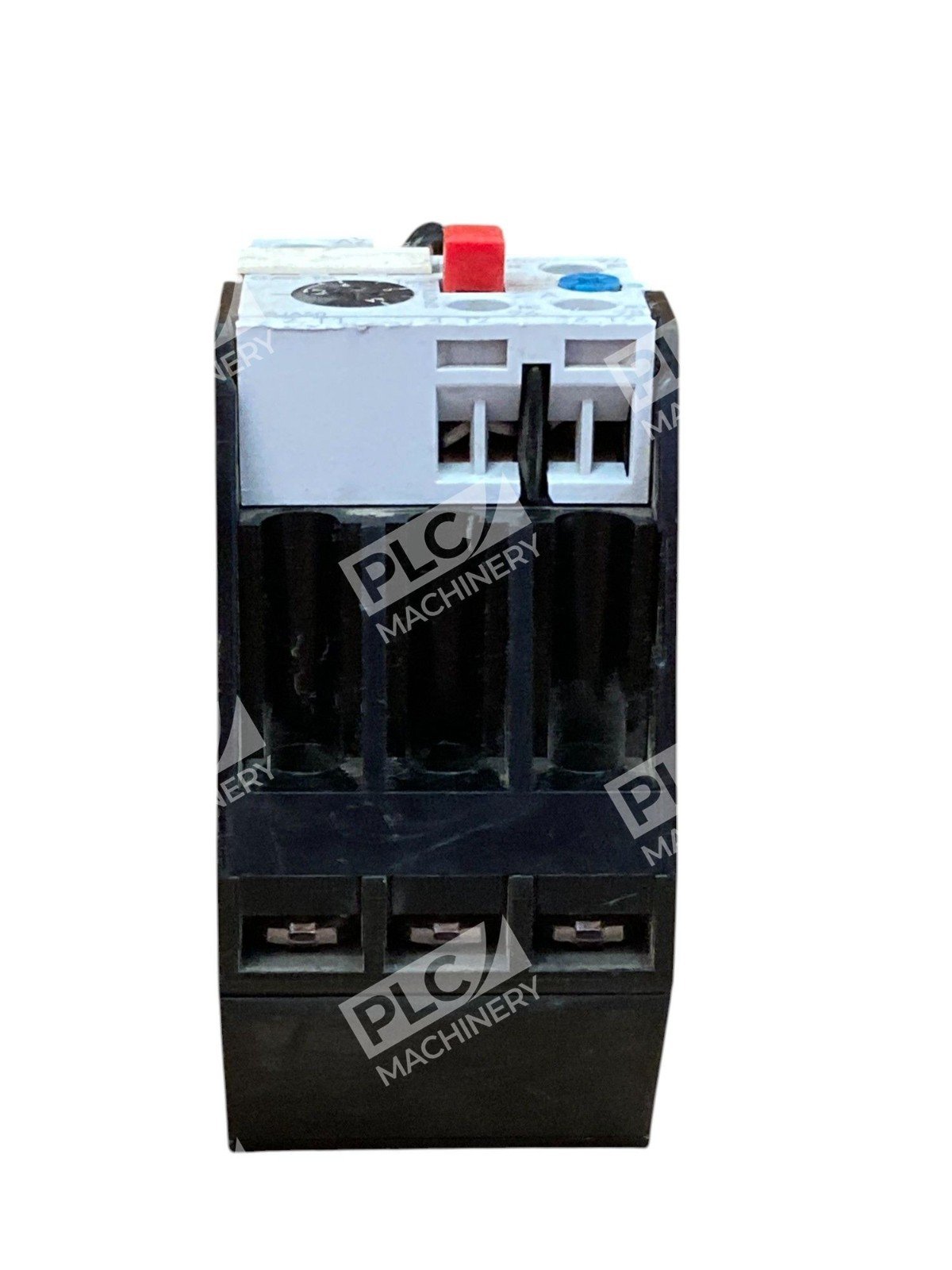

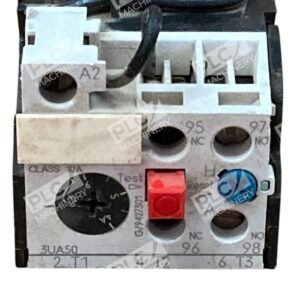

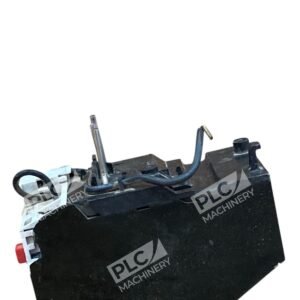

Siemens 3UA50 00-1G Overload Relay

Siemens 3UA50 00-1G Overload Relay

The Siemens 3UA50 00-1G is a thermal overload relay designed to provide reliable protection for AC motors operating within a current range of 4 to 6.3 amperes. This device safeguards motors against overload conditions and phase failures, ensuring operational safety and longevity.

Key Features

• Current Range: Adjustable between 4 and 6.3 A, accommodating various motor sizes and applications.
• Voltage Rating: Suitable for systems with a rated insulation voltage (Ui) up to 690 V, making it versatile for different industrial environments.
• Phase-Failure Protection: Detects and responds to phase loss, preventing potential motor damage.
• Temperature Compensation: Ensures consistent performance across a range of ambient temperatures.
• Reset Options: Equipped with both manual and automatic reset capabilities, offering flexibility in operation.
• Auxiliary Contacts: Includes 1 normally open (NO) and 1 normally closed (NC) contact for integration with control circuits.
• Mounting Compatibility: Designed for seamless integration with Siemens contactors, such as the 3TF30, 3TF31, 3TF40, 3TF41, 3TB40, and 3TB41 series.

Technical Specifications

• Trip Class: 10A, providing timely response to overload conditions.
• Terminal Torque: 9–13 lb.in (1–1.5 Nm), ensuring secure electrical connections.
• Utilization Category: B600/R300, indicating suitability for various control applications.
• Weight: Approximately 180 grams, facilitating easy handling and installation.

The Siemens 3UA50 00-1G Overload Relay is engineered to deliver dependable motor protection, enhancing the safety and efficiency of industrial operations.
