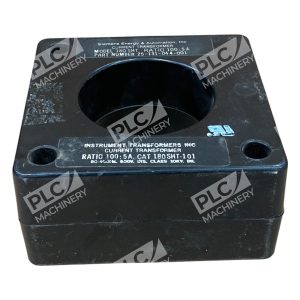

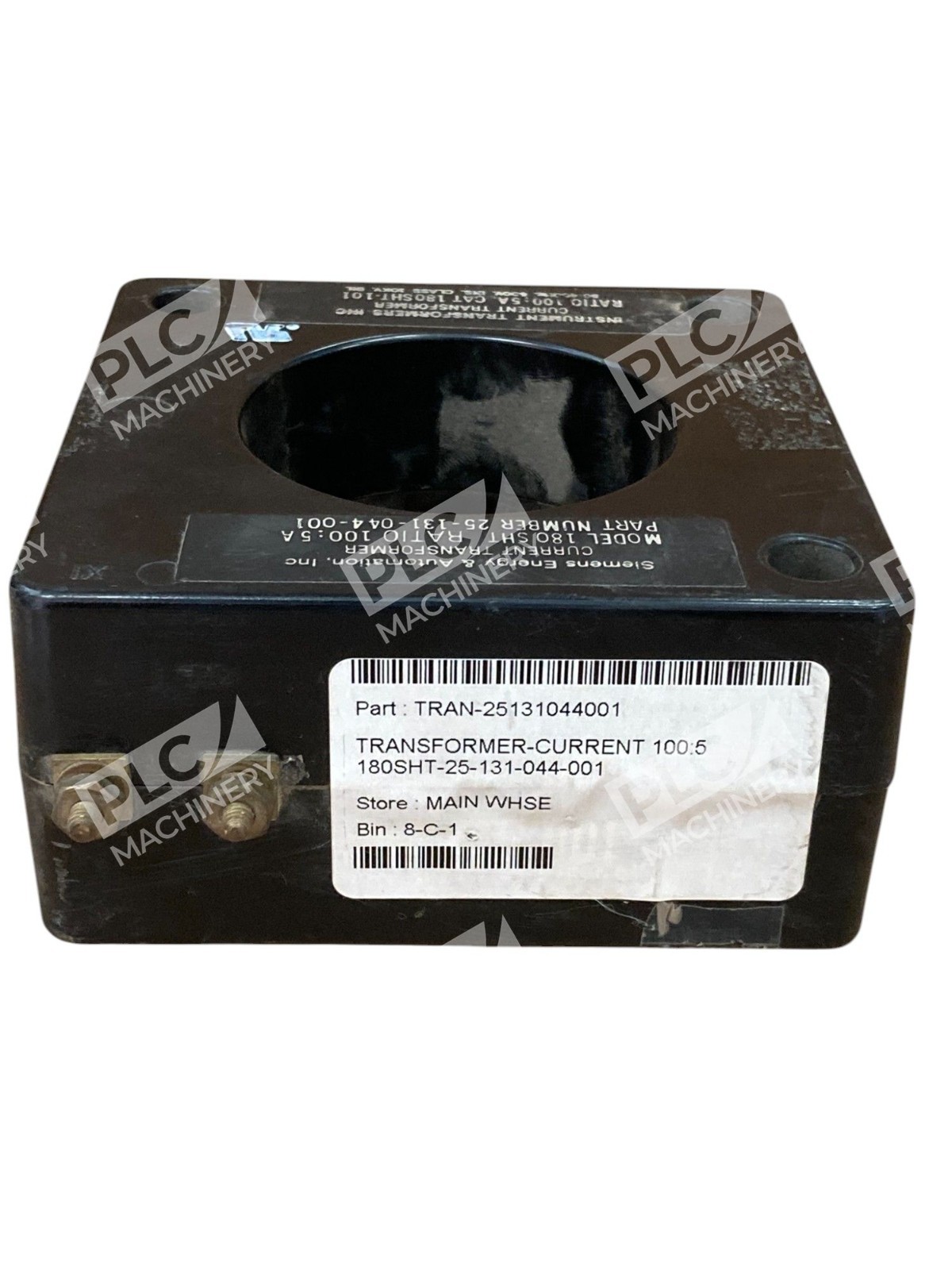

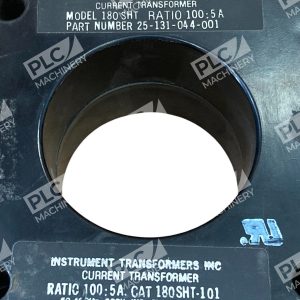

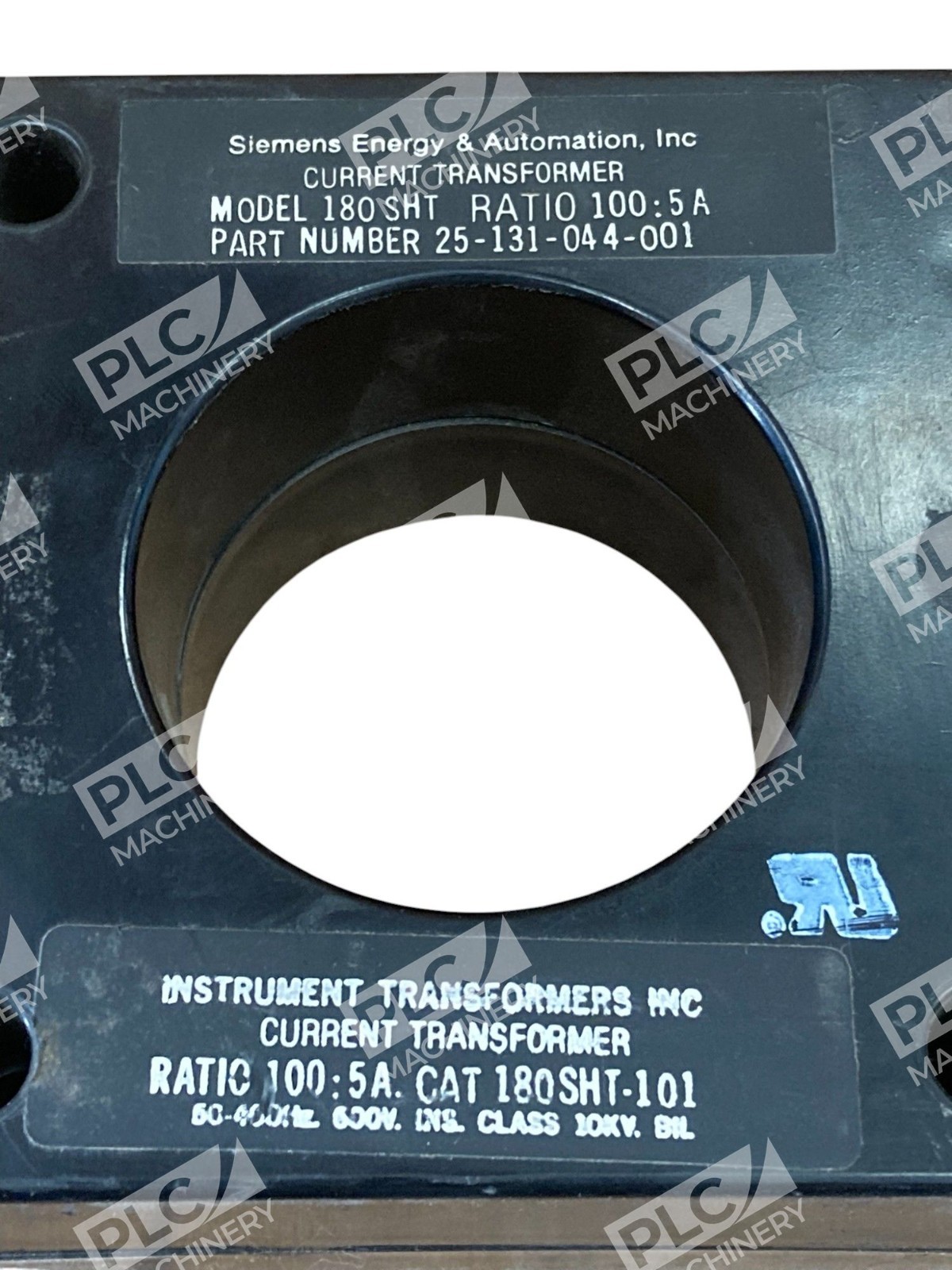

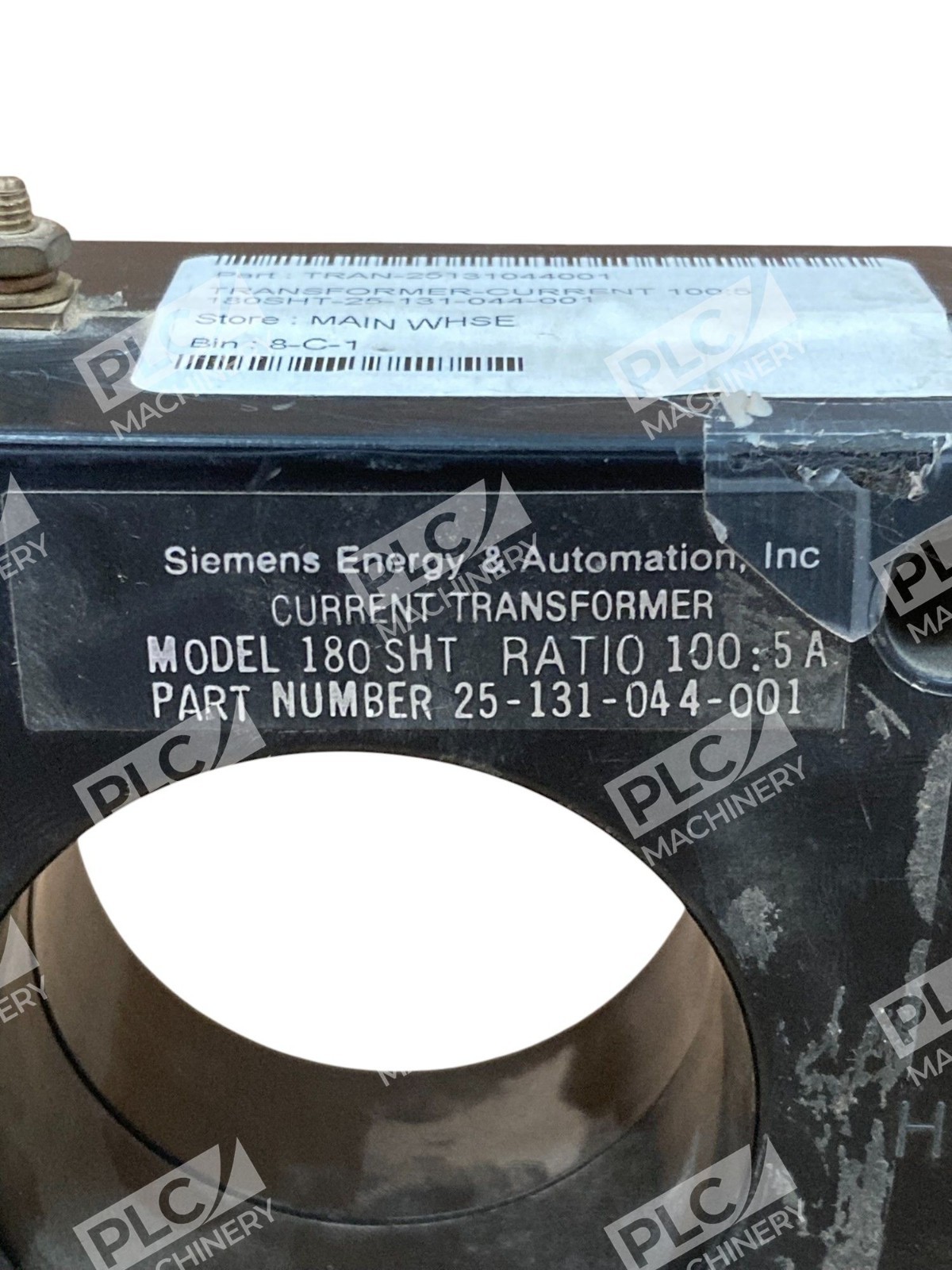

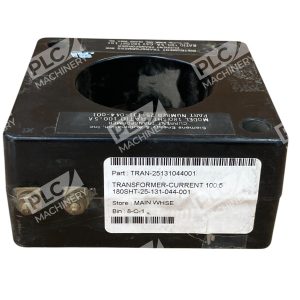

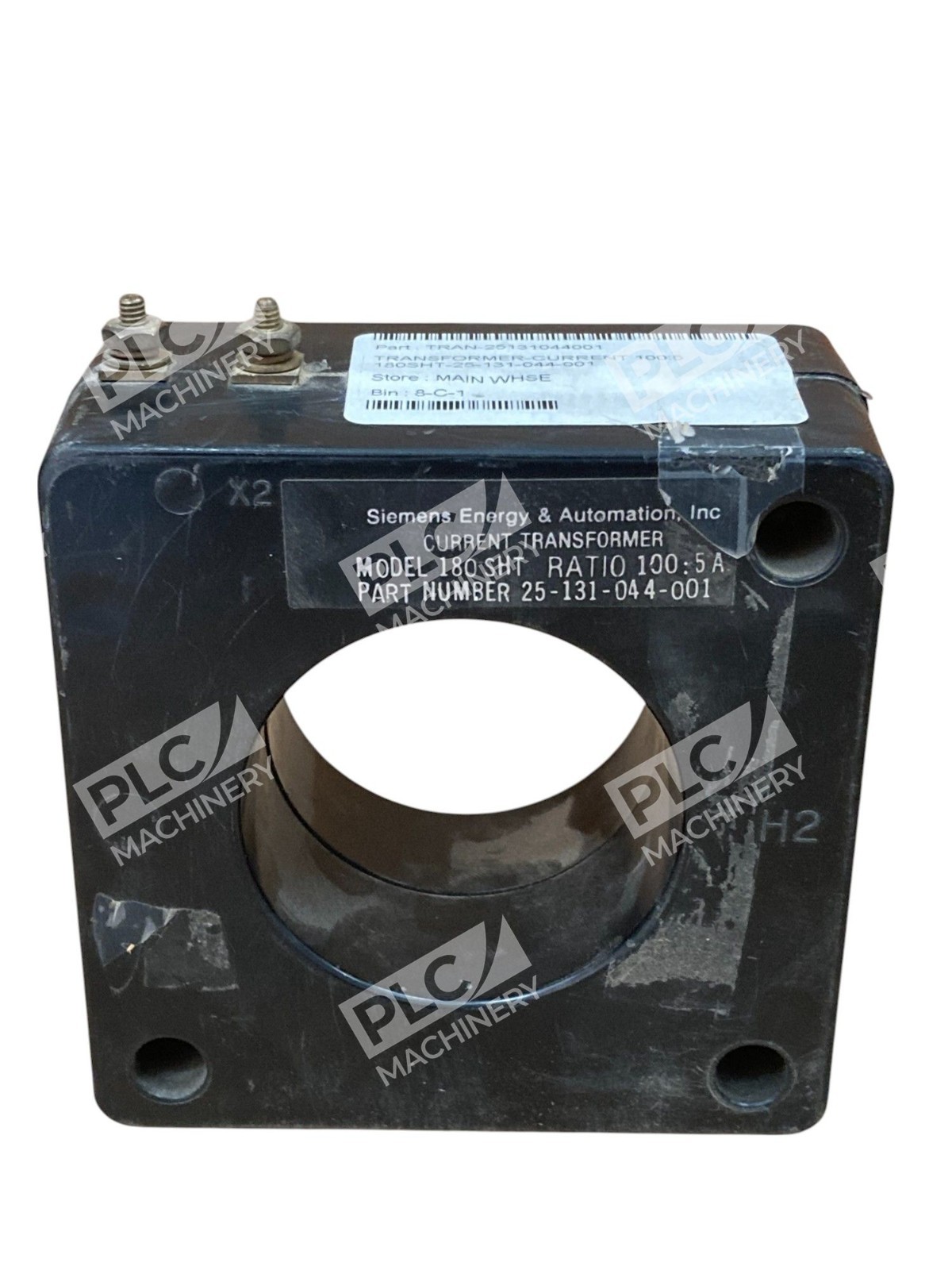

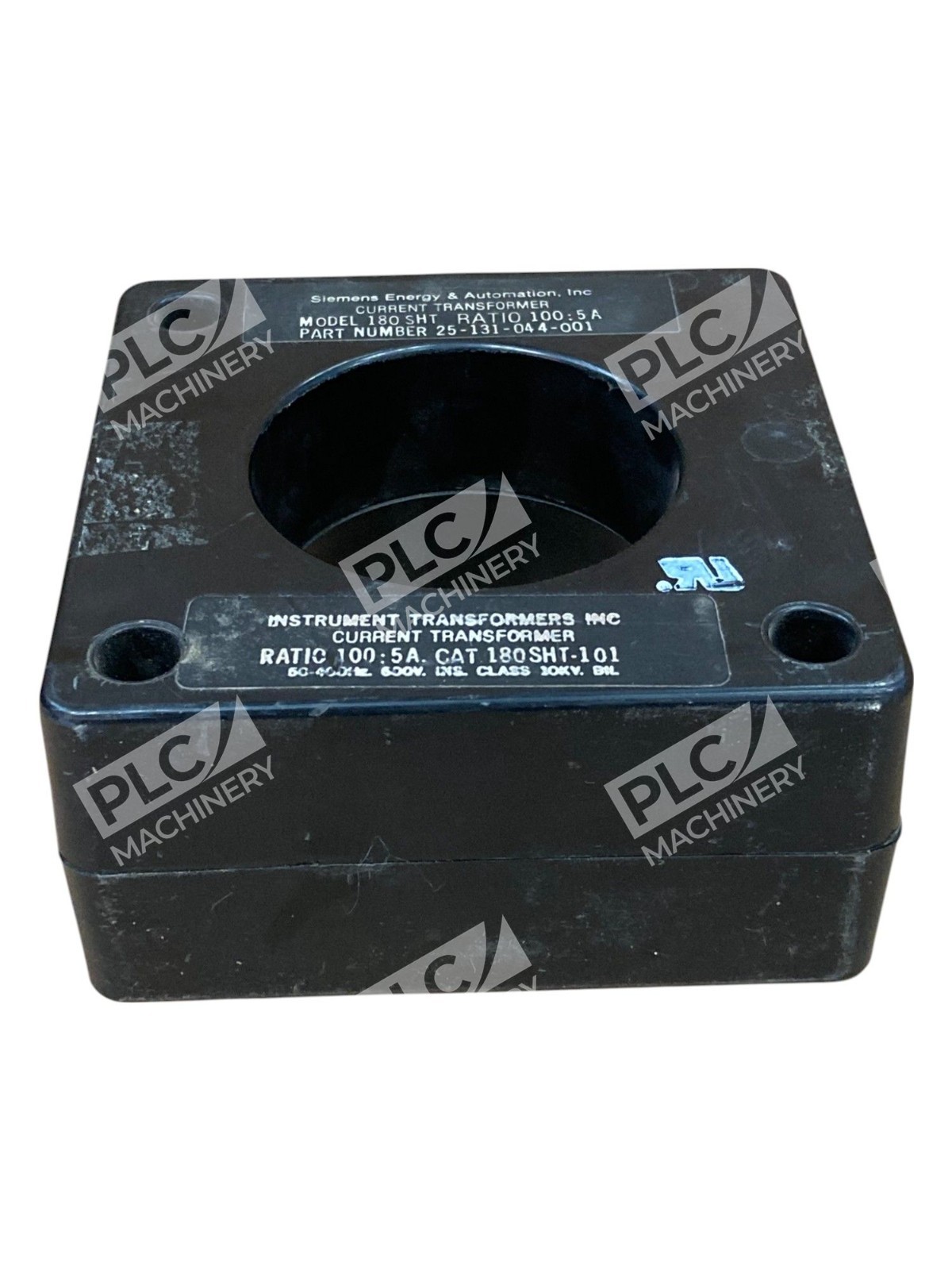

Siemens 25-131-044-001 100:5A Current Transformer 180SHT-101

Siemens 25-131-044-001 100:5A Current Transformer 180SHT-101

The Siemens 25-131-044-001 is a high-quality current transformer designed to provide accurate current measurement and monitoring in electrical systems. With a primary to secondary current ratio of 100:5, this transformer effectively reduces high primary currents to a manageable level for metering and protective relay applications.

Key Features

• Current Ratio: 100:5
• Frequency Range: 50-400 Hz
• Voltage Rating: 600V
• Model: 180SHT-101

Applications

This current transformer is suitable for various applications, including:

• Power monitoring and metering
• Protective relaying
• Energy management systems
• Industrial automation

Design and Construction

Engineered for durability and reliability, the Siemens 25-131-044-001 features robust construction to withstand demanding industrial environments. Its compact design allows for easy integration into existing systems without requiring significant space.

Installation and Compatibility

The transformer is designed for straightforward installation, compatible with standard electrical panels and equipment. Its 100:5 current ratio ensures compatibility with a wide range of metering and protection devices, facilitating seamless integration into various electrical systems.

Conclusion

The Siemens 25-131-044-001 100:5A Current Transformer 180SHT-101 is an essential component for accurate current measurement and protection in electrical systems. Its precise performance, wide frequency range, and robust design make it a reliable choice for professionals seeking efficient and dependable current monitoring solutions.
