Siemens 16A Contactor 3TF2010-0AC2 w/ Siemens 3TX4420-2A

Siemens 16A Contactor 3TF2010-0AC2 with Siemens 3TX4420-2A Auxiliary Contact Block

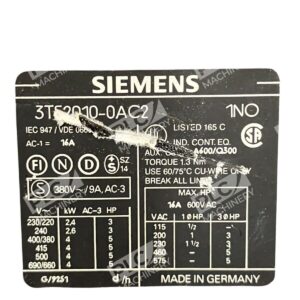

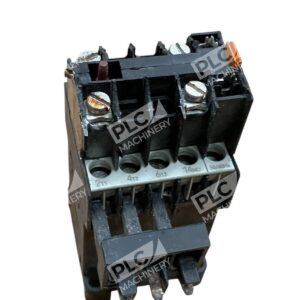

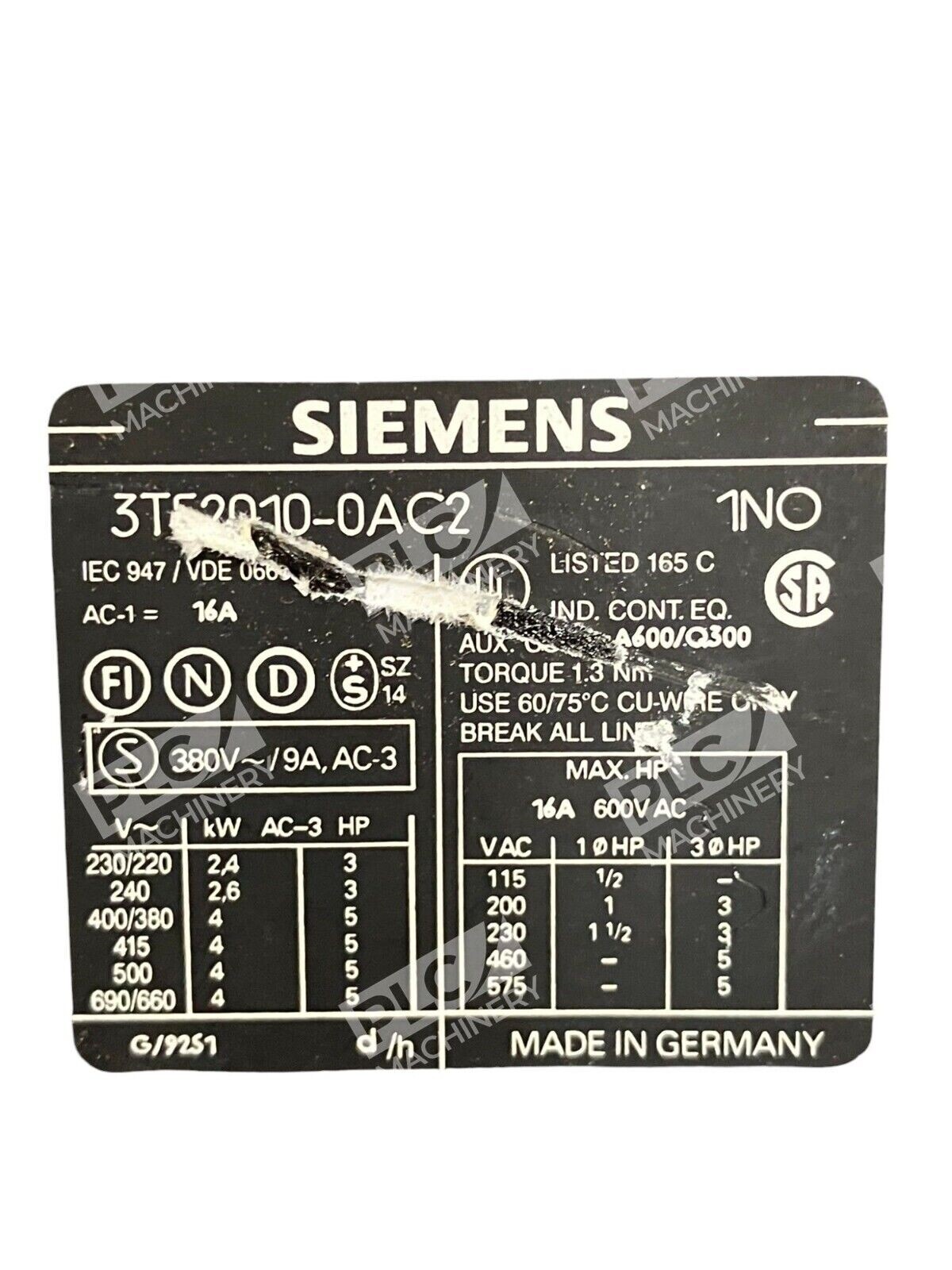

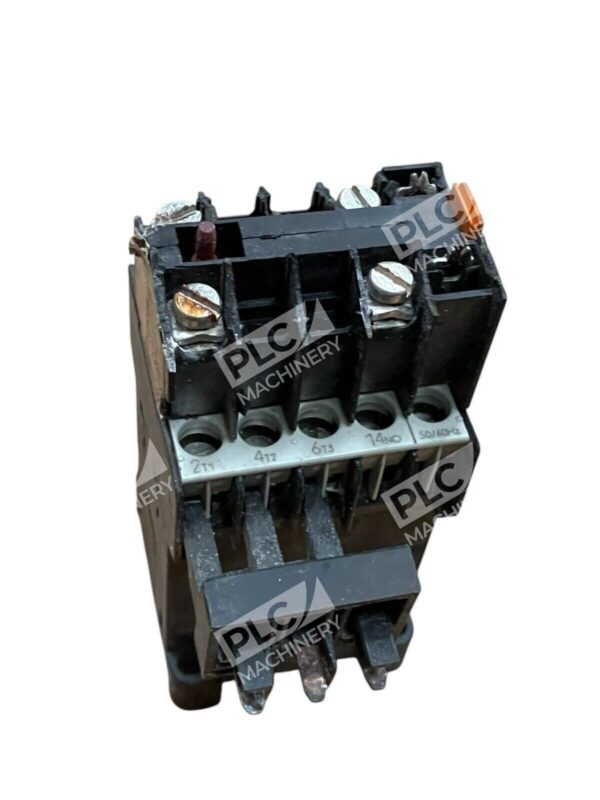

The Siemens 3TF2010-0AC2 is a robust 3-phase IEC-rated contactor designed for efficient control of electric motors. With a current rating of 16A, it is suitable for applications up to 4 kW at 400V in AC-3 utilization categories. This contactor features screw terminals for secure connections and includes a built-in auxiliary contact (1 NO) for enhanced control capabilities. Operating on a 24V AC coil at 50/60 Hz, it ensures reliable performance in various industrial settings.

Key Features of 3TF2010-0AC2:

• 3-phase contactor with a 16A current rating
• Suitable for motor control applications up to 4 kW at 400V
• Equipped with one normally open (1 NO) auxiliary contact
• Operates on 24V AC at 50/60 Hz
• Screw terminal connections for secure wiring

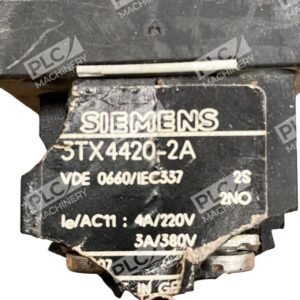

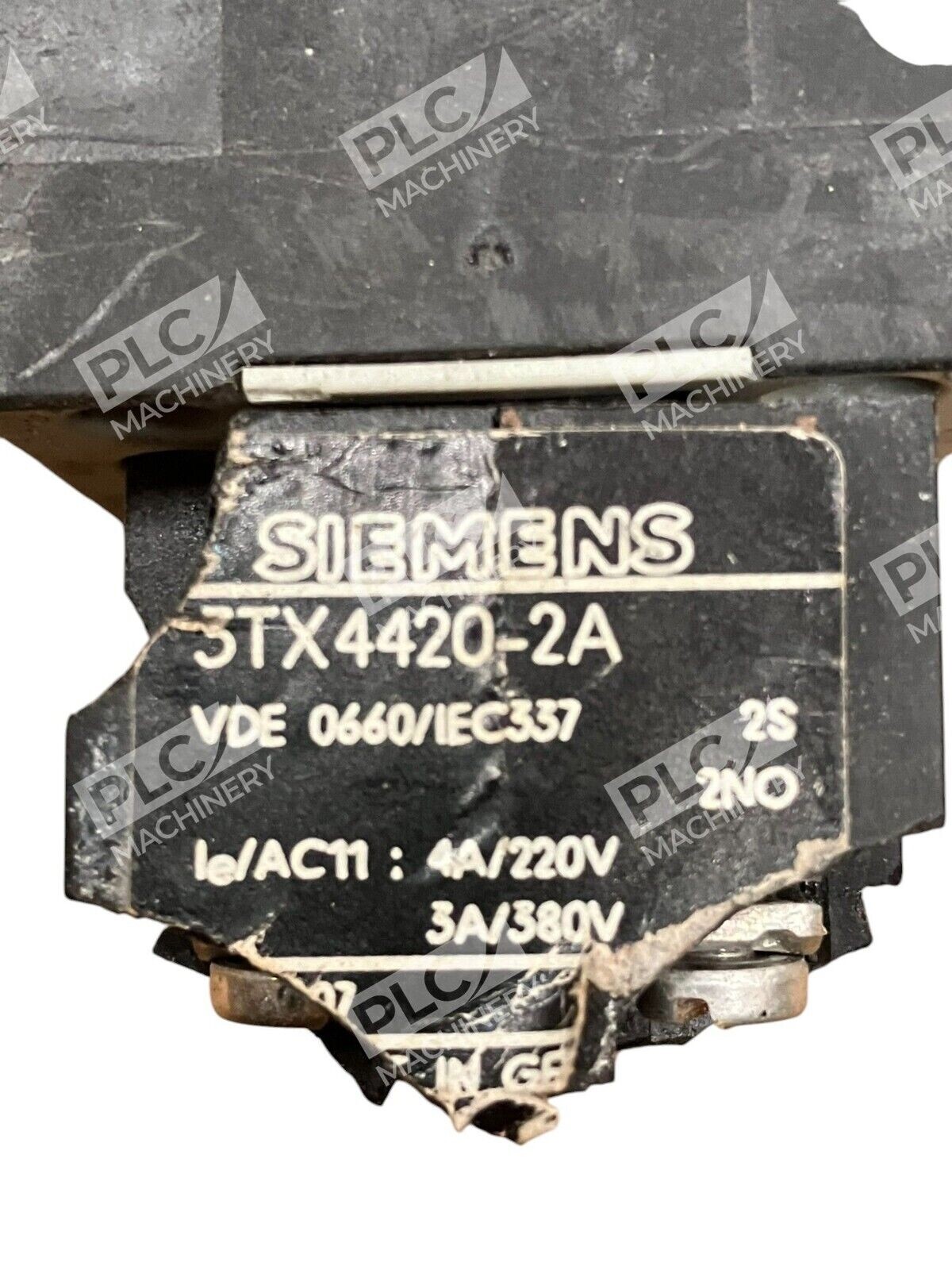

Complementing the contactor, the Siemens 3TX4420-2A auxiliary contact block enhances the functionality of the 3TF2010-0AC2. This front-mounting auxiliary contact block provides two normally open (2 NO) contacts, allowing for additional control and signaling options. Designed for easy installation, it features screw terminals and conforms to EN 50005 standards, ensuring compatibility and safety in industrial applications.

Key Features of 3TX4420-2A:

• Provides two normally open (2 NO) auxiliary contacts
• Front-mounting design for easy installation
• Screw terminal connections
• Conforms to EN 50005 standards

Together, the Siemens 3TF2010-0AC2 contactor and 3TX4420-2A auxiliary contact block offer a reliable and efficient solution for motor control applications, providing enhanced control and flexibility in industrial environments.
