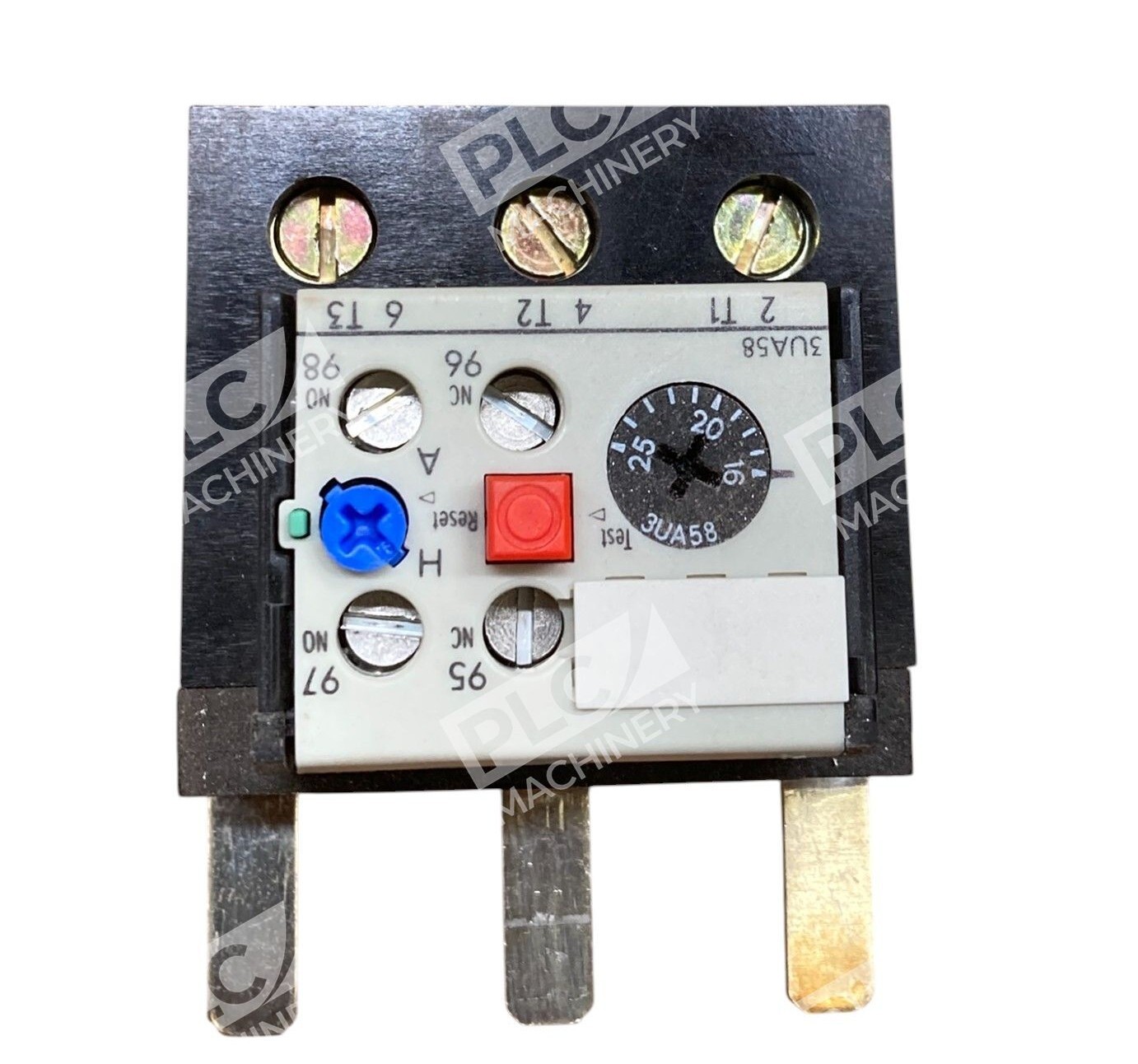

Siemens 3UA58 00-2C Overload Relay
The Siemens 3UA58 00-2C Overload Relay is a thermal delayed overload relay designed to protect electric motors from overcurrent conditions. With a current setting range of 16 to 25 amperes, it ensures precise and effective motor protection within these specified electrical parameters.
Key Features
- Current Range: Adjustable from 16 to 25A, allowing flexibility to accommodate various motor sizes and applications.
- Auxiliary Contacts: Equipped with 1 normally open (NO) and 1 normally closed (NC) contact for integration into control circuits.
- Compatibility: Suitable for mounting onto Siemens contactors and starters, facilitating seamless integration into existing motor control systems.
- Voltage Rating: Rated for operation up to 600VAC, ensuring compatibility with standard industrial voltage levels.
- Construction: Features a bimetallic relay design, providing reliable thermal overload protection.
Specifications
- Model Number: 3UA58 00-2C
- Current Setting Range: 16 to 25A
- Auxiliary Contacts: 1 NO + 1 NC
- Voltage Rating: Up to 600VAC
- Relay Type: Bimetallic thermal overload relay
- Mounting: Designed for direct mounting onto Siemens contactors and starters
The Siemens 3UA58 00-2C Overload Relay is engineered to provide dependable motor protection by effectively detecting and responding to overcurrent situations, thereby enhancing the longevity and efficiency of electrical systems.
