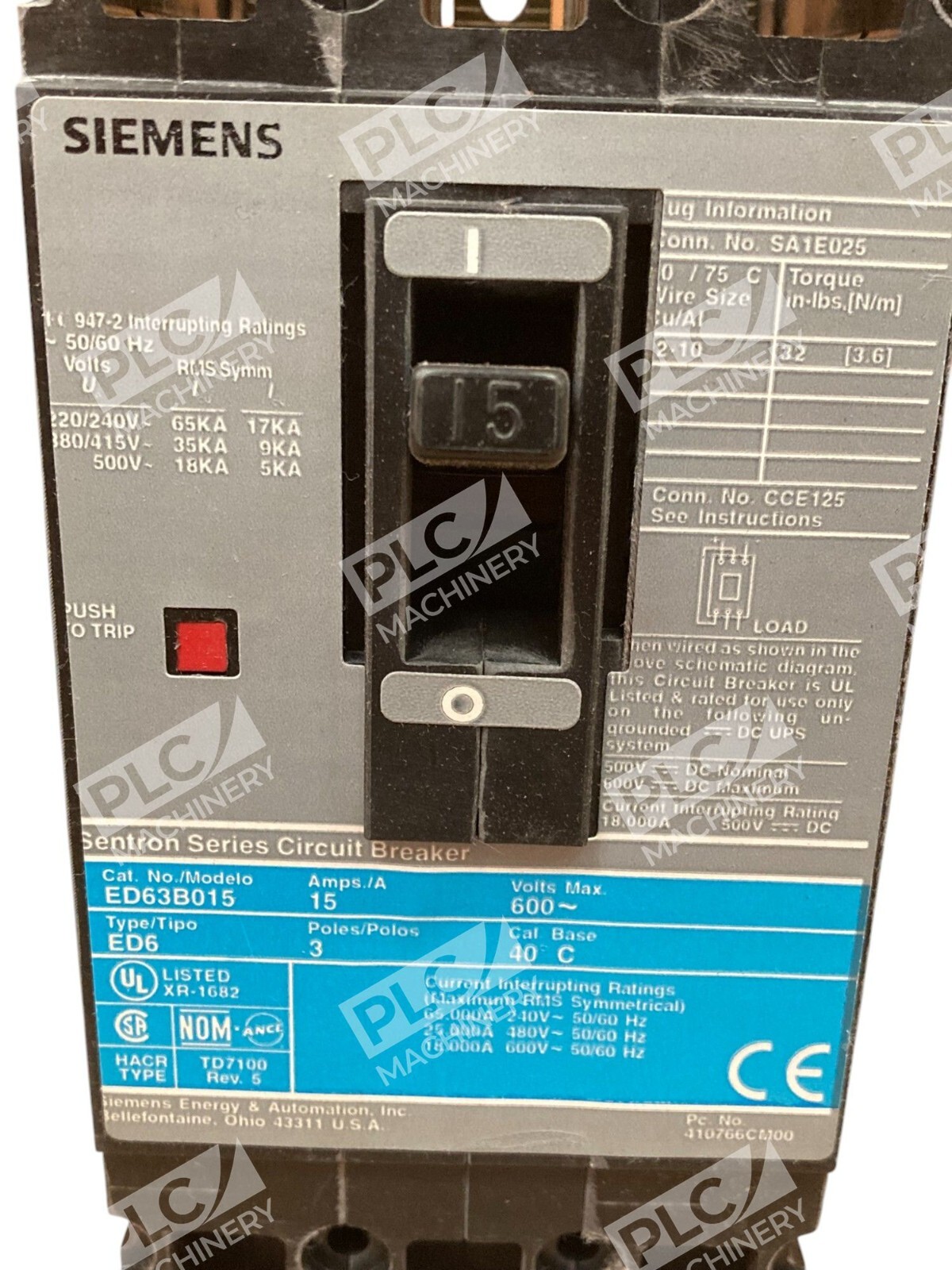

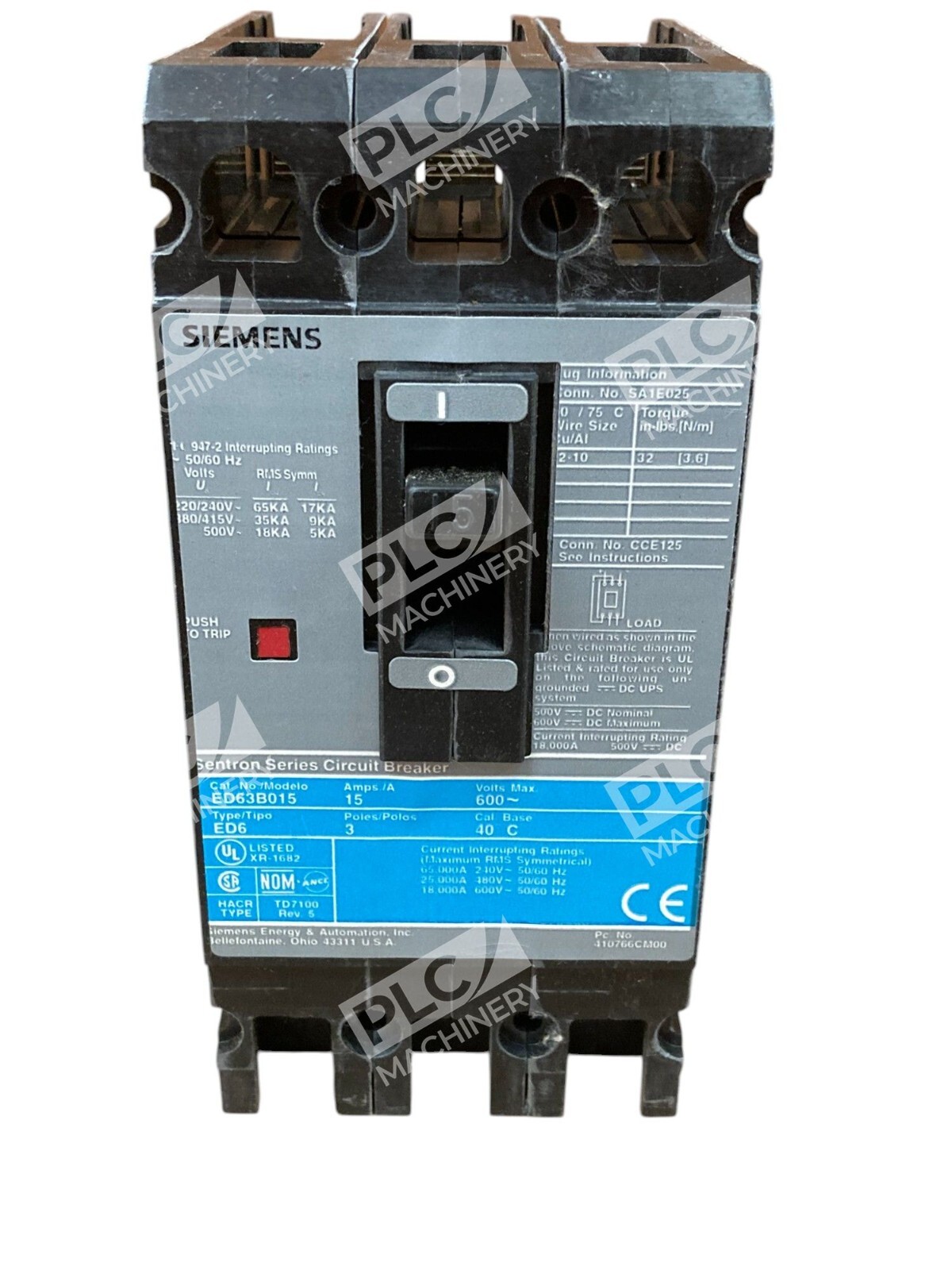

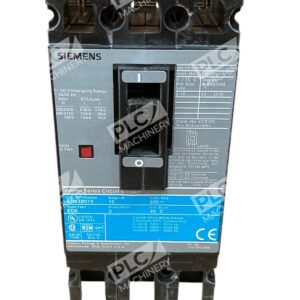

Siemens 15A 600VAC 3 Pole Molded Case Circuit Breaker ED63B015

Siemens 15A 600VAC 3 Pole Molded Case Circuit Breaker ED63B015

The Siemens ED63B015 is a high-performance molded case circuit breaker designed to provide reliable protection for electrical systems in commercial and industrial applications. With its robust construction and advanced features, this breaker ensures safety and efficiency in power distribution.

Key Features

• Thermal-Magnetic Trip Unit: Combines thermal overload protection and magnetic short-circuit protection to safeguard electrical circuits from damage.
• High Interrupting Capacity: Capable of handling 18kA at 600V, 25kA at 480V, and 65kA at 240V, making it suitable for demanding environments.
• Standard ED Frame: Operates reliably at a standard ambient temperature of 40°C, ensuring consistent performance.

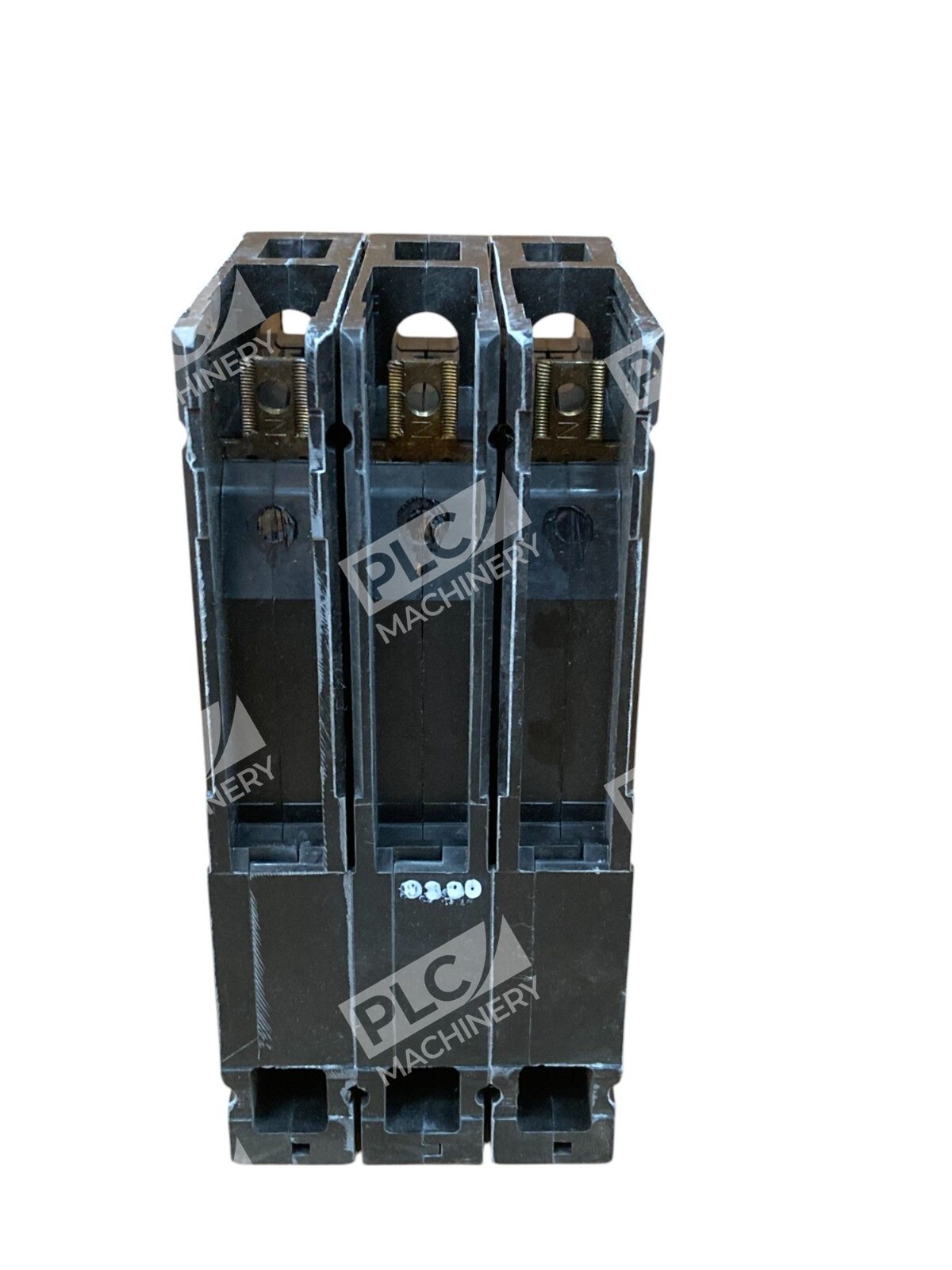

• Versatile Connectivity: Equipped with load lugs supporting a wire range of 14-10 AWG for copper and 12-10 AWG for aluminum, facilitating flexible installation options.
• Compliance and Safety: Meets UL 489 and IEC 60947-2 standards, ensuring adherence to international safety and performance requirements.

Technical Specifications

• Rated Current: 15 Amps
• Number of Poles: 3
• Voltage Rating: 600 VAC / 250 VDC
• Interrupting Rating: 18kA at 600V, 25kA at 480V, 65kA at 240V
• Frame Type: ED
• Trip Type: Thermal-Magnetic
• Wire Range: 14-10 AWG (Copper), 12-10 AWG (Aluminum)
• Dimensions (W x H x D): 3.00″ x 6.35″ x 3.92″
• Weight: Approximately 3.715 lbs

Applications

The Siemens ED63B015 circuit breaker is ideal for protecting electrical circuits in various settings, including:

• Commercial buildings
• Industrial facilities
• Residential complexes
• Panel boards and switchboards

Its robust design and compliance with international safety standards make it a reliable choice for ensuring the safety and efficiency of your electrical systems.
