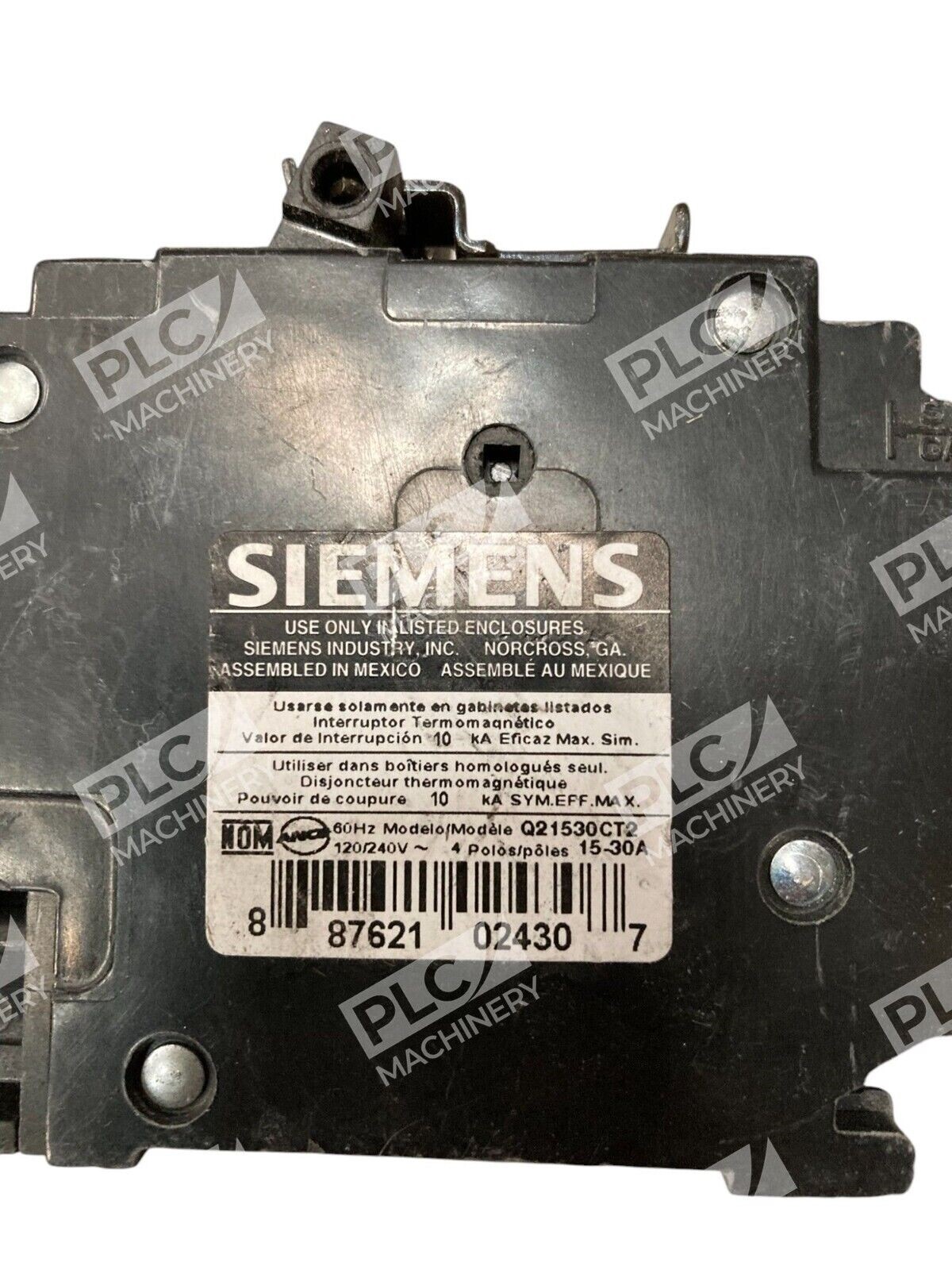

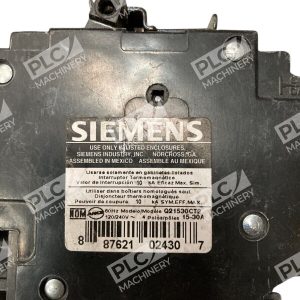

The Siemens Q21530CT2 is a quadplex molded case circuit breaker designed to provide efficient and reliable electrical protection in residential settings.
Key Features
- Voltage Rating: 120/240 VAC
- Amperage Rating: 15 to 30 A
- Interrupt Rating: 10 kA at 240V
- Number of Poles: 2
- Trip Type: Thermal Magnetic
- Connection Type: Plug-In
- Wire Size Compatibility: 14 to 6 AWG copper/aluminum
- Dimensions: 3 inches (L) x 2 inches (W) x 3 inches (H)
- Weight: Approximately 0.78 lbs
Design and Functionality

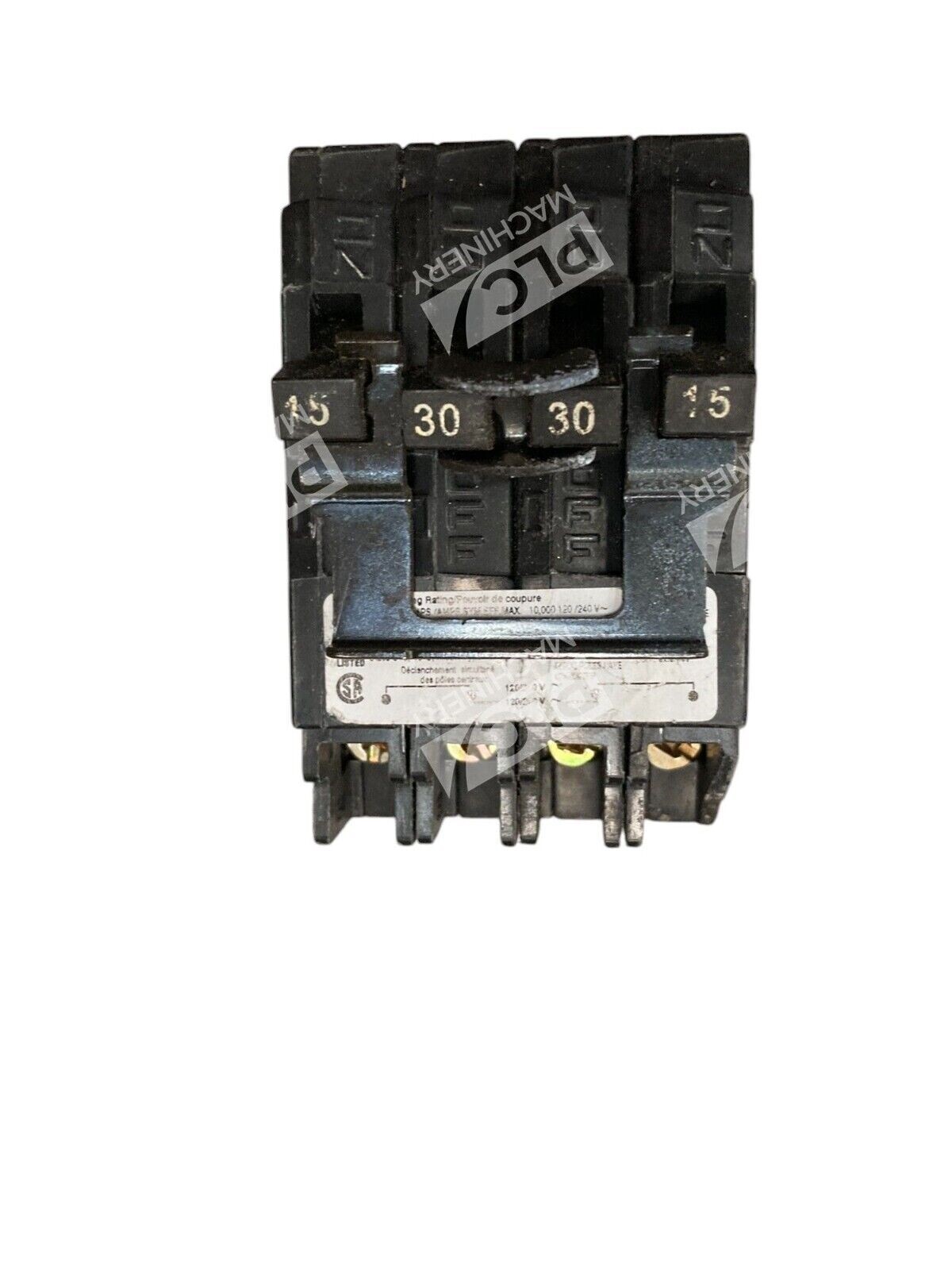

The Q21530CT2 features a quadplex design, providing two sets of common trip, two-pole breakers for 120/240V AC circuits. This space-saving configuration requires only two panel spaces, making it ideal for applications where panel space is limited. The thermal magnetic trip mechanism ensures both long-time and instantaneous protection, effectively safeguarding electrical systems from overloads and short circuits.
Applications
This circuit breaker is suitable for various electrical distribution applications, particularly in residential environments. Its design allows for efficient use of panel space while maintaining high safety standards.
Compliance and Standards
The Siemens Q21530CT2 complies with UL 489 standards and is HACR rated, ensuring it meets rigorous safety and performance criteria.
In summary, the Siemens Q21530CT2 quadplex circuit breaker offers a compact and reliable solution for residential electrical distribution, combining space efficiency with robust protection features.
