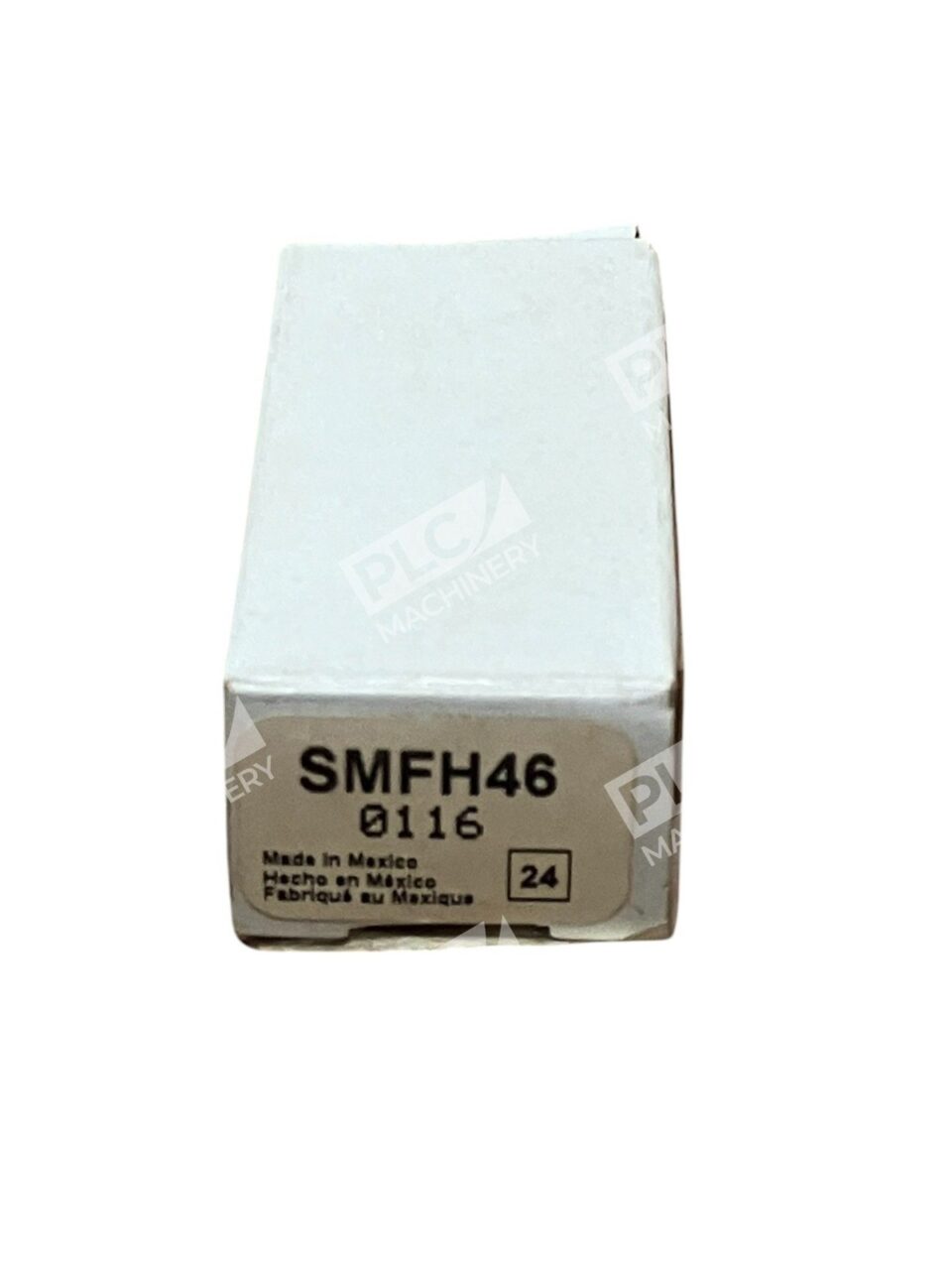

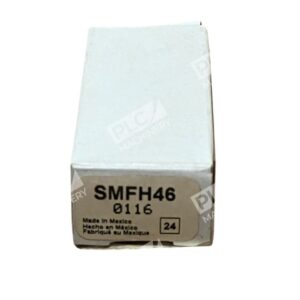

The Siemens SMFH46 Heater Element is a critical component designed for integration with Siemens overload relays, providing reliable motor protection in industrial applications.
Key Features
- Current Range: 9.68 to 9.95 Amperes, suitable for motors operating within this full load current spectrum.
- Compatibility: Engineered for use with Siemens NEMA Size 0, 1, and 2 overload relays, ensuring seamless integration.
- Trip Class: Class 20 standard trip, offering dependable protection against overload conditions.
- Ambient Temperature Rating: Optimized for environments up to 40°C, maintaining consistent performance under standard operating conditions.
Applications
The SMFH46 Heater Element is ideal for safeguarding motors in various industrial settings, including manufacturing plants, processing facilities, and other environments where precise motor protection is essential.
Installation and Usage
Each heater element is clearly identified by a catalog number stamped on one terminal, facilitating accurate selection and installation. It is imperative to match the heater element to the motor’s full load amperage to ensure optimal protection and performance.
Specifications
- Manufacturer: Siemens
- Model Number: SMFH46
- Full Load Amperage Range: 9.68 to 9.95 Amperes
- NEMA Size Compatibility: 0, 1, 2
- Trip Class: Class 20
- Ambient Temperature Rating: 40°C
Incorporating the Siemens SMFH46 Heater Element into your motor control system enhances the reliability and longevity of your equipment by providing precise and effective overload protection.
