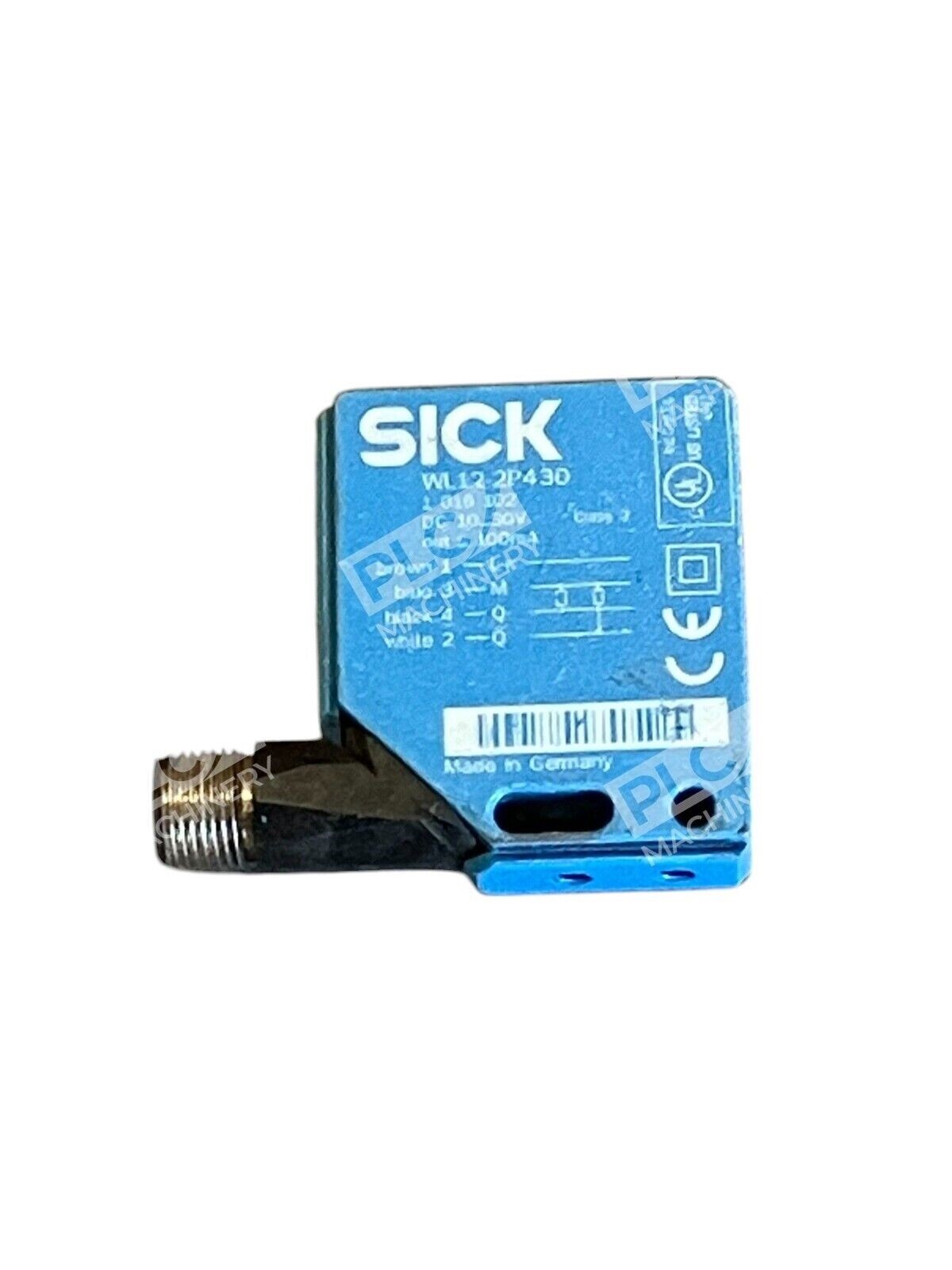

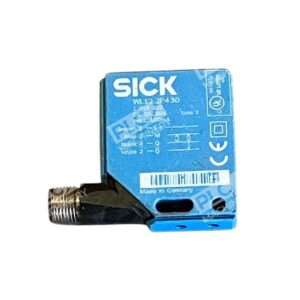

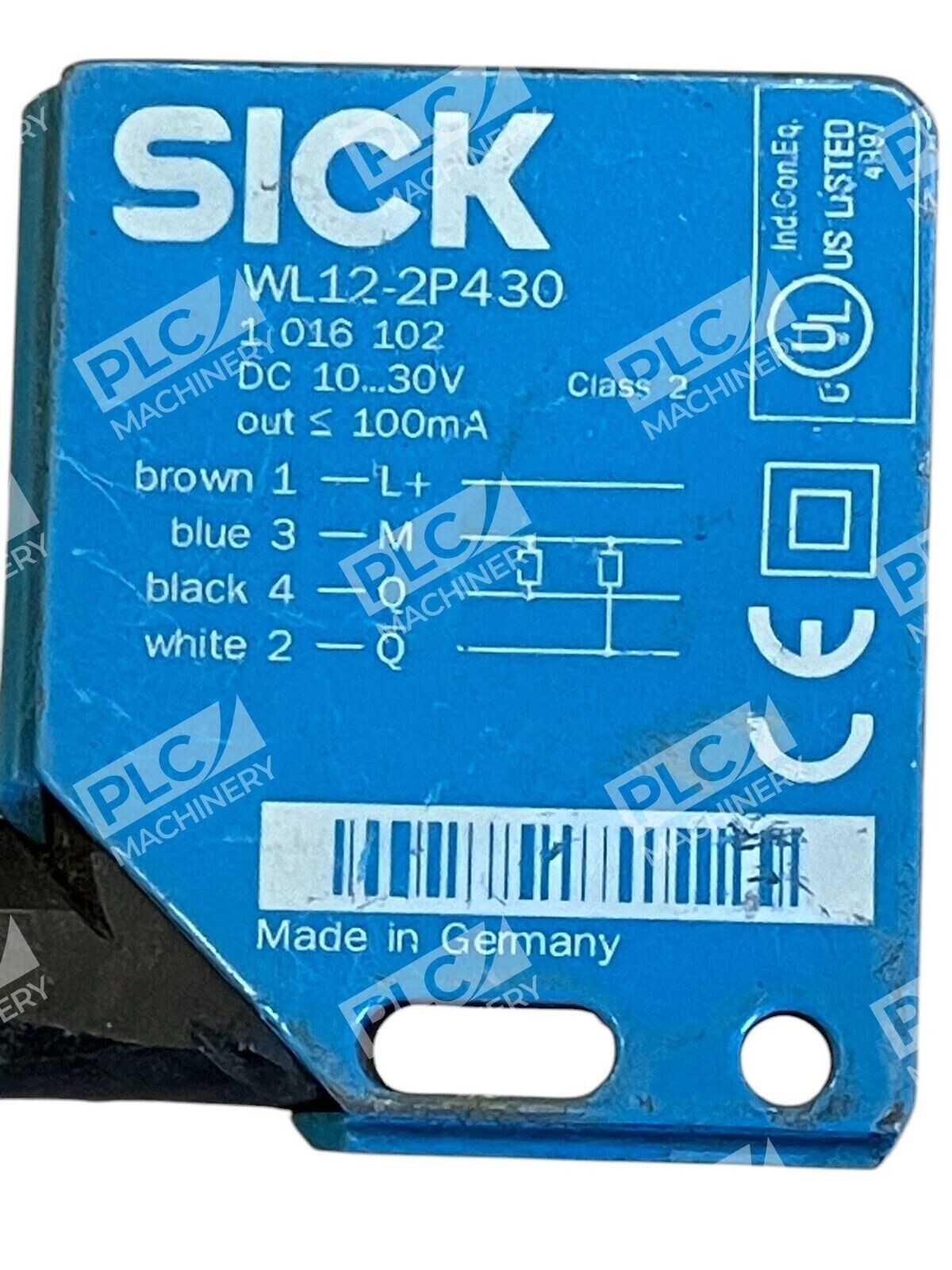

Sick WL12-2P430 Photoelectric Sensor
The Sick WL12-2P430 is a high-performance photoelectric retro-reflective sensor designed for precise object detection in industrial environments. Utilizing a red LED light source, it offers a sensing range of up to 7 meters, ensuring reliable performance across various applications.
Key Features
- Extended Sensing Range: Capable of detecting objects from 0 to 7 meters, providing flexibility for different operational needs.
- Red LED Light Source: Facilitates quick and accurate alignment during installation and operation.
- Adjustable Sensitivity: Equipped with a potentiometer for fine-tuning sensitivity, allowing optimal adaptation to specific application requirements.
- Robust Design: Housed in durable die-cast zinc, ensuring longevity and resistance to harsh industrial conditions.
- High Switching Frequency: Operates at a switching frequency of 1,500 Hz, enabling rapid response times for dynamic processes.
- Versatile Connectivity: Features a 4-pin M12 connector, rotatable by 90°, facilitating easy and flexible installation.
- Environmental Resilience: Boasts an IP69K enclosure rating, offering protection against dust, water, and high-pressure cleaning.
Technical Specifications
- Supply Voltage: DC 10 to 30 V
- Power Consumption: ≤ 30 mA
- Output Type: PNP antivalent
- Output Current: ≤ 100 mA
- Response Time: ≤ 330 µs
- Operating Temperature Range: -40°C to +60°C
- Dimensions (W x H x D): 15 mm x 49 mm x 41.5 mm
- Weight: Approximately 120 g
The Sick WL12-2P430 is engineered to deliver reliable and efficient object detection, making it an ideal choice for a wide range of industrial automation applications.
