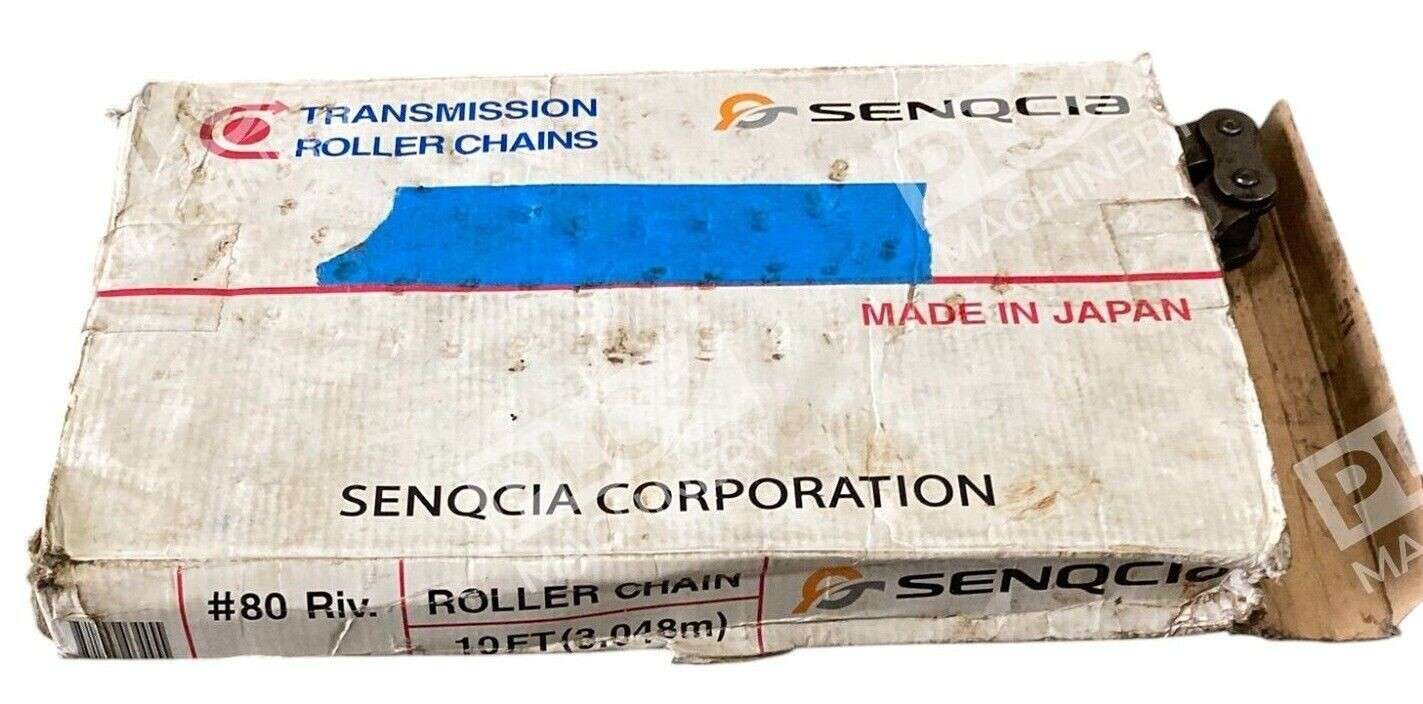

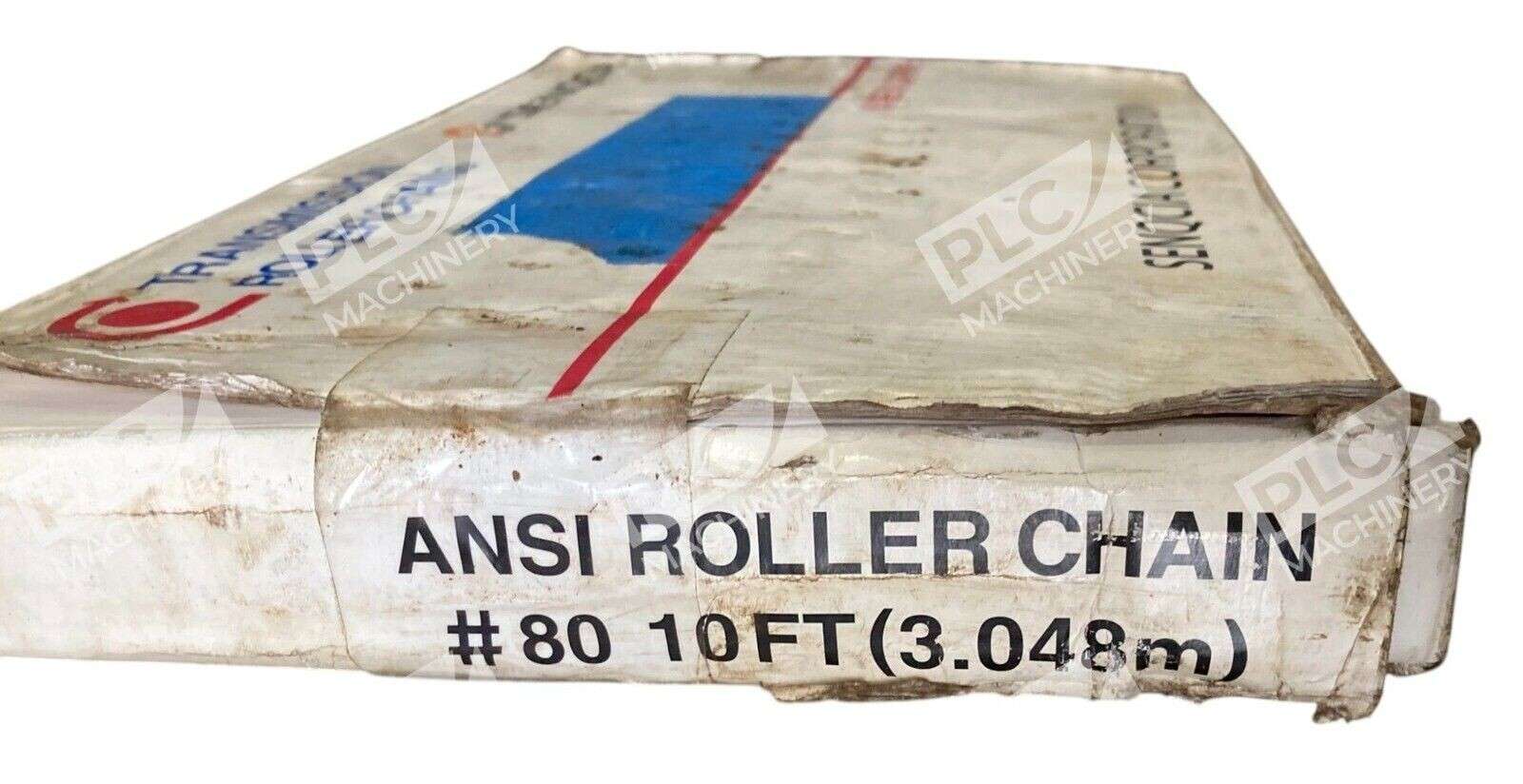

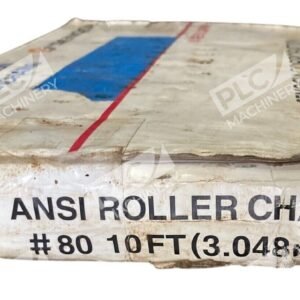

Senqcia 3.05m Transmission Roller Chain #80 ANSI 10FT

Senqcia 3.05m Transmission Roller Chain #80 ANSI 10FT

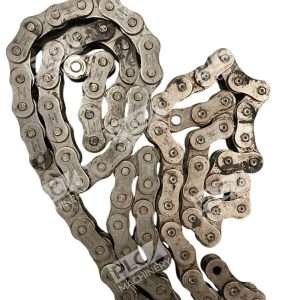

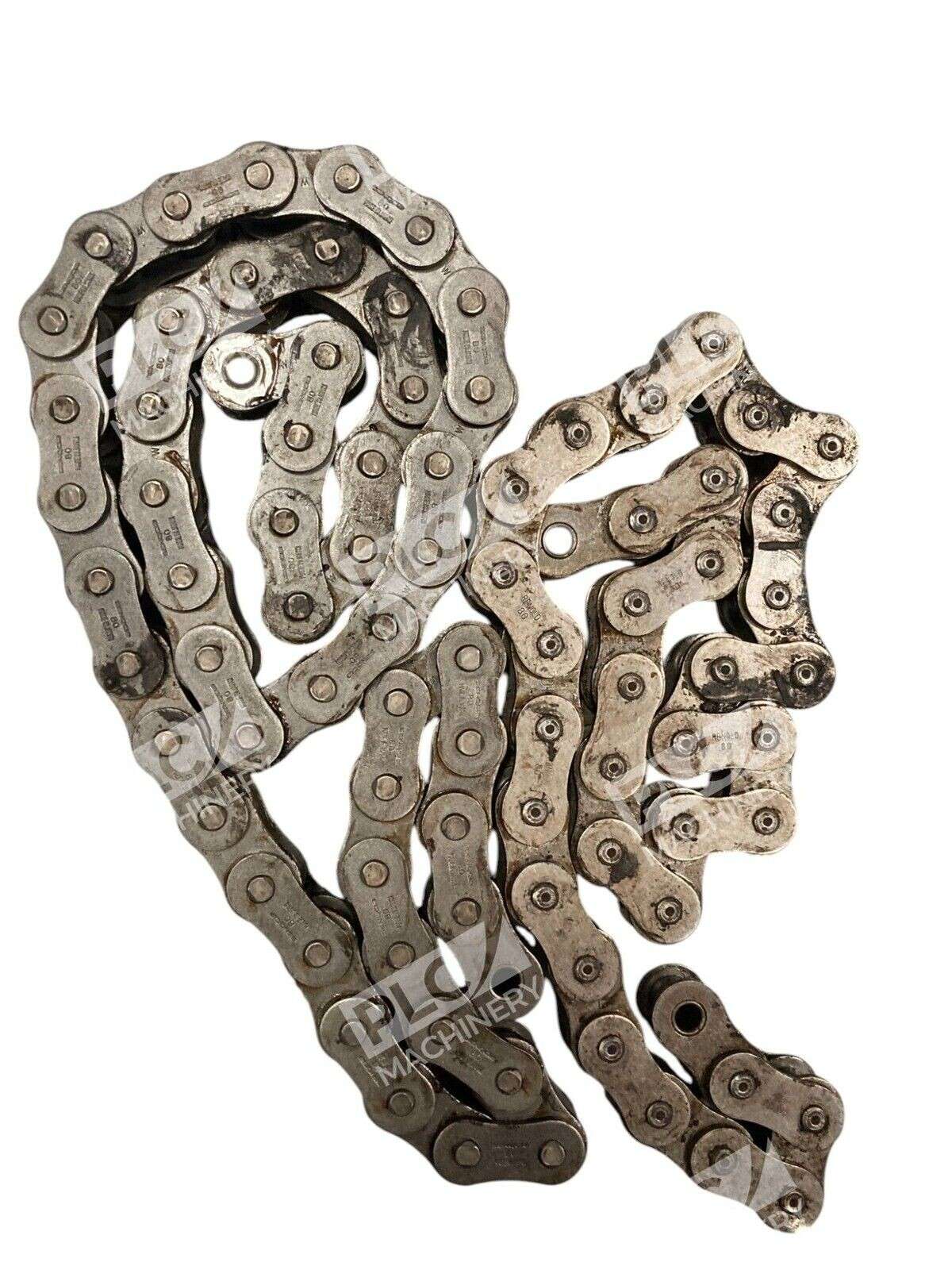

The Senqcia 3.05m Transmission Roller Chain #80 ANSI 10FT is a high-quality, durable chain designed to meet the rigorous demands of various industrial applications. Manufactured in accordance with the ASME/ANSI B29.1 American roller chain standard, this chain ensures compatibility and reliability across a wide range of machinery.

Key Features

• Solid Bushing and Roller Construction: Enhances wear resistance and extends the chain’s operational life.
• Boron Steel Pins: Provides increased strength and improved ductility, ensuring robust performance under heavy loads.
• Pre-Lubricated: Comes pre-lubricated with high-quality wax-type grease, reducing initial wear and promoting smoother operation.
• Standard Dimensions: With a pitch of 1 inch and a roller diameter of 5/8 inch, it fits seamlessly into existing systems requiring #80 roller chains.

Specifications

• Chain Number: 80
• Pitch (P): 1.000 inch (25.40 mm)
• Inside Width (W): 0.625 inch (15.88 mm)
• Roller Diameter (R): 0.625 inch (15.88 mm)
• Pin Diameter (D): 0.313 inch (7.94 mm)
• Pin Length (L1): 0.65 inch (16.5 mm)
• Pin Length (L2): 0.73 inch (18.5 mm)
• Plate Height (H): 0.950 inch (24.13 mm)
• Plate Thickness (T): 0.125 inch (3.18 mm)
• Average Ultimate Strength: 17,600 lbs (8,000 kgf)
• Rated Working Load: 3,310 lbs (1,505 kgf)
• Number of Links (per 10 ft): 120
• Average Chain Weight: 1.71 lbs/ft (2.55 kg/m)

This roller chain is ideal for applications requiring high strength and durability, such as in heavy machinery, conveyors, and agricultural equipment. Its robust construction and adherence to ANSI standards make it a reliable choice for ensuring efficient power transmission in demanding environments.
