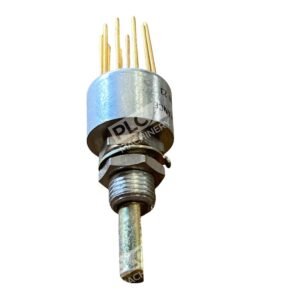

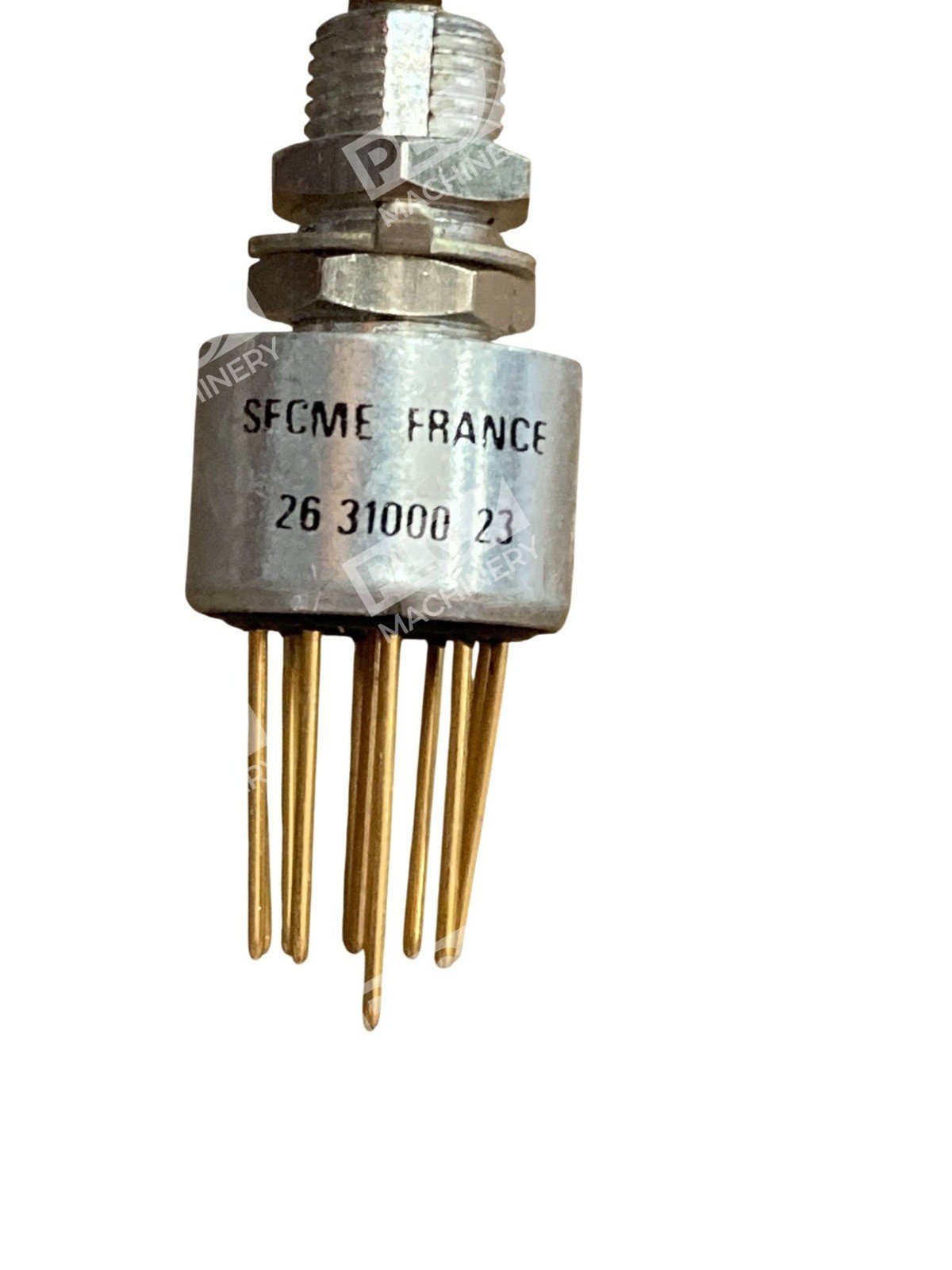

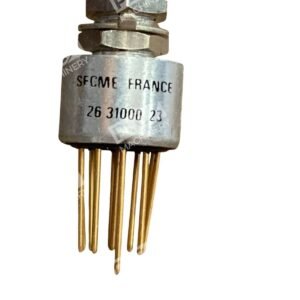

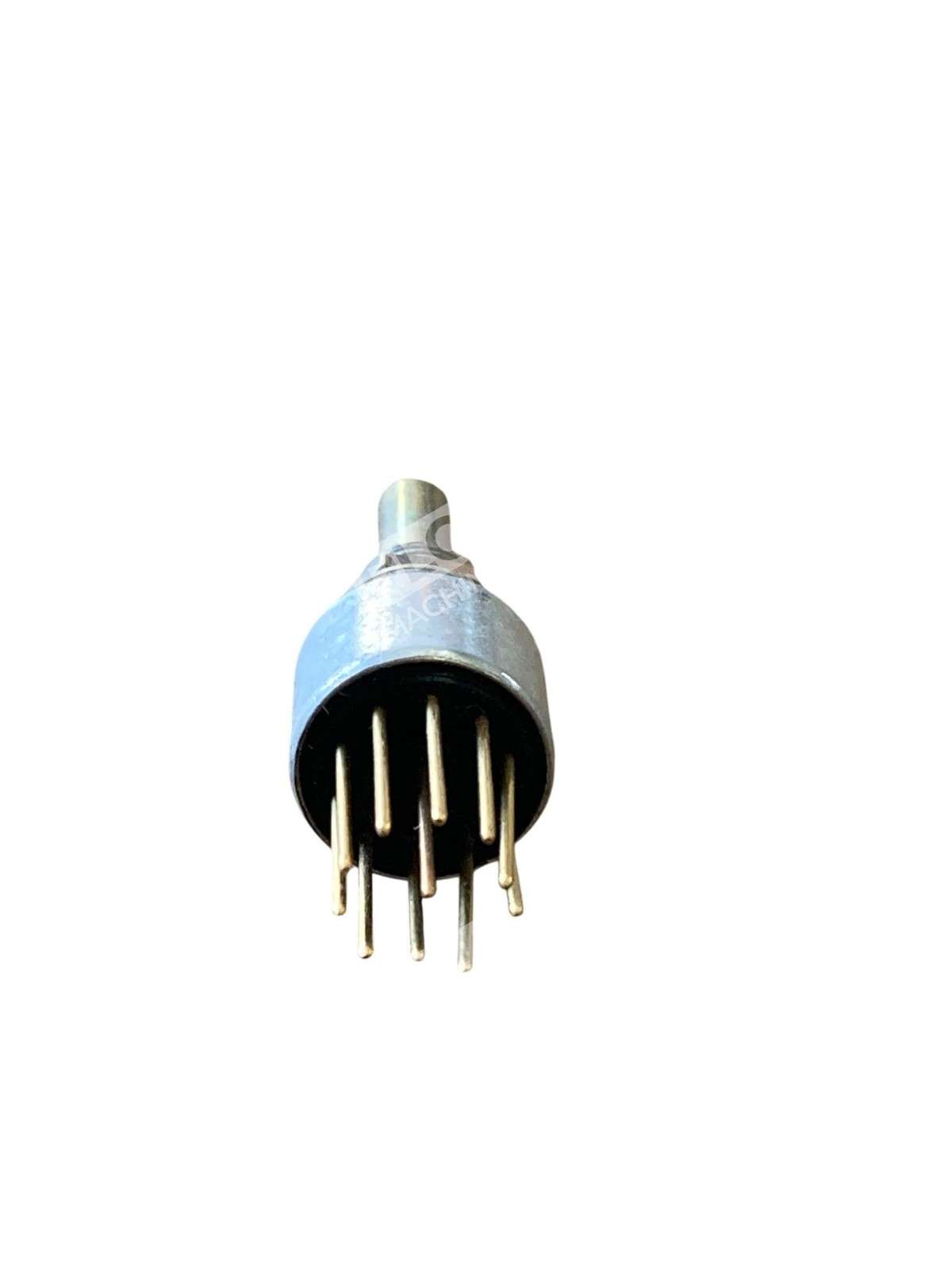

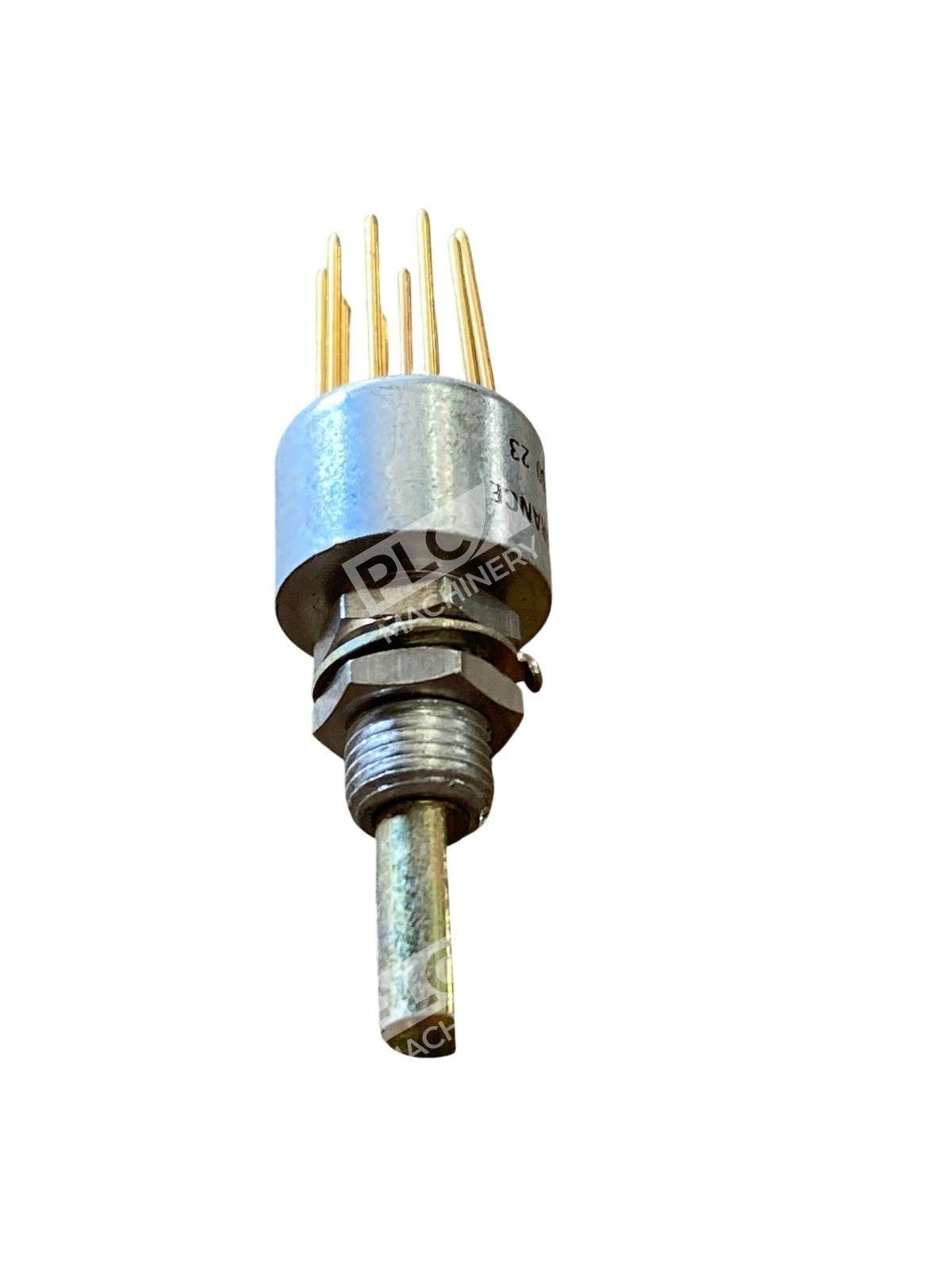

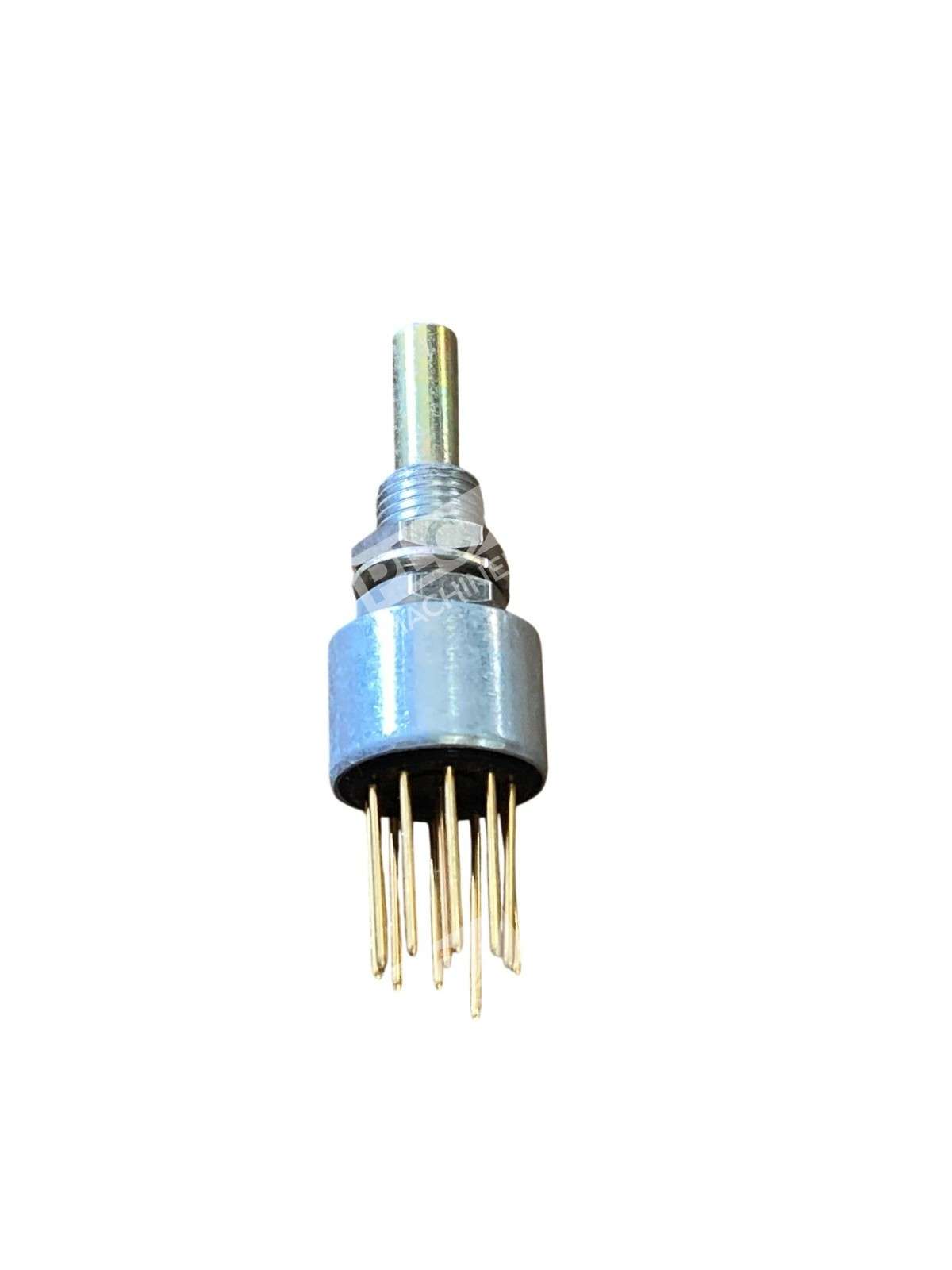

The Secme France Miniature Rotary Switch 26 31000 23 is a compact and versatile component designed for seamless integration into panel-mounted and PCB applications.
Key Features
- Multi-Position Functionality: Offers multiple positions, allowing for precise control and selection in various applications.
- Positive Detent Mechanism: Ensures a tactile and secure feel during operation, enhancing user experience.
- Dual Mounting Options: Designed for both panel and PCB mounting, providing flexibility in installation.
Specifications
- Contact Rating: Capable of handling up to 4 Amps at 125 V AC or 28 V DC, and 2 Amps at 250 V AC.
- Electrical Life: Rated for 10,000 make-and-break cycles at full load, ensuring durability.
- Contact Resistance: Maintains a low initial contact resistance below 10 milliohms, ensuring efficient conductivity.
- Insulation Resistance: Exceeds 10⁹ ohms, providing excellent insulation properties.
- Dielectric Strength: Withstands up to 1,000 Vrms at sea level, ensuring safety and reliability.
- Indexing Options: Available in 45° or 90° indexing for single-contact models, and 5 positions for two-contact models.
- Operating Temperature Range: Operates efficiently between -30ºC to 95ºC, suitable for various environments.
Applications
- Industrial Equipment: Ideal for machinery requiring reliable rotary switching.
- Portable Tools: Suitable for handheld devices needing compact switch solutions.
- Ceiling Fans: Perfect for controlling fan speeds and settings.
The Secme France Miniature Rotary Switch 26 31000 23 combines robust performance with versatile mounting options, making it an excellent choice for a wide range of applications.
