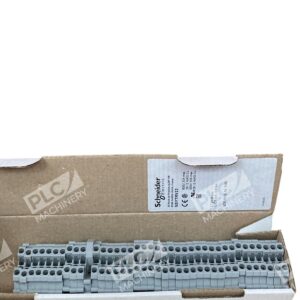

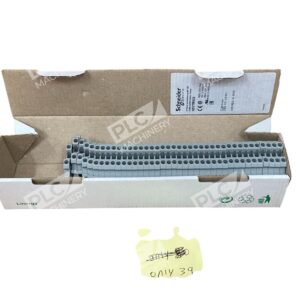

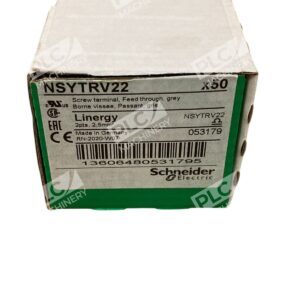

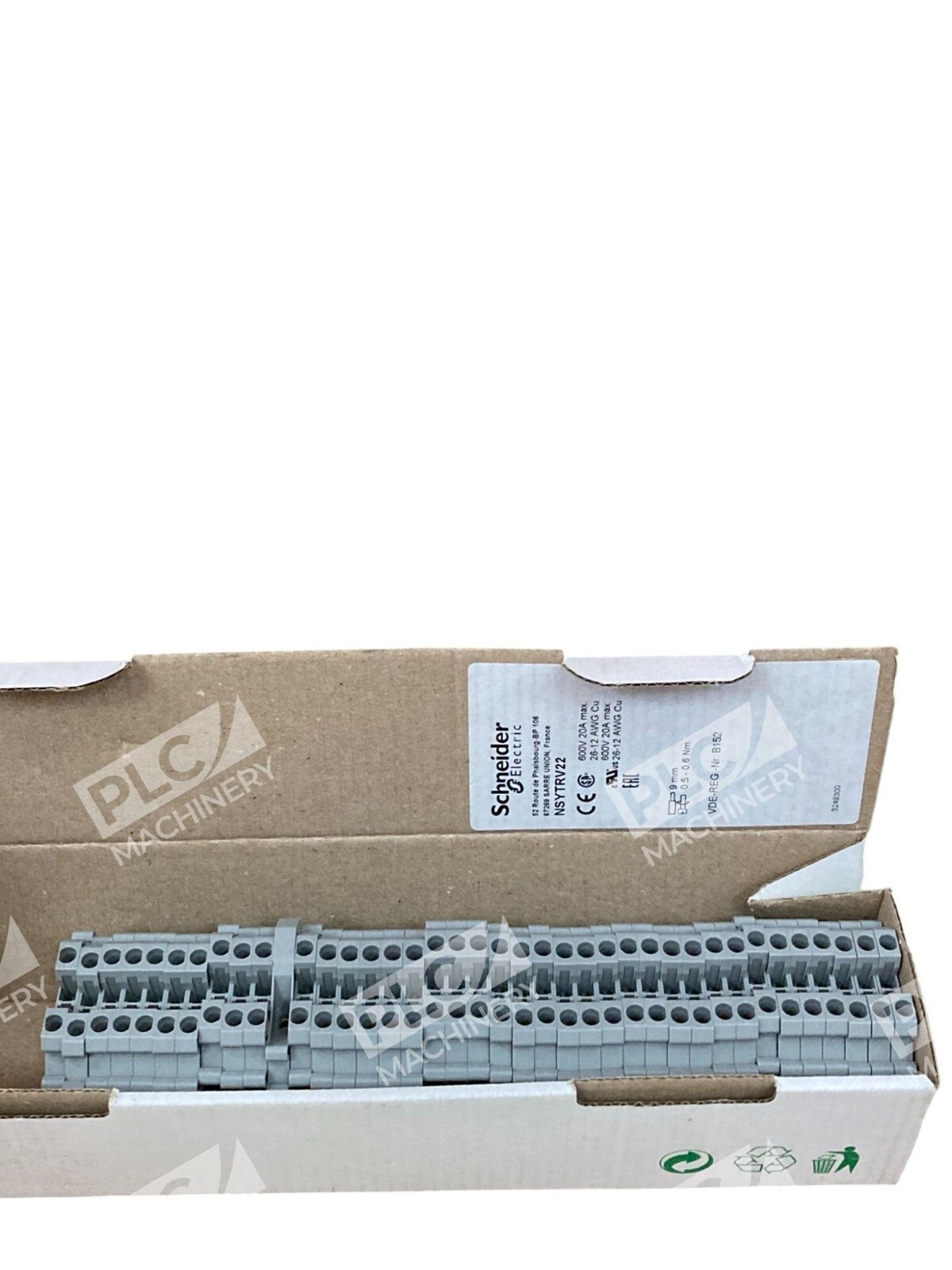

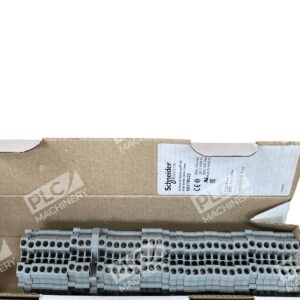

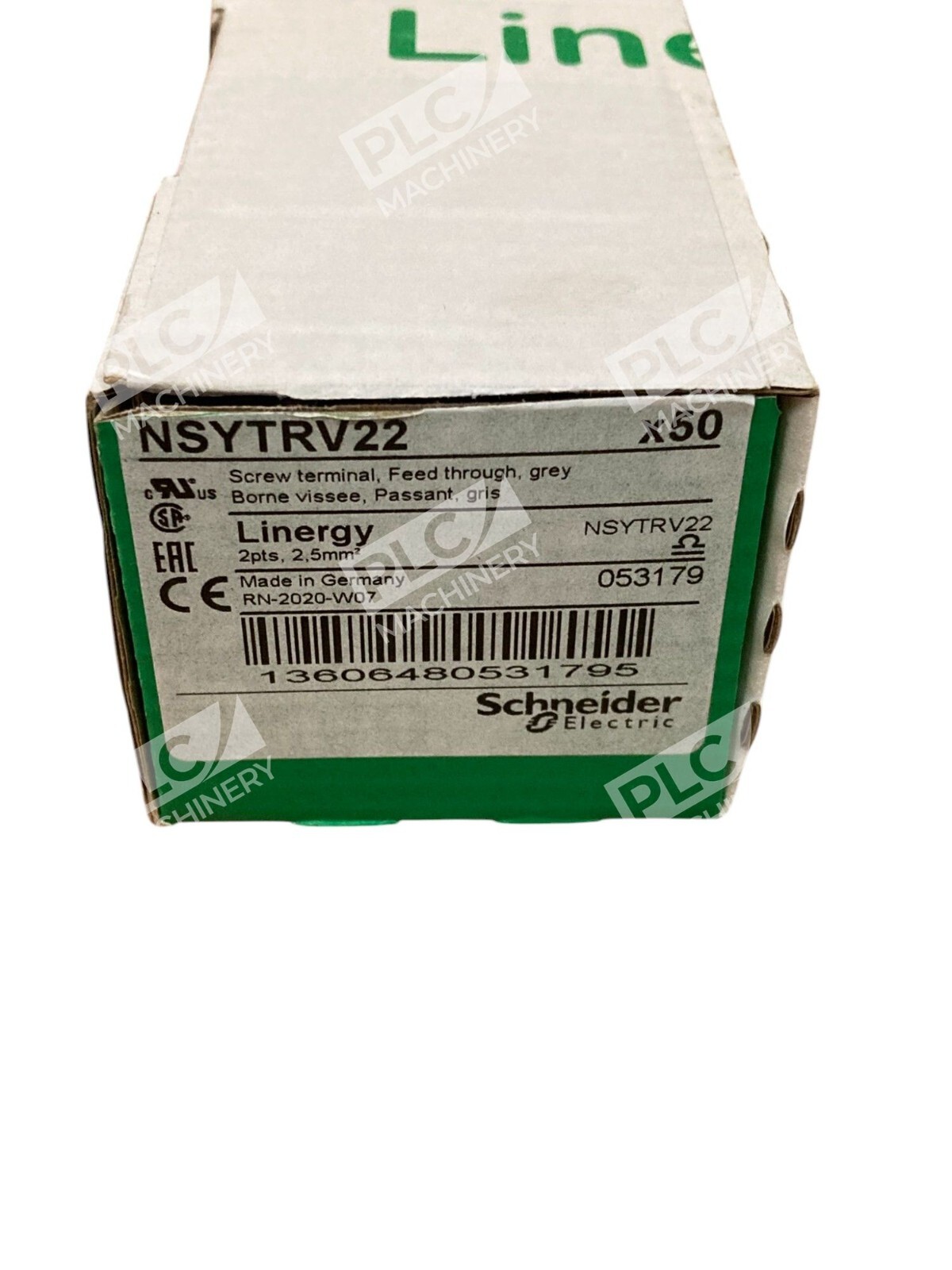

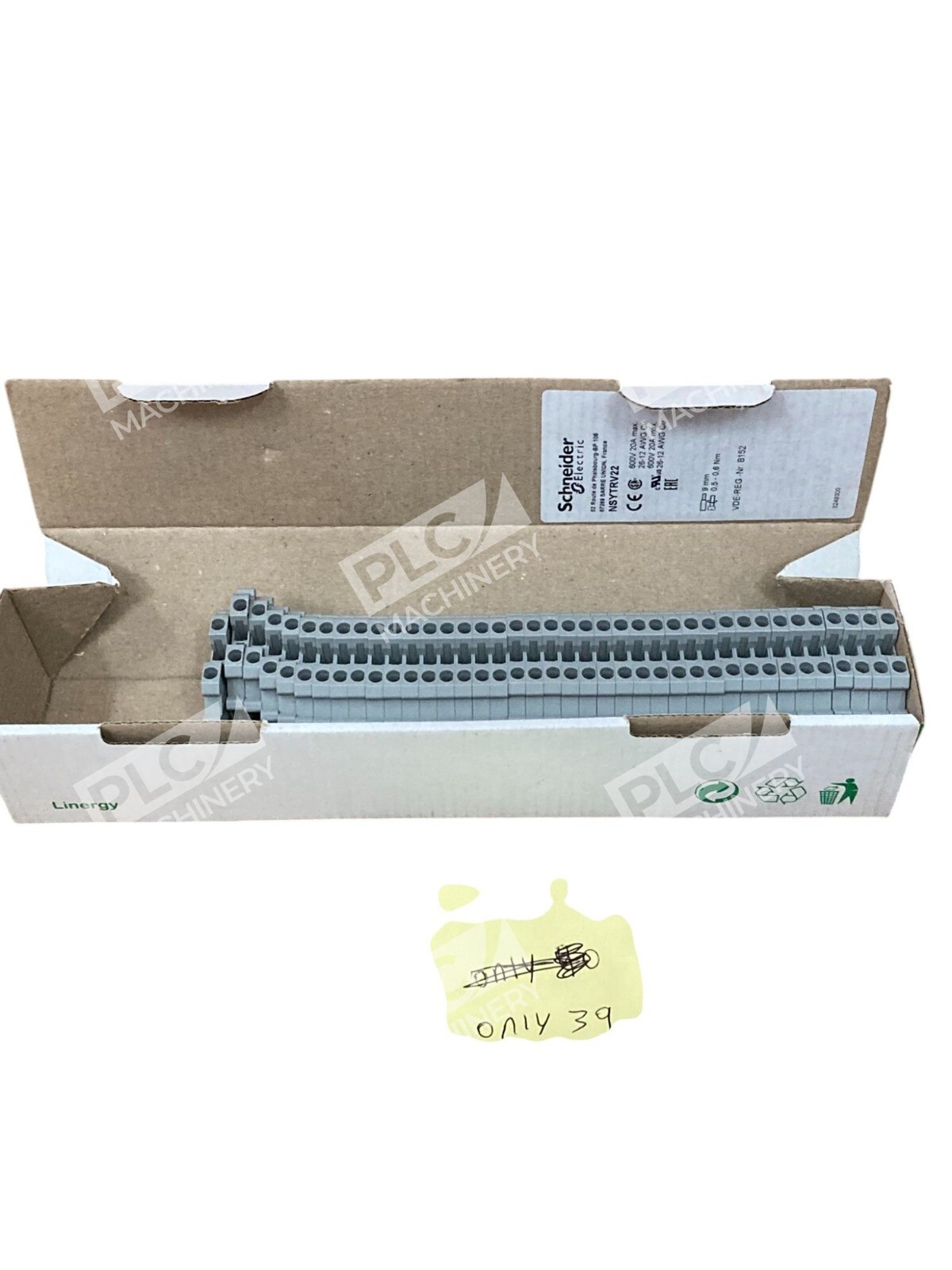

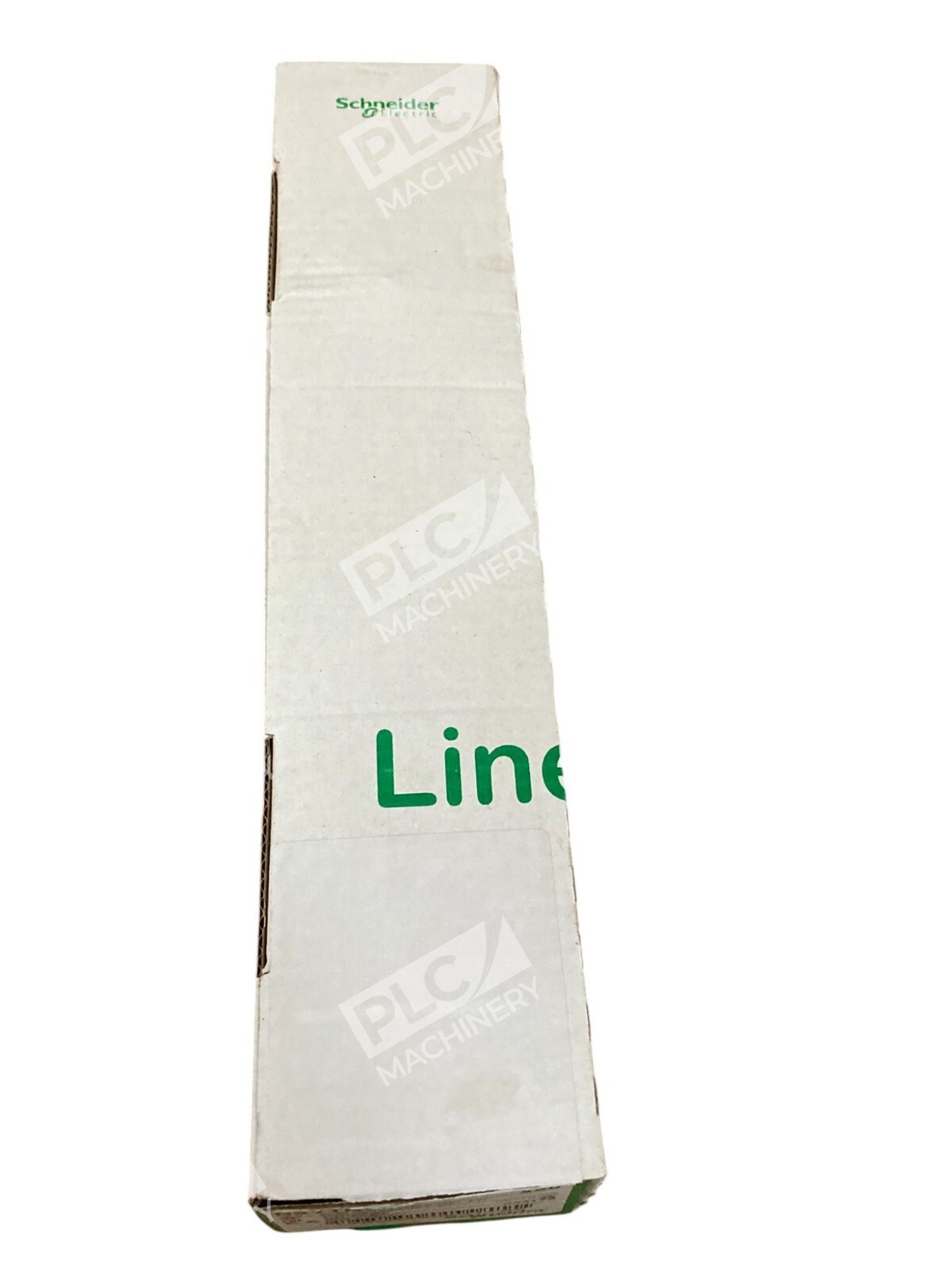

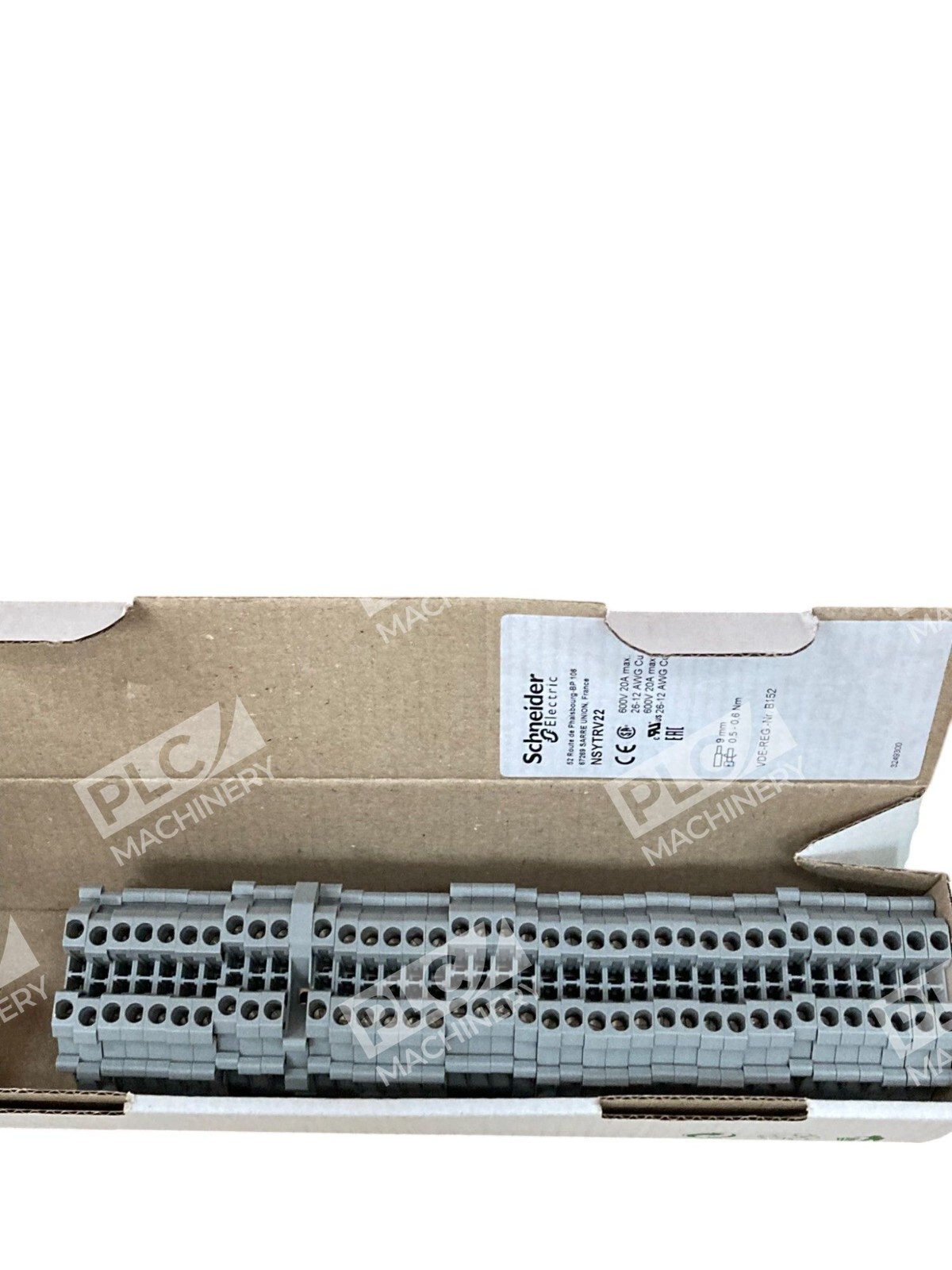

The Schneider Electric Linergy NSYTRV22 is a grey passthrough terminal block designed for efficient and secure electrical connections in various applications.
Key Features
- Nominal Cross Section: 2.5 mm², suitable for a range of wiring requirements.
- Mounting: Clip-on design for easy installation on standard DIN rails.
- Connection Type: Single-level 1×1 screw terminals for straightforward wiring.
- Material: Constructed with a polyamide 6/6 insulating case and copper alloy connectors and screws, ensuring durability and reliable performance.
- Color: Grey, facilitating clear identification within electrical panels.
Electrical Ratings
- Rated Operational Voltage:
- 1000 V according to EN/IEC 60947-7-1
- 600 V according to CSA and cURus standards
- 690 V for ATEX Exe II Ex II 2 GD applications
- Rated Current:
- 24 A as per EN/IEC 60947-7-1
- 20 A according to CSA and cURus standards
- 22 A for ATEX Exe II Ex II 2 GD applications
Dimensions
- Length: 47.7 mm
- Height: 47.5 mm
- Width: 5.2 mm
Environmental Ratings
- Operating Temperature Range: -40 to 130 °C, conforming to IEC 60216-1 and VDE 0304-T21 standards.
Certifications
- ATEX
- CSA
- cURus
- DNV
- GL
- LR
- VDE
- IEC-Ex
- EAC
The Linergy NSYTRV22 terminal block is designed to meet the demands of modern electrical installations, offering a combination of safety, reliability, and ease of use.
