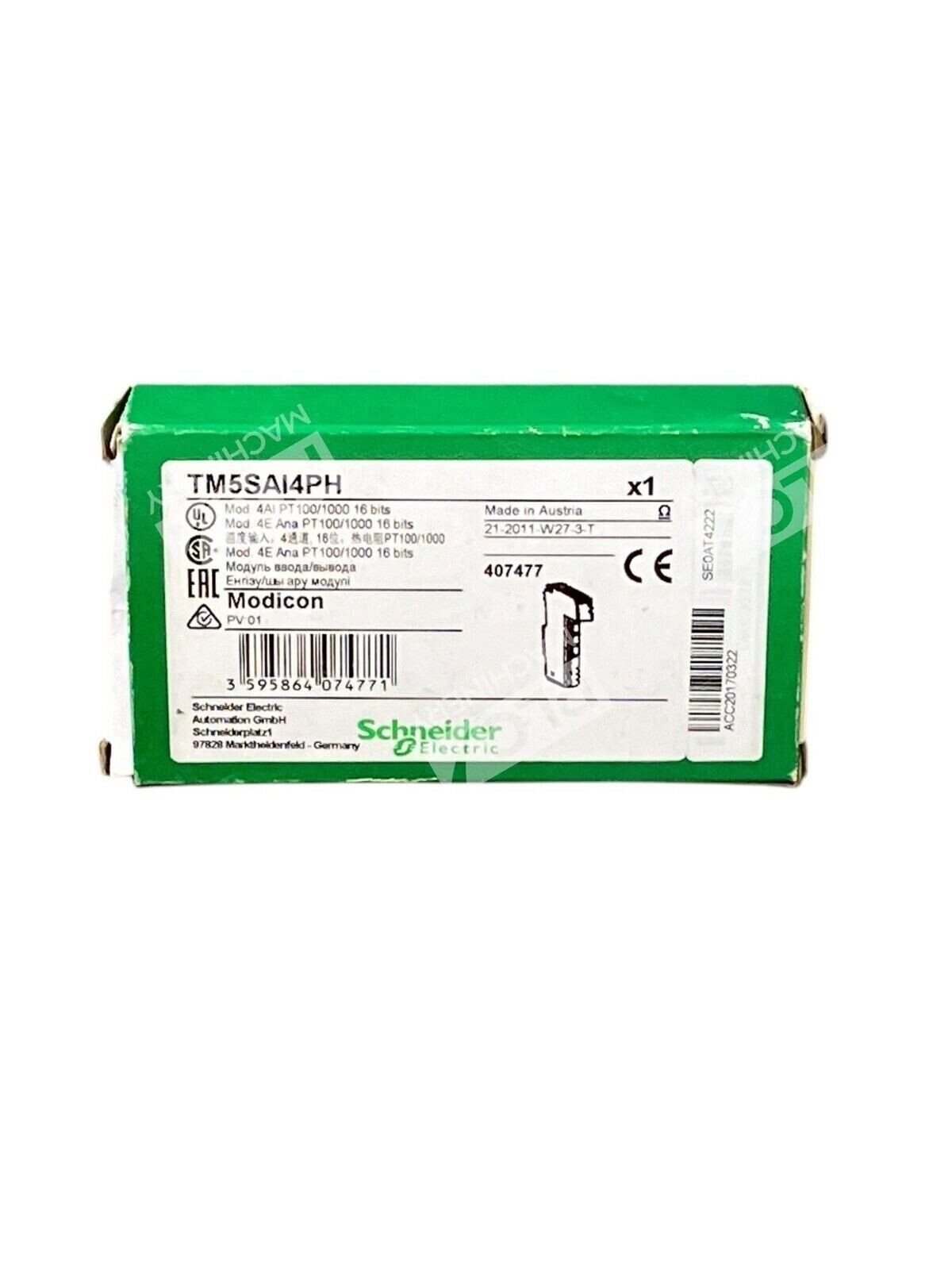

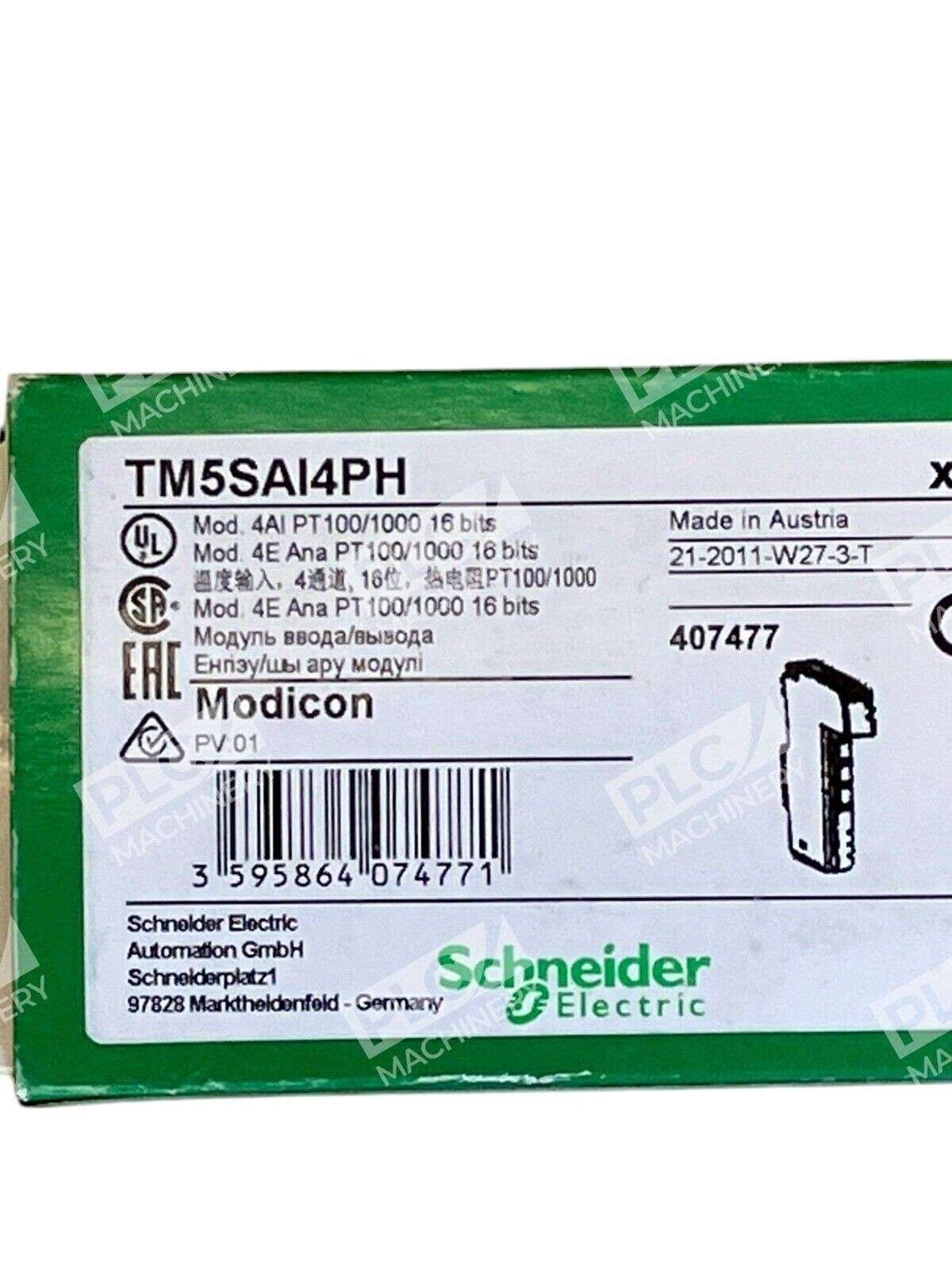

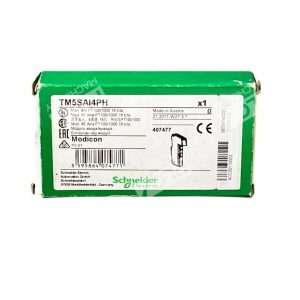

Schneider Electric Modicon 4AI PT100/1000 16bits TM5SAI4PH

Schneider Electric Modicon TM5SAI4PH Analog Input Module

The Schneider Electric Modicon TM5SAI4PH is a high-performance analog input module designed for precise temperature measurement applications. As part of the Modicon TM5 range, this module offers flexibility and scalability for complex automation solutions.

Key Features

• Analog Inputs: Equipped with four 16-bit resolution inputs, ensuring accurate data acquisition.
• Temperature Probe Compatibility: Supports Pt100 and Pt1000 temperature probes, covering a measurement range from -200°C to 850°C.
• Supply Voltage: Operates at a nominal 24V DC, with a tolerance of -15% to +20%.
• Current Consumption: Consumes 2mA at 5V DC via the bus and 46mA at 24V DC for input/output operations.
• Isolation: Provides 500 Vrms AC insulation between channels and the bus, with no insulation between individual channels.
• Environmental Ratings: Features an IP20 protection rating, suitable for indoor environments.
• Physical Dimensions: Measures 99 mm in height, 12.5 mm in width, and 75 mm in depth, with a weight of 0.025 kg.

Applications

The TM5SAI4PH module is ideal for integration into production and packaging machinery, as well as material handling and assembly systems. Its compatibility with Modicon LMC058 motion controllers and Modicon M258 logic controllers allows for seamless integration into existing automation infrastructures.

Certifications and Standards

This module complies with several international standards, including IEC 61131-2, UL 508, CSA C22.2 No 213, and CSA C22.2 No 142. It holds certifications from GOST-R, C-Tick, cULus, and CSA, ensuring adherence to global safety and performance requirements.

Installation

Designed for easy installation, the TM5SAI4PH mounts on a standard 35 mm DIN rail, facilitating quick setup and maintenance within modular I/O systems.

Incorporating the Schneider Electric Modicon TM5SAI4PH into your automation system enhances temperature measurement accuracy and system reliability, contributing to improved operational efficiency.
