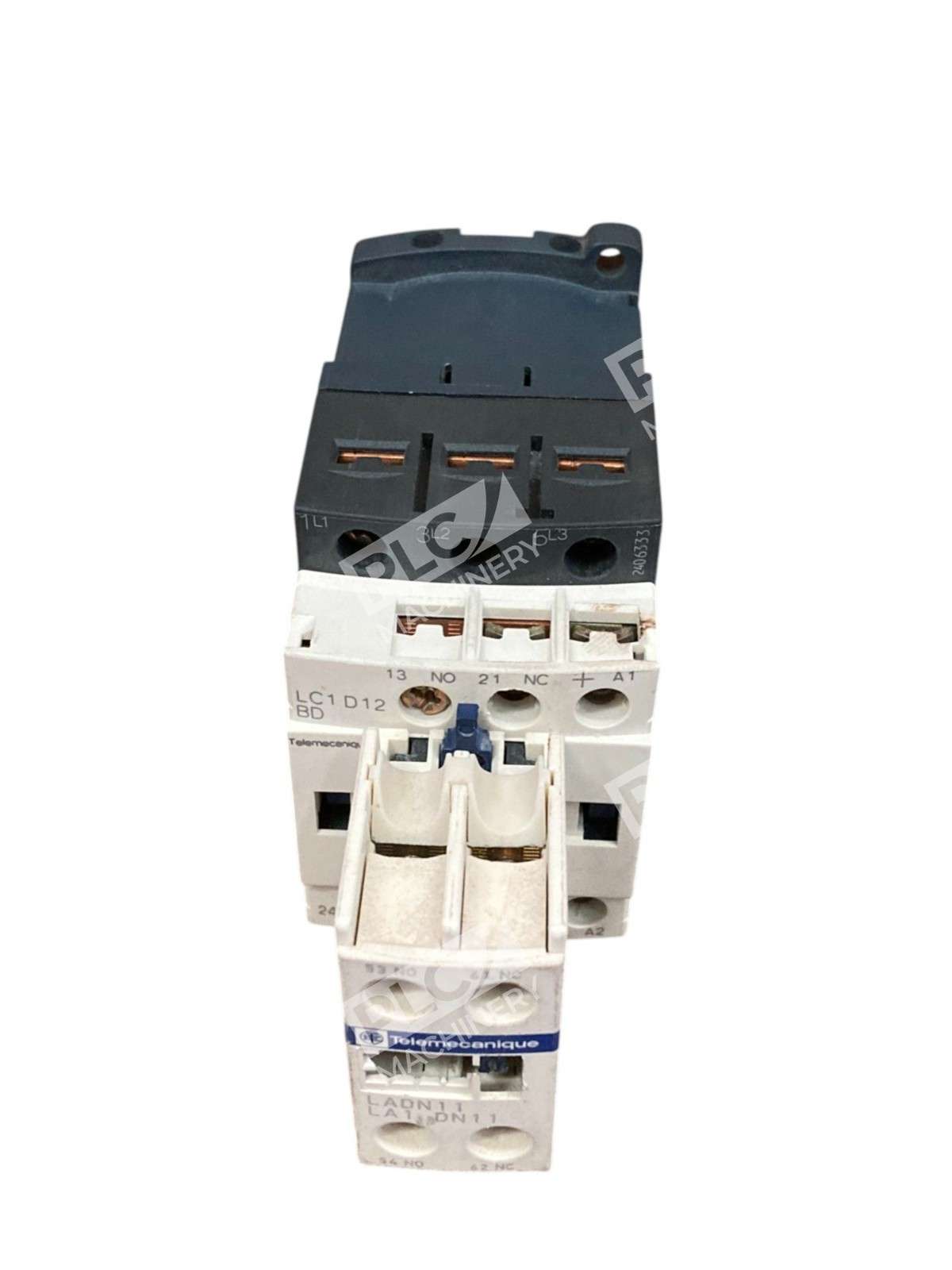

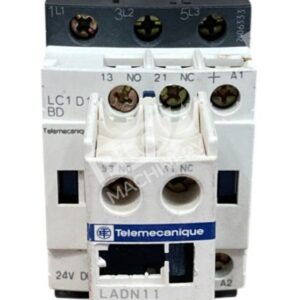

Schneider 10A LADN11 LA1 DN11 Aux Contact Block With 25A Contactor LC1D12BD

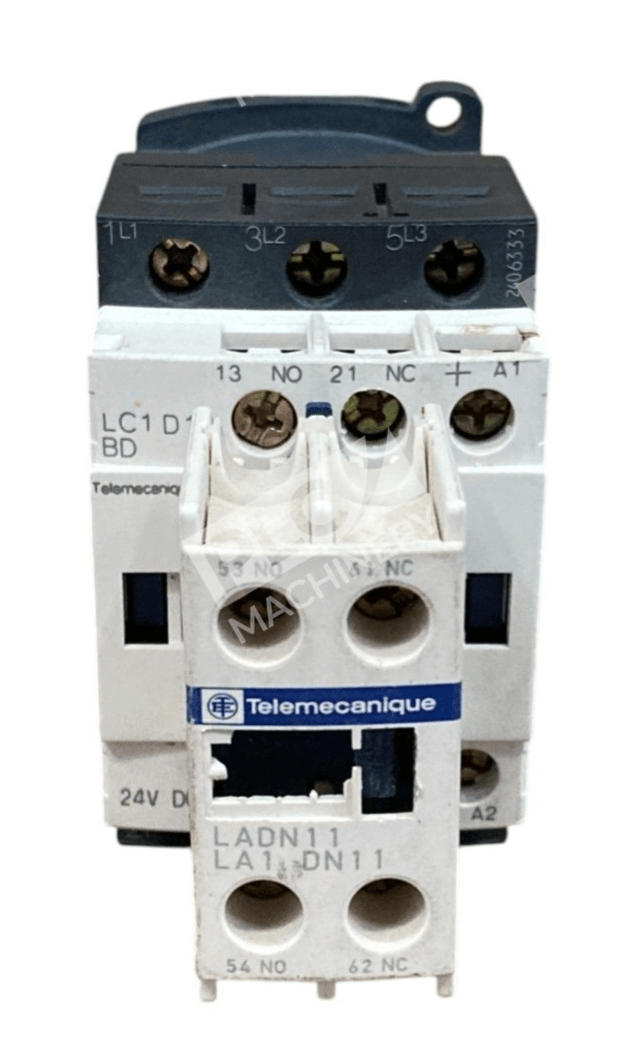

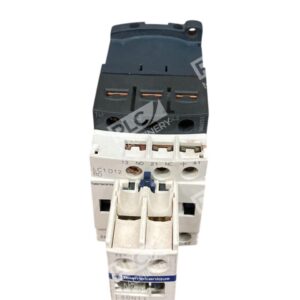

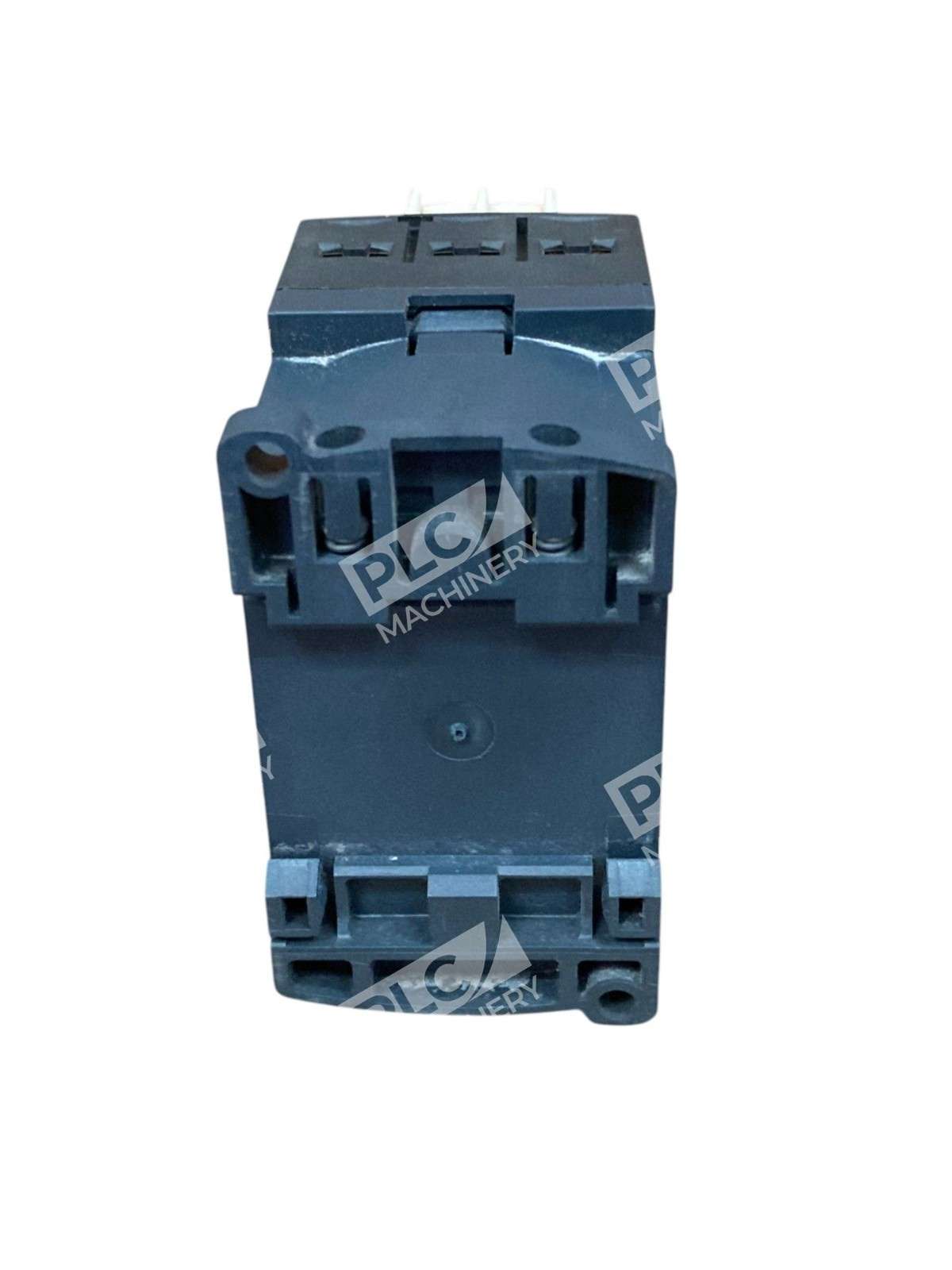

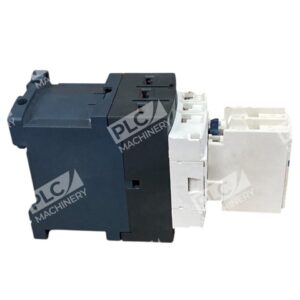

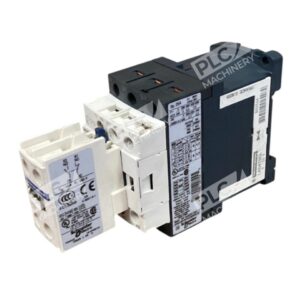

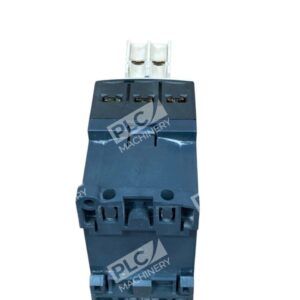

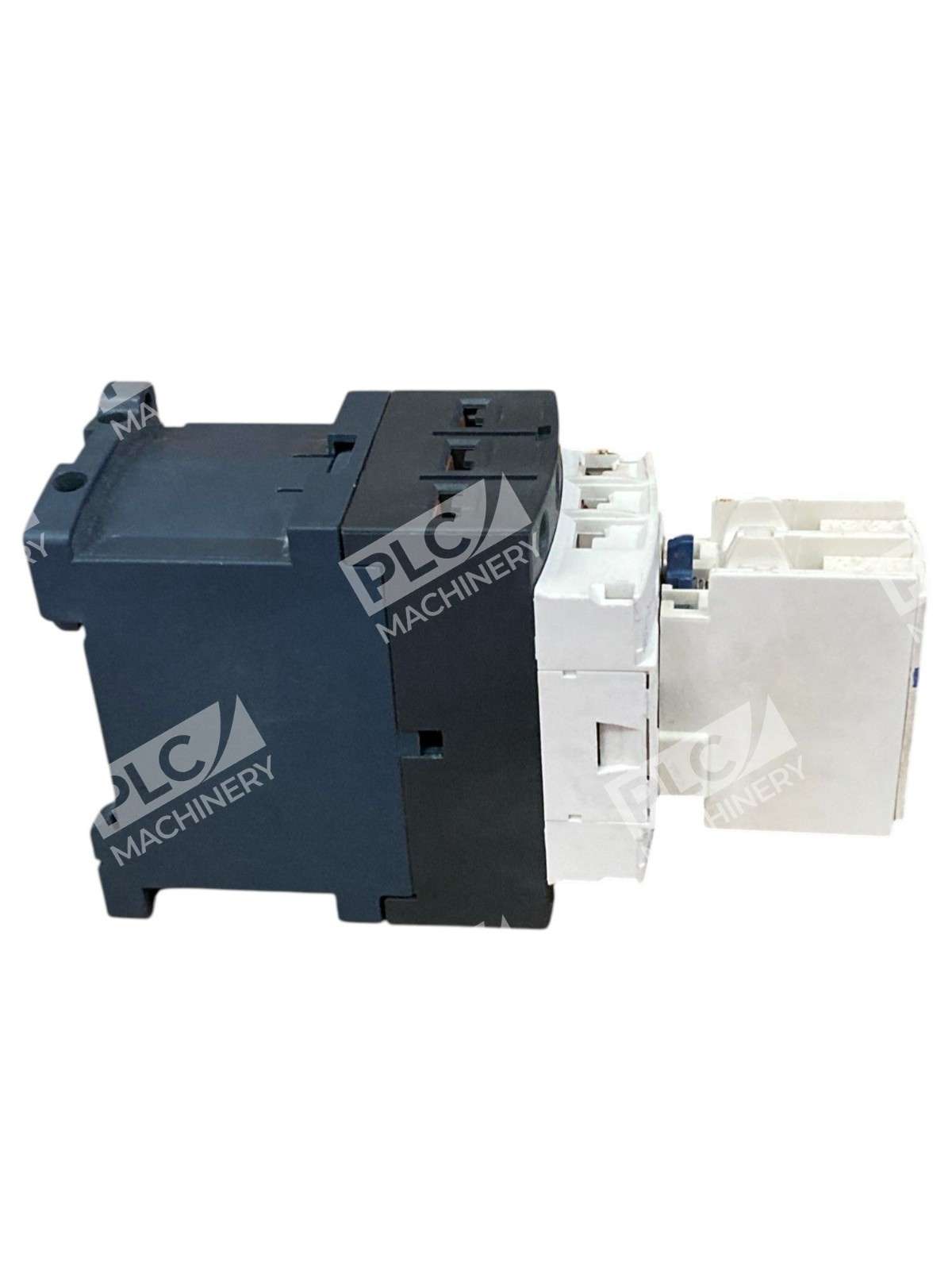

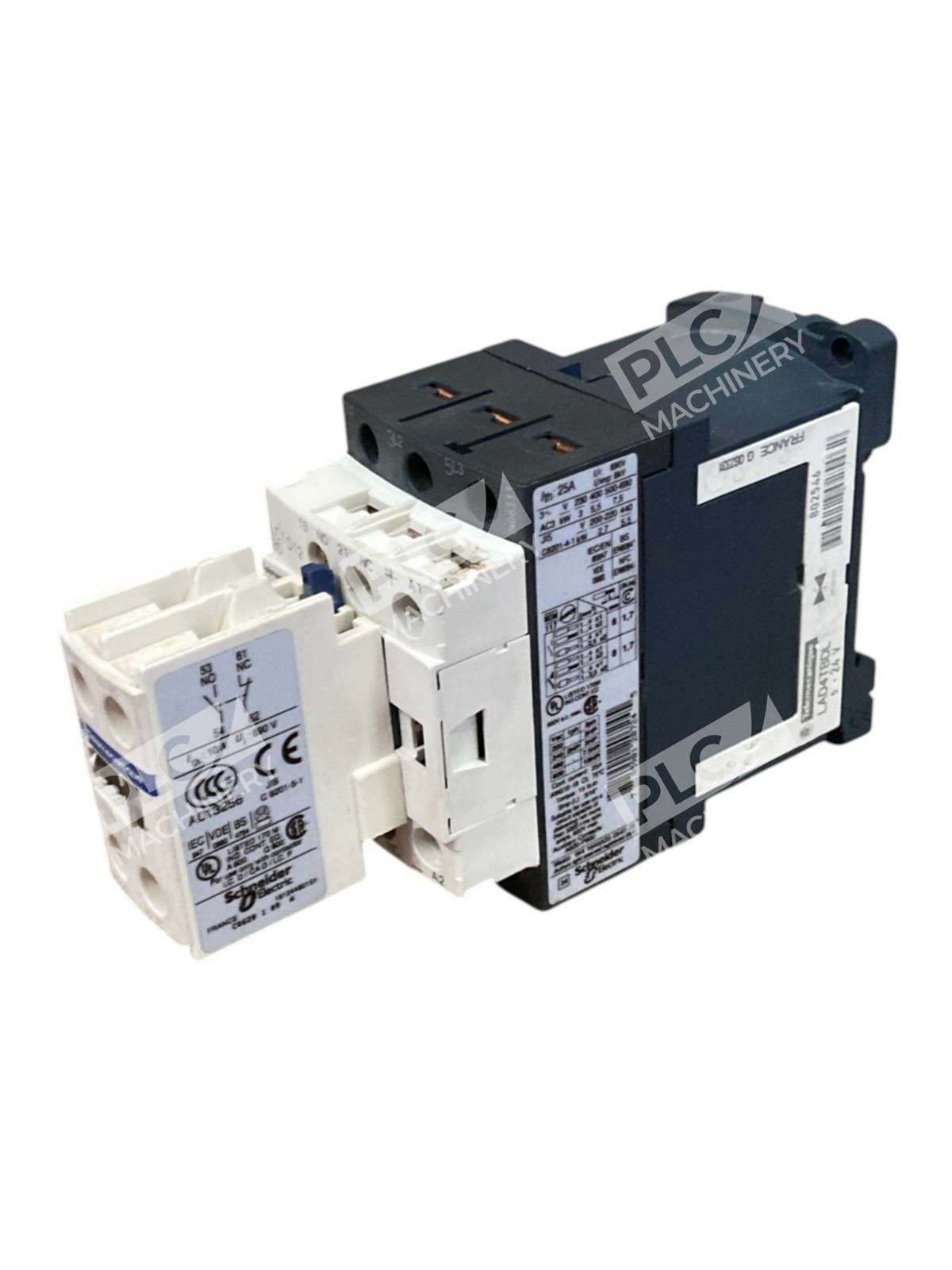

Schneider Electric LADN11 Auxiliary Contact Block with LC1D12BD Contactor

The Schneider Electric LADN11 Auxiliary Contact Block, when paired with the LC1D12BD Contactor, offers a robust solution for enhancing control and monitoring capabilities in electrical systems. This combination is ideal for applications requiring reliable auxiliary contacts alongside efficient motor control.

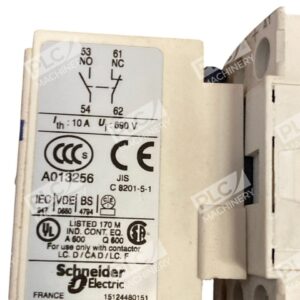

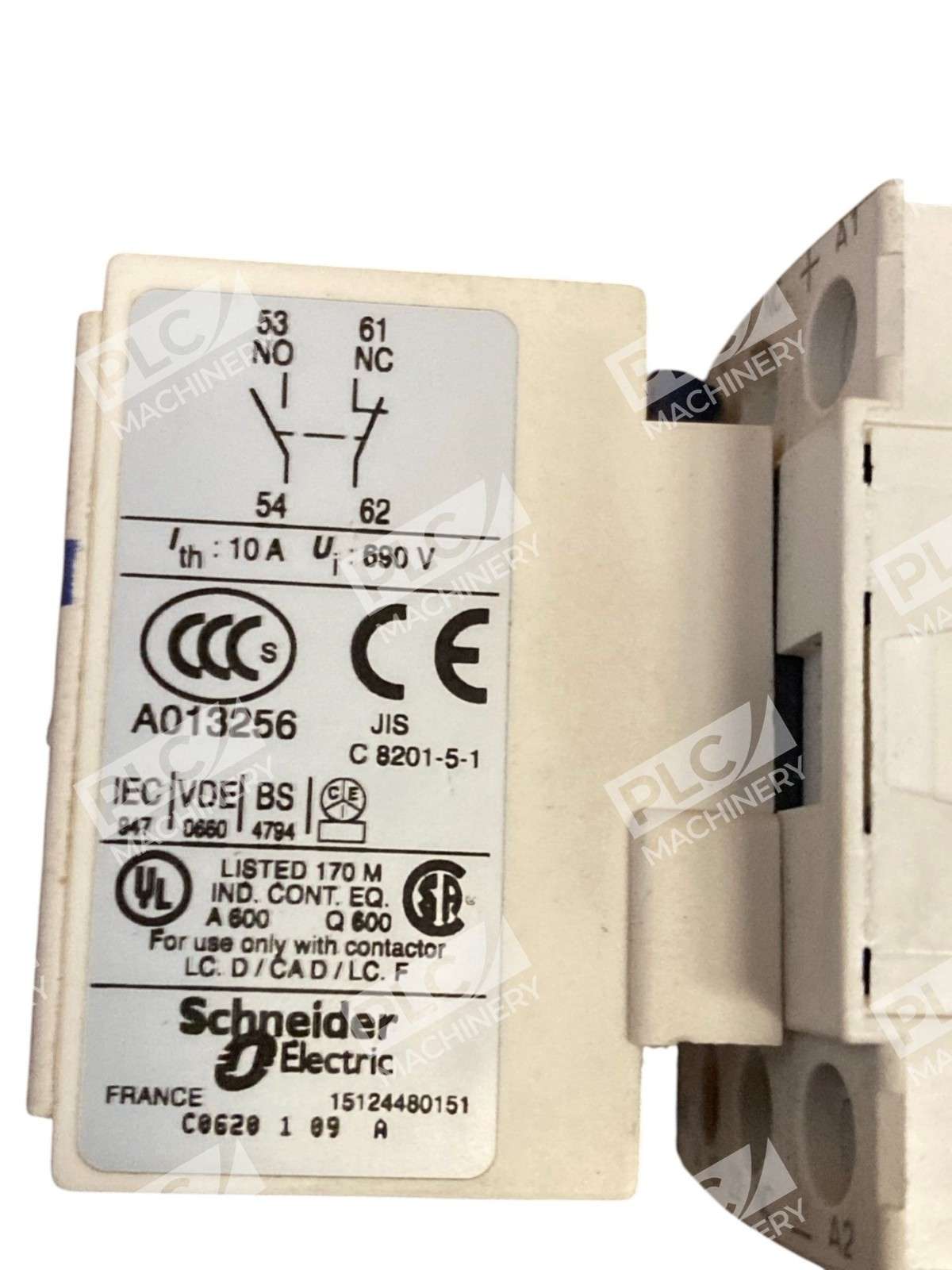

LADN11 Auxiliary Contact Block Features

• Contact Configuration: 1 Normally Open (NO) and 1 Normally Closed (NC) contact, providing versatile control options.
• Mounting: Front clip-on design allows for easy and secure attachment to compatible contactors.
• Electrical Ratings: Rated operational voltage up to 690 V AC (25 to 400 Hz) and thermal current up to 10 A at 60°C.
• Durability: Mechanical durability of up to 30 million cycles, ensuring long-term reliability.
• Compliance: Meets standards such as EN/IEC 60947-5-1, UL 60947-5-1, and CSA C22.2 No 60947-5-1.

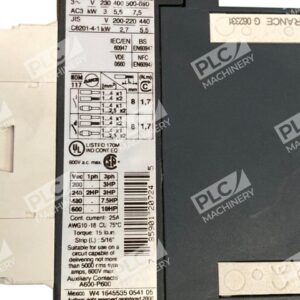

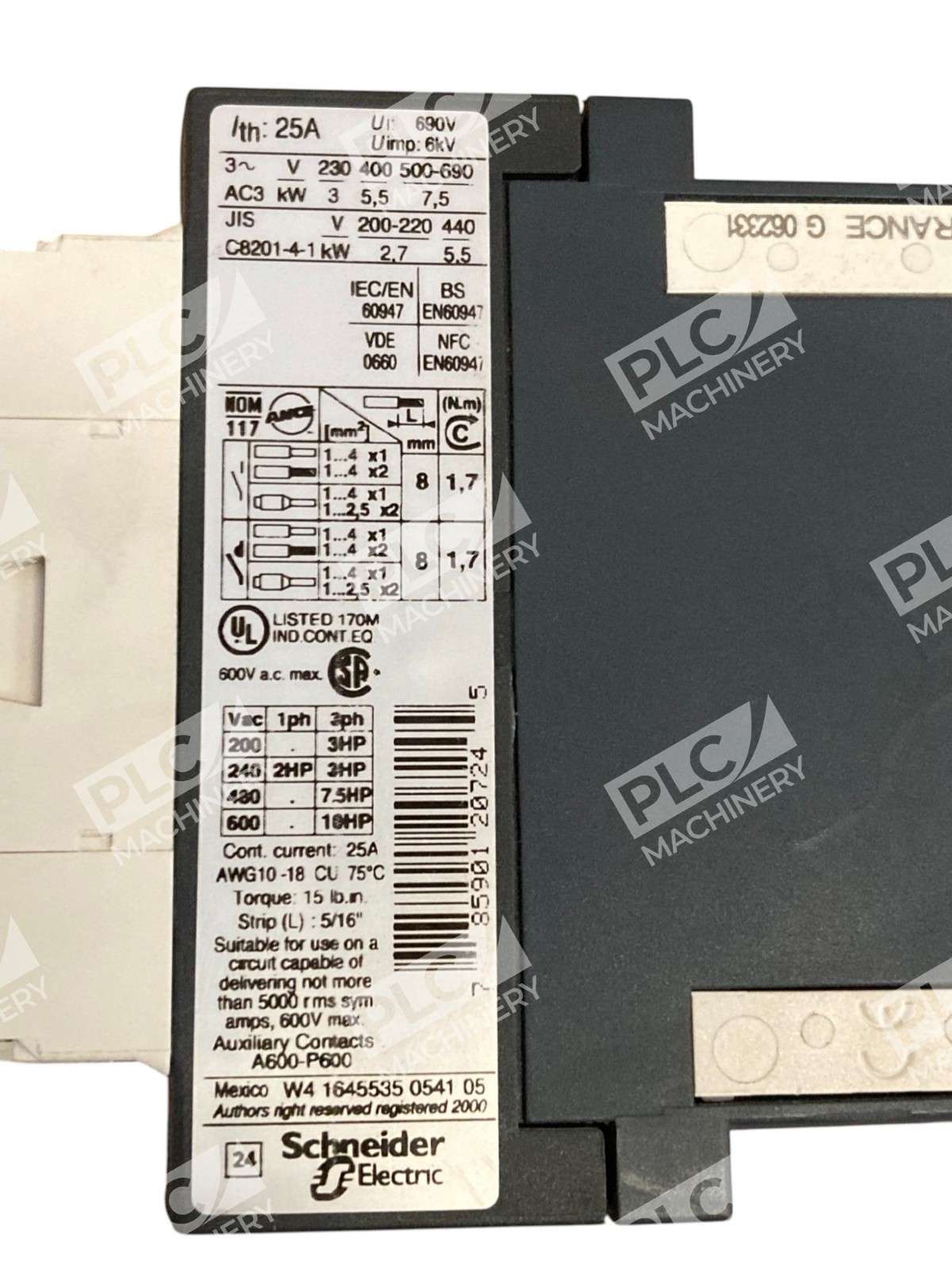

LC1D12BD Contactor Features

• Contact Configuration: 3-pole (3 NO) contactor suitable for motor control applications up to 12 A at 440 V AC (AC-3 category).
• Coil Voltage: Operates with a 24 V DC coil, featuring built-in transient suppression for enhanced performance.
• Electrical Ratings: Rated operational voltage up to 690 V AC and operational current up to 25 A at 440 V AC (AC-1 category).
• Mounting: Compact design (45 mm width) suitable for DIN rail mounting or screw fixing.
• Compliance: Certified to standards including IEC, UL, CSA, CCC, EAC, and Marine certifications.

Integrating the LADN11 Auxiliary Contact Block with the LC1D12BD Contactor enhances the functionality and flexibility of control systems, making it a reliable choice for various industrial applications.
