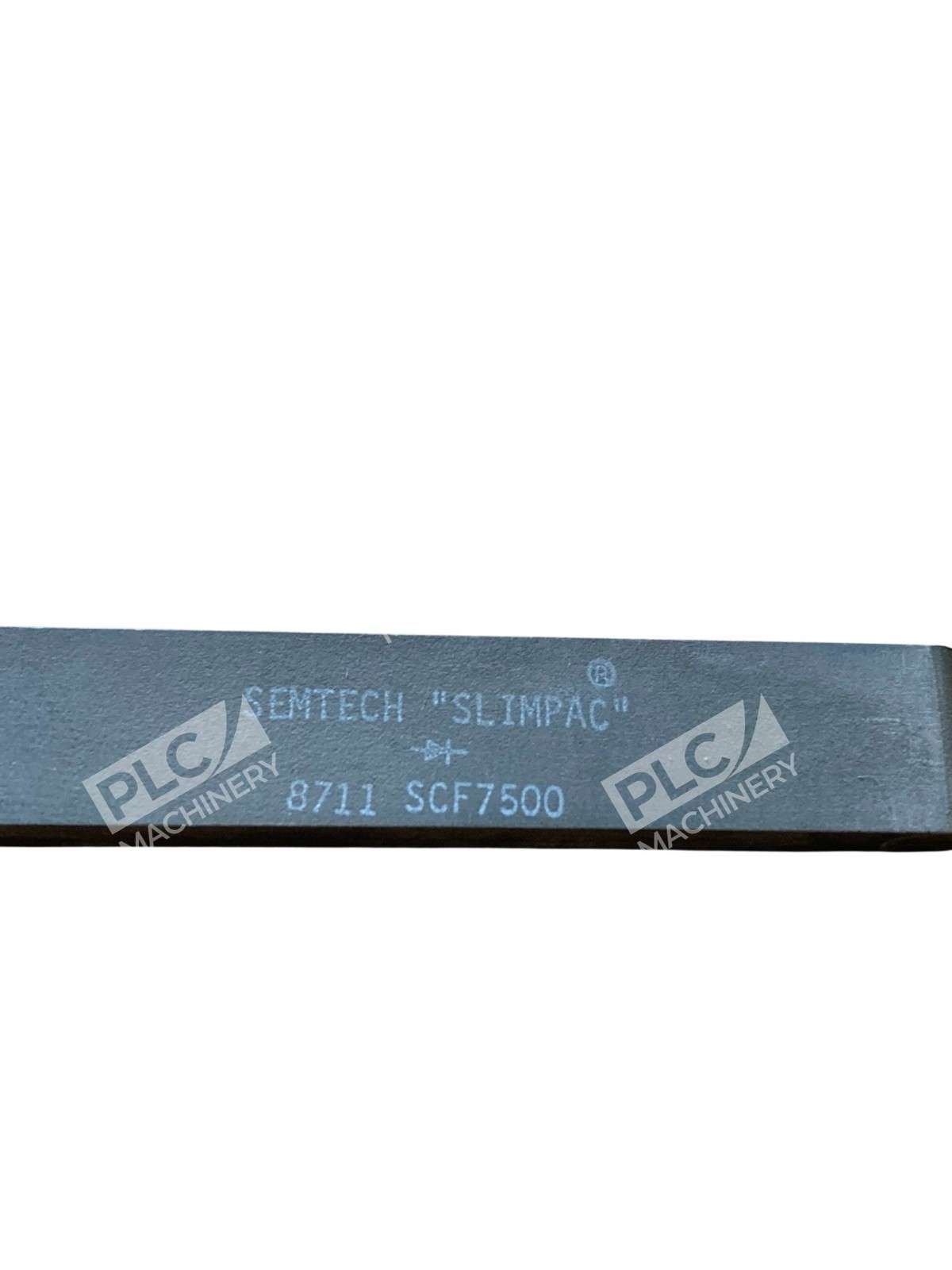

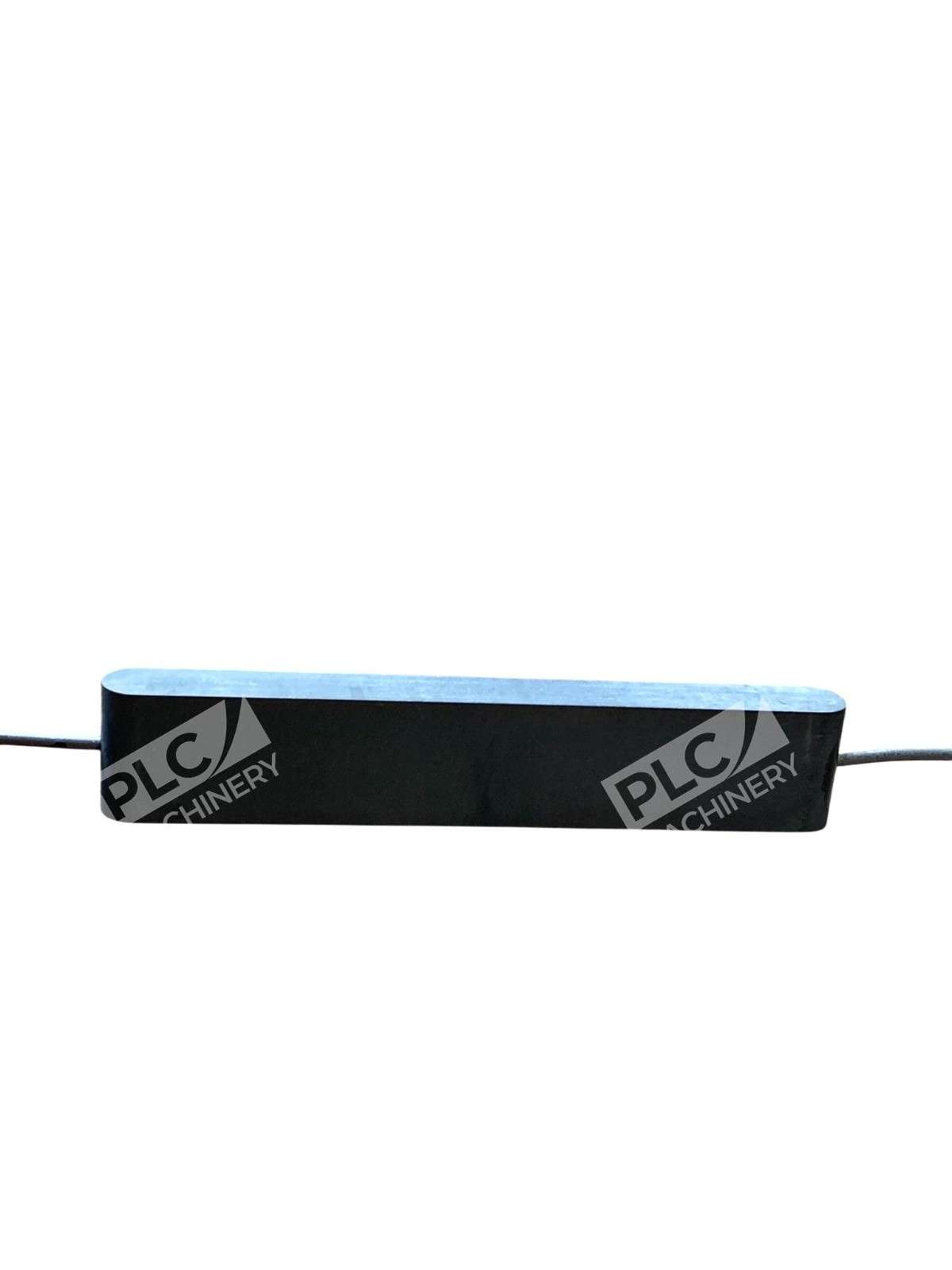

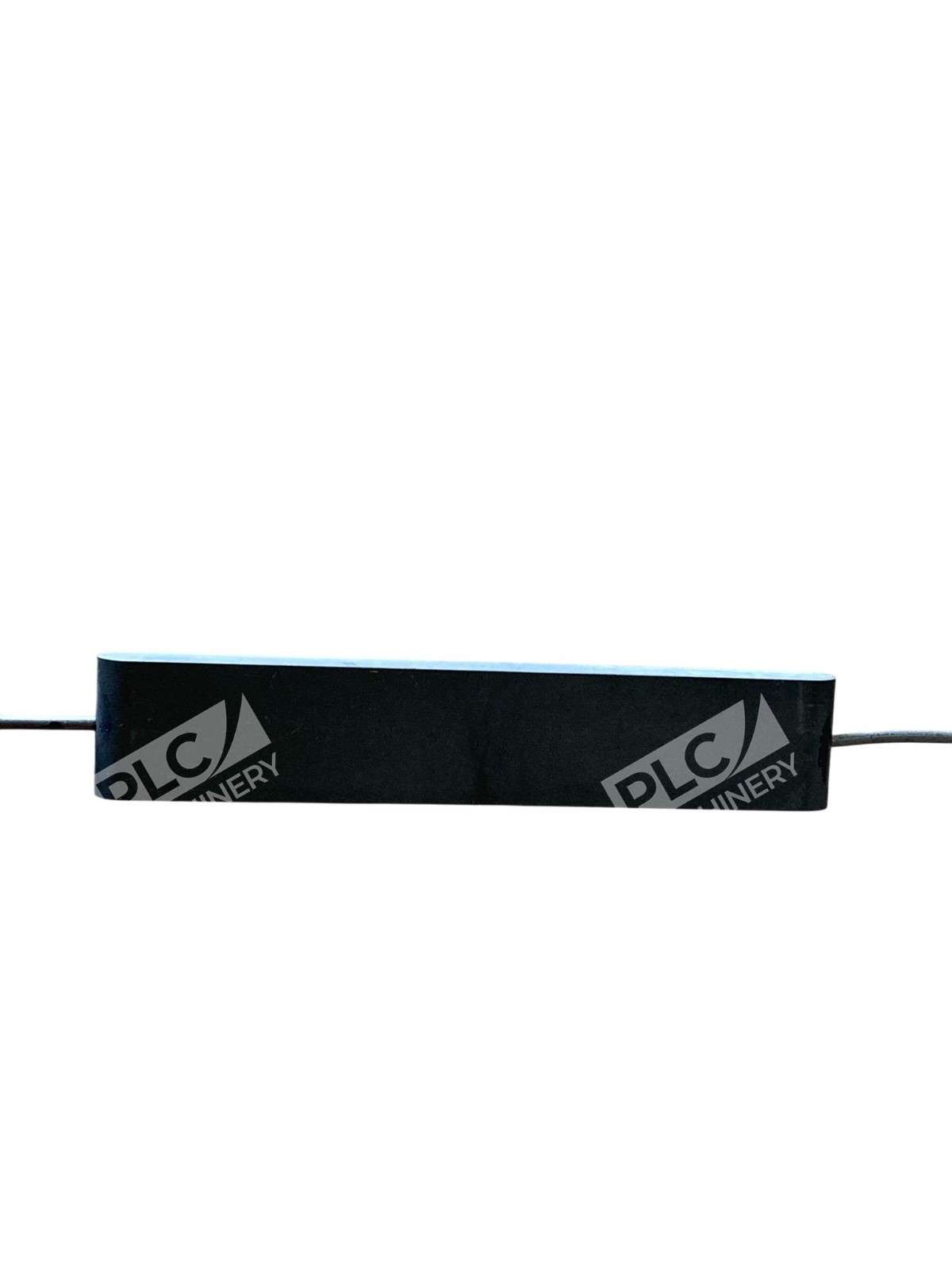

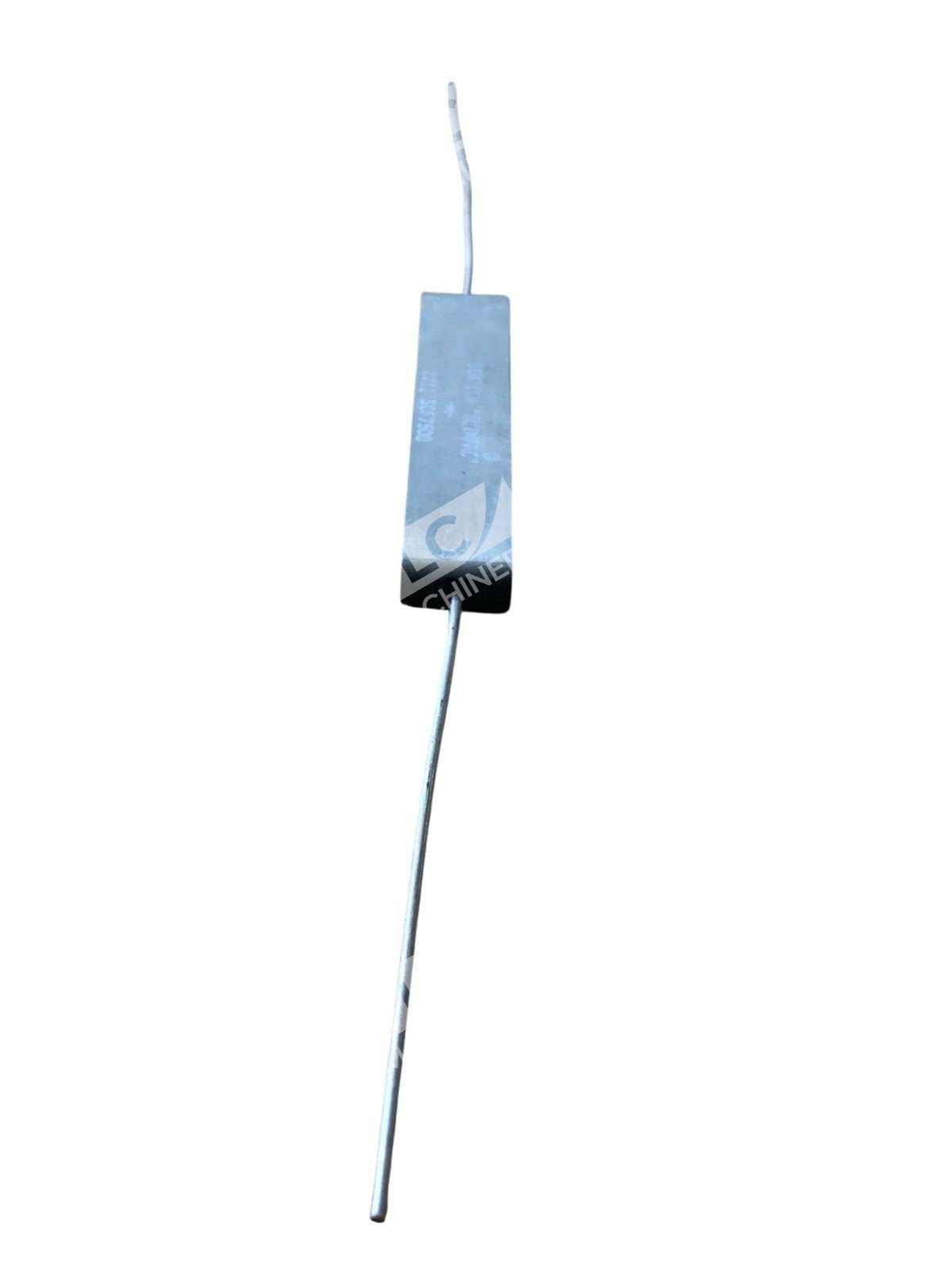

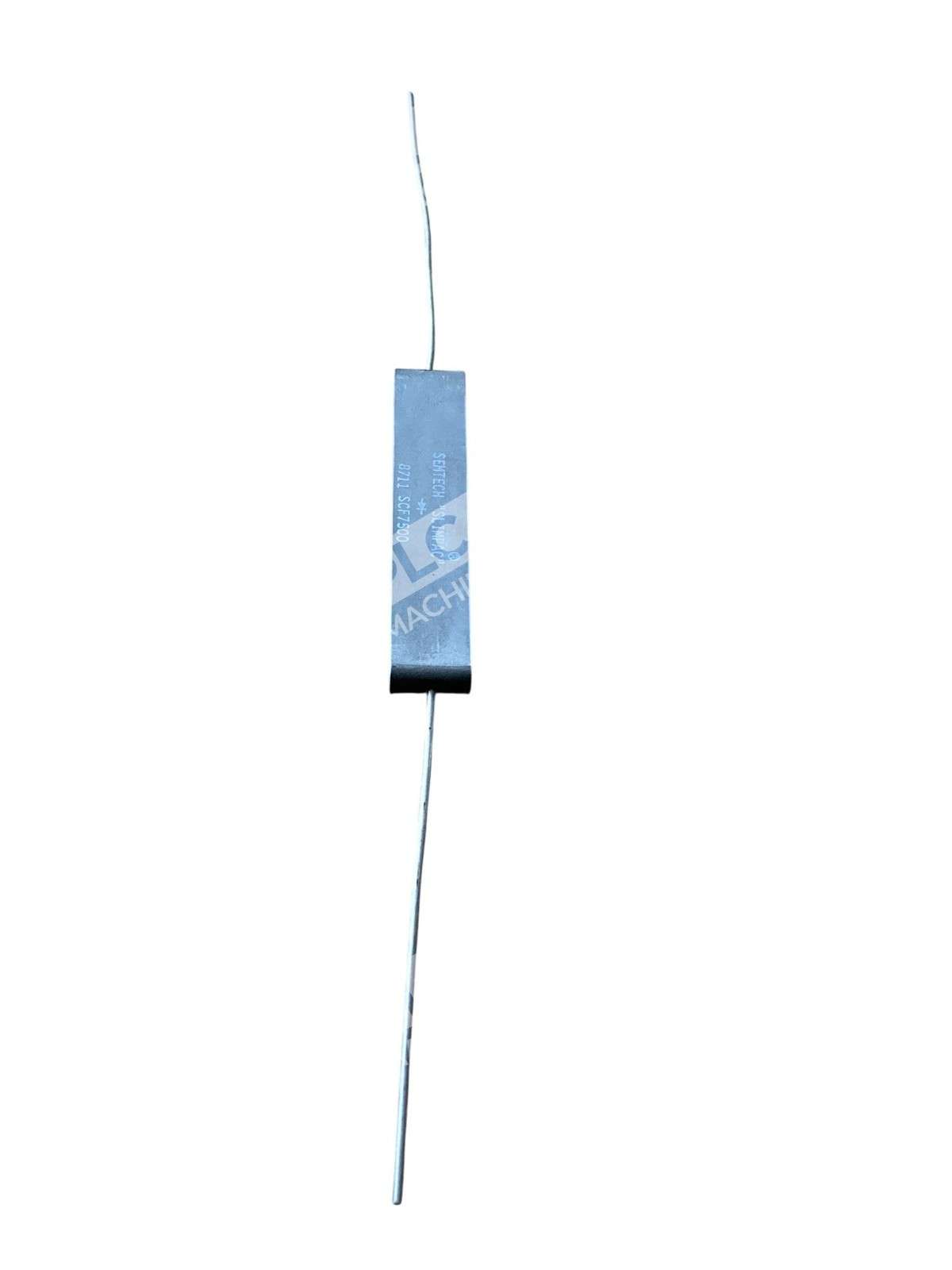

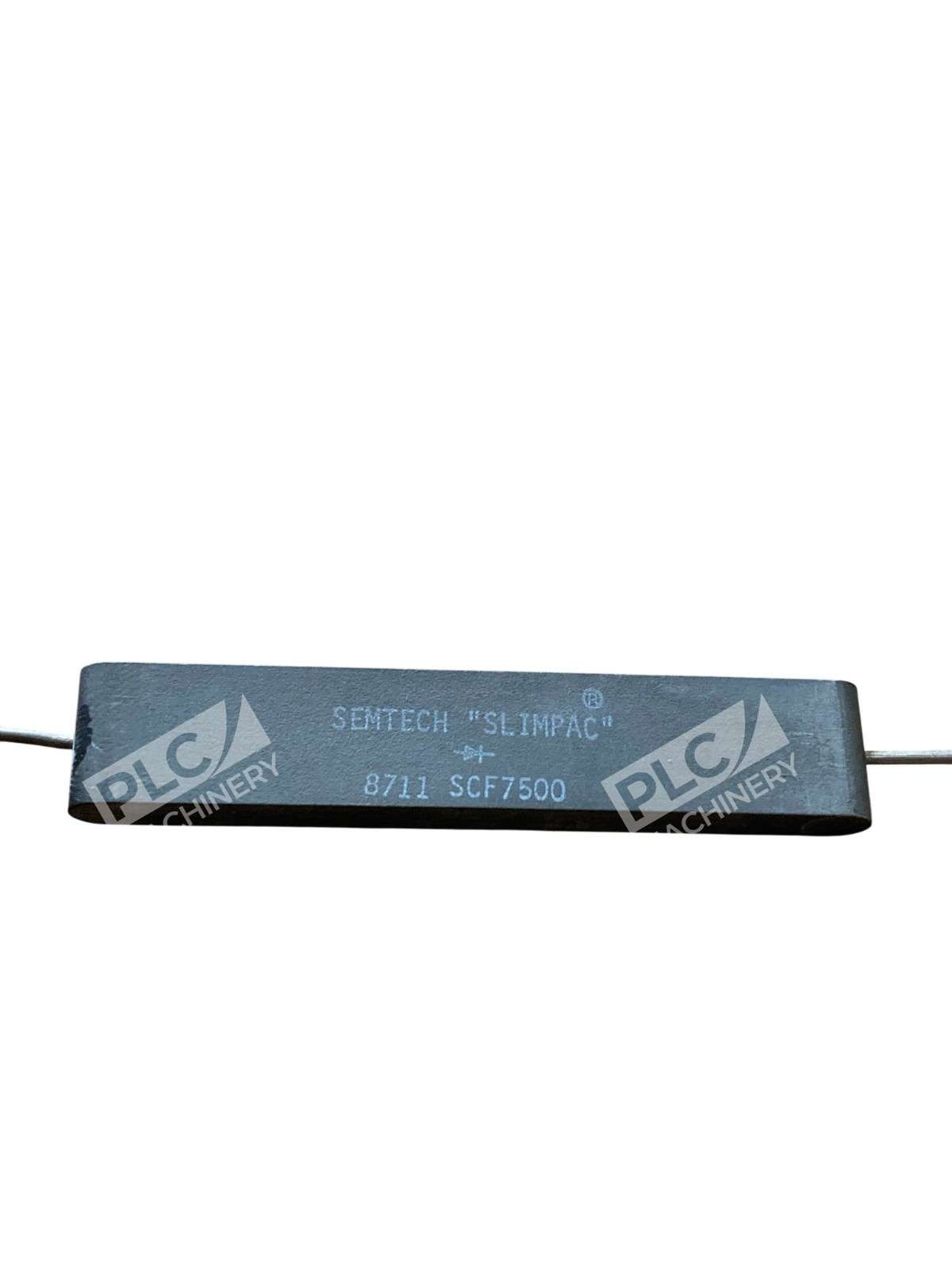

Semtech SCF7500 SLIMPAC High-Voltage Semiconductor Device The Semtech SCF7500 is a high-voltage, fast-recovery rectifier diode designed for applications requiring efficient and reliable performance in high-voltage environments. As part of Semtech’s SLIMPAC series, this device offers a compact and robust solution for demanding industrial and military applications. Key Features High Reverse Voltage: Capable of withstanding reverse voltages up to 7,500 volts, making it suitable for high-voltage rectification tasks. Fast Recovery Time: Features a reverse recovery time of 150 nanoseconds, ensuring quick switching and reduced power loss in high-frequency applications. Moderate Forward Current: Supports an average rectified forward current of 500 milliamperes, accommodating various power requirements. Low Reverse Leakage Current: Exhibits a reverse leakage current of 1 microampere at maximum reverse voltage, enhancing efficiency and reliability. Compact Axial Package: Designed with a through-hole axial package, facilitating easy integration into existing circuit designs. Wide Operating Temperature Range: Operates effectively within a temperature range of -55°C to +150°C, ensuring performance stability under diverse environmental conditions. Applications The SCF7500 is ideal for use in: High-voltage power supplies Voltage multipliers Industrial equipment Medical devices Military and aerospace systems Its combination of high voltage tolerance, fast recovery time, and compact design makes the SCF7500 a versatile component for engineers and designers working on high-voltage applications.
