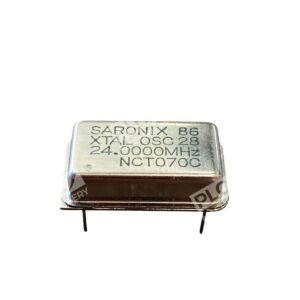

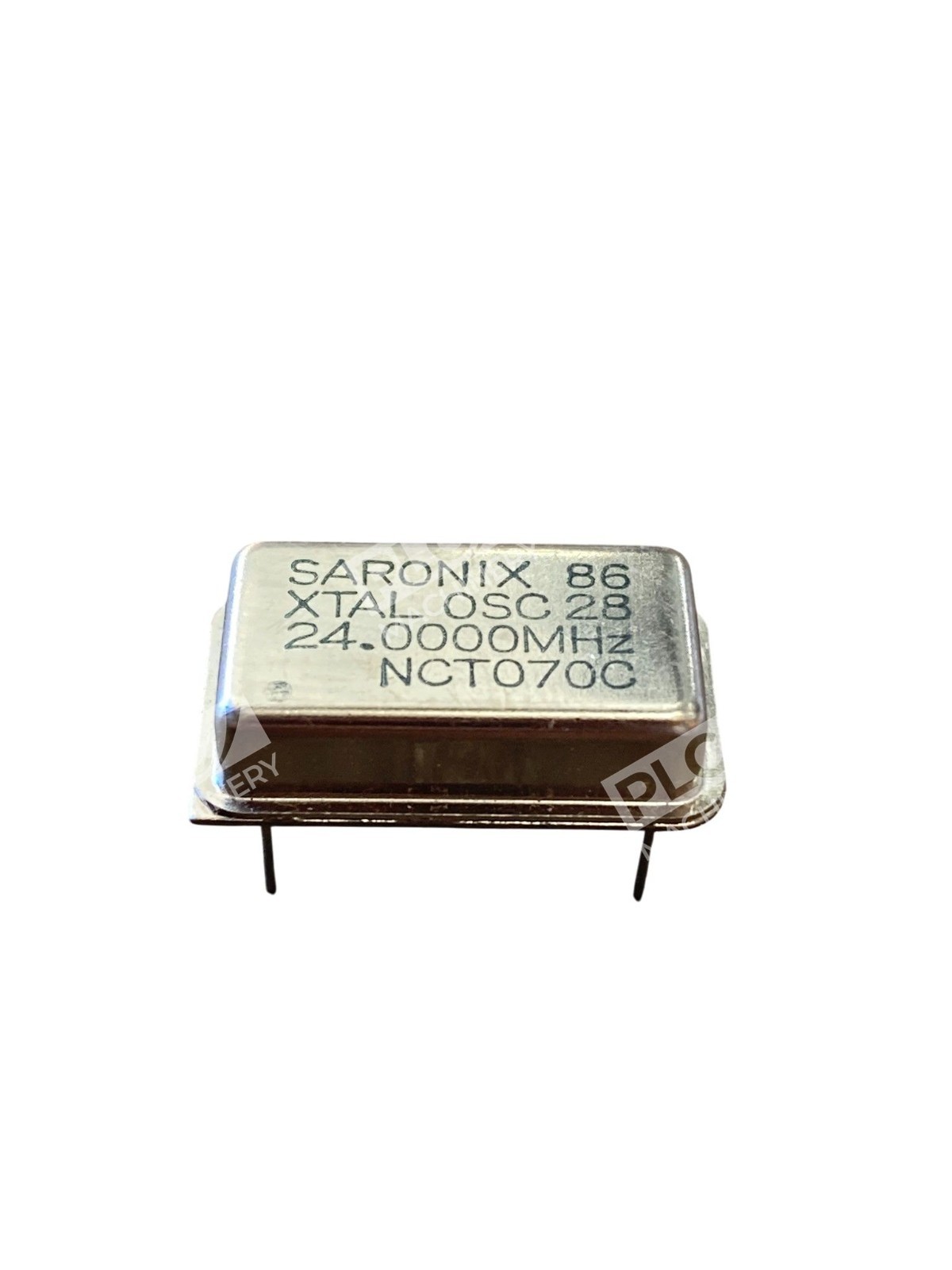

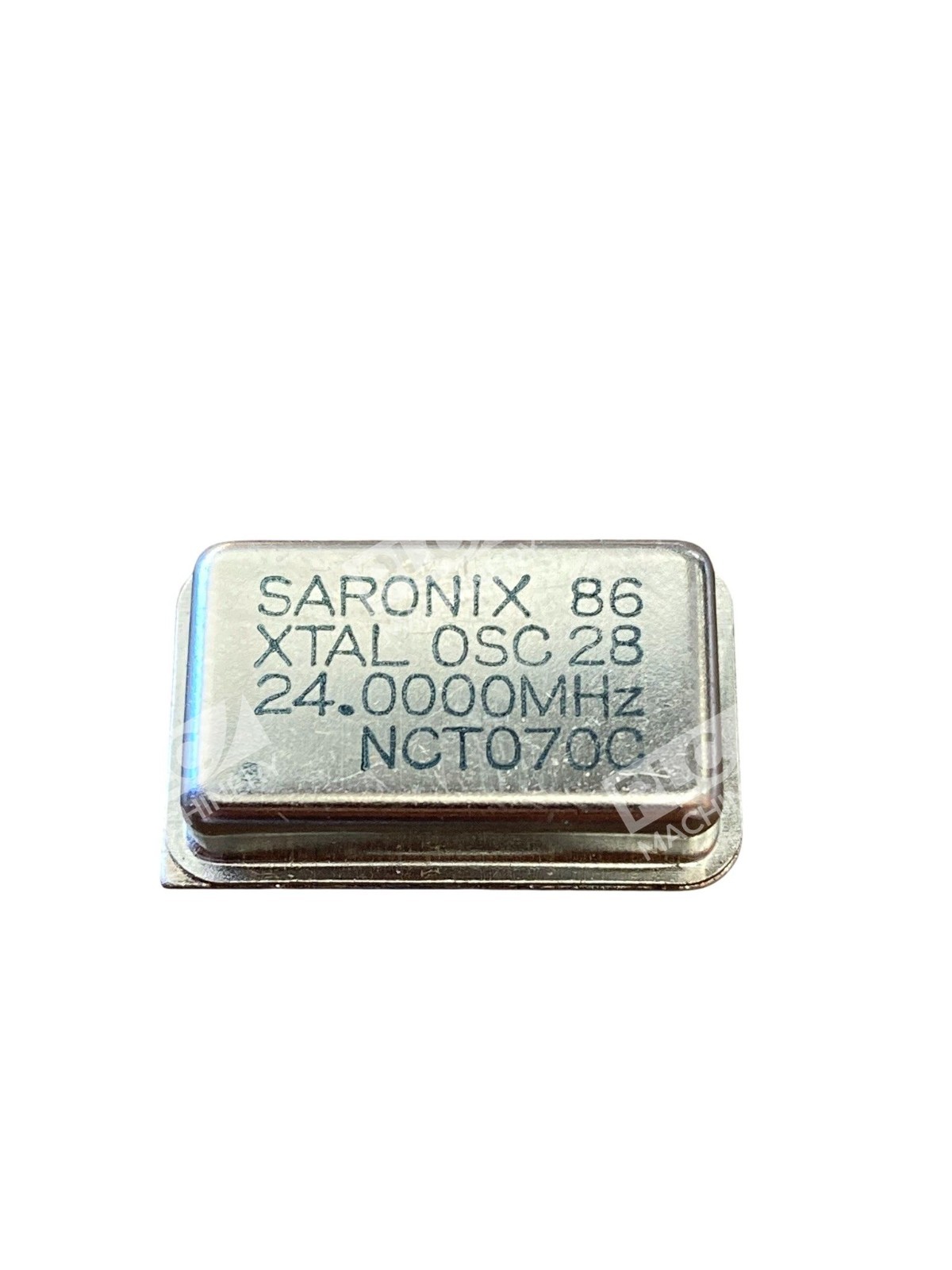

Saronix NCT070C 24.0000MHz Crystal Clock Oscillator
The Saronix NCT070C is a crystal-controlled, hybrid oscillator circuit designed to deliver a true TTL output characteristic at a frequency of 24.0000 MHz. This oscillator is part of the NCT Series, renowned for its reliability and performance in various electronic applications.
Key Features
- Frequency Range: Operates between 4.0001 MHz and 66.6667 MHz, with the specific model set at 24.0000 MHz.
- Frequency Stability: Offers options of ±25 ppm, ±50 ppm, or ±100 ppm over all conditions, including calibration tolerance, operating temperature, input voltage changes, load changes, aging, shock, and vibration.
- Output Characteristics: Provides a true TTL level output, ensuring low electromagnetic interference (EMI).
- Supply Voltage: Requires a +5 VDC ±10% power supply.
- Operating Temperature Range: Suitable for standard conditions from 0°C to +70°C, with certain models capable of operating between -40°C and +85°C.
- Package Type: Encased in a 14-pin Dual In-line Package (DIP) for easy integration into various circuit designs.
Applications
The NCT070C is ideal for high-performance RISC and CISC-based products, where precise timing and low EMI are critical. Its broad frequency range and stability make it suitable for a wide array of electronic applications, including computing, telecommunications, and industrial equipment.
Mechanical Specifications

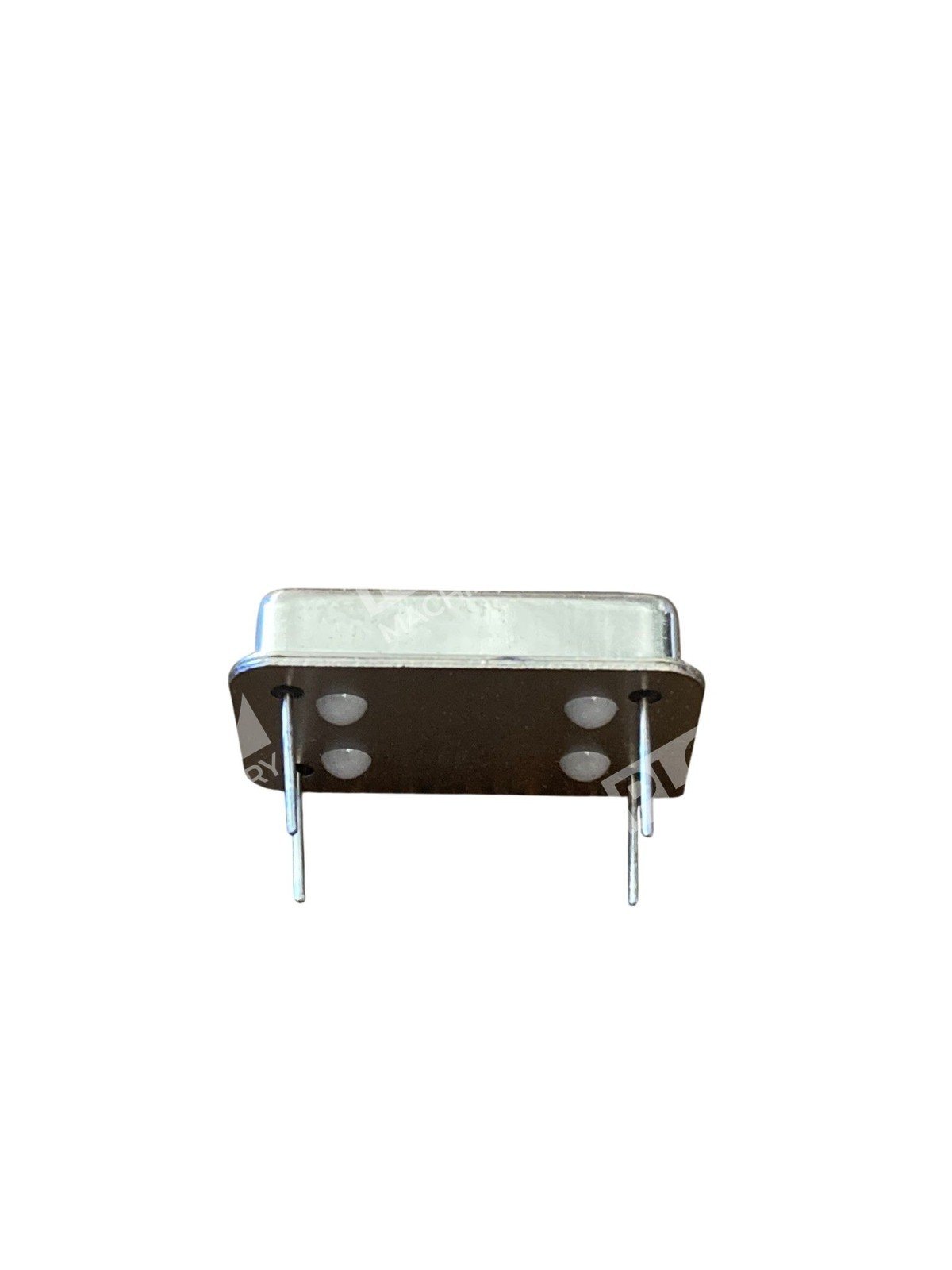

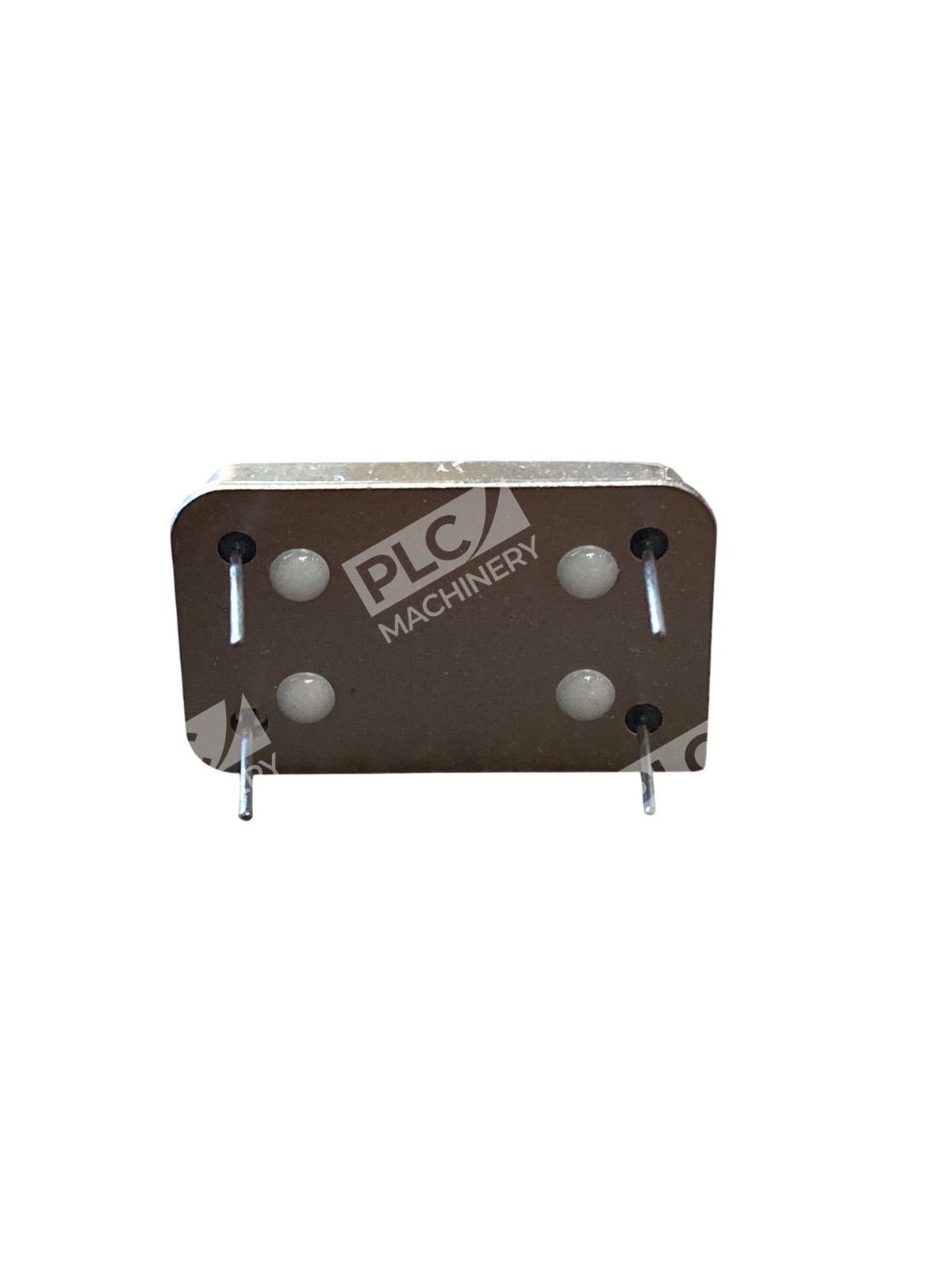

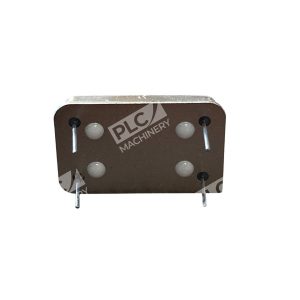

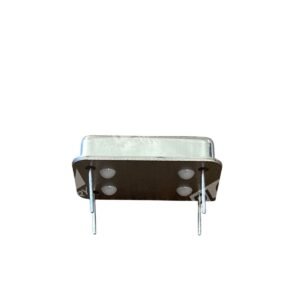

- Dimensions: Standard 14-pin DIP package, facilitating straightforward PCB mounting.
- Pin Configuration: Designed for compatibility with standard TTL logic circuits.
For detailed specifications and additional information, please refer to the official datasheet.
