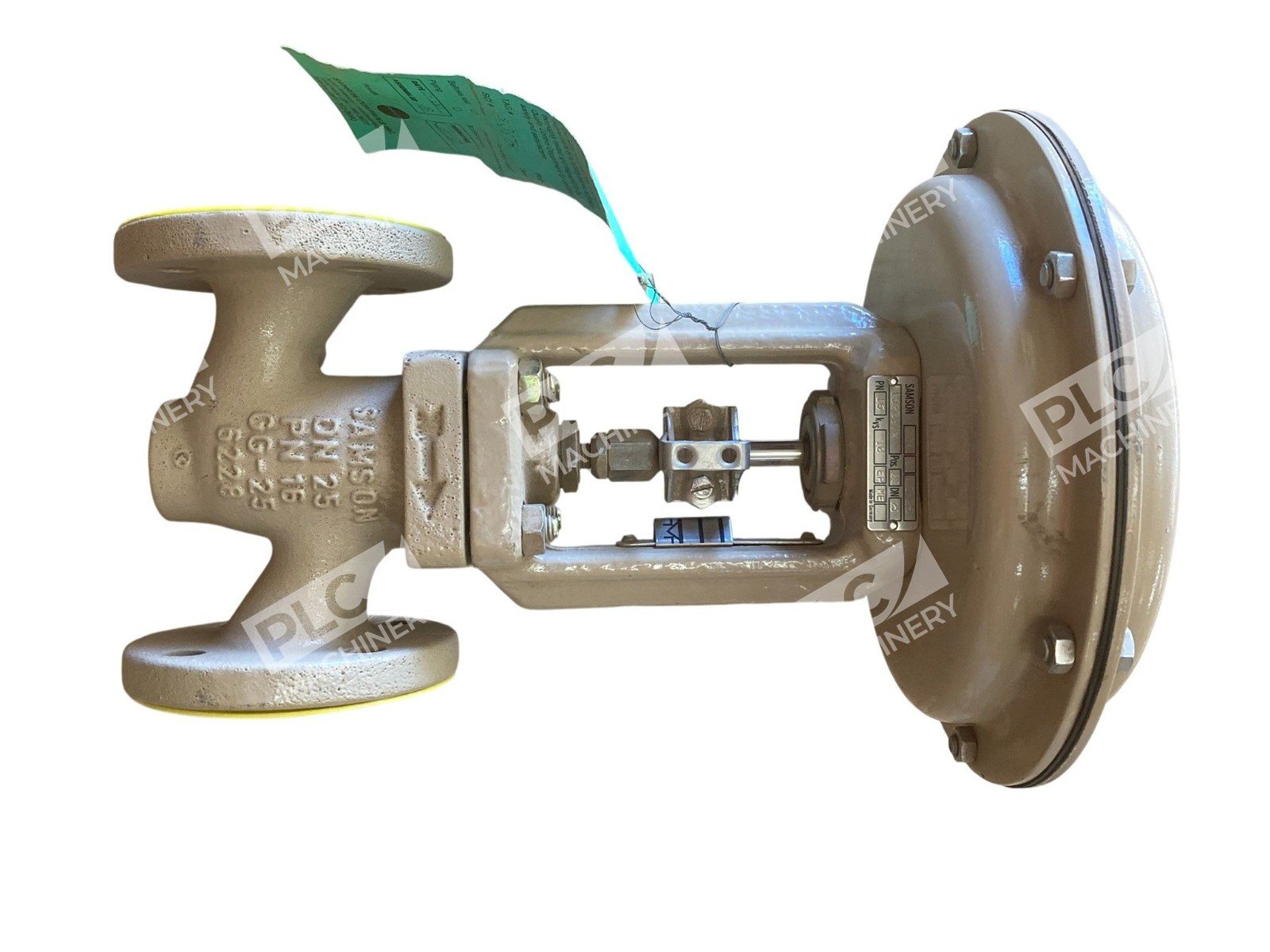

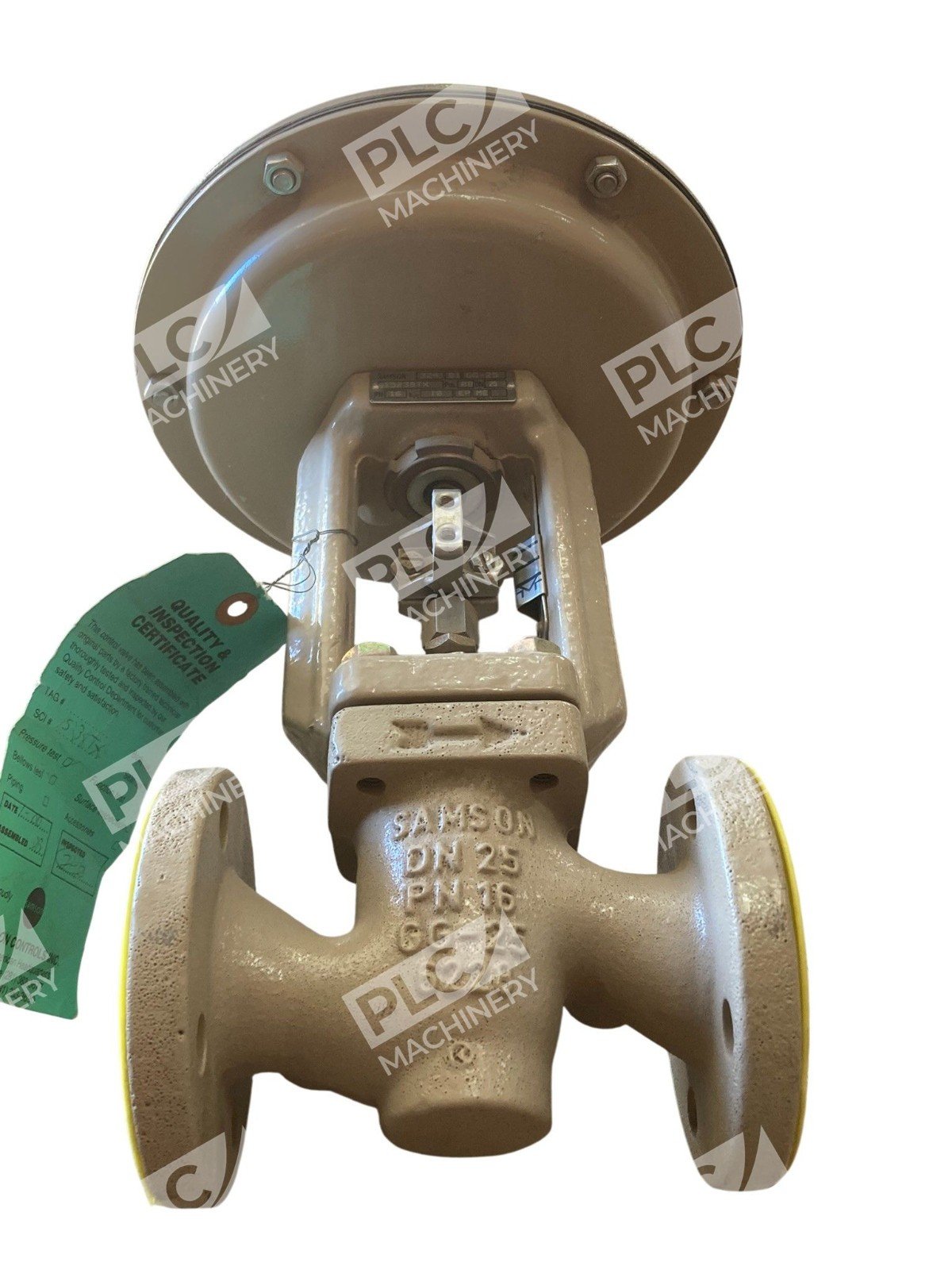

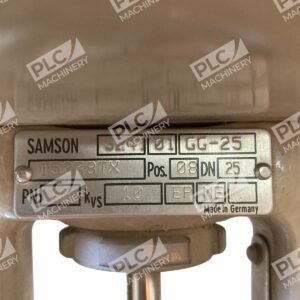

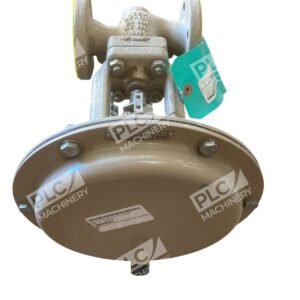

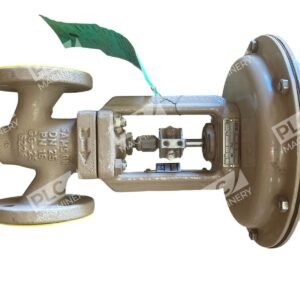

Samson 3241-01-GG-25 Globe Control Valve DN25 PN16 GG25 Pneumatic

Samson 3241-01-GG-25 Globe Control Valve DN25 PN16 GG25 Pneumatic

The Samson 3241-01-GG-25 is a high-performance globe control valve designed for precise regulation in various industrial applications. Engineered to meet DIN standards, this valve ensures reliable operation under diverse conditions.

Key Features

• Valve Style: Globe valve
• Usage: Suitable for low-pressure service, throttling service, and cryogenic service
• Version: DIN
• Medium Temperature Range: -196 to 450 °C (-320.8 to 842 °F)
• Supply: Pneumatic
• Valve Size: DN 25
• Pressure Rating: PN 16
• Lining: Without

Special Features

• Consists of a globe valve and actuator
• Optionally includes an RFID transponder with unique marking according to DIN SPEC 91406

Accessories

• Type 2 N Strainer
• Type 2 NI Strainer

Options

• Welding ends
• Adjustable packing
• Flow divider or AC-trim for noise reduction
• Insulating section or bellows seal
• Heating jacket
• Perforated plug
• Silencers

Compatible Actuators

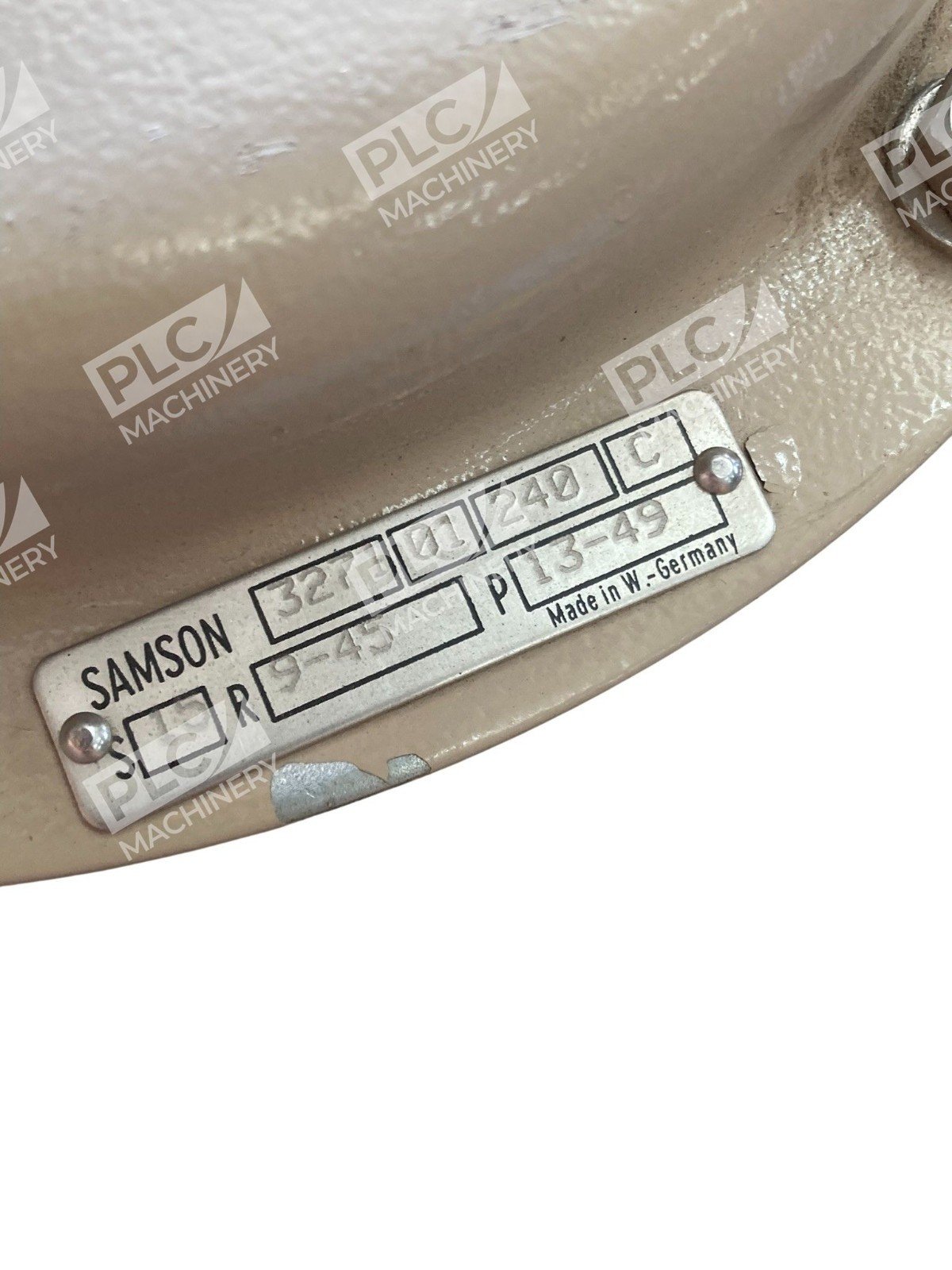

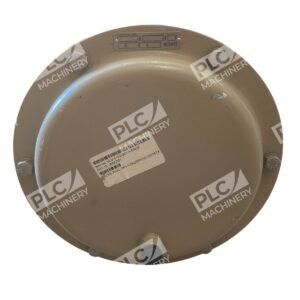

• 3271 – Pneumatic Actuator: Single-acting linear actuator with rolling diaphragm and internal springs, offering diaphragm areas from 120 to 2×2800 cm², low overall height, powerful thrust at high stroking speed, low friction, and various bench ranges by varying the number of springs or their compression.
• 3277 – Pneumatic Actuator: Similar to the 3271 but includes a yoke for direct attachment of accessories with concealed travel pick-off.
• 3273 – Handwheel: Spindle actuator with a non-rising handwheel, available in diameters of 180 or 250 mm, featuring low overall height, simple connection to the valve, and a locking mechanism to secure the valve stem position against accidental adjustment.

The Samson 3241-01-GG-25 Globe Control Valve is a versatile and reliable solution for precise flow control in various industrial processes, ensuring optimal performance and durability.
