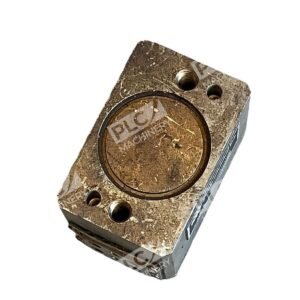

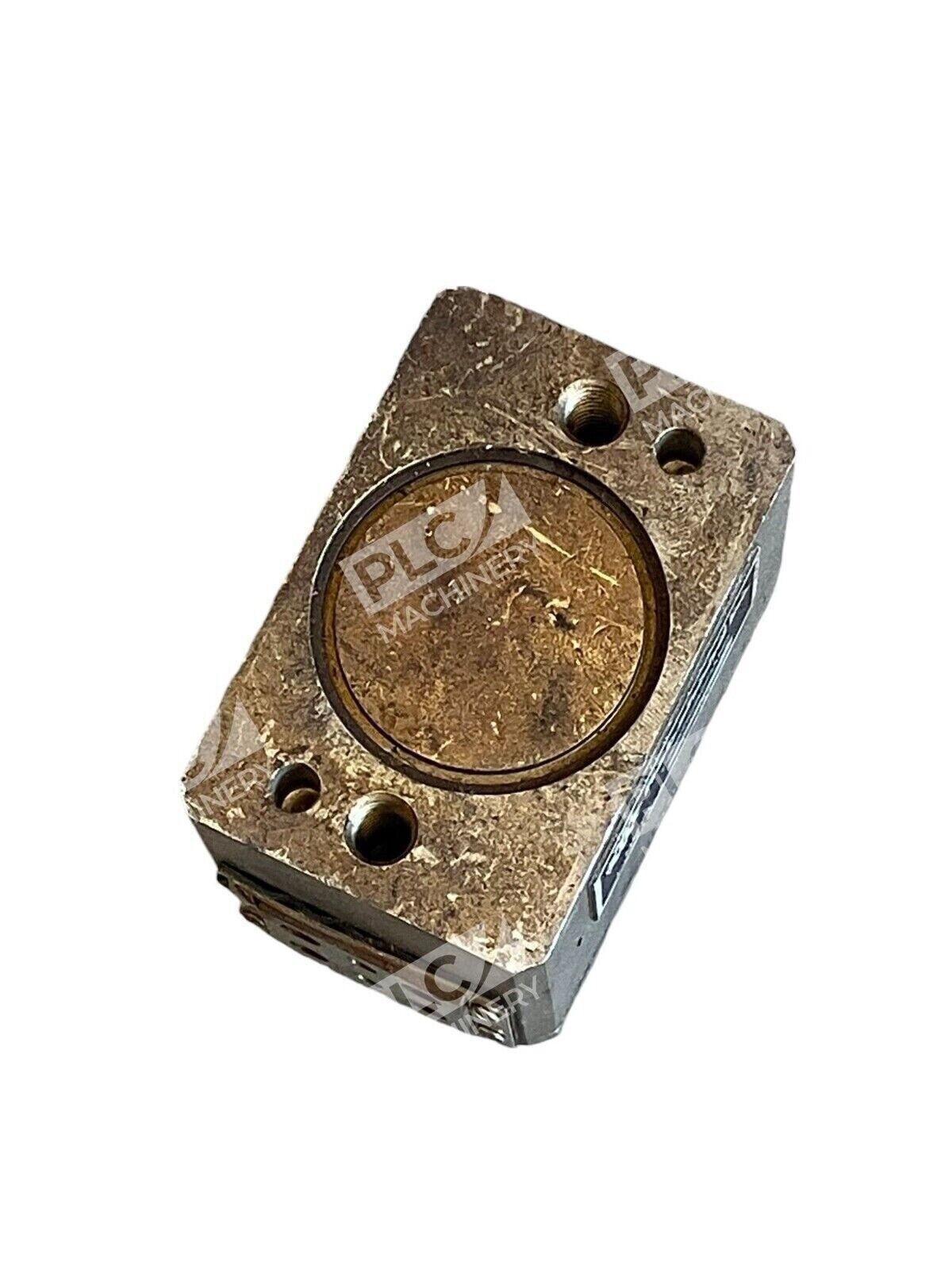

Robohand Parallel Gripper RP-17
The Robohand RP-17 is a robust 2-jaw parallel gripper, renowned for its durability and high gripping force relative to its size. Utilizing a patented double wedge design, this gripper delivers exceptional performance in various industrial applications.
Key Features
- High Grip Force: Delivers a grip force of 220 lbf (979 N), ensuring secure handling of components.
- Precision and Repeatability: Offers an accuracy of ±0.003 inches and repeatability of ±0.001 inches, facilitating consistent operations.
- Versatile Stroke Length: Features a stroke length of 0.75 inches (19.1 mm), accommodating a range of part sizes.
- Durable Construction: Internally sealed to withstand hostile environments, enhancing longevity and reliability.
- Temperature Resilience: Operates effectively within a standard temperature range of -35°C to 80°C (-30°F to 180°F), with an optional Viton seal extending the range to -30°C to 150°C (-20°F to 300°F).
Technical Specifications
- Maximum Finger Length: 5 inches (127 mm)
- Cylinder Bore: 1.813 inches (46.1 mm)
- Pressure Range: 40-100 psi
- Actuation Time (Open/Closed): 0.18 seconds
- Weight: 2.2 lbs (1 kg)
Applications
The RP-17 is ideal for a variety of industrial applications, including:
- Inline part pressing operations
- OEM machine pick and place tasks
- Packaging processes
- Automotive assembly lines
Its rugged design and high impact resistance make it suitable for demanding environments where reliability and precision are paramount.
