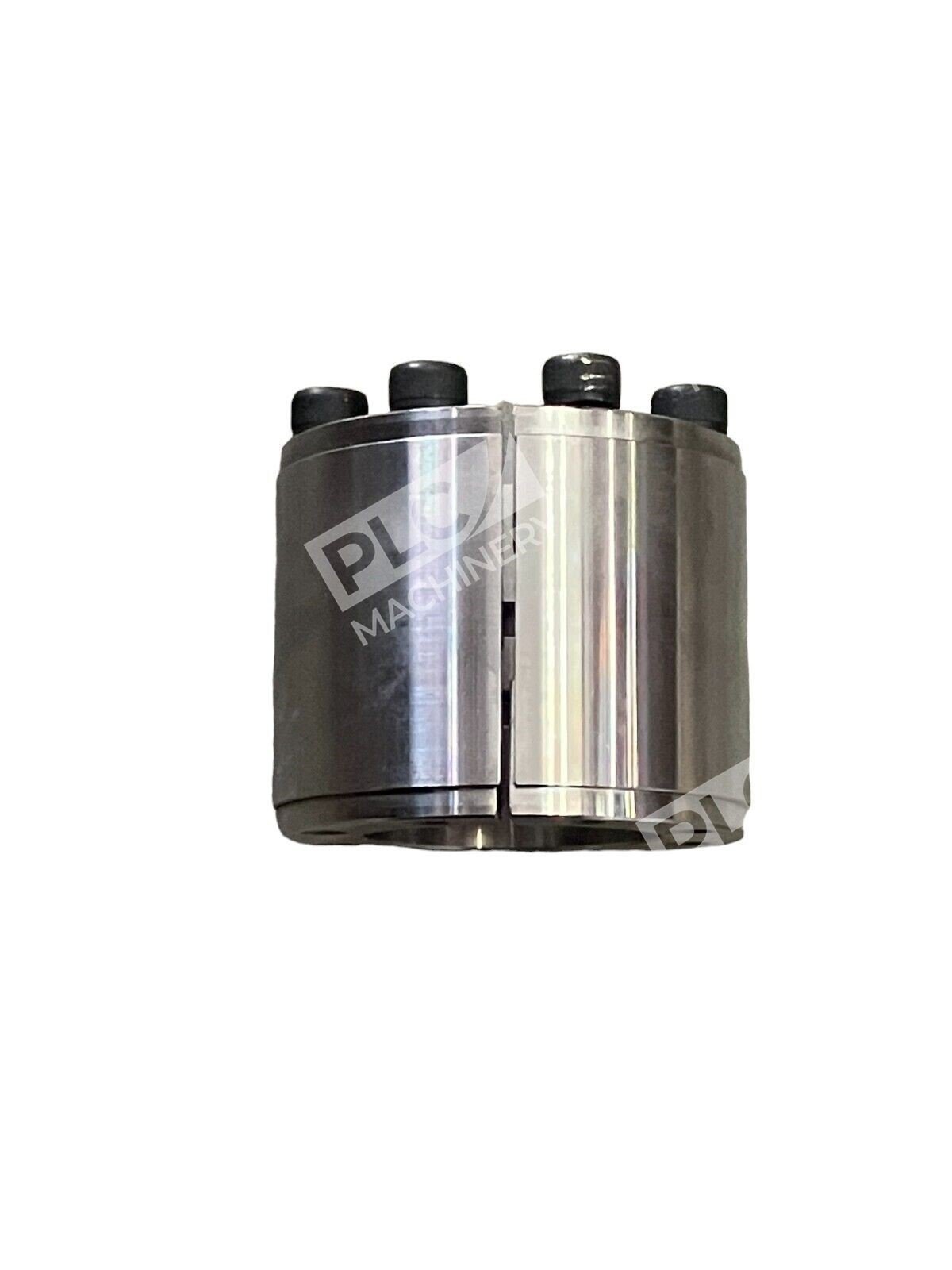

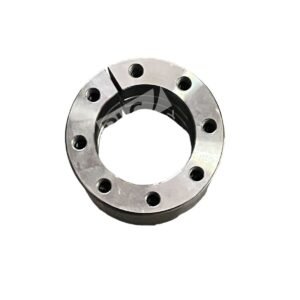

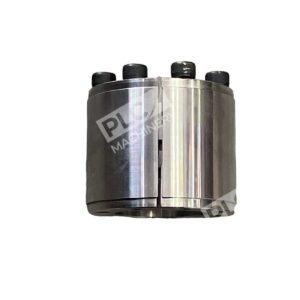

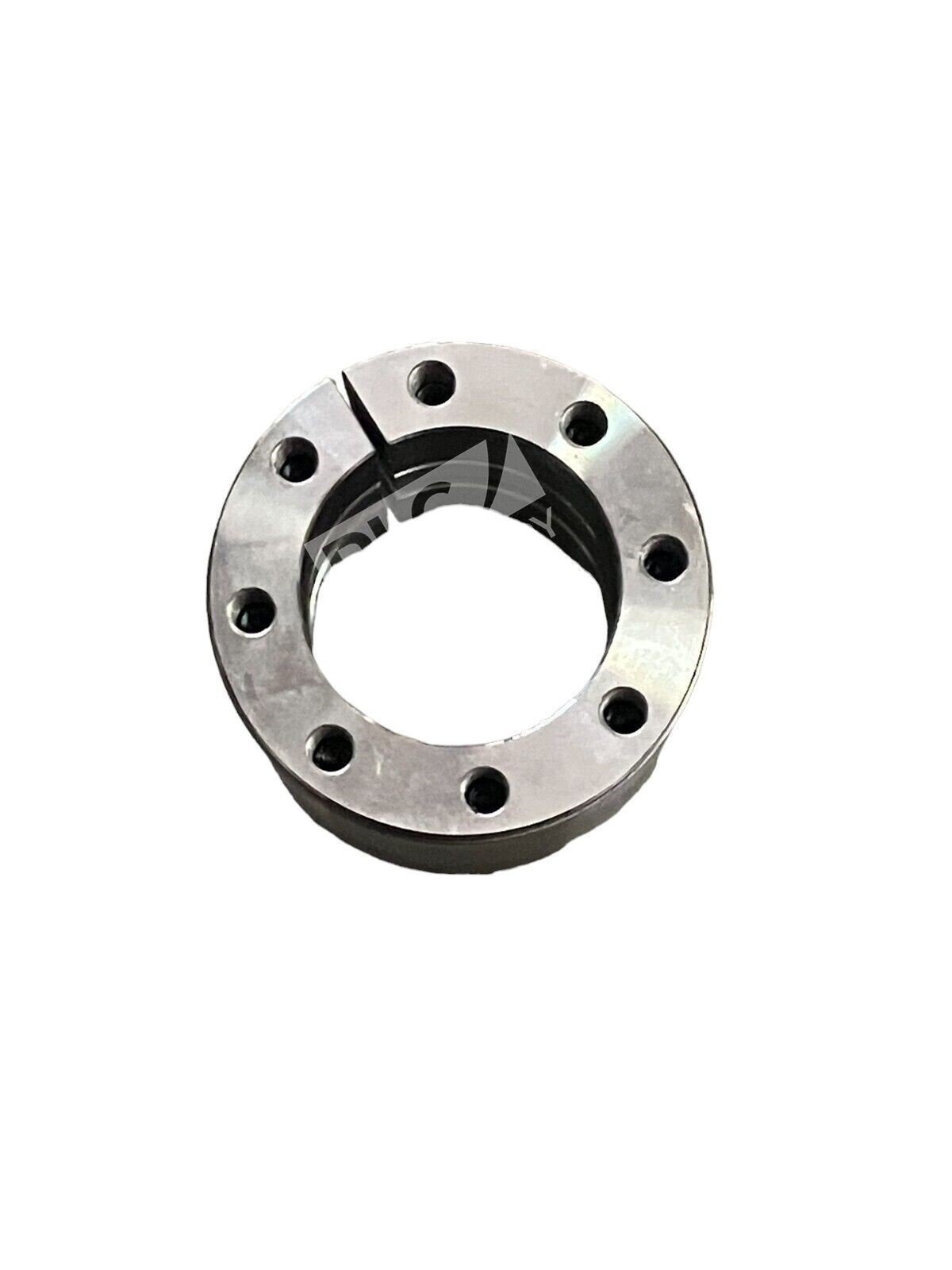

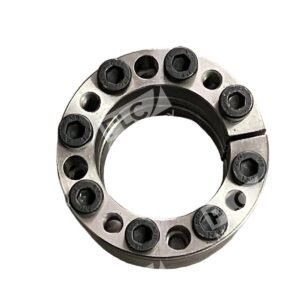

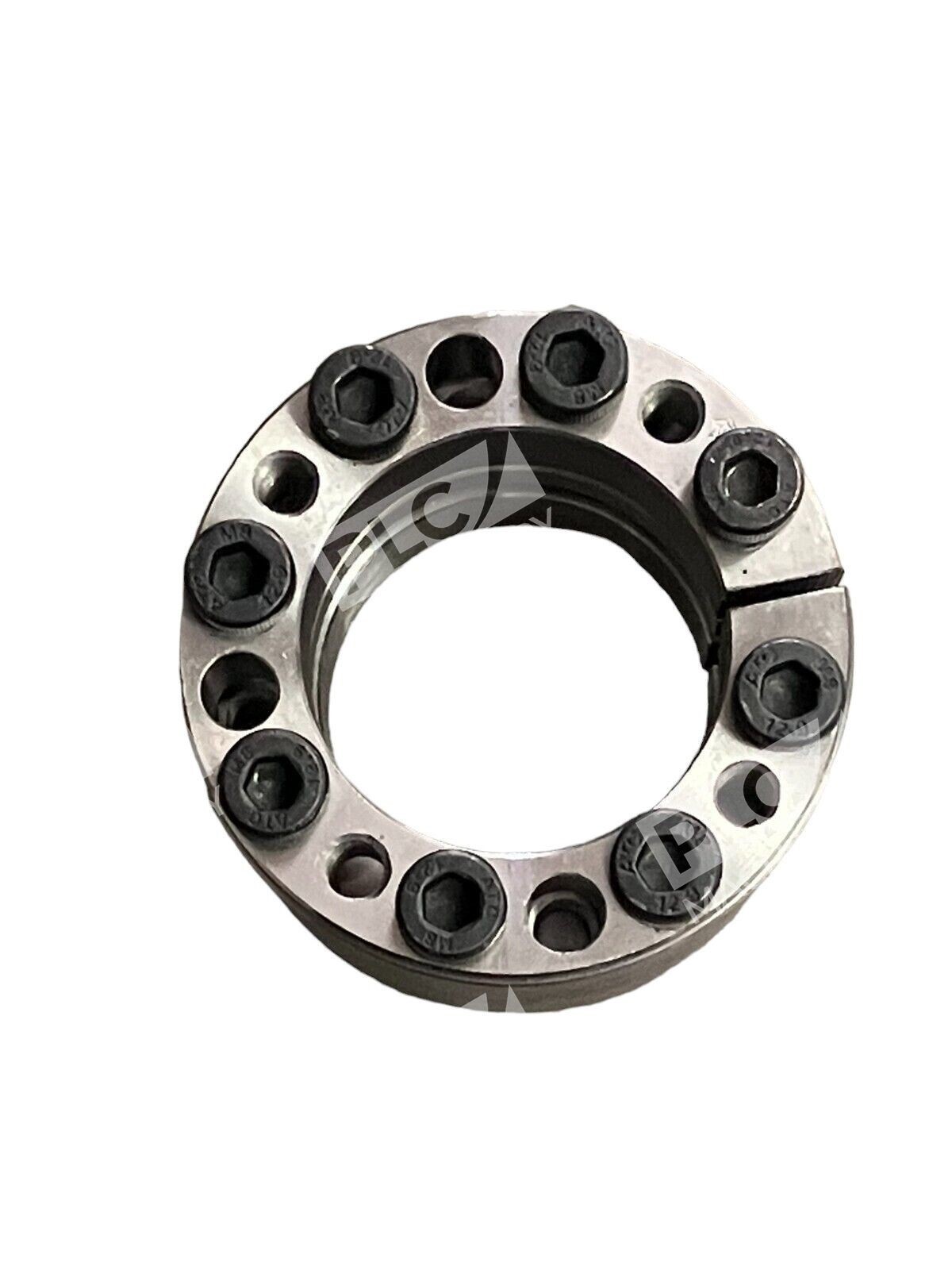

Ringfeder 7005 ECOLOC 50X80 Self-Locking Bushing Hub

Ringfeder 7005 ECOLOC 50X80 Self-Locking Bushing Hub

The Ringfeder 7005 ECOLOC 50X80 is a high-performance, three-piece, self-centering locking assembly engineered for applications requiring the transmission of substantial torques and bending moments. Its design ensures a secure, keyless connection between shafts and hubs, enhancing the reliability and efficiency of mechanical systems.

Key Features

• Self-Centering Design: Facilitates precise alignment during installation, reducing the need for additional centering devices.
• High Torque Transmission: Capable of transmitting significant torque, making it suitable for heavy-duty applications.
• Three-Piece Construction: Comprises an inner ring and two thrust rings, which work together to create a robust and secure connection.
• Minor Axial Displacement: During assembly, the hub experiences minimal axial movement, ensuring consistent performance.
• Separate Release Threads: The front and rear thrust rings can be released independently through dedicated threads, simplifying disassembly and maintenance.

Specifications

• Inner Diameter: 50 mm
• Outer Diameter: 80 mm
• Overall Length: 74 mm
• Hub Surface Pressure: 90 N/mm²
• Transmissible Axial Force: 155 kN
• Weight: 1.4 kg

Applications

The Ringfeder 7005 ECOLOC 50X80 is ideal for use in various industrial sectors, including:

• Heavy machinery
• Conveyor systems
• Pumps and compressors
• Wind turbines
• Material handling equipment

Its robust construction and reliable performance make it a preferred choice for engineers seeking efficient and maintenance-friendly locking solutions.
