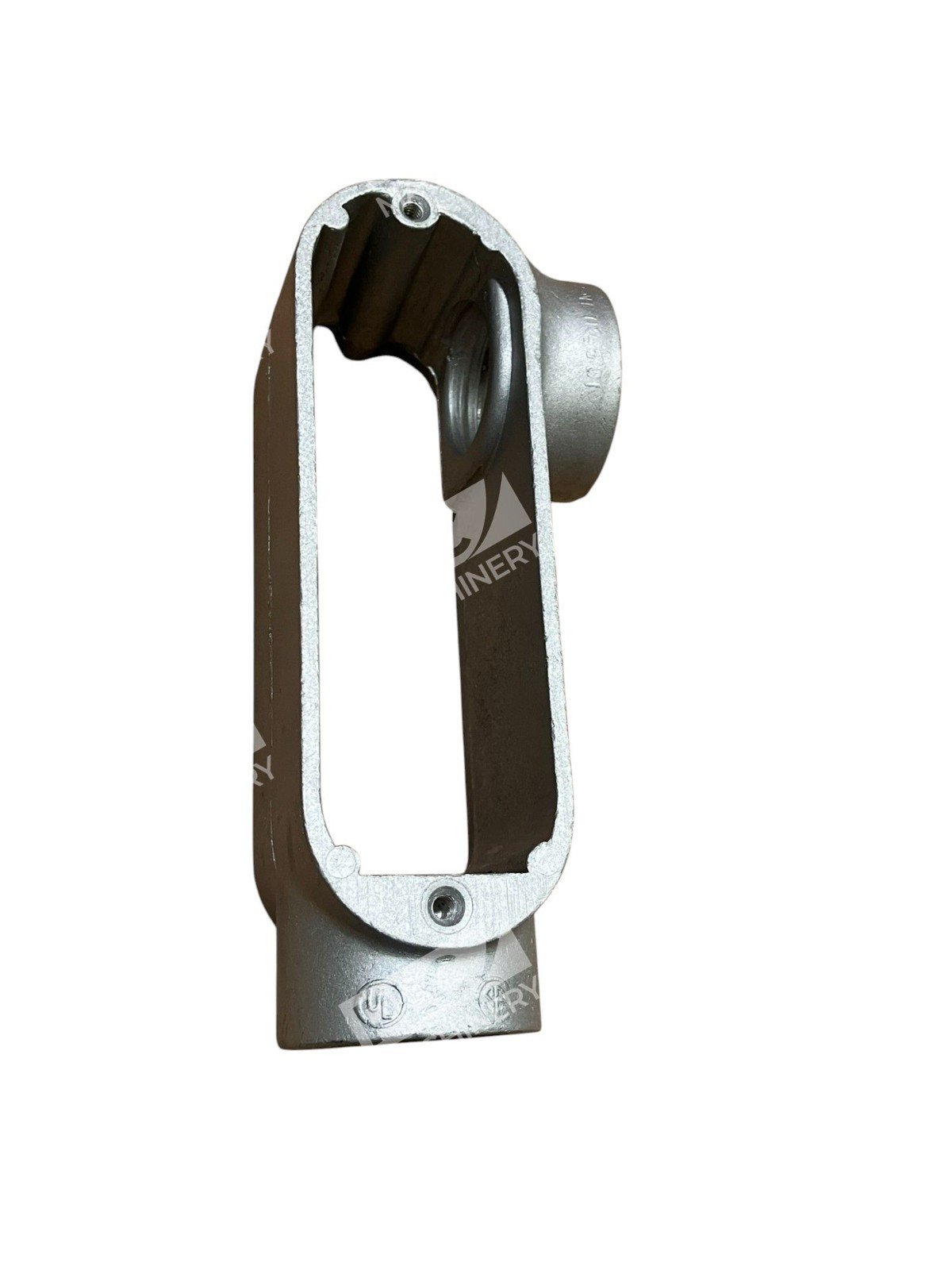

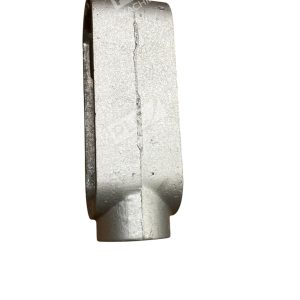

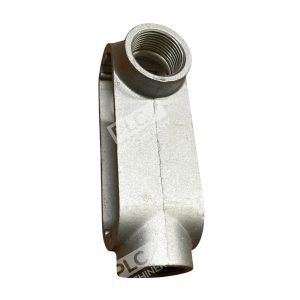

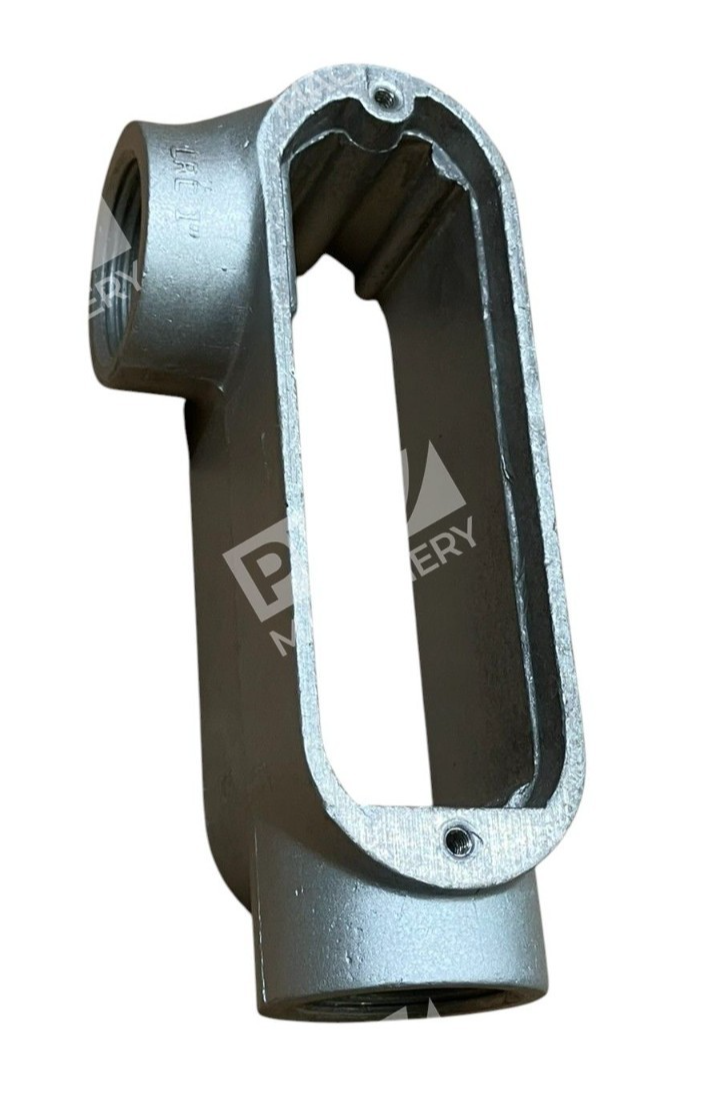

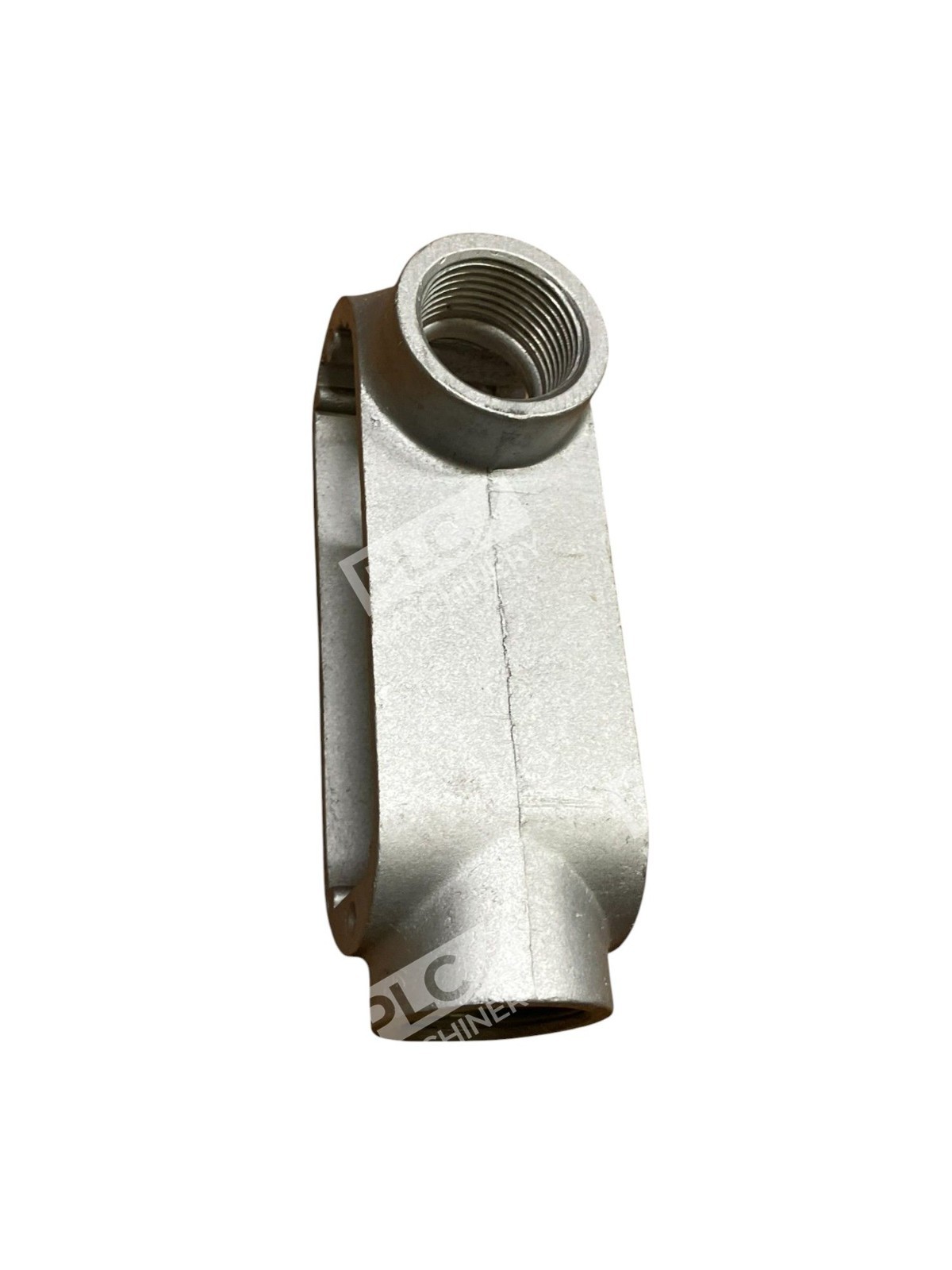

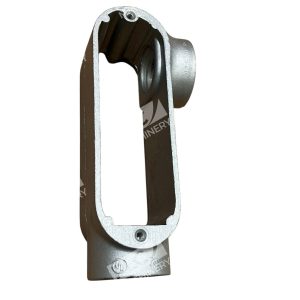

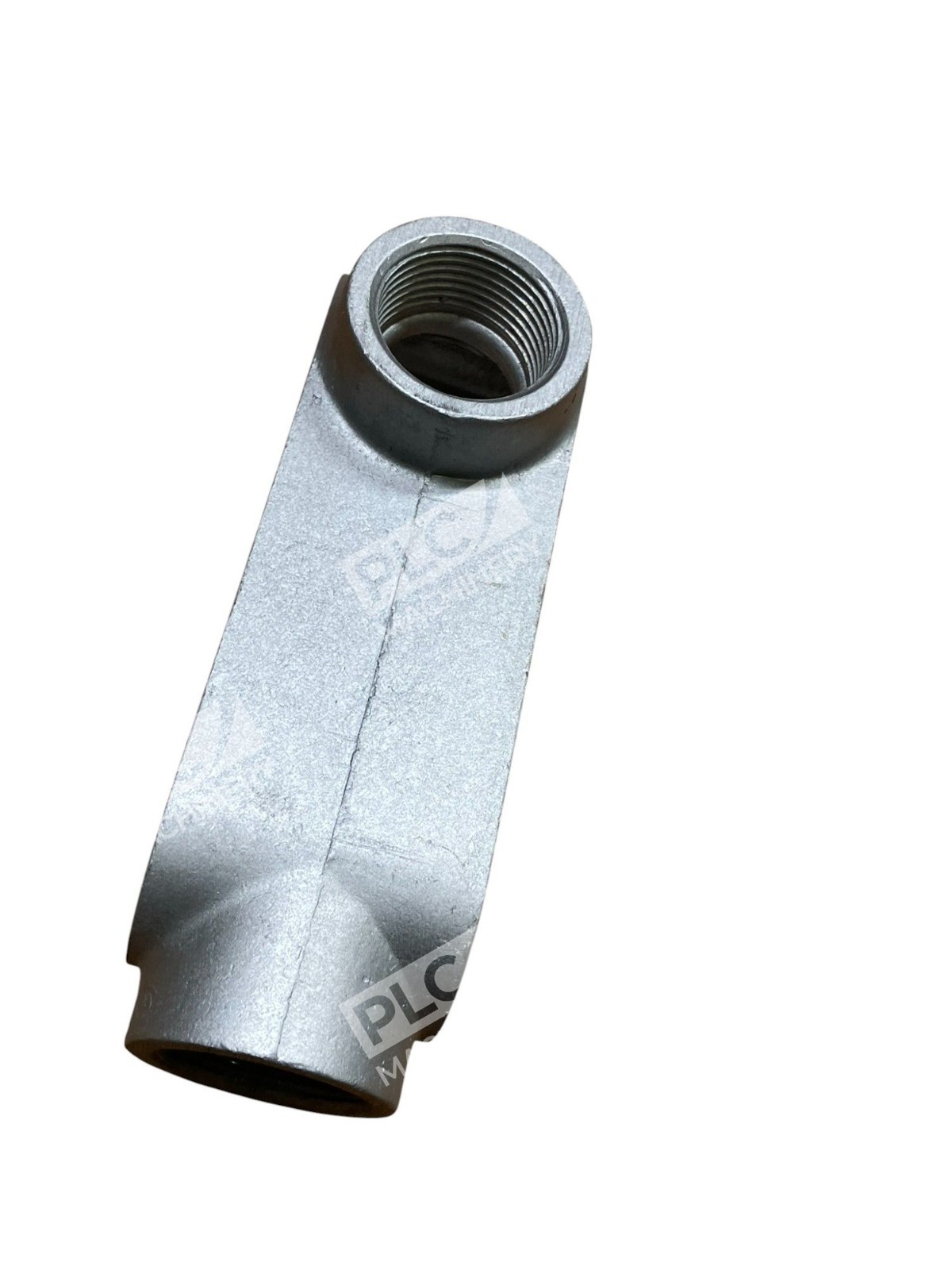

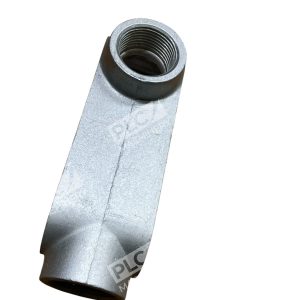

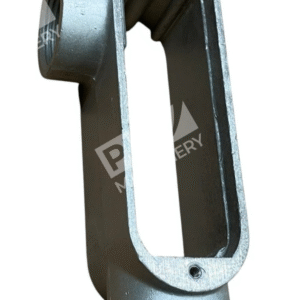

Rigid Conduit Outlet Body LRL 1″

The 1-inch Rigid Conduit Outlet Body, Type LRL, is an essential component in electrical conduit systems, designed to facilitate wire pulling, splicing, and directional changes in conduit runs.

Key Features

• Material: Constructed from high-strength malleable iron, offering exceptional durability and resistance to corrosion, impact, and shock.
• Finish: Features a triple-coat finish comprising zinc electroplate, chromate, and epoxy powder coating, ensuring enhanced protection against environmental factors.
• Design: The flat-back design allows for easy mounting against flat surfaces, optimizing space utilization.
• Hub Size: Equipped with 1-inch hubs, suitable for standard conduit connections.
• Capacity: Offers a cubic capacity of 12.5 cubic inches, providing ample space for wiring needs.
• Threading: Accurately tapped, tapered threads ensure tight, rigid joints and excellent ground continuity.
• Integral Bushings: Smooth, rounded integral bushings in each hub protect conductor insulation during installation and maintenance.

Applications

This conduit outlet body is designed to:

• Serve as a pulling fitting for conductors being installed.
• Make 90-degree bends in conduit systems.
• Provide openings for splicing and maintenance.
• Connect and change the direction of conduit runs.
• Allow connections for branch runs.
• Permit access to conductors for future system changes.

Specifications

• Dimensions: 6.25 inches in length, 2.56 inches in width, and 2.69 inches in height.
• Enclosure Rating: NEMA FB-1, suitable for various environmental conditions.
• Form Type: Form 35, ensuring compatibility with standard conduit systems.
• Connection Type: Tapered female NPT threads for secure and reliable connections.
• Mounting Type: Surface mounting, facilitating straightforward installation.
• Standards Compliance: UL 514A/514B/E2527 listed, CSA C22.2 No. 18.3/065183 certified, and meets NEMA FB-1 standards, ensuring adherence to industry regulations.

The 1-inch Rigid Conduit Outlet Body, Type LRL, is a reliable and durable solution for managing conduit systems, providing ease of installation and maintenance while ensuring the protection and organization of electrical wiring.
