Rice Lake RL20000 ST-500 lb Weighing Systems

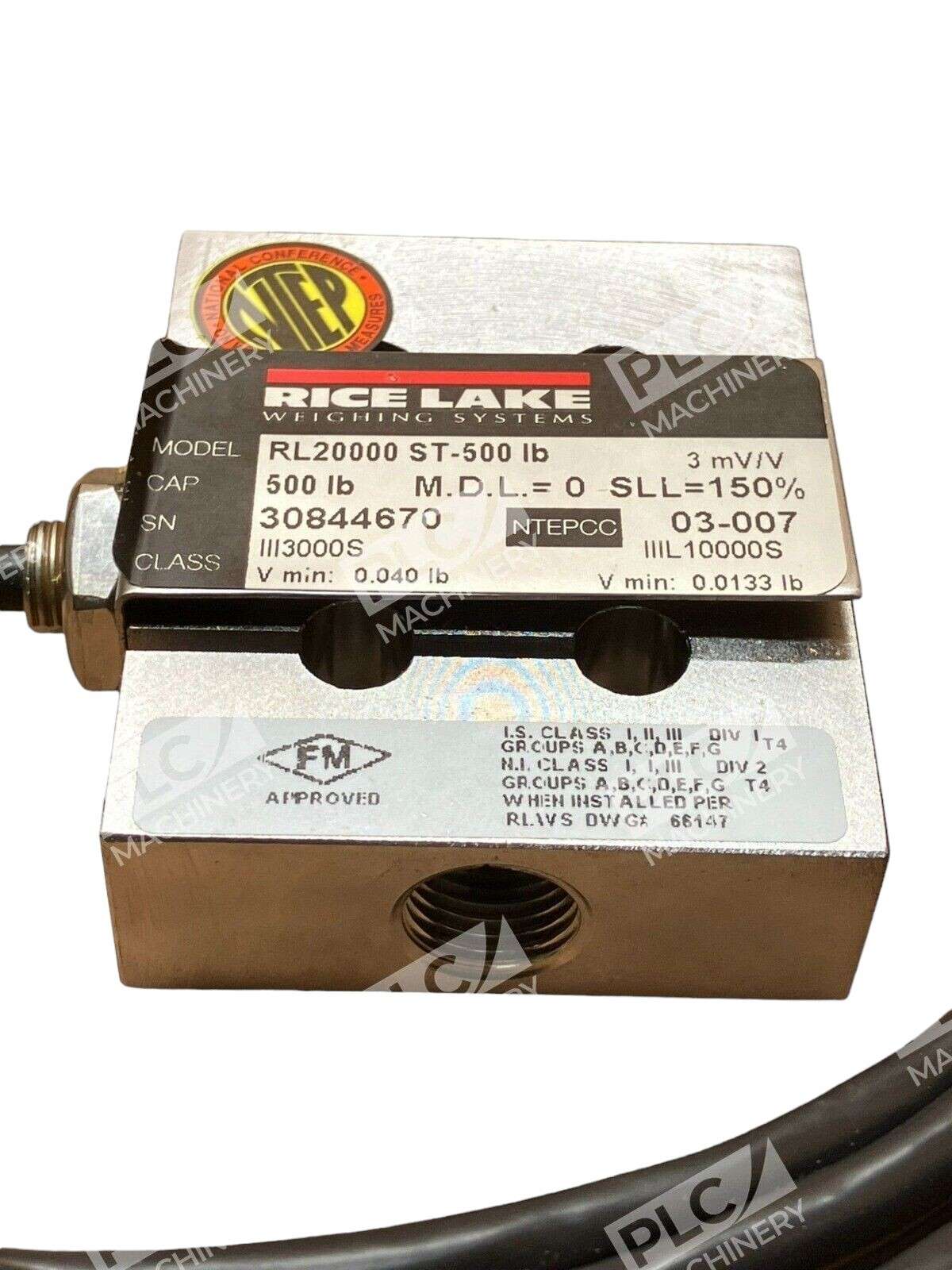

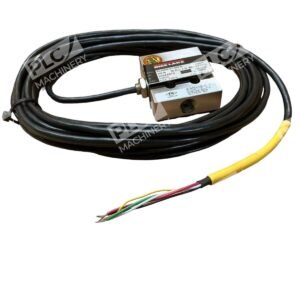

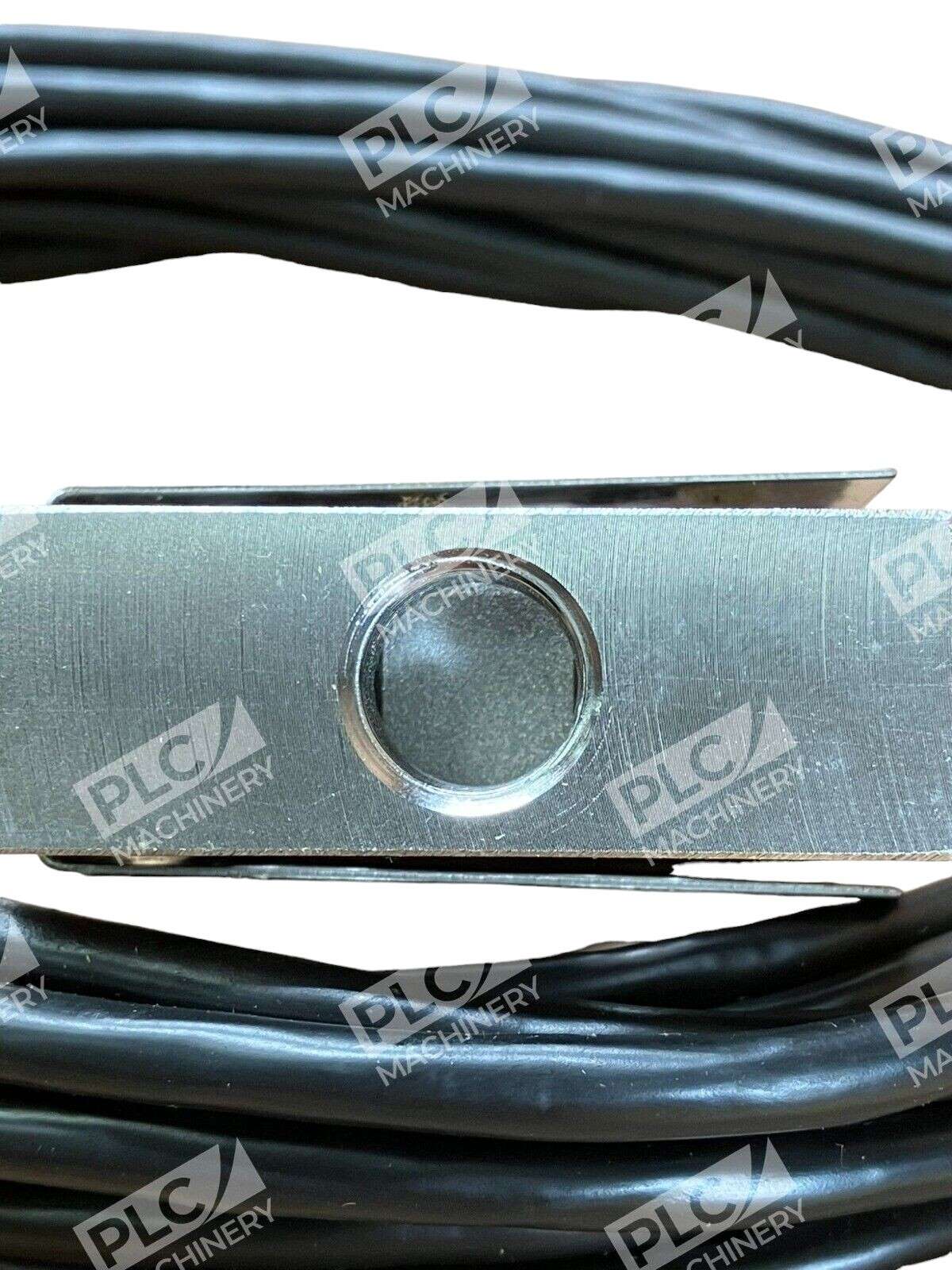

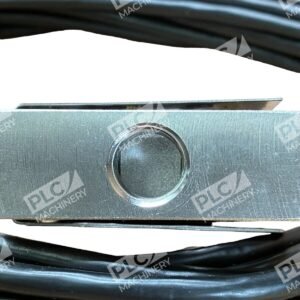

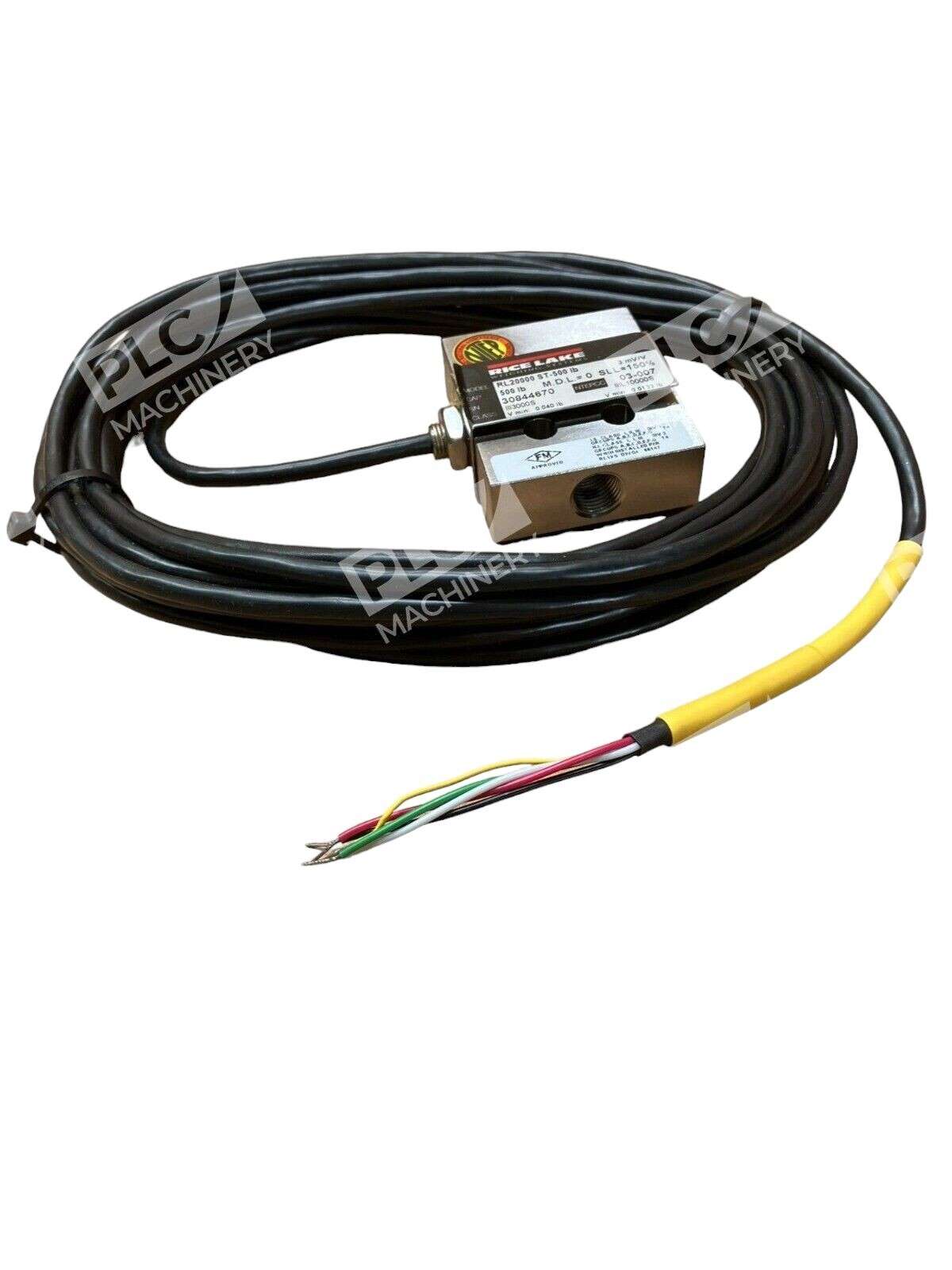

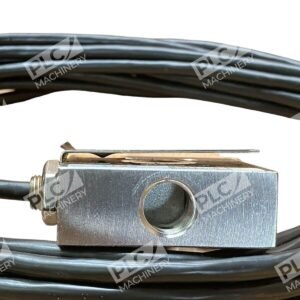

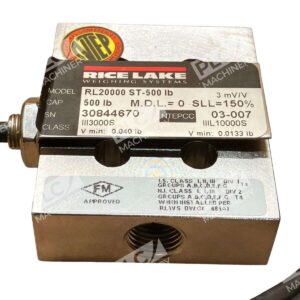

Rice Lake RL20000 ST-500 lb Weighing System

The Rice Lake RL20000 ST-500 lb Weighing System is a high-precision, stainless steel S-beam load cell designed for versatile weighing applications. With a capacity of 500 pounds, it is ideal for both tension and compression measurements in various industrial settings.

Key Features

• Stainless Steel Construction: Ensures durability and resistance to corrosion, making it suitable for use in dry, corrosive environments.
• Compact Design: Its miniature envelope allows for integration into a wide range of weighing systems without occupying excessive space.
• Versatile Applications: Perfect for suspended applications, mechanical scale conversions, and general-purpose weighing tasks.
• Environmental Protection: The load cell is environmentally sealed to an IP67 rating, providing protection against dust and water ingress.
• Standard Cable Length: Comes equipped with a 20-foot polyurethane cable, facilitating easy installation and connectivity.

Specifications

• Capacity: 500 lb
• Material: Stainless Steel
• Output: 3.0 mV/V
• Input Resistance: 385 ± 5 ohms
• Output Resistance: 350 ± 3 ohms
• Safe Overload: 150% of full scale
• Operating Temperature Range: -40°F to 150°F (-40°C to 65°C)
• Compensated Temperature Range: 14°F to 104°F (-10°C to 40°C)
• Seal Type: IP67 Environmentally Sealed

The RL20000 ST-500 lb load cell is engineered to deliver accurate and reliable performance, making it a valuable component for various industrial weighing applications.
