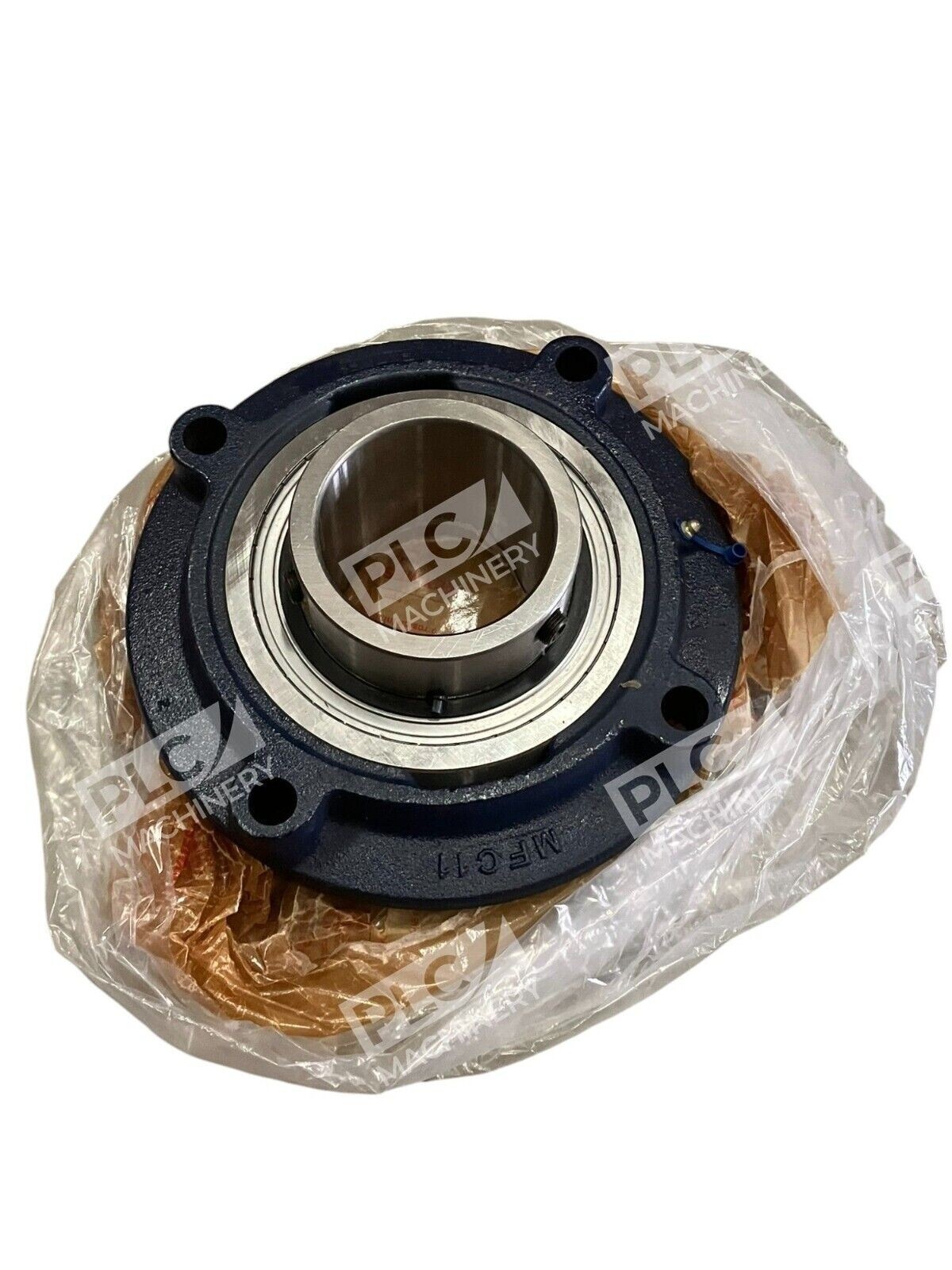

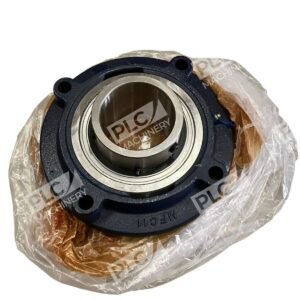

RHP 4 Bolt Flanged Bearing MFC11

RHP 4 Bolt Flanged Bearing MFC11

The RHP 4 Bolt Flanged Bearing MFC11 is a robust and reliable bearing unit designed for heavy-duty applications. Its round flange housing, equipped with four bolt holes, ensures secure attachment to machinery, providing stability and support in demanding industrial environments.

Key Features

• Durable Construction: The housing is made from high-quality cast iron, offering exceptional strength and longevity.
• Secure Mounting: The four-bolt round flange design allows for easy and firm attachment to various machinery setups.
• Self-Lubricating Insert: Equipped with a self-lubricating bearing insert, it reduces maintenance requirements and enhances operational efficiency.
• Versatile Application: Suitable for a wide range of industrial applications, including conveyors, fans, and other rotating equipment.

Technical Specifications

• Shaft Diameter: 3.15/16 inches (100.01 mm)
• Basic Bearing Insert: 3095
• Housing Group: MFC11
• Dimensions (mm):
  • L: 298.4
  • H: 228.6
  • J: 260.4
  • G: 20
  • A1: 88.90
  • A4: 46.0
  • A5: 12.7
  • B: 117.48
  • S: 49.31
• ISO Load Ratings (Newtons):
  • Dynamic: 157,000
  • Static: 122,000
• Recommended Maximum Speed: 1,600 revolutions per minute
• Mass: 17.7 kg

The RHP MFC11 bearing unit is engineered to deliver reliable performance and durability, making it an ideal choice for industries requiring robust bearing solutions.
