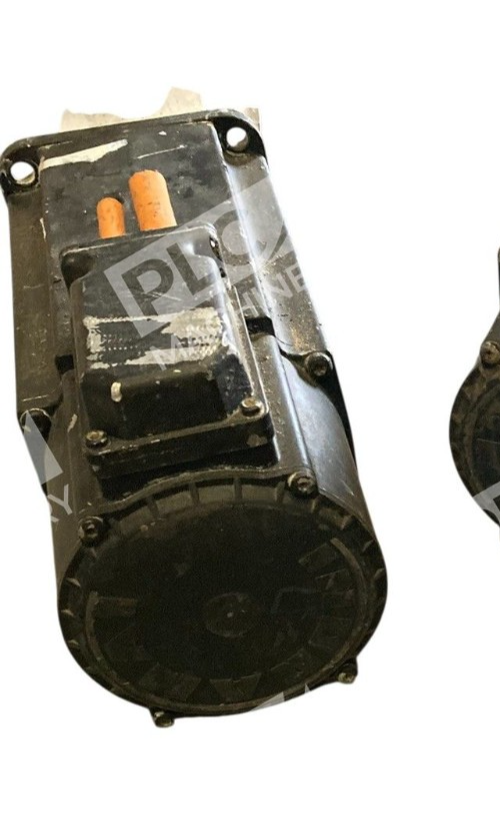

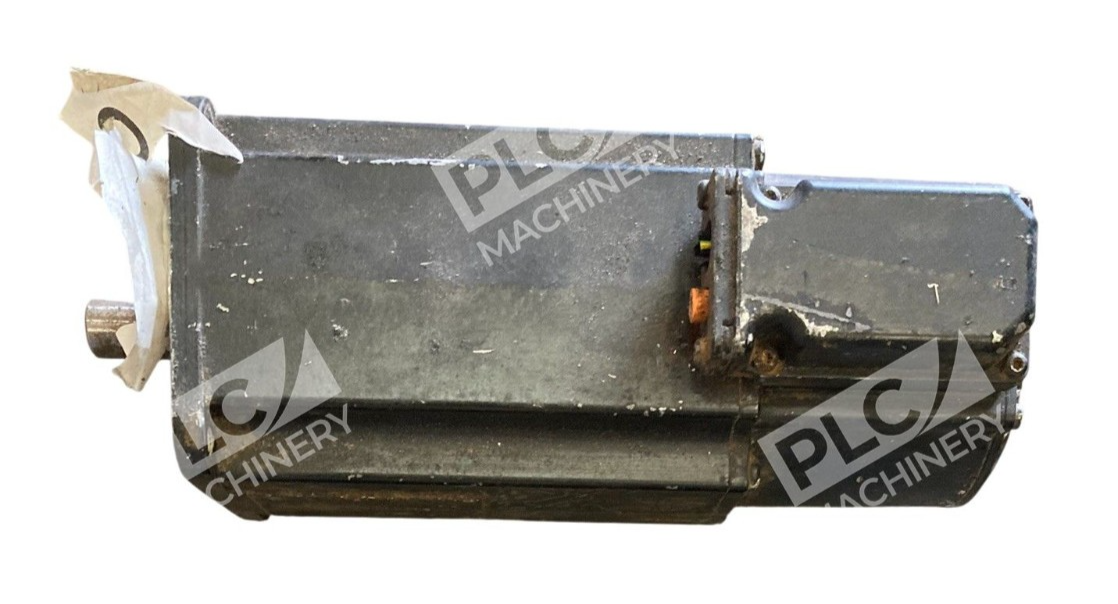

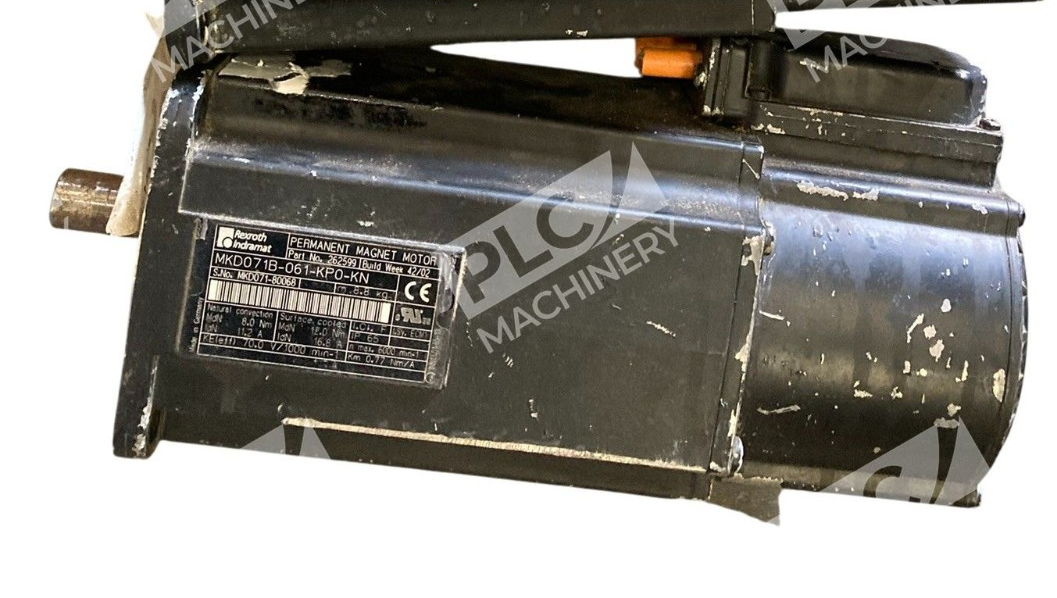

Rexroth Indramat MKD071B-061-KP0-KN Permanent Magnet Servo Motor

Rexroth Indramat MKD071B-061-KP0-KN Permanent Magnet Servo Motor

The Bosch Rexroth Indramat MKD071B-061-KP0-KN is a high-performance, three-phase permanent magnet synchronous servo motor engineered for precision motion control in industrial automation applications. This motor is part of the MKD series, renowned for its reliability and efficiency in demanding environments.

Key Features

• Continuous Torque at Standstill: 8.0 Nm
• Peak Torque: 32 Nm
• Rated Speed: 4500 RPM
• Maximum Speed: 6000 RPM
• Torque Constant: 0.77 Nm/A
• Continuous Current at Standstill (100K): 13.2 A
• Peak Current: 50.4 A
• Winding Resistance: 1.45 Ohms
• Inductance: 7.2 mH
• Rotor Inertia: 8.7 x 10⁻⁴ kg·m²
• Protection Rating: IP65
• Operating Temperature Range: 0°C to 40°C
• Storage Temperature Range: -20°C to +80°C
• Weight: 8.8 kg

Design and Construction

The MKD071B-061-KP0-KN features a shaft with keyway, ensuring secure mechanical coupling and efficient torque transmission. The integrated shaft seal provides protection against contaminants, enhancing the motor’s durability. The motor’s housing is designed to meet IP65 standards, offering complete protection against dust ingress and low-pressure water jets, making it suitable for harsh industrial environments.

Feedback and Control

Equipped with resolver feedback with an integrated encoder, the motor offers absolute position detection over more than 4096 revolutions. This ensures precise control and accurate positioning, essential for applications requiring high precision and repeatability.

Applications

The MKD071B-061-KP0-KN is ideal for a wide range of industrial applications, including:

• Robotics
• CNC Machinery
• Packaging Systems
• Printing Machines
• Food Processing Equipment

Its robust design and high-performance characteristics make it suitable for tasks demanding consistent torque delivery, precise positioning, and reliable operation under varying load conditions.

Conclusion

The Bosch Rexroth Indramat MKD071B-061-KP0-KN servo motor combines advanced engineering with durable construction to deliver exceptional performance in industrial automation. Its precise control capabilities, coupled with a robust design, ensure reliable and efficient operation across a broad spectrum of applications.
